Multiplex Communication System [BEAN] Part 1

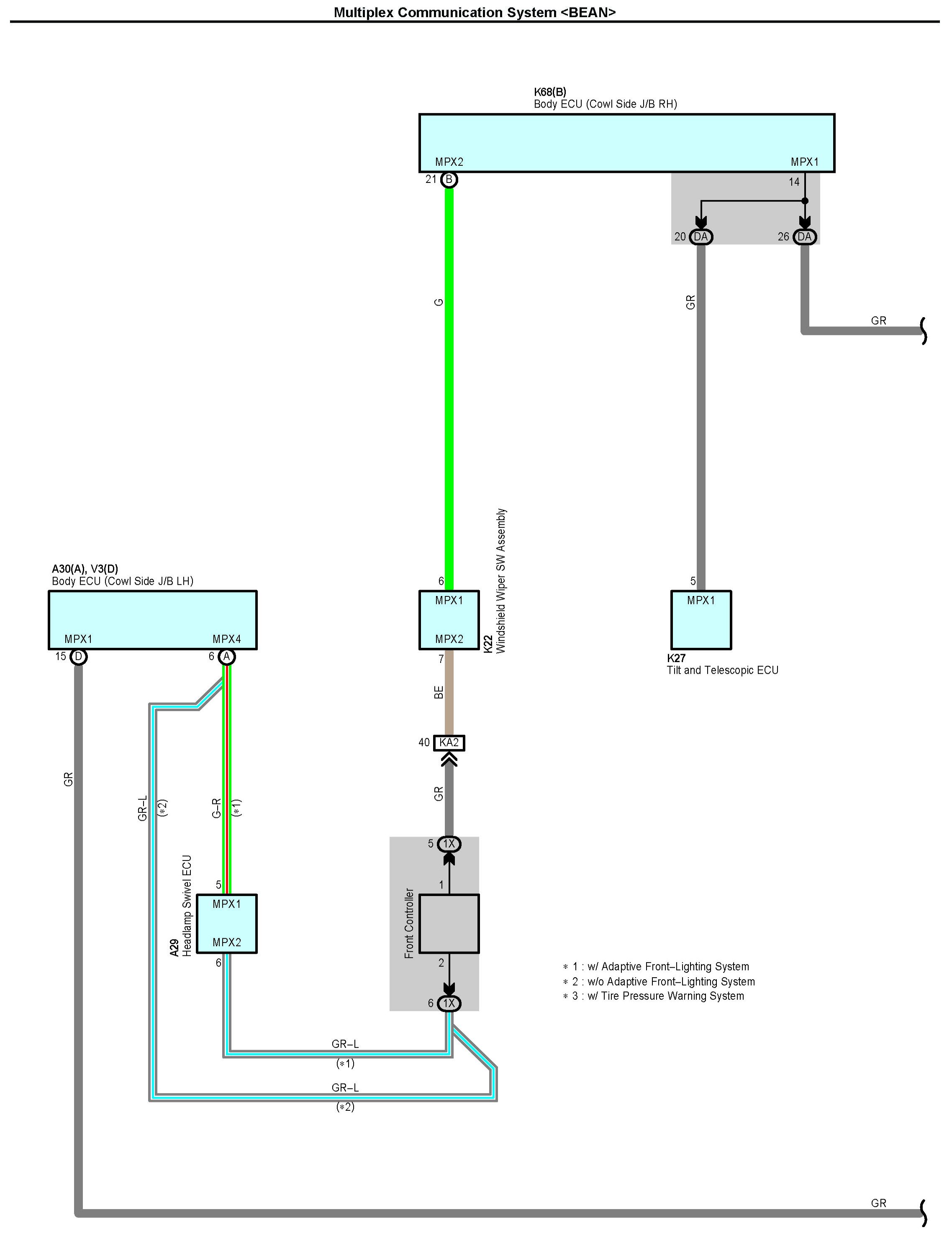

Multiplex Communication System [BEAN] Part 1:

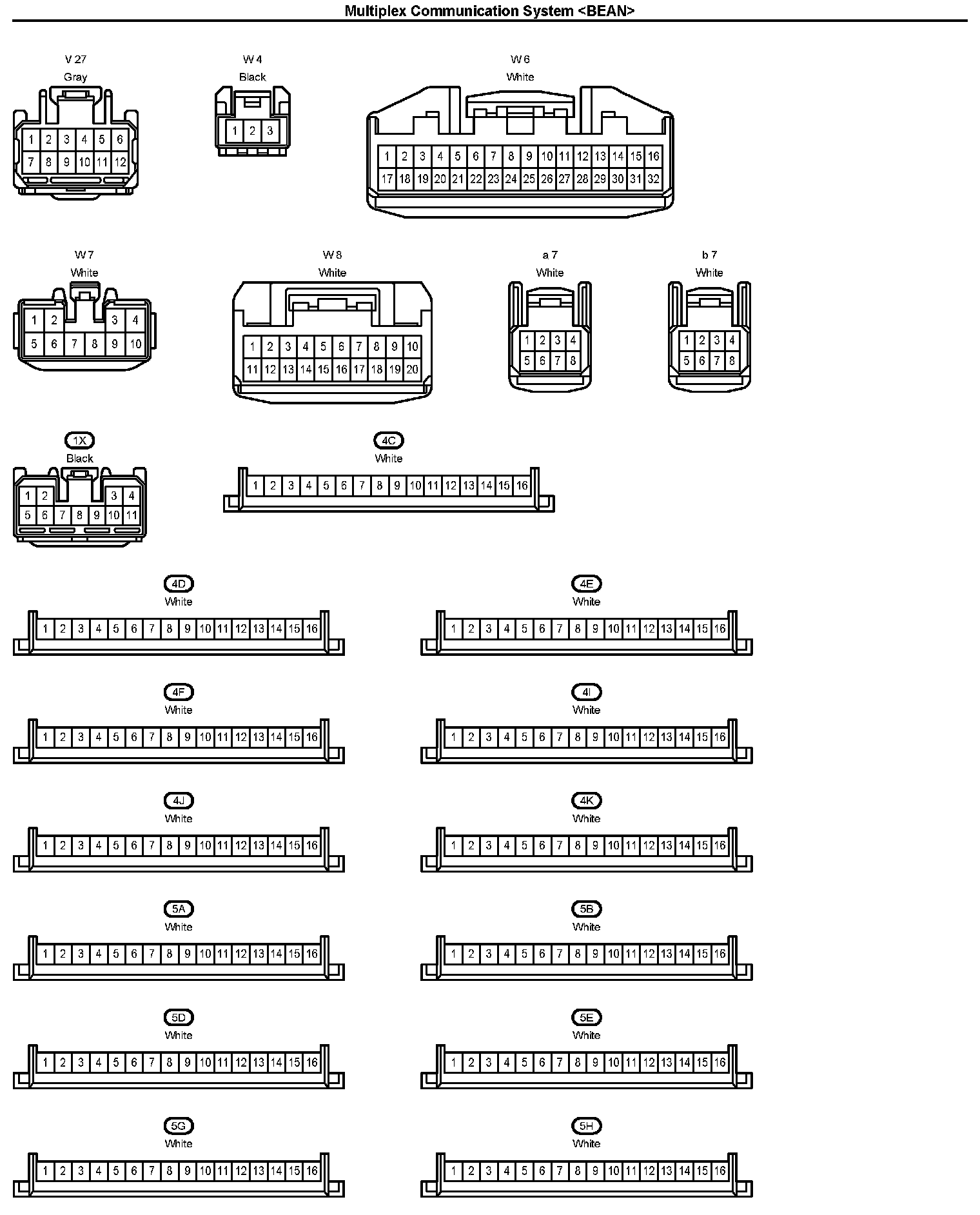

Connectors Part 1:

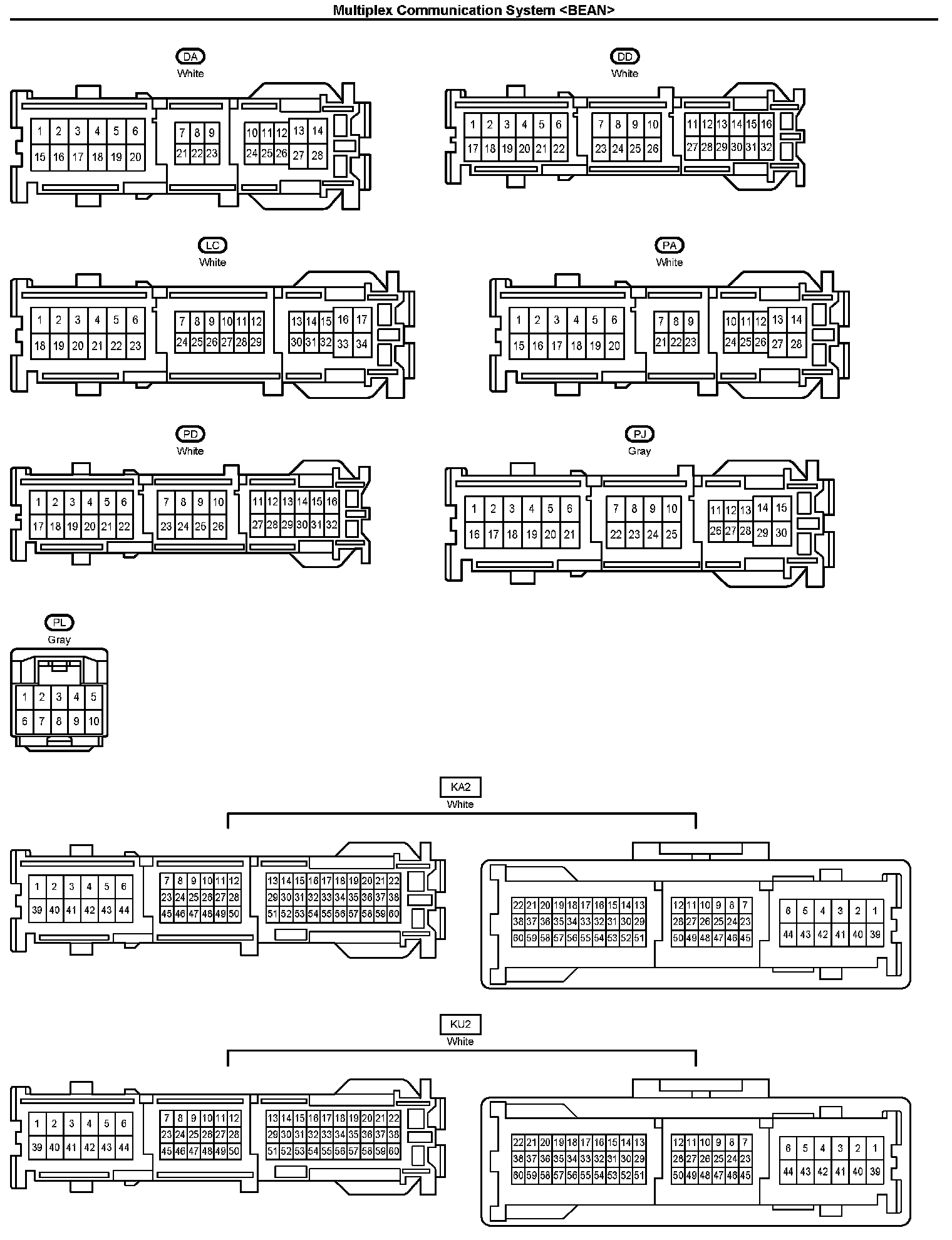

Connectors Part 2:

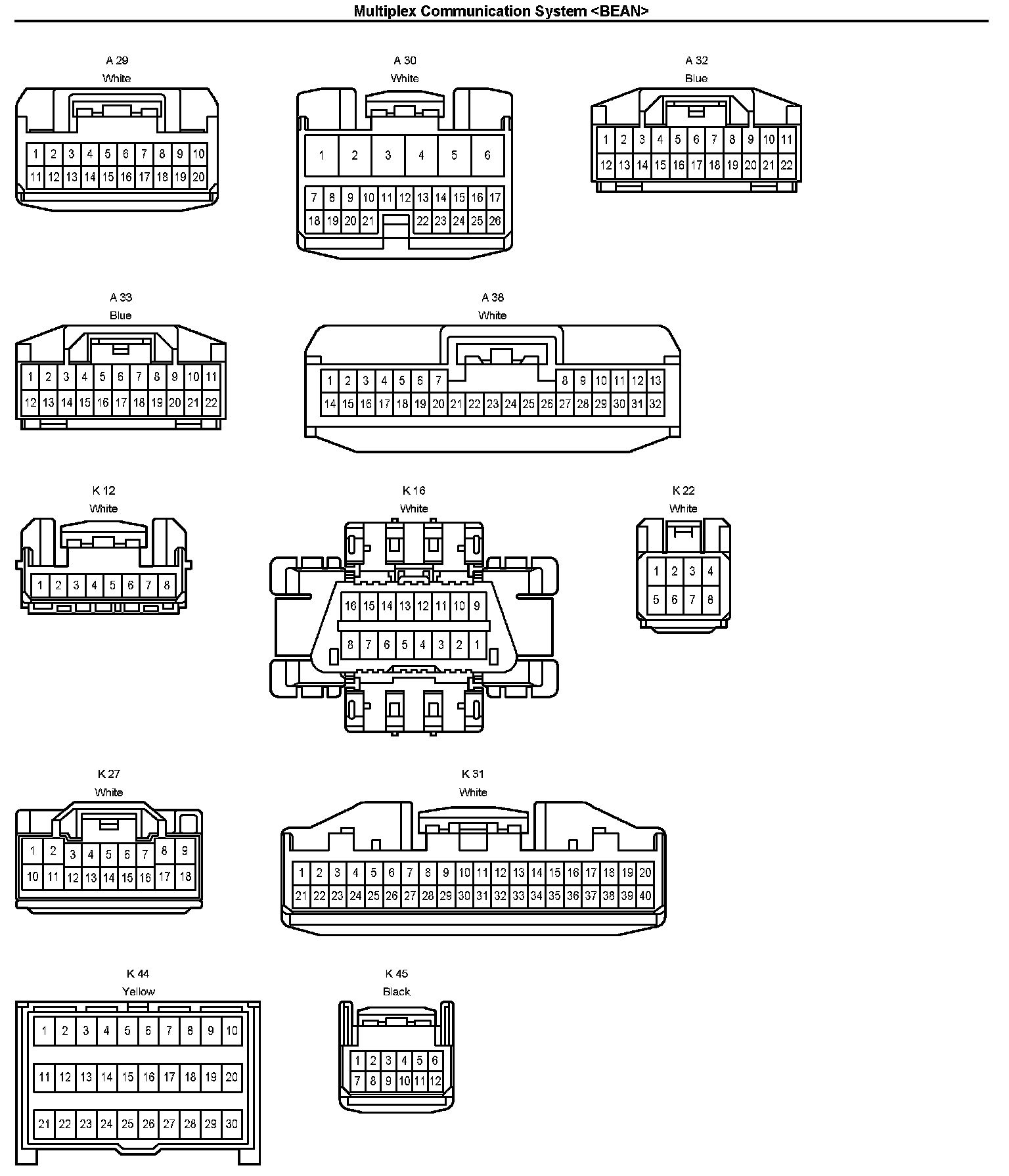

Connectors Part 3:

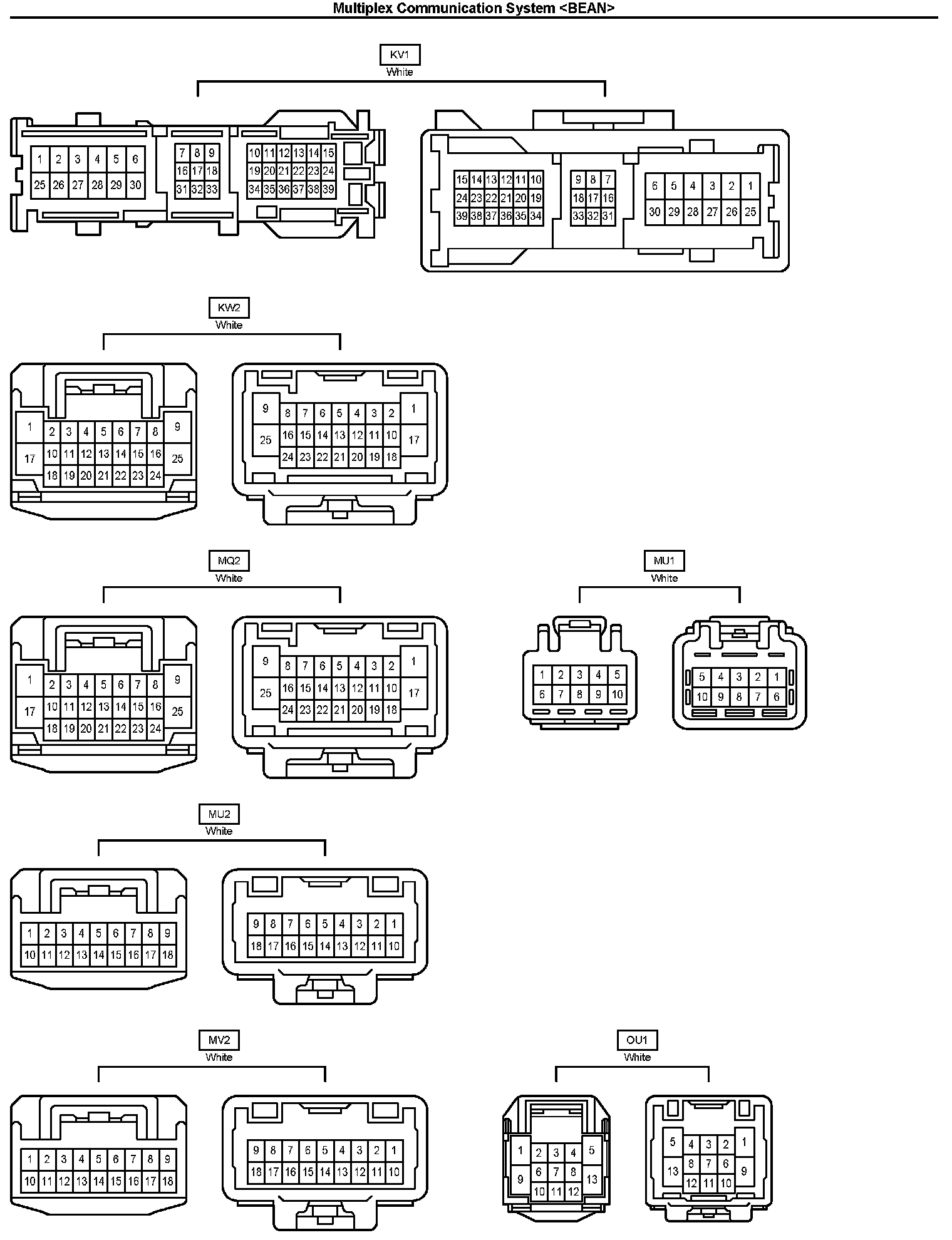

Connectors Part 4:

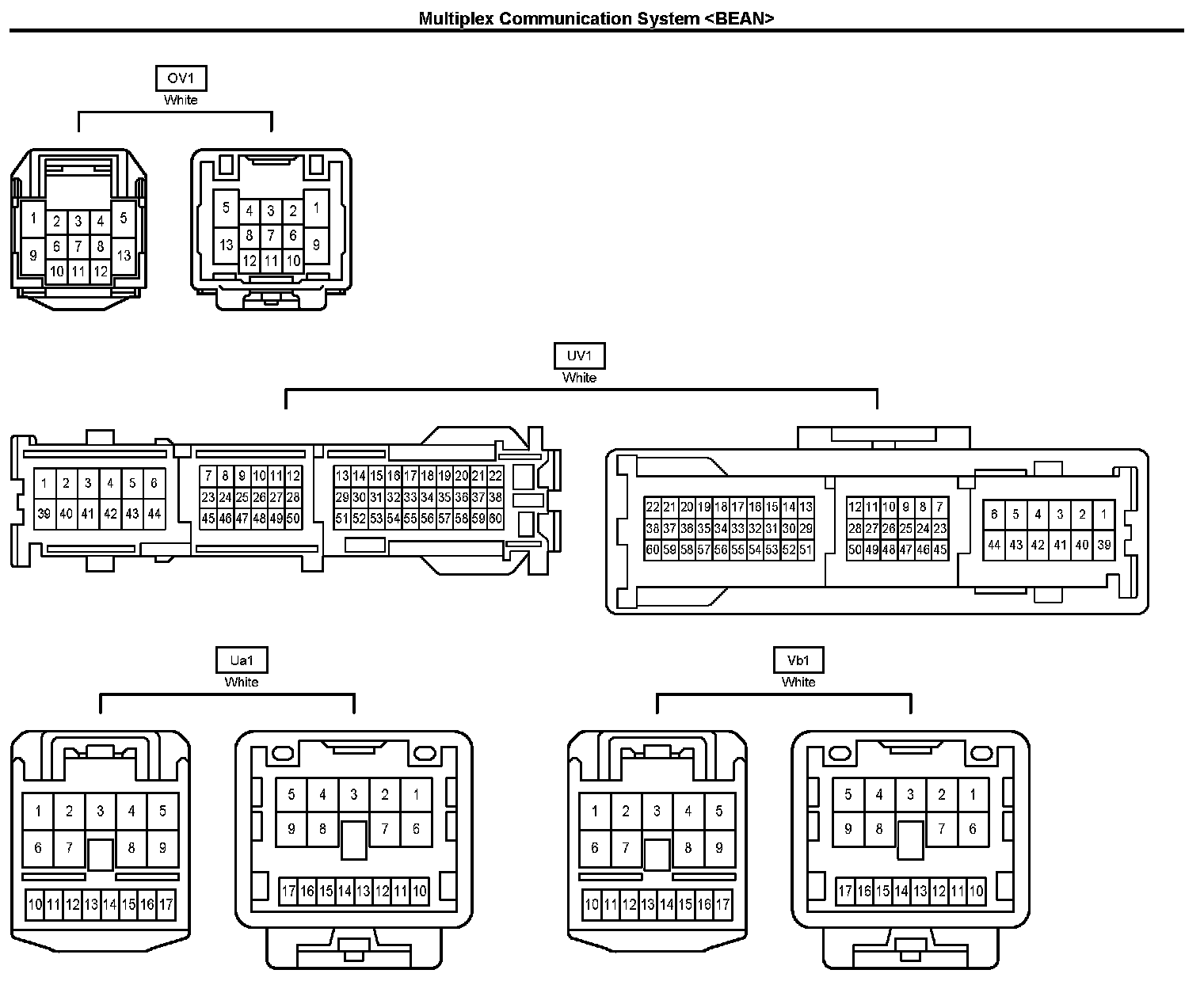

Connectors Part 5:

Connectors Part 6:

Next Diagram Multiplex Communication System [BEAN] Part 2

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
