Tire Pressure Monitor Receiver / Transponder: Locations

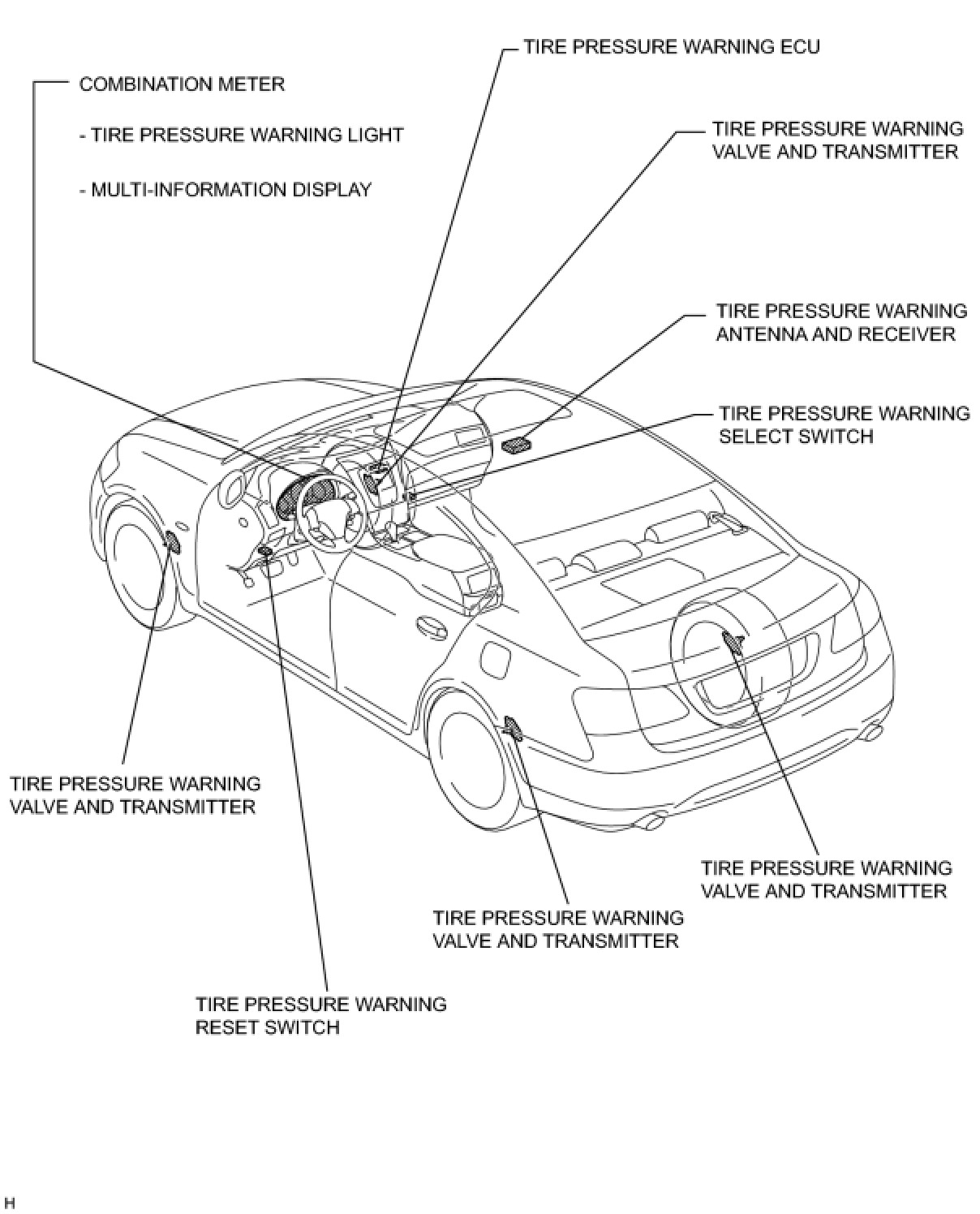

TIRE AND WHEEL: TIRE PRESSURE WARNING SYSTEM: PARTS LOCATION
