Data List / Active Test

2GR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: DATA LIST / ACTIVE TEST

1. DATA LIST

HINT
By reading the Data List displayed on the Techstream, you can check values, including those of the switches, sensors, and actuators, without removing any parts. Reading the Data List as the first step of troubleshooting is one method of shortening diagnostic time.

NOTICE:
In the table below, the values listed under Normal Condition are reference only. Do not depend solely on these values when determining whether or not a part is faulty.

(a) Put the engine in inspection mode Inspection Mode Procedure.

(b) Warm up the engine.

(c) Connect the Techstream to the DLC3.

(d) Turn the Techstream on.

(e) Enter the following menus: Powertrain / Engine and ECT / Data List.

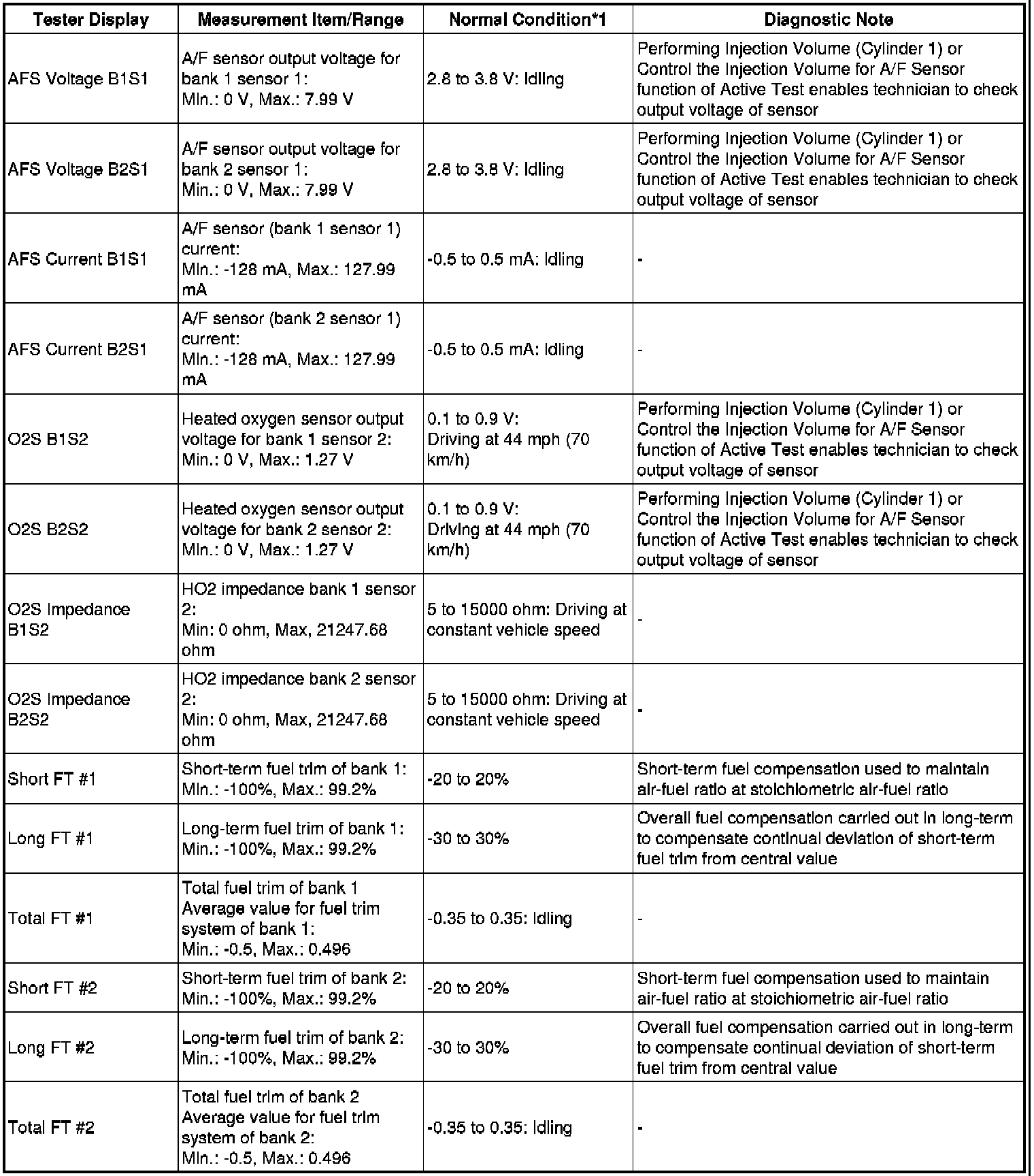

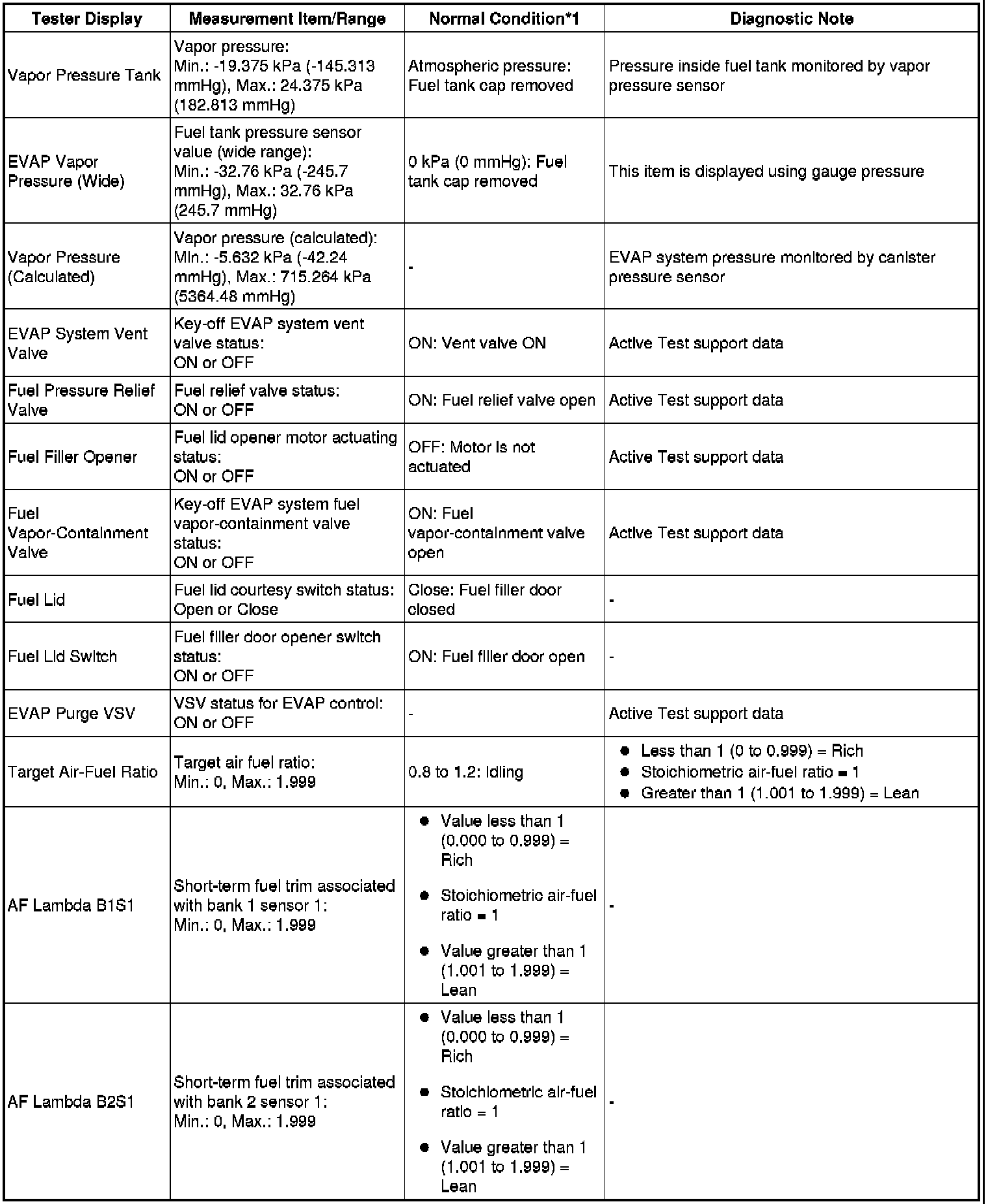

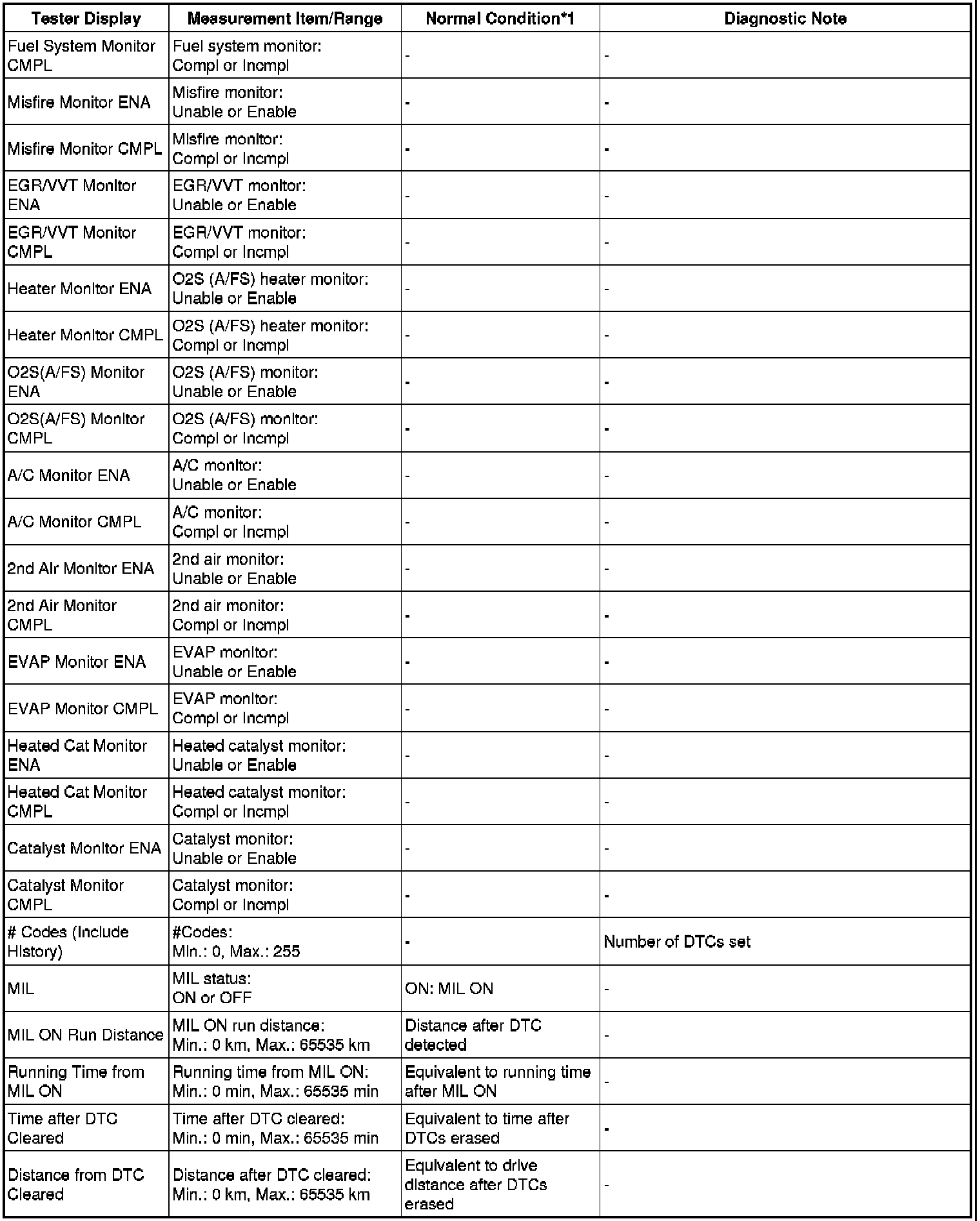

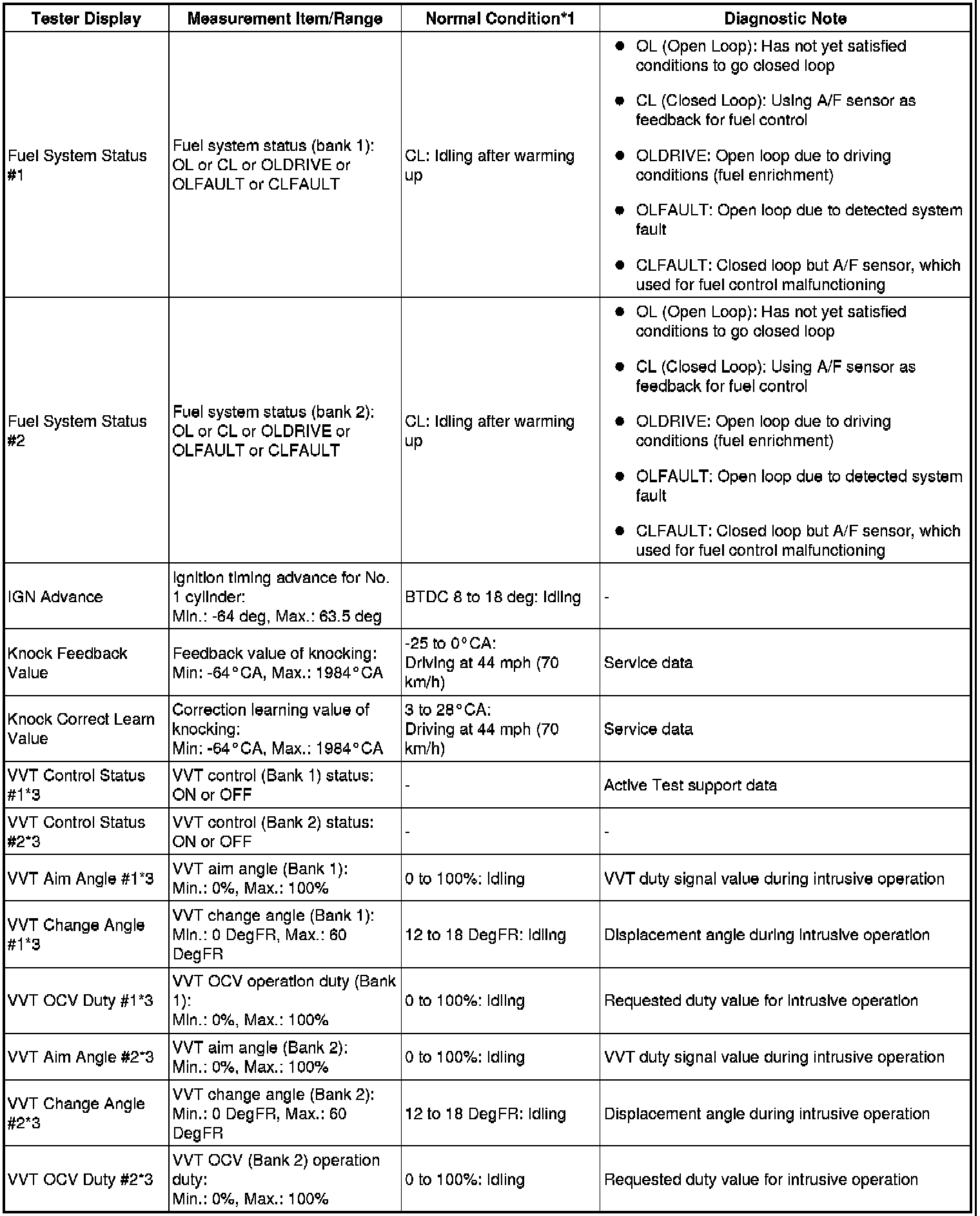

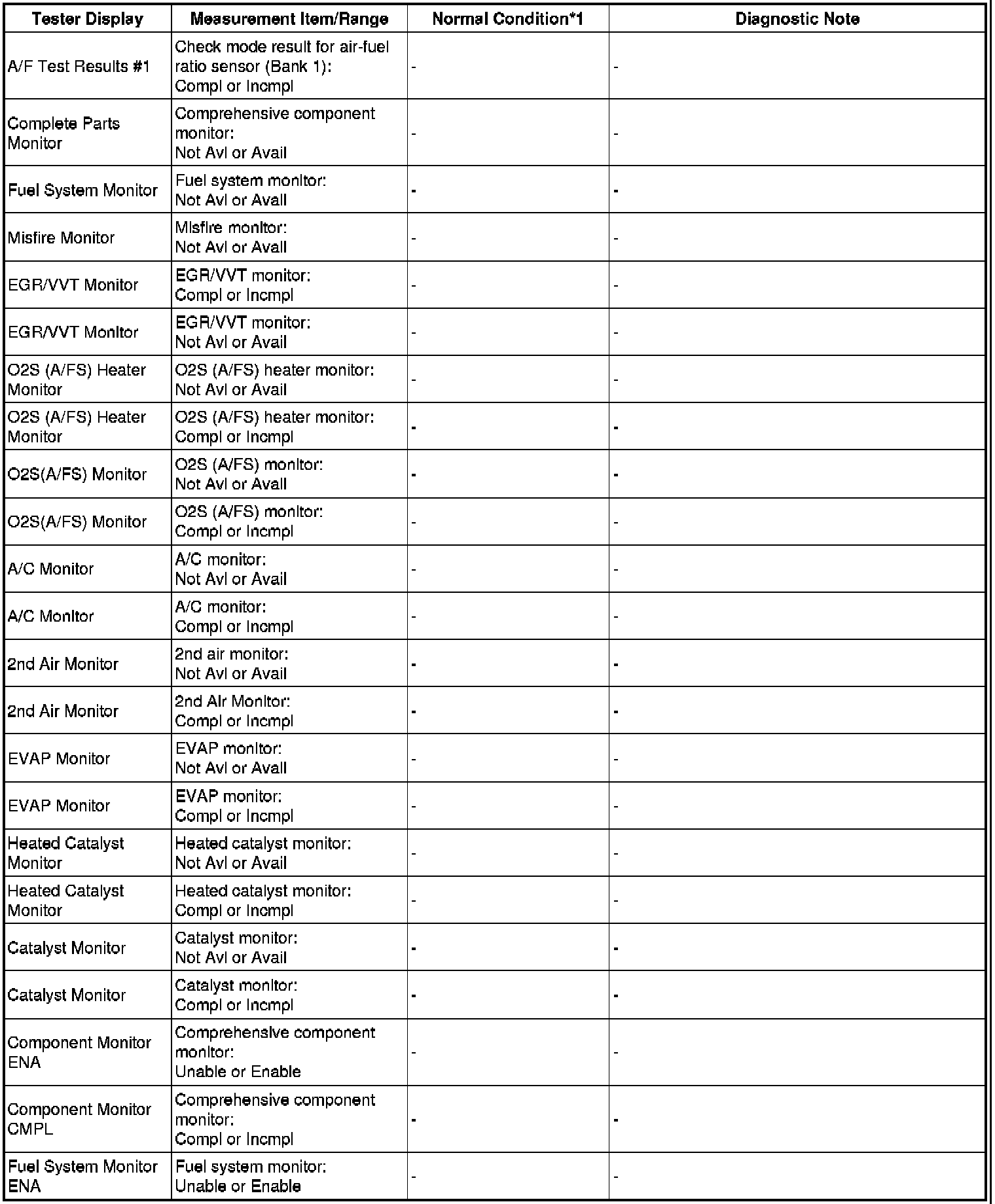

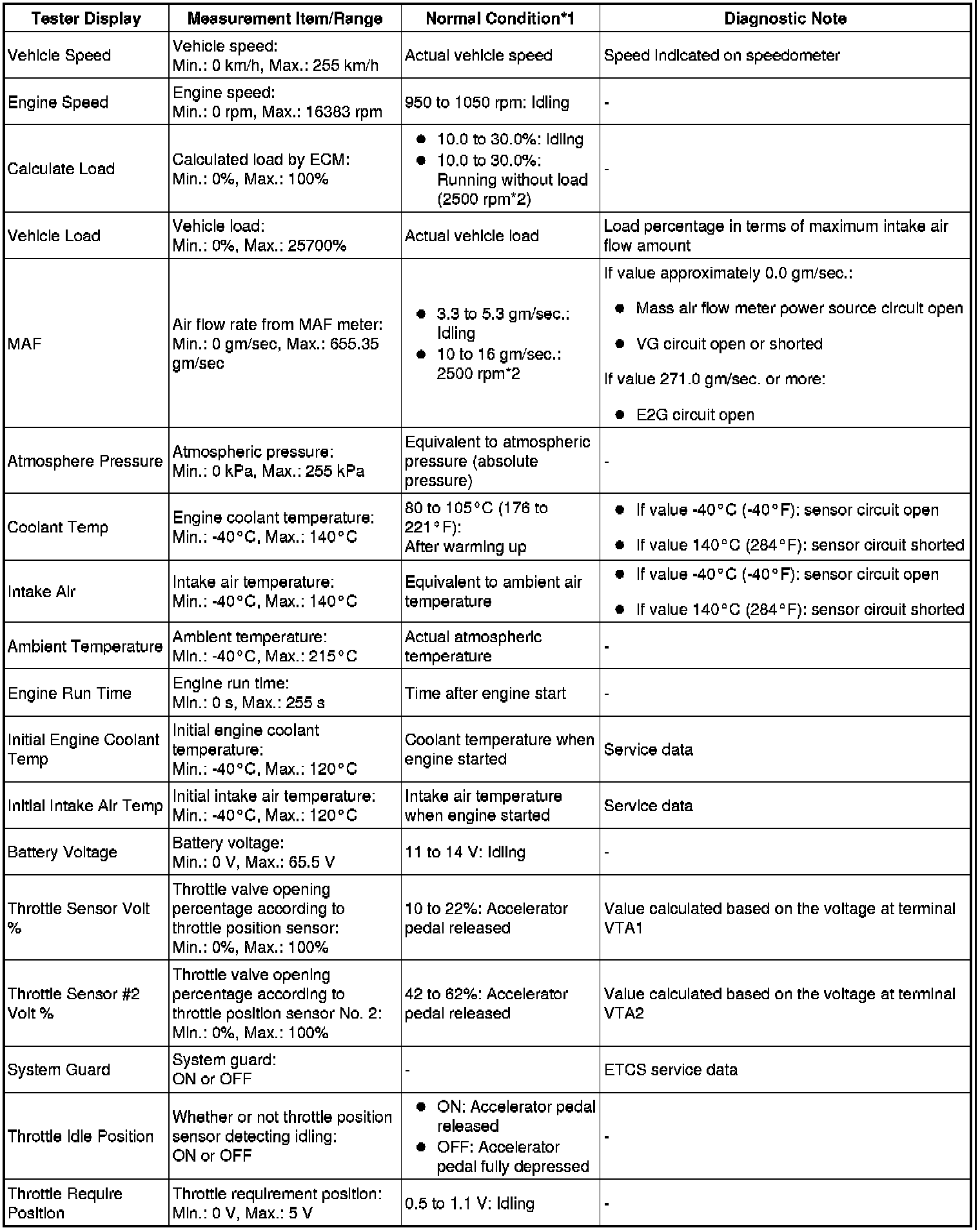

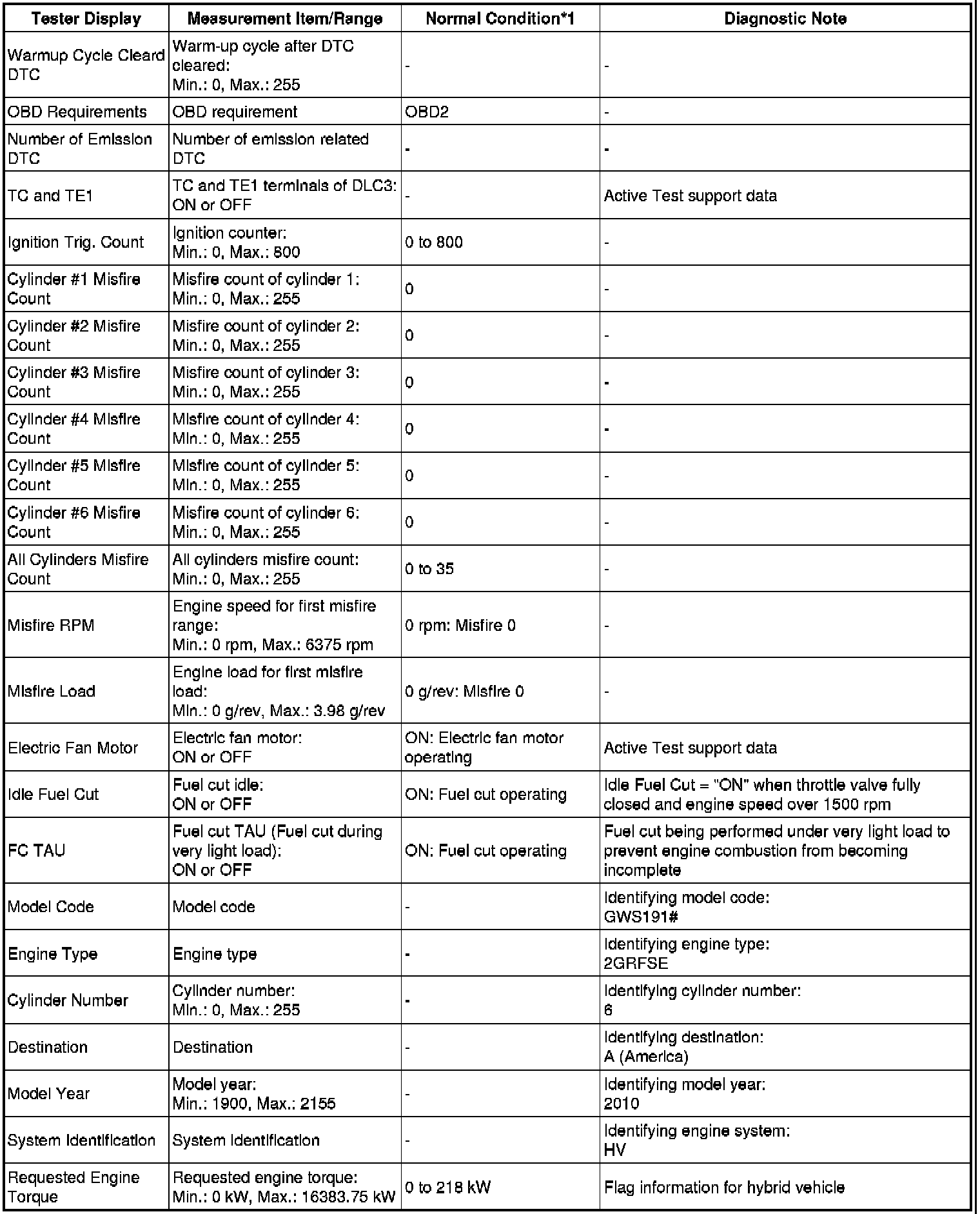

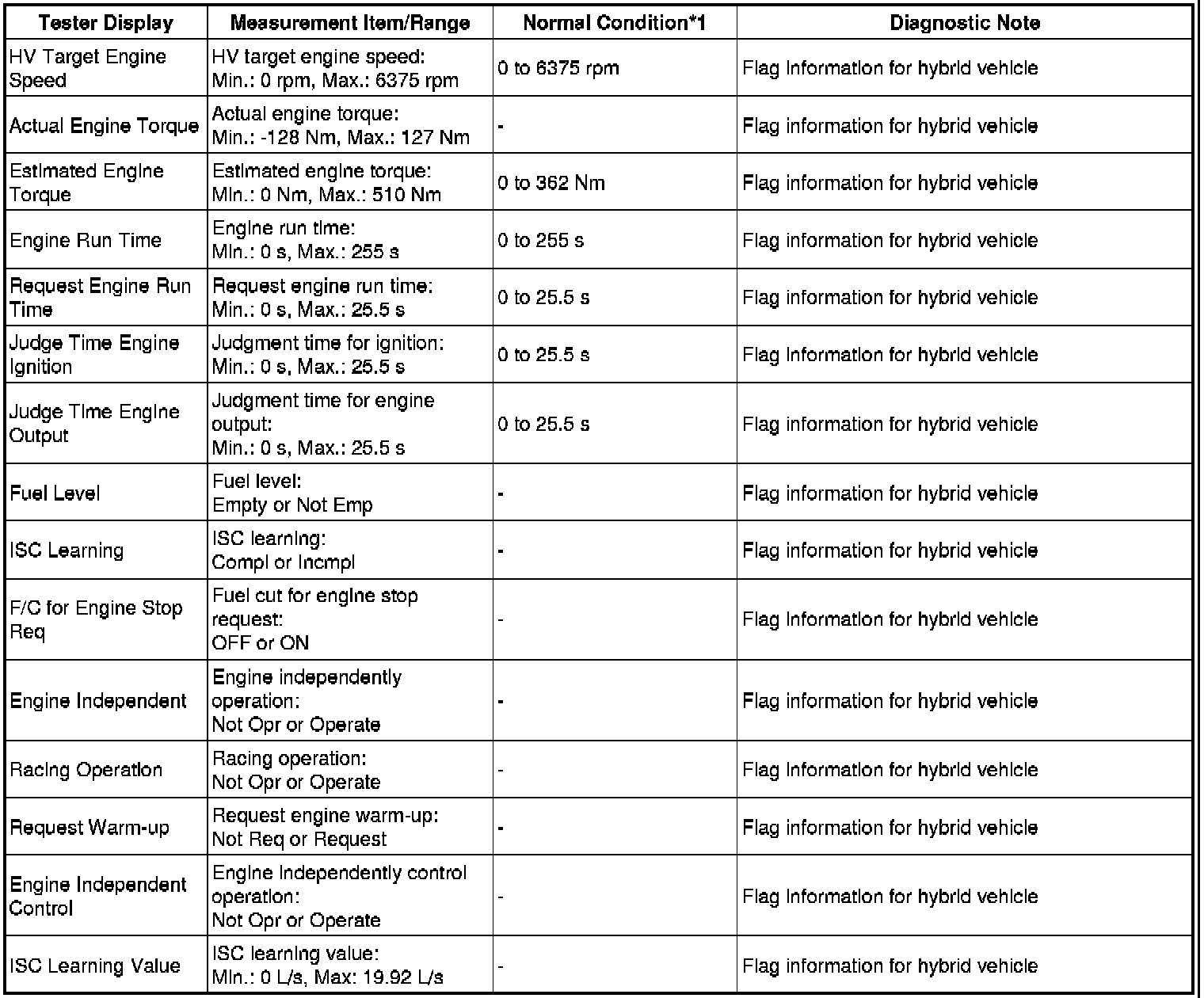

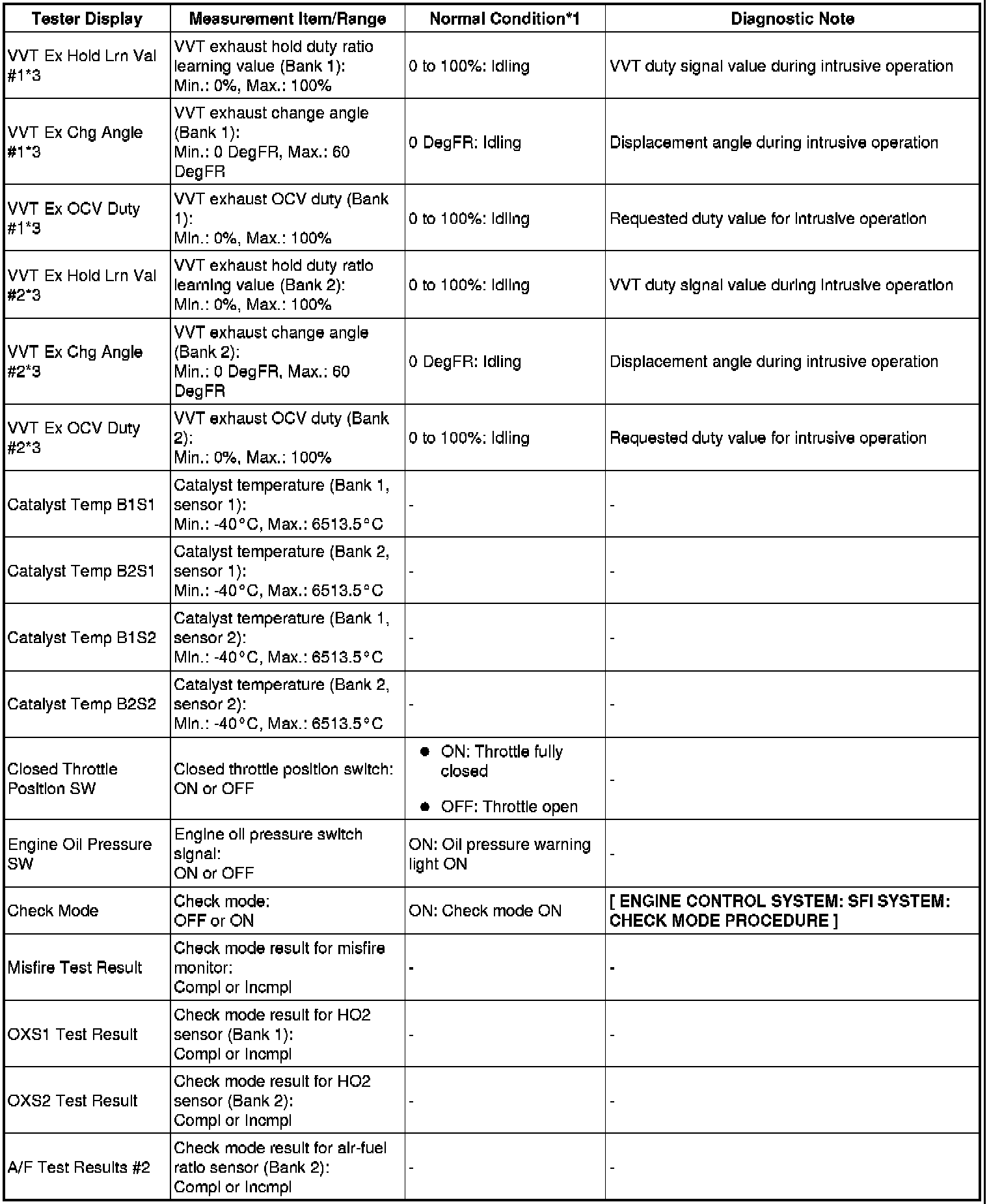

(f) Check the values by referring to the table below.













































HINT
* *1: If no idling conditions are specified, the shift lever should be in the N or P position, and the A/C switch and all accessory switches should be off.
* *2: During inspection mode, when the accelerator pedal opening angle is 60% to 100%, the engine is maintained at 2500 rpm
* *3: Data List values are only displayed when performing the following Active Tests: Control the VVT System (Bank 1, 2), Control the VVT Linear (Bank 1, 2) and Control the VVT Exhaust Linear (Bank 1, 2). For other Active Test, the Data List value will be 0.
* *4: Excluding throttle valve opening due to Idle Speed Control (ISC).
2. ACTIVE TEST

HINT
Performing an Active Test enables components including the relays, VSV (Vacuum Switching Valve) and actuators, to be operated without removing any parts. The Active Test can be performed with the Techstream. Performing an Active Test as the first step of troubleshooting is one method of shortening diagnostic time.

* The Data List can be displayed during Active Test.

(a) Put the engine in inspection mode Inspection Mode Procedure.

(b) Connect the Techstream to the DLC3.

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine and ECT / Active Test.

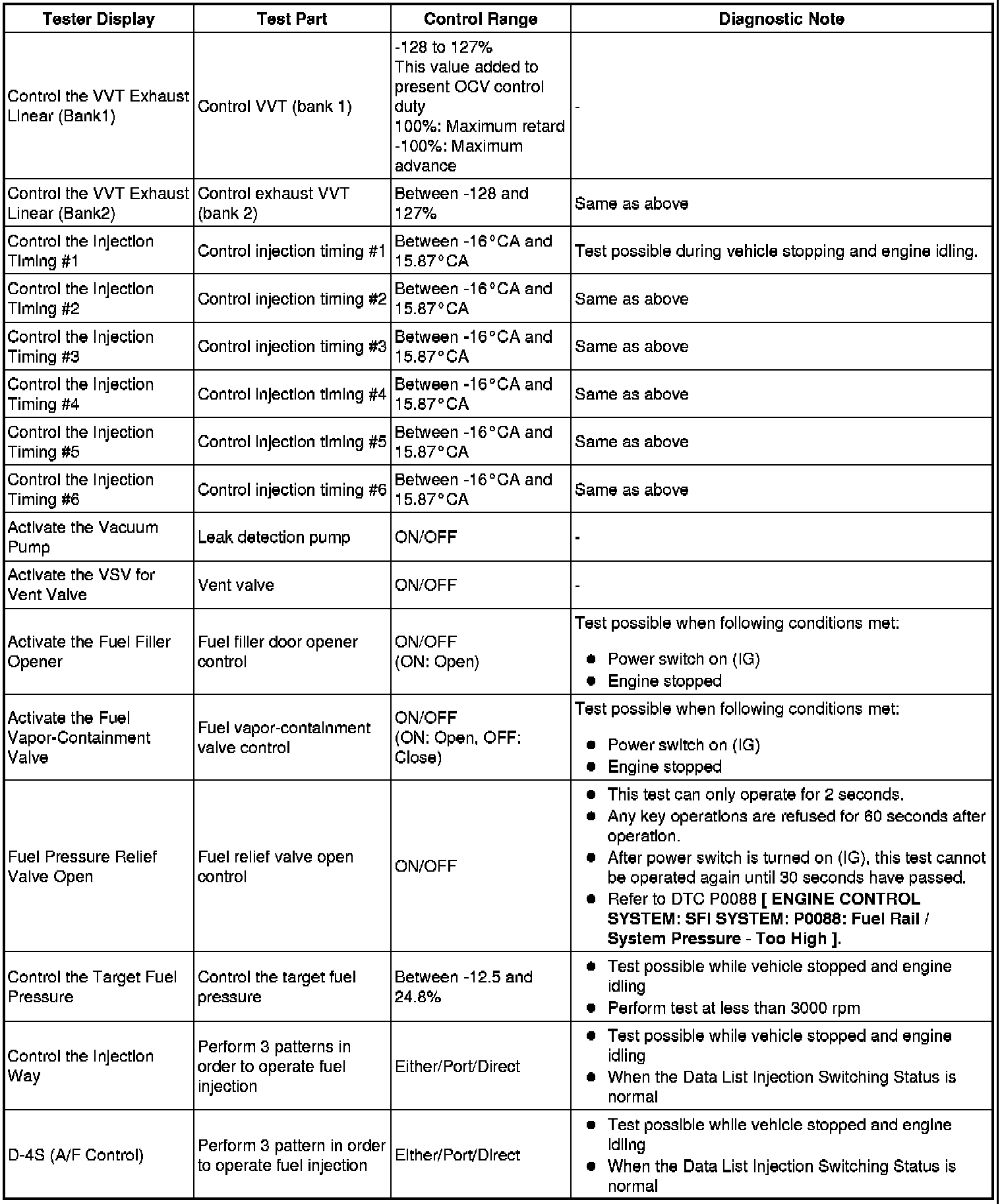

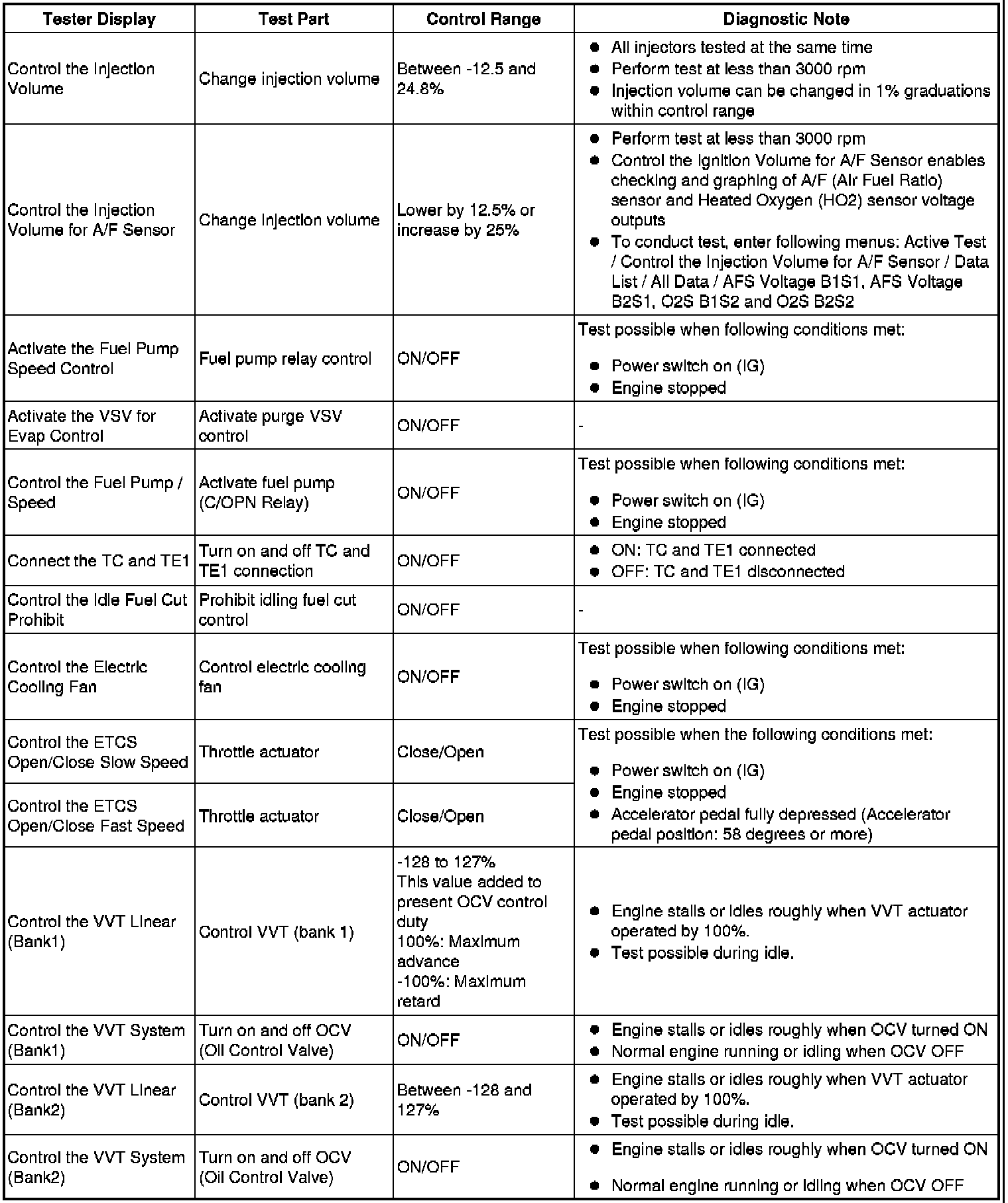

(e) Perform the Active Test by referring to the table below.













3. SYSTEM CHECK

HINT
Performing a System Check enables the system, which consists of multiple actuators, to be operated without removing any parts. In addition, it can show whether or not any DTCs are set, and can detect potential malfunctions in the system. The System Check can be performed with the Techstream.

(a) Put the engine in inspection mode Inspection Mode Procedure.

(b) Connect the Techstream to the DLC3.

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine and ECT / Utility.

(e) Perform the System Check by referring to the below.
