Front Passenger Side Power Window Auto Up / Down Function Does Not Operate With Front Passenger Side Power Window Switch

WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM: Front Passenger Side Power Window Auto Up / Down Function does not Operate with Front Passenger Side Power Window Switch
- Front Passenger Side Power Window Auto Up / Down Function does not Operate with Front Passenger Side Power Window Switch

DESCRIPTION

If the manual UP / DOWN function can be performed but the AUTO UP / DOWN function cannot, the fail-safe may be functioning.

If the power window initialization Initialization has not been performed, the AUTO UP / DOWN function will not operate.

NOTICE:
When the power window regulator motor assembly (on the front passenger side) is reinstalled or replaced, the power window control system must be initialized.

WIRING DIAGRAM

INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC OUTPUT

(a) Check for DTCs.

Result:

D -- GO TO DTC B2313 B2313

C -- GO TO DTC B2312 B2312

B -- GO TO DTC B2311 B2311
A -- Continue to next step.

2. READ VALUE USING TECHSTREAM

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG) and turn the Techstream ON.

(c) Select the following menu items: Body / P-Door Motor / Data List.

(d) Read the Data List according to the display on the Techstream.

P-Door Motor

OK:

ON (switch operates) appears on screen.

NG -- CHECK HARNESS AND CONNECTOR (WINDOW SWITCH (PASSENGER SIDE) - MOTOR (PASSENGER SIDE))

OK -- REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Front Passenger Side)

3. CHECK HARNESS AND CONNECTOR (WINDOW SWITCH (PASSENGER SIDE) - MOTOR (PASSENGER SIDE))

(a) Disconnect the Q6 power window switch connector.

(b) Disconnect the M13 motor connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

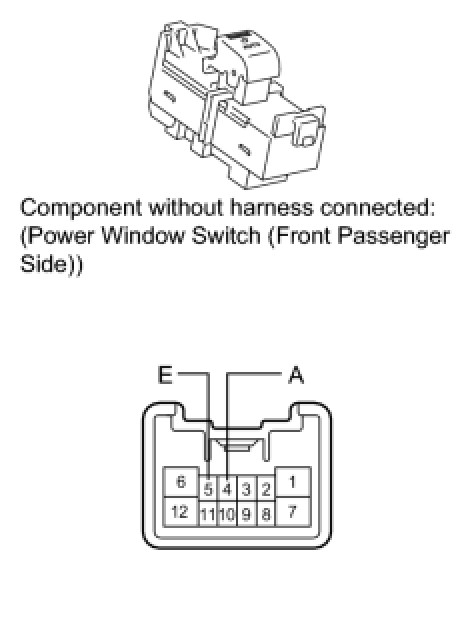

4. INSPECT POWER WINDOW SWITCH (for Front Passenger Side)

(a) Measure the resistance according to the value(s) in the table below.

Standard resistance:

NG -- REPLACE POWER WINDOW SWITCH (for Front Passenger Side)

OK -- REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Front Passenger Side)
