Camshaft Position Sensor: Testing and Inspection





1UR-FSE ENGINE CONTROL SYSTEM: CAMSHAFT POSITION SENSOR: ON-VEHICLE INSPECTION

1. CHECK CAMSHAFT POSITION SENSOR OUTPUT VOLTAGE





(a) Turn the engine switch on (IG).

(b) Measure the voltage according to the value(s) in the table below.

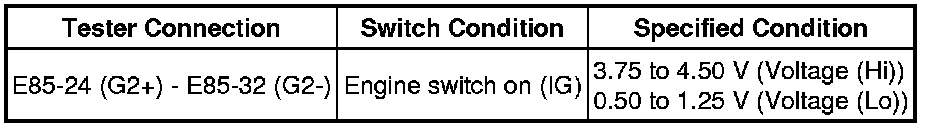

Standard voltage:





(c) While turning the crankshaft pulley by hand, measure the voltage between each terminal. Check that the voltage changes between the Hi range and Lo range shown in the table below.

Standard voltage:
