Cylinder Head Assembly

Cylinder head bolt





Standard outside diameter 10.85 to 11.00 mm (0.427 to 0.433 in.)
Minimum outside diameter 10.6 mm (0.417 in.)

Measuring point:
Intake side bolt 90 mm (3.543 in.)
Exhaust side bolt 85 mm (3.346 in.)








Step 1 36 Nm (367 kgf-cm, 27 ft-lbf)
Step 2 another 90°
Step 3 additional 90°

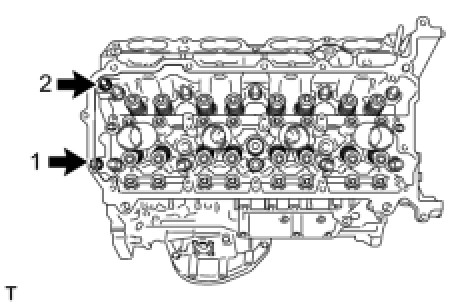

Bank 1:

Bank 2:

Torque 21 Nm (214 kgf-cm, 15 ft-lbf)

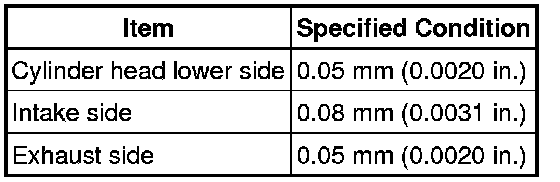

Standard warpage:





Maximum warpage 0.10 mm (0.0039 in.)

Camshaft bearing cap

Bank 1:

Bank 2:

Bolt A 10 Nm (102 kgf-cm, 7 ft-lbf)
Bolts except A 30 Nm (306 kgf-cm, 22 ft-lbf)








Torque 16 Nm (163 kgf-cm, 12 ft-lbf)

Intake manifold Specifications

Exhaust manifold Specifications

Camshaft gear Specifications
