B15D1





NAVIGATION / MULTI INFO DISPLAY: NAVIGATION SYSTEM: B1591,B15D1: No Response from Audio HU
B1591 - No Response from Audio HU
B15D1 - Audio HU Disconnectedn

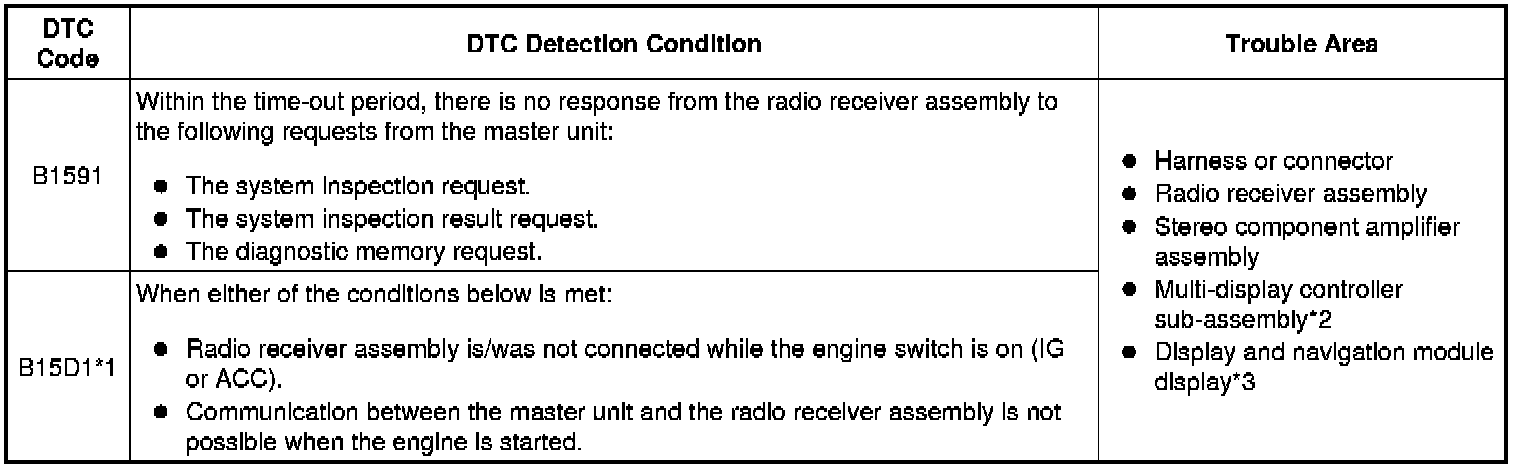

DESCRIPTION

The display and navigation module display and the radio receiver assembly are connected by the MOST communication line.

When a MOST communication error occurs between the display and navigation module display and the radio receiver assembly, this DTC will be stored.





* *2: W/ Rear Seat Entertainment System

* *3: W/O Rear Seat Entertainment System

HINT
* *1: Even if no fault is present, this DTC may be stored depending on the battery condition or engine start voltage.
* The display and navigation module display is the master unit.

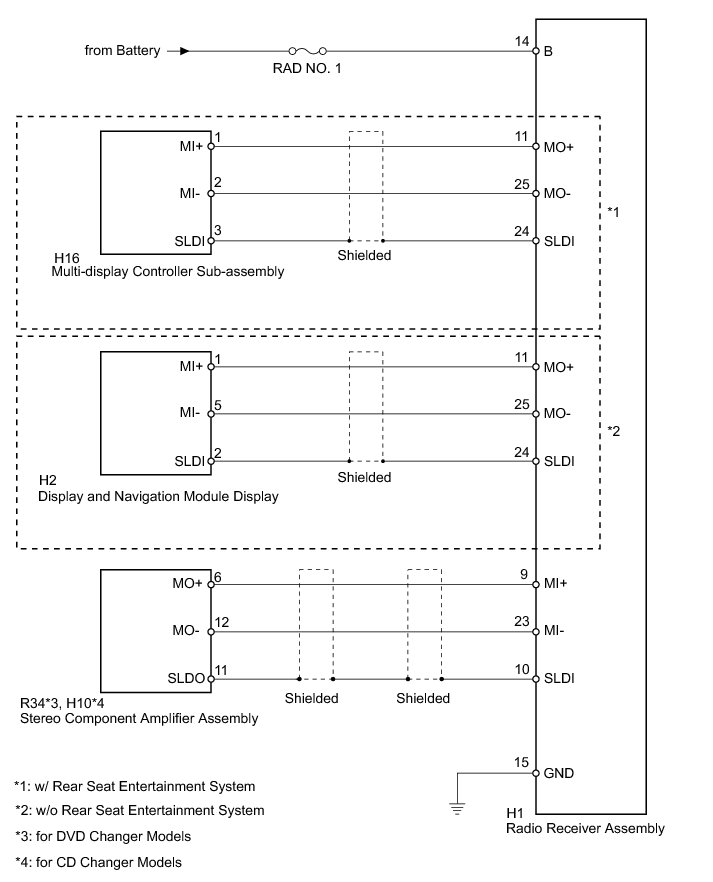

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1. CHECK OPTIONAL COMPONENTS (INCLUDING ASSOCIATED WIRING)

(a) Check for optional components.

(1) Check that optional components (including associated wiring) which generate radio waves are not installed.

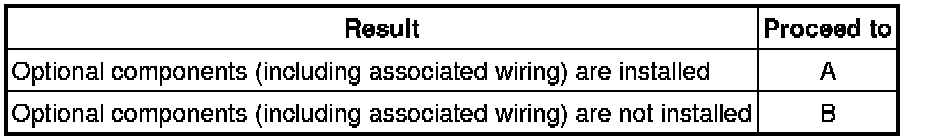

Result





HINT
* Electrical noise from radio waves generated by optional components or the wiring for those components may affect MOST communication.
* This DTC may be stored when a MOST communication error occurs due to electrical noise.
B -- CHECK FOR DTC
A -- Continue to next step.

2. REMOVE OPTIONAL COMPONENTS (INCLUDING ASSOCIATED WIRING)

(a) Remove the optional components (including associated wiring).

NOTICE:
Do not remove the optional components or associated wiring without the permission of the customer.

NEXT -- Continue to next step.

3. CHECK FOR DTC

(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(b) Check for DTCs and check if the same trouble occurs again.

OK:

No DTCs are output.

NG -- CHECK HARNESS AND CONNECTOR (RADIO RECEIVER ASSEMBLY POWER SOURCE)

OK -- END

4. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER ASSEMBLY POWER SOURCE)

(a) Disconnect the H1 radio receiver assembly connector.





(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

5. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - STEREO COMPONENT AMPLIFIER)

(a) Disconnect the H1 radio receiver assembly connector.

(b) Disconnect the R34*1 or H10*2 stereo component amplifier assembly connector.

*1: for DVD Changer Models

*2: for CD Changer Models

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

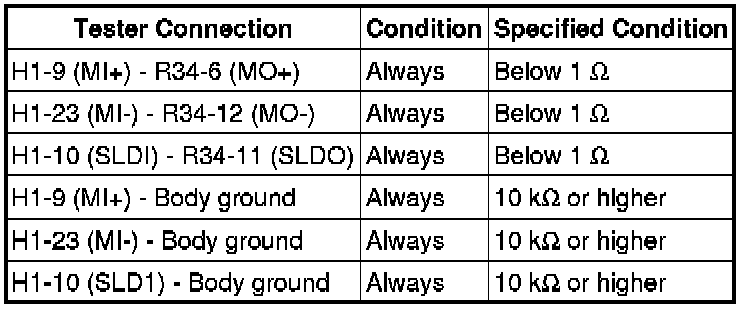

for DVD Changer Models

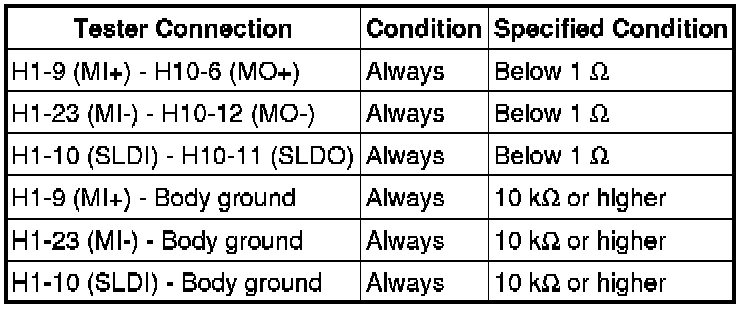

for CD Changer Models

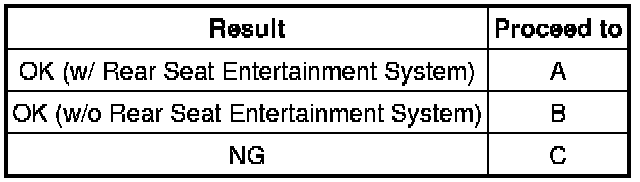

Result





C -- REPAIR OR REPLACE HARNESS OR CONNECTOR

B -- CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - DISPLAY AND NAVIGATION MODULE DISPLAY)
A -- Continue to next step.

6. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - MULTI-DISPLAY CONTROLLER)

(a) Disconnect the H1 radio receiver assembly connector.

(b) Disconnect the H16 multi-display controller sub-assembly connector.

(c) Measure the resistance according to the value(s) in the table below.

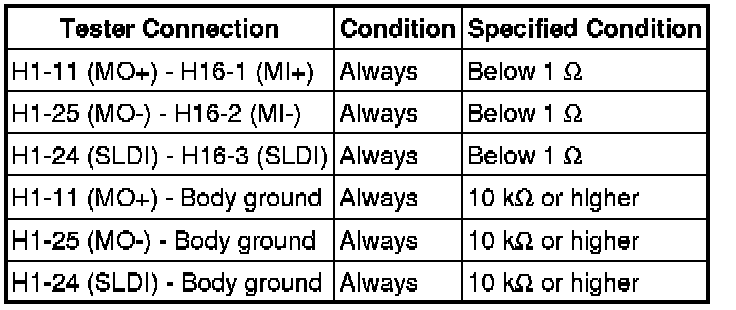

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

7. REPLACE RADIO RECEIVER ASSEMBLY

(a) Replace the radio receiver assembly Removal.

(b) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(c) Check for DTCs and check if the same trouble occurs again.

OK:

No DTCs are output.

NG -- REPLACE DISPLAY AND NAVIGATION MODULE DISPLAY Removal

OK -- END

8. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - DISPLAY AND NAVIGATION MODULE DISPLAY)

(a) Disconnect the H1 radio receiver assembly connector.

(b) Disconnect the H2 display and navigation module display connector.

(c) Measure the resistance according to the value(s) in the table below.

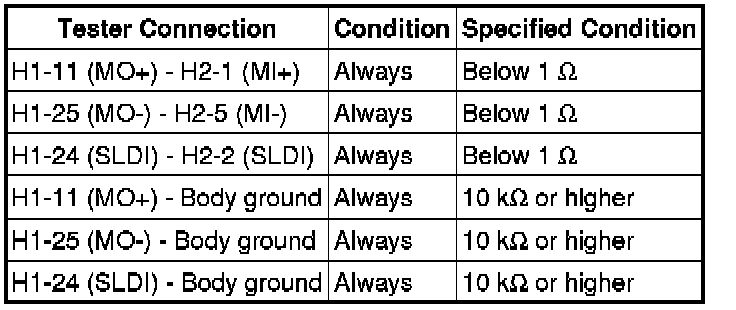

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

9. REPLACE RADIO RECEIVER ASSEMBLY

(a) Replace the radio receiver assembly Removal.

(b) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(c) Check for DTCs and check if the same trouble occurs again.

OK:

No DTCs are output.

NG -- REPLACE DISPLAY AND NAVIGATION MODULE DISPLAY Removal

OK -- END
