B1698/82 - Door Side Airbag Sensor LH Initialization Incomplete

DESCRIPTION

The circuit for the side collision sensor LH or RH (to determine deployment of the front seat airbag LH or RH and curtain shield airbag LH or RH) is composed of the center airbag sensor, rear airbag sensor LH or RH and side airbag sensor LH or RH.

The rear airbag sensor LH or RH and side airbag sensor LH or RH detect impacts to the vehicle and send signals to the center airbag sensor to determine if the airbag should be deployed.

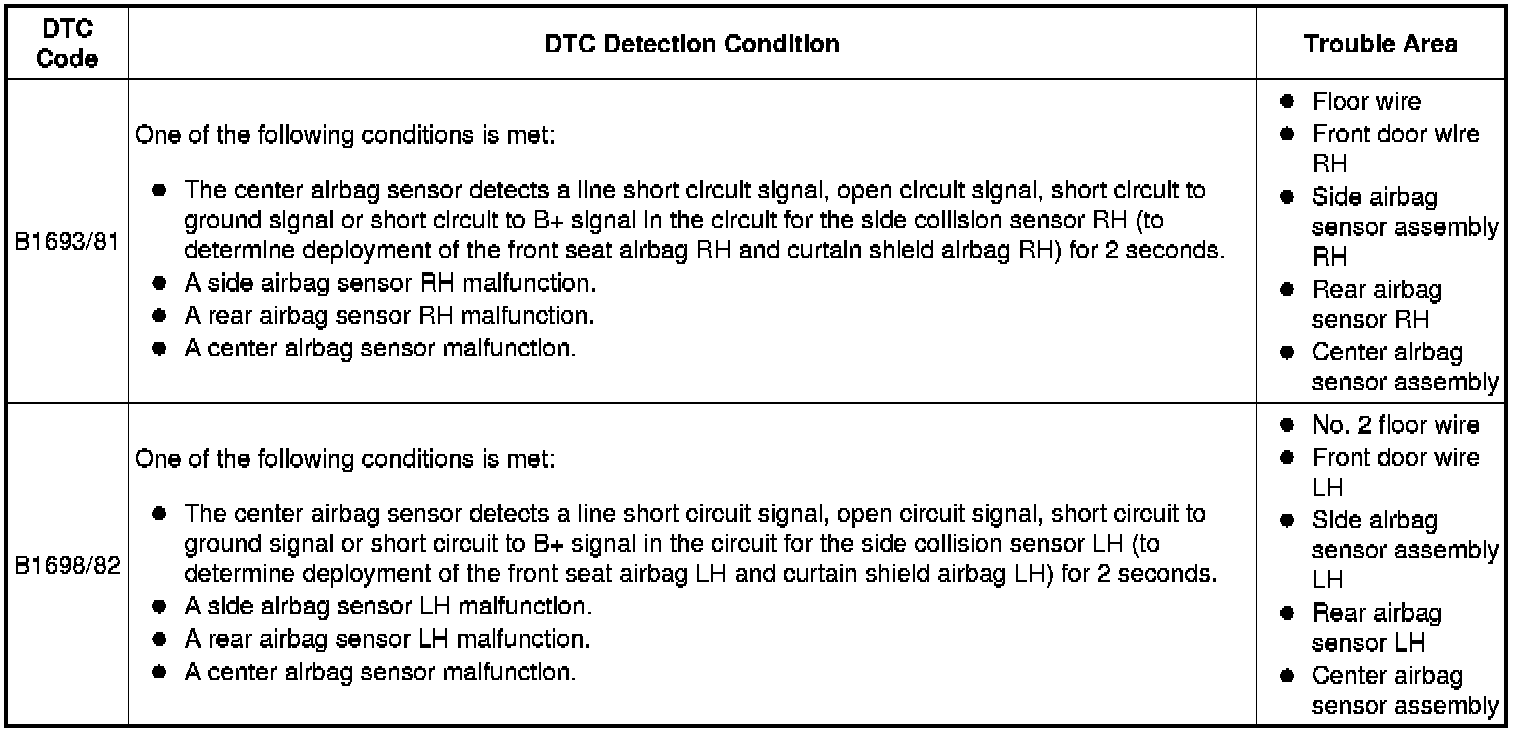

DTC B1693/81 or B1698/82 is stored when a malfunction is detected in the circuit for the side collision sensor LH or RH (to determine deployment of the front seat airbag LH or RH and curtain shield airbag LH or RH).

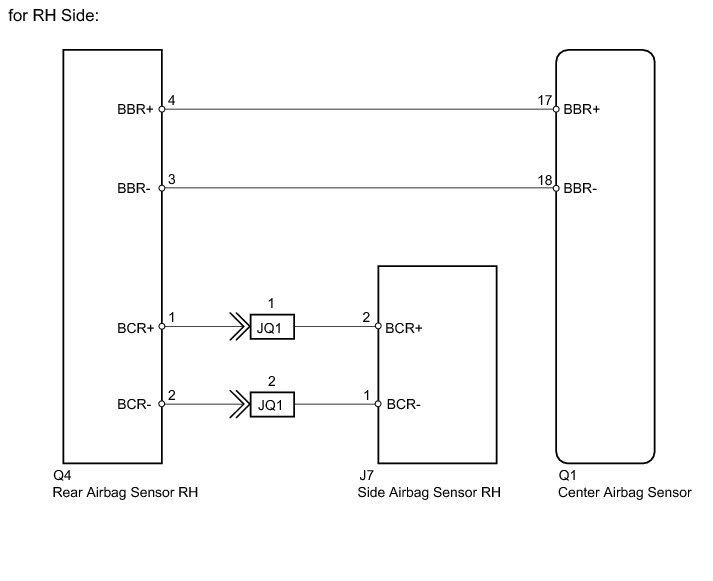

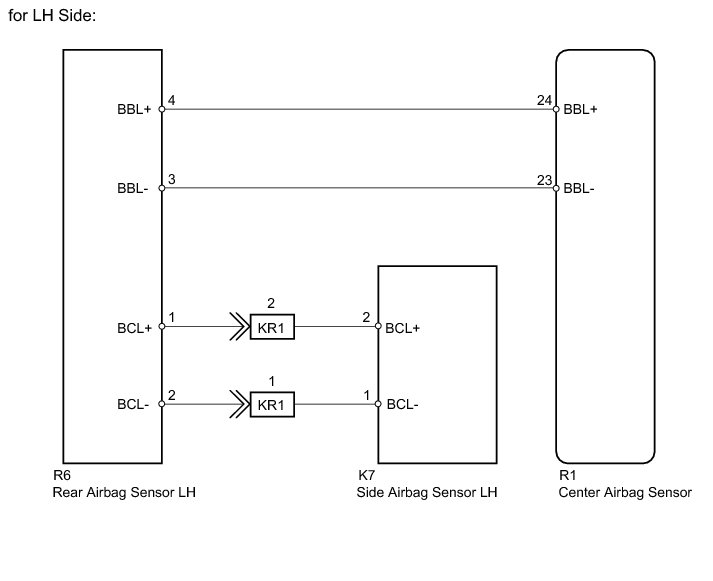

WIRING DIAGRAM









INSPECTION PROCEDURE

NOTICE:
* W/ Navigation System:
* After the engine switch is turned off, the display and navigation module display (navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal:





* When disconnecting the cable from the negative (-) battery terminal while performing repairs, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
PROCEDURE

1. CHECK PAST DTC

(a) Turn the engine switch on (IG), and wait for at least 60 seconds.

(b) Check for DTCs DTC Check / Clear.

OK:

DTC B1692 and B1697 are not output.

NG -- GO TO DTC B1692
OK -- Continue to next step.

2. CHECK FOR DTC

(a) Turn the engine switch on (IG).

(b) Clear the DTCs stored in memory DTC Check / Clear.

(c) Turn the engine switch off.

(d) Turn the engine switch on (IG), and wait for at least 60 seconds.

(e) Check for DTCs DTC Check / Clear.

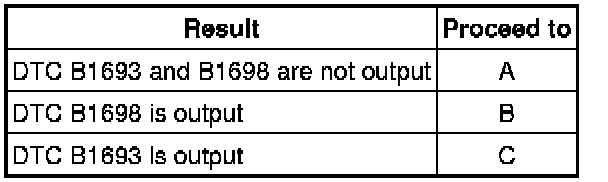

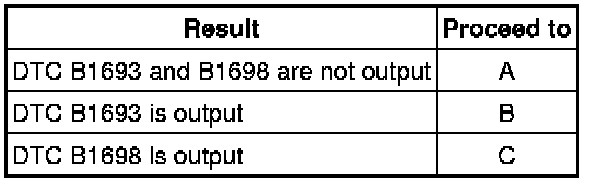

Result





HINT
Codes other than DTC B1693 and B1698 may be output at this time, but they are not related to this check.

B -- CHECK CONNECTION OF CONNECTORS

A -- USE SIMULATION METHOD TO CHECK Diagnosis System
C -- Continue to next step.

3. CHECK CONNECTION OF CONNECTORS

(a) Turn the engine switch off.

(b) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

(c) Check that the connectors are properly connected to the center airbag sensor, rear airbag sensor RH and side airbag sensor RH.

OK:

The connectors are properly connected.

NG -- CONNECT CONNECTORS PROPERLY
OK -- Continue to next step.

4. CHECK CONNECTORS

(a) Disconnect the connectors from the center airbag sensor, rear airbag sensor RH and side airbag sensor RH.

(b) Check that the connectors (on the center airbag sensor side, rear airbag sensor RH side and side airbag sensor RH side) are not damaged.

OK:

The connectors are not deformed or damaged.

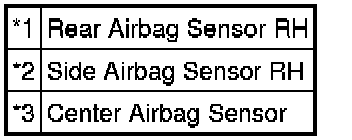

Text in Illustration





NG -- REPLACE HARNESS AND CONNECTOR
OK -- Continue to next step.

5. CHECK REAR AIRBAG SENSOR RH

(a) Connect the connectors to the center airbag sensor and side airbag sensor RH.





(b) Interchange the rear airbag sensor LH with RH and connect the connectors to them.

(c) Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

(d) Turn the engine switch on (IG), and wait for at least 60 seconds.

(e) Clear the DTCs stored in memory DTC Check / Clear.

(f) Turn the engine switch off.

(g) Turn the engine switch on (IG), and wait for at least 60 seconds.

(h) Check for DTCs DTC Check / Clear.

Result





HINT
Codes other than DTC B1693 and B1698 may be output at this time, but they are not related to this check.

Text in Illustration





(i) Turn the engine switch off.

(j) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

(k) Return the rear airbag sensor RH and LH to their original positions and connect the connectors to them.

B -- REPLACE REAR AIRBAG SENSOR RH

A -- USE SIMULATION METHOD TO CHECK Diagnosis System
C -- Continue to next step.

6. CHECK SIDE AIRBAG SENSOR RH CIRCUIT

(a) Disconnect the connectors from the rear airbag sensor RH and side airbag sensor RH.





Text in Illustration





(b) Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

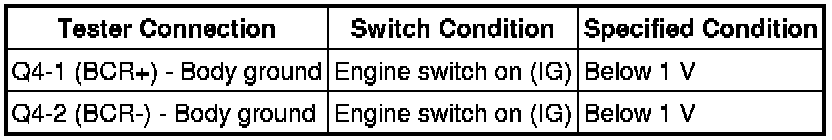

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





(d) Turn the engine switch off.

(e) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

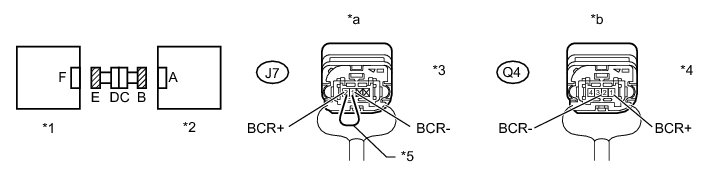

(f) Using a service wire, connect terminals 2 (BCR+) and 1 (BCR-) of connector E.

NOTICE:
Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

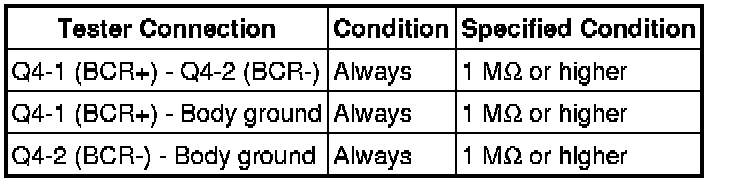

(g) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





(h) Disconnect the service wire from connector E.

(i) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- CHECK FLOOR WIRE (REAR AIRBAG SENSOR RH - FRONT DOOR WIRE RH)
OK -- Continue to next step.

7. CHECK SIDE AIRBAG SENSOR RH

(a) Connect the connector to the rear airbag sensor RH.





(b) Interchange the side airbag sensor LH with RH and connect the connectors to them.

(c) Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

(d) Turn the engine switch on (IG), and wait for at least 60 seconds.

(e) Clear the DTCs stored in memory DTC Check / Clear.

(f) Turn the engine switch off.

(g) Turn the engine switch on (IG), and wait for at least 60 seconds.

(h) Check for DTCs DTC Check / Clear.

Result





HINT
Codes other than DTC B1693 and B1698 may be output at this time, but they are not related to this check.

Text in Illustration





(i) Turn the engine switch off.

(j) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

(k) Return the side airbag sensor RH and LH to their original positions and connect the connectors to them.

B -- REPLACE SIDE AIRBAG SENSOR ASSEMBLY RH Removal

A -- USE SIMULATION METHOD TO CHECK Diagnosis System

C -- REPLACE CENTER AIRBAG SENSOR ASSEMBLY Removal

8. CHECK FLOOR WIRE (REAR AIRBAG SENSOR RH - FRONT DOOR WIRE RH)

(a) Disconnect the floor wire connector from the front door wire RH.

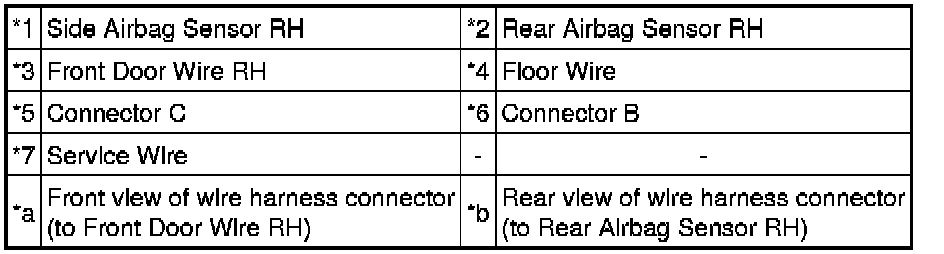

Text in Illustration





(b) Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





(d) Turn the engine switch off.

(e) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

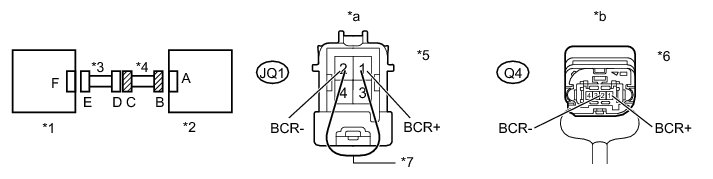

(f) Using a service wire, connect terminals 1 (BCR+) and 2 (BCR-) of connector C.

NOTICE:
Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

(g) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





(h) Disconnect the service wire from connector C.

(i) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPLACE FLOOR WIRE

OK -- REPLACE FRONT DOOR WIRE RH

9. CHECK CONNECTION OF CONNECTORS

(a) Turn the engine switch off.

(b) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

(c) Check that the connectors are properly connected to the center airbag sensor, rear airbag sensor LH and side airbag sensor LH.

OK:

The connectors are properly connected.

NG -- CONNECT CONNECTORS PROPERLY
OK -- Continue to next step.

10. CHECK CONNECTORS

(a) Disconnect the connectors from the center airbag sensor, rear airbag sensor LH and side airbag sensor LH.

(b) Check that the connectors (on the center airbag sensor side, rear airbag sensor LH side and side airbag sensor LH side) are not damaged.

OK:

The connectors are not deformed or damaged.

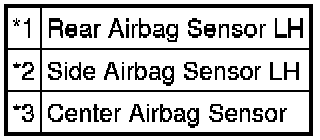

Text in Illustration





NG -- REPLACE HARNESS AND CONNECTOR
OK -- Continue to next step.

11. CHECK REAR AIRBAG SENSOR LH

(a) Connect the connectors to the center airbag sensor and side airbag sensor LH.





(b) Interchange the rear airbag sensor LH with RH and connect the connectors to them.

(c) Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

(d) Turn the engine switch on (IG), and wait for at least 60 seconds.

(e) Clear the DTCs stored in memory DTC Check / Clear.

(f) Turn the engine switch off.

(g) Turn the engine switch on (IG), and wait for at least 60 seconds.

(h) Check for DTCs DTC Check / Clear.

Result





HINT
Codes other than DTC B1693 and B1698 may be output at this time, but they are not related to this check.

Text in Illustration





(i) Turn the engine switch off.

(j) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

(k) Return the rear airbag sensor RH and LH to their original positions and connect the connectors to them.

B -- REPLACE REAR AIRBAG SENSOR LH

A -- USE SIMULATION METHOD TO CHECK Diagnosis System
C -- Continue to next step.

12. CHECK SIDE AIRBAG SENSOR LH CIRCUIT

(a) Disconnect the connectors from the rear airbag sensor LH and side airbag sensor LH.

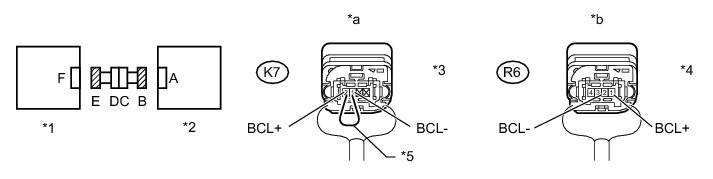

Text in Illustration





(b) Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





(d) Turn the engine switch off.

(e) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

(f) Using a service wire, connect terminals 2 (BCL+) and 1 (BCL-) of connector E.

NOTICE:
Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

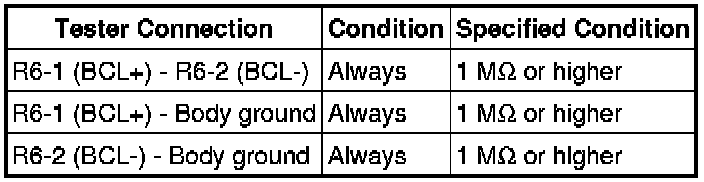

(g) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





(h) Disconnect the service wire from connector E.

(i) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- CHECK NO. 2 FLOOR WIRE (REAR AIRBAG SENSOR LH - FRONT DOOR WIRE LH)
OK -- Continue to next step.

13. CHECK SIDE AIRBAG SENSOR LH

(a) Connect the connector to the rear airbag sensor LH.





(b) Interchange the side airbag sensor LH with RH and connect the connectors to them.

(c) Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

(d) Turn the engine switch on (IG), and wait for at least 60 seconds.

(e) Clear the DTCs stored in memory DTC Check / Clear.

(f) Turn the engine switch off.

(g) Turn the engine switch on (IG), and wait for at least 60 seconds.

(h) Check for DTCs DTC Check / Clear.

Result





HINT
Codes other than DTC B1693 and B1698 may be output at this time, but they are not related to this check.

Text in Illustration





(i) Turn the engine switch off.

(j) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

(k) Return the side airbag sensor RH and LH to their original positions and connect the connectors to them.

B -- REPLACE SIDE AIRBAG SENSOR ASSEMBLY LH Removal

A -- USE SIMULATION METHOD TO CHECK

C -- REPLACE CENTER AIRBAG SENSOR ASSEMBLY Removal

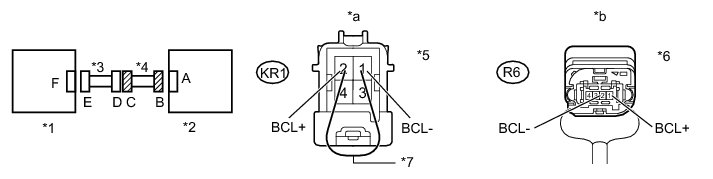

14. CHECK NO. 2 FLOOR WIRE (REAR AIRBAG SENSOR LH - FRONT DOOR WIRE LH)

(a) Disconnect the No. 2 floor wire connector from the front door wire LH.

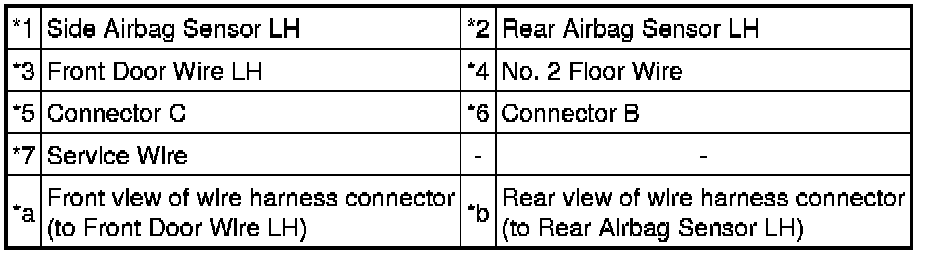

Text in Illustration





(b) Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





(d) Turn the engine switch off.

(e) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

(f) Using a service wire, connect terminals 2 (BCL+) and 1 (BCL-) of connector C.

NOTICE:
Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

(g) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





(h) Disconnect the service wire from connector C.

(i) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPLACE NO. 2 FLOOR WIRE

OK -- REPLACE FRONT DOOR WIRE LH
