B1827

SUPPLEMENTAL RESTRAINT SYSTEMS: AIRBAG SYSTEM: B1825/56-B1828/56: Short in Side Squib LH Circuit
B1828/56 - Short to B+ in Side Squib LH Circuit

DESCRIPTION

The front side squib LH circuit consists of the center airbag sensor and front seat airbag LH.

The circuit instructs the SRS to deploy when deployment conditions are met.

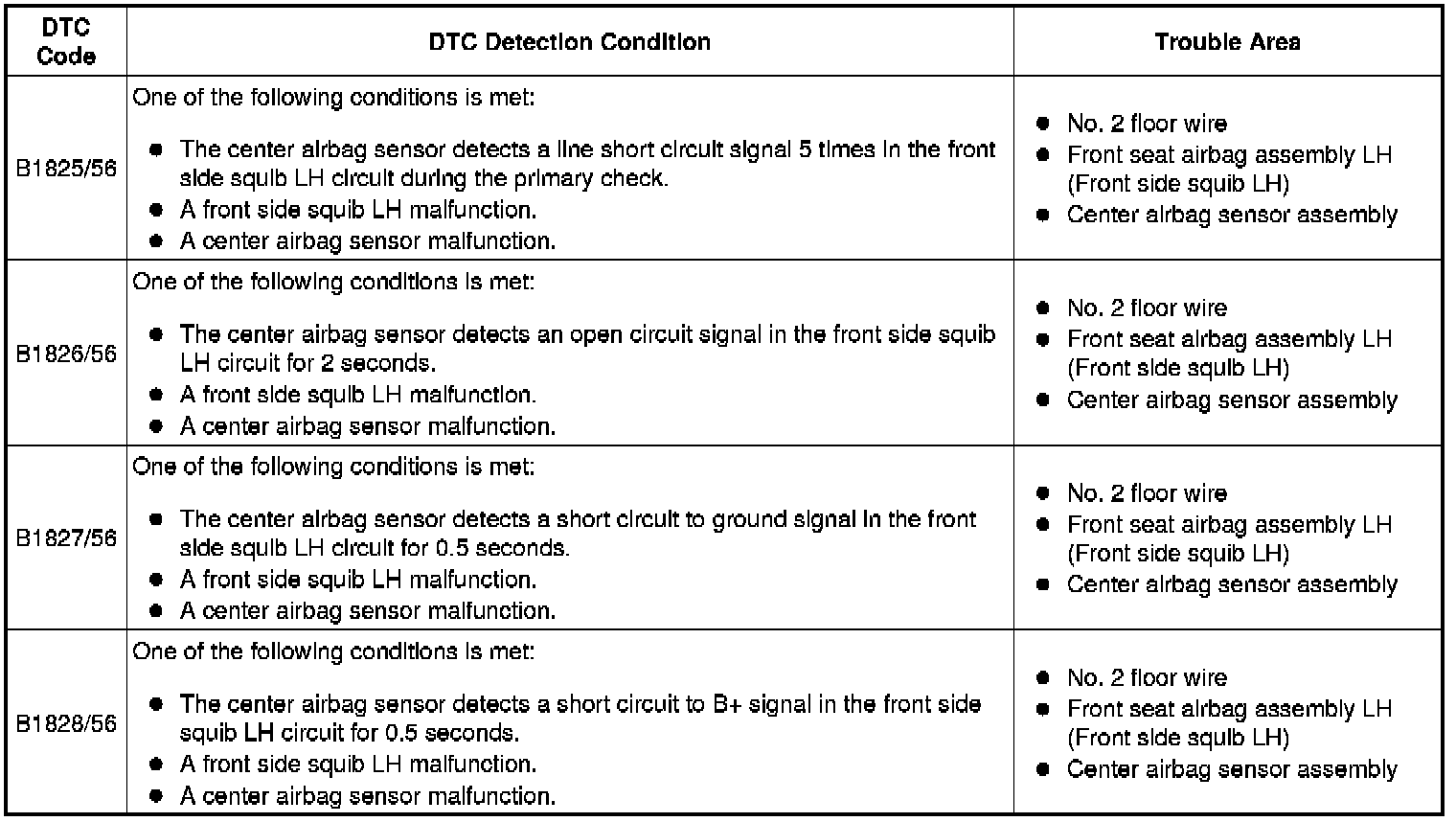

These DTCs are stored when a malfunction is detected in the front side squib LH circuit.

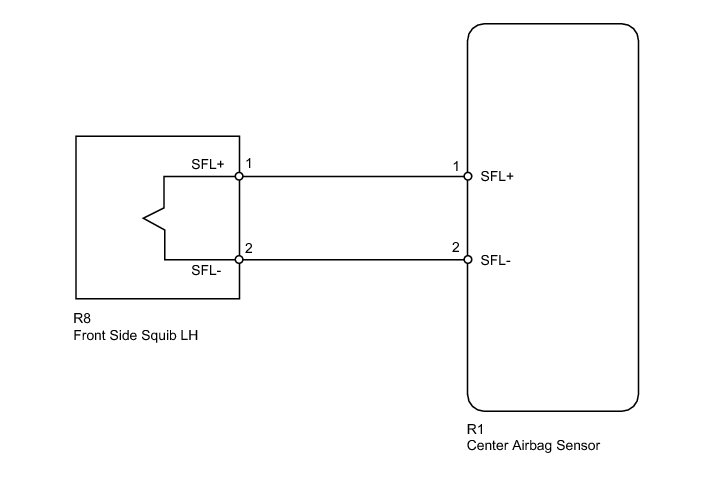

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
* W/ Navigation System:
* After the engine switch is turned off, the display and navigation module display (navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal:





* When disconnecting the cable from the negative (-) battery terminal while performing repairs, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
HINT
To perform the simulation method, enter check mode (signal check) with the Techstream Check Mode Procedure, and then wiggle each connector of the airbag system or drive the vehicle on various types of road Diagnosis System.

PROCEDURE

1. CHECK FRONT SEAT AIRBAG LH (FRONT SIDE SQUIB LH)

(a) Turn the engine switch off.





(b) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

(c) Disconnect the connector from the front seat airbag LH.

(d) Connect the red wire side of SST (resistance: 2.1 Ohms) to connector C.

CAUTION:
Never connect the tester to the front seat airbag LH (front side squib LH) for measurement, as this may lead to a serious injury due to airbag deployment.

NOTICE:
* Do not forcibly insert SST into the terminals of the connector when connecting SST.
* Insert SST straight into the terminals of the connector.
SST : 09843-18061

(e) Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

(f) Turn the engine switch on (IG), and wait for at least 60 seconds.

(g) Clear the DTCs DTC Check / Clear.

(h) Turn the engine switch off.

(i) Turn the engine switch on (IG), and wait for at least 60 seconds.

(j) Check for DTCs DTC Check / Clear.

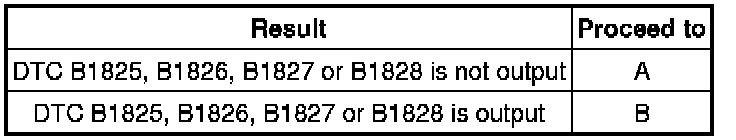

Result





HINT
Codes other than DTC B1825, B1826, B1827 and B1828 may be output at this time, but they are not related to this check.

Text in Illustration





A -- REPLACE FRONT SEAT AIRBAG ASSEMBLY LH Removal
B -- Continue to next step.

2. CHECK CONNECTOR

(a) Turn the engine switch off.

(b) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

(c) Disconnect SST from connector C.

(d) Check that the No. 2 floor wire connectors (on the front seat airbag LH side) are not damaged.

OK:

The lock button is not disengaged, and the claw of the lock is not deformed or damaged.





Text in Illustration





NG -- REPLACE NO. 2 FLOOR WIRE
OK -- Continue to next step.

3. CHECK NO. 2 FLOOR WIRE (FRONT SIDE SQUIB LH CIRCUIT)

(a) Disconnect the connectors from the center airbag sensor.





(b) Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

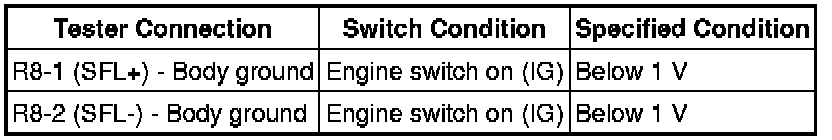

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





(d) Turn the engine switch off.

(e) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

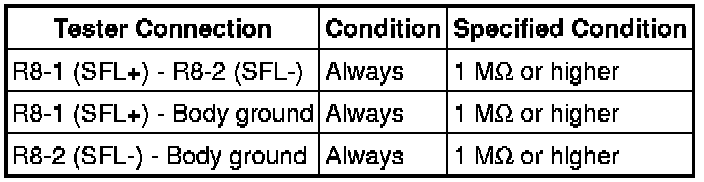

(f) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





(g) Release the activation prevention mechanism built into connector B Diagnosis System.

(h) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





NG -- REPLACE NO. 2 FLOOR WIRE
OK -- Continue to next step.

4. CHECK CENTER AIRBAG SENSOR

(a) Connect the connectors to the front seat airbag LH and center airbag sensor.





(b) Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

(c) Turn the engine switch on (IG), and wait for at least 60 seconds.

(d) Clear the DTCs DTC Check / Clear.

(e) Turn the engine switch off.

(f) Turn the engine switch on (IG), and wait for at least 60 seconds.

(g) Check for DTCs DTC Check / Clear.

OK:

DTC B1825, B1826, B1827 or B1828 is not output.

HINT
Codes other than DTC B1825, B1826, B1827 and B1828 may be output at this time, but they are not related to this check.

Text in Illustration





NG -- REPLACE CENTER AIRBAG SENSOR ASSEMBLY Removal

OK -- USE SIMULATION METHOD TO CHECK Diagnosis System
