B2006

PRE-COLLISION: PRE-COLLISION SYSTEM: B2006: Short to GND in Seat Belt Motor LH Circuit
B2006 - Short to GND in Seat Belt Motor LH Circuit

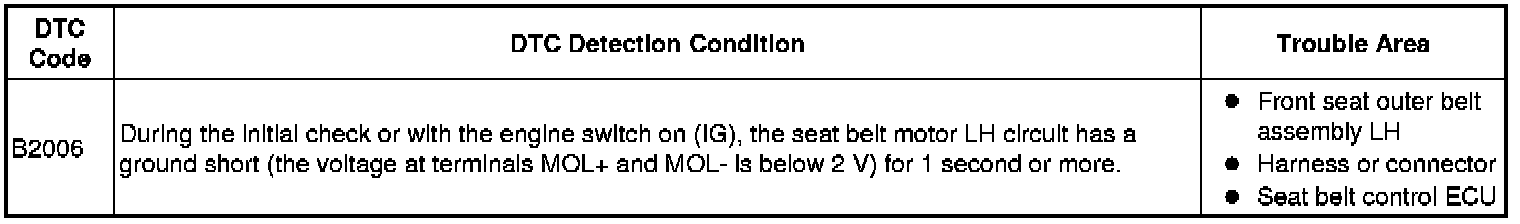

DESCRIPTION

The seat belt control ECU receives collision information from the driving support ECU and skid control ECU via CAN communication and tightens the seat belt by operating the motor inside the front seat outer belt LH.

When DTC B2006 is stored, DTCs B2020, B2031 and B2032 are not stored.





WIRING DIAGRAM





INSPECTION PROCEDURE

CAUTION:
The pretensioner is built into the front seat outer belt assembly LH. Be sure to follow the correct inspection procedure, as failure to follow the correct procedure (such as inspection of incorrect connectors) may activate the pretensioner.

PROCEDURE

1. CHECK FRONT SEAT OUTER BELT ASSEMBLY LH CIRCUIT

(a) Disconnect the G34 ECU connector.

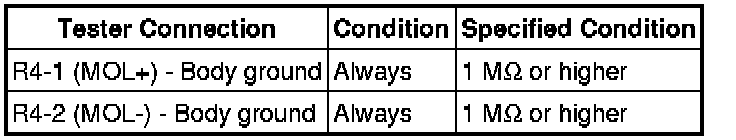

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





NG -- CHECK HARNESS AND CONNECTOR (FRONT SEAT OUTER BELT LH - SEAT BELT CONTROL ECU)

OK -- REPLACE SEAT BELT CONTROL ECU Removal

2. CHECK HARNESS AND CONNECTOR (FRONT SEAT OUTER BELT LH - SEAT BELT CONTROL ECU)

(a) Disconnect the R4 belt connector.





(b) Disconnect the G34 ECU connector.

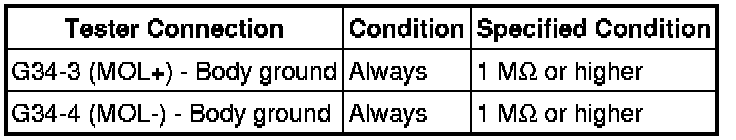

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE FRONT SEAT OUTER BELT ASSEMBLY LH Removal
