B2341

SLIDING ROOF / CONVERTIBLE: SLIDING ROOF SYSTEM: B2341,B2344: Sensor (Motor) Failure
B2341 - Sensor (Motor) Failure
B2344 - Position Failure

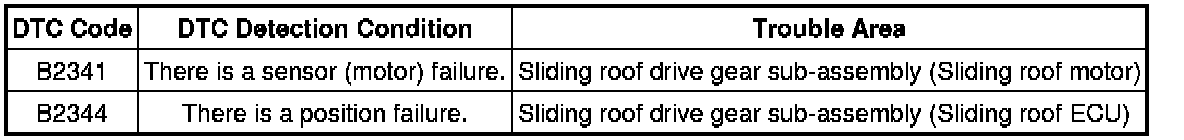

DESCRIPTION

* When the sliding roof drive gear sub-assembly detects a motor malfunction and the sliding roof operation is stopped, DTC B2341 is stored.

* When the sliding roof drive gear sub-assembly detects a gear position malfunction and the sliding roof operation is stopped, DTC B2344 is stored.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK FOR DTC

(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(b) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.

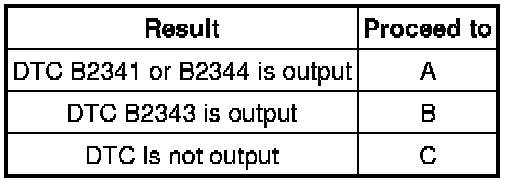

Result





C -- USE SIMULATION METHOD TO CHECK Electronic Circuit Inspection Procedure

B -- GO TO B2343

A -- REPLACE SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY Disassembly
