B2343

SLIDING ROOF / CONVERTIBLE: SLIDING ROOF SYSTEM: B2343: Position Initialization Incomplete
B2343 - Position Initialization Incomplete

DESCRIPTION

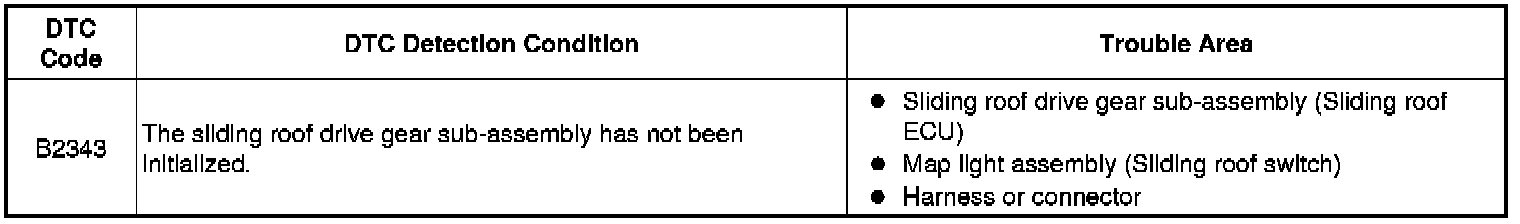

This DTC is stored when the sliding roof drive gear sub-assembly has not been initialized.

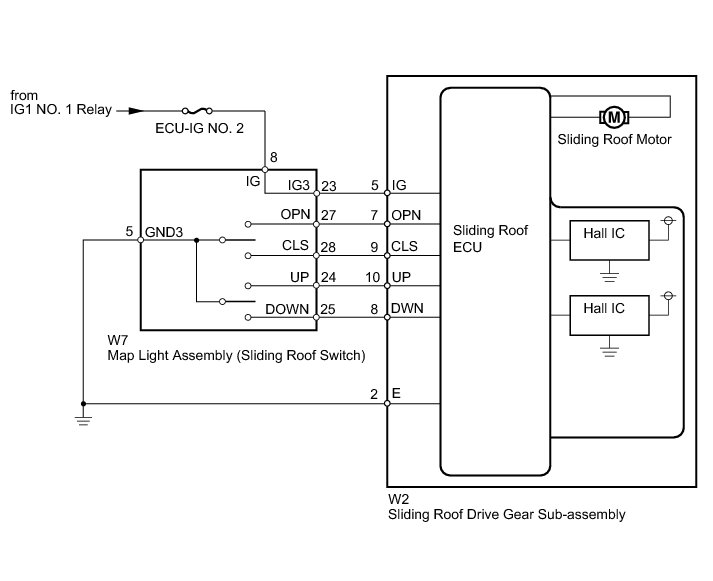

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
When the sliding roof drive gear sub-assembly is removed and reinstalled or replaced, the sliding roof drive gear sub-assembly must be initialized Initialization.

PROCEDURE

1. INITIALIZE SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY

(a) Check that the sliding roof drive gear sub-assembly can be initialized Initialization.

OK:

The sliding roof drive gear sub-assembly can be initialized.

NG -- INSPECT MAP LIGHT ASSEMBLY
OK -- Continue to next step.

2. CHECK FOR DTC

(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(b) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.

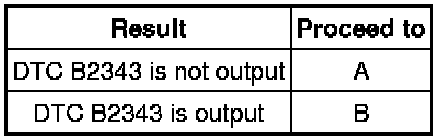

Result





B -- REPLACE SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY Disassembly

A -- END

3. INSPECT MAP LIGHT ASSEMBLY





(a) Remove the map light assembly Removal.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





NG -- REPLACE MAP LIGHT ASSEMBLY Removal
OK -- Continue to next step.

4. CHECK HARNESS AND CONNECTOR (SLIDING ROOF ECU - SLIDING ROOF SWITCH, BATTERY AND BODY GROUND)

(a) Disconnect the W2 ECU connector.

(b) Disconnect the W7 switch connector.

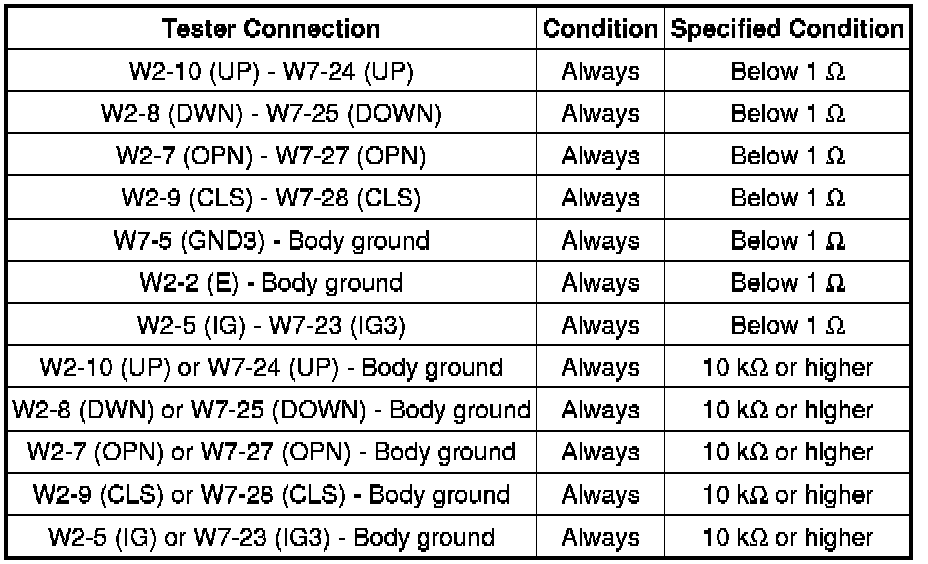

(c) Measure the resistance and voltage according to the value(s) in the table below.

Standard Resistance:





Standard Voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY Disassembly
