C1210

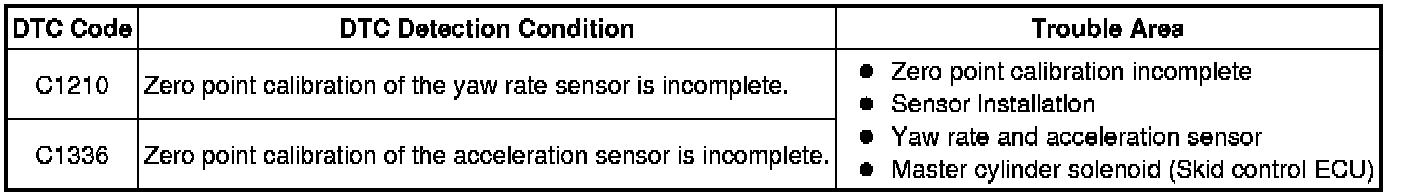

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: VEHICLE STABILITY CONTROL SYSTEM: C1210,C1336: Zero Point Calibration of Yaw Rate Sensor Undone


DESCRIPTION

The skid control ECU receives signals from the yaw rate and acceleration sensor via the CAN communication system.

The yaw rate sensor has a built-in acceleration sensor and detects the vehicle's condition using 2 circuits (GL1, GL2). If there is trouble in the bus lines between the yaw rate and acceleration sensor and the CAN communication system, DTCs U0123 (yaw rate sensor communication trouble) and U0124 (acceleration sensor communication trouble) are stored.

The DTCs are also stored when the calibration has not been completed.





WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
When replacing the master cylinder solenoid, perform calibration Programming and Relearning.

PROCEDURE

1. CHECK DTC (CAN COMMUNICATION SYSTEM)

(a) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.

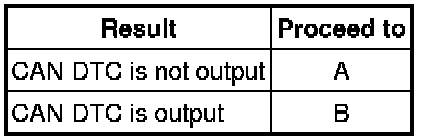

Result





B -- GO TO CAN COMMUNICATION SYSTEM (HOW TO PROCEED WITH TROUBLESHOOTING) How to Proceed With Troubleshooting
A -- Continue to next step.

2. PERFORM ZERO POINT CALIBRATION OF YAW RATE AND ACCELERATION SENSOR

(a) Perform zero point calibration of the yaw rate and acceleration sensor Programming and Relearning.

NEXT -- Continue to next step.

3. PERFORM TEST MODE (SIGNAL CHECK)

(a) Turn the engine switch off.

(b) Perform the signal check in the Test Mode Procedure Test Mode Procedure.

OK:

All test mode DTCs are cleared.

NG -- CHECK YAW RATE AND ACCELERATION SENSOR INSTALLATION

OK -- END

4. CHECK YAW RATE AND ACCELERATION SENSOR INSTALLATION

(a) Turn the engine switch off.

(b) Check that the yaw rate and acceleration sensor has been installed properly Installation.

OK:

The sensor is tightened to the specified torque.

The sensor is not installed at an angle.

NG -- INSTALL YAW RATE AND ACCELERATION SENSOR CORRECTLY Installation
OK -- Continue to next step.

5. READ VALUE USING TECHSTREAM (YAW RATE AND ACCELERATION SENSOR)

(a) Turn the engine switch off.

(b) Connect the Techstream to the DLC3.

(c) Turn the engine switch on (IG).

(d) Turn the Techstream on.

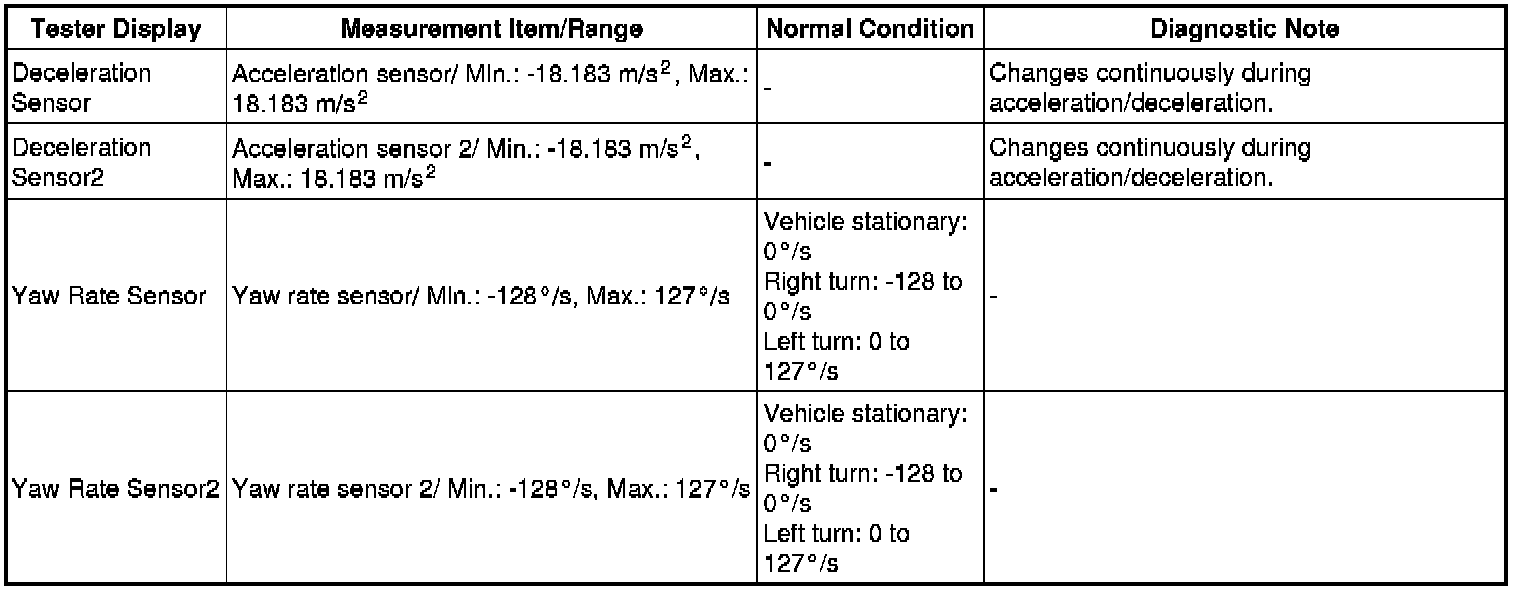

(e) Enter the following menus: Chassis / ABS/VSC/TRAC / Data List.

ABS/VSC/TRAC





(f) Check that the yaw rate and acceleration sensor output value is displayed on the Techstream.

OK:

The yaw rate and acceleration sensor output value is normal.

NOTICE:
Check the yaw rate and acceleration sensor signal after replacement Test Mode Procedure.

NG -- REPLACE YAW RATE AND ACCELERATION SENSOR Removal

OK -- REPLACE MASTER CYLINDER SOLENOID Disassembly
