C1423

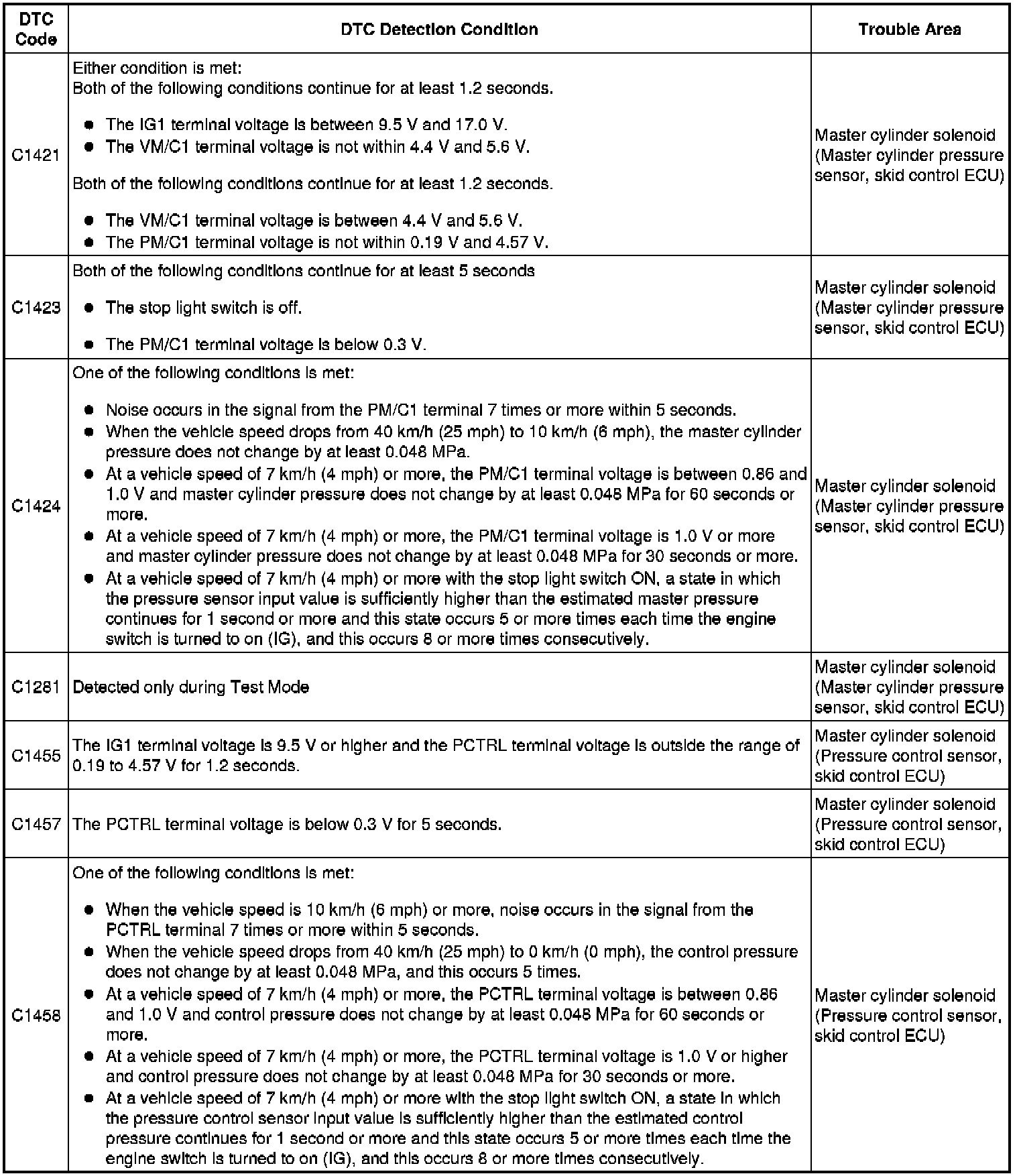

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: VEHICLE STABILITY CONTROL SYSTEM: C1421,C1281,C1423-C1455,C1457,C1458: Open or Short in Master Cylinder Pressure Sensor


DESCRIPTION

The pressure control sensor and master cylinder pressure sensor are connected to the skid control ECU in the master cylinder solenoid.









INSPECTION PROCEDURE

NOTICE:
When replacing the master cylinder solenoid, perform calibration Programming and Relearning.

PROCEDURE

1. REPLACE MASTER CYLINDER SOLENOID

(a) Replace the master cylinder solenoid Disassembly.

NEXT -- END
