BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: VEHICLE STABILITY CONTROL SYSTEM: C1442,C1443: Invalid Data Received from Acceleration Sensor

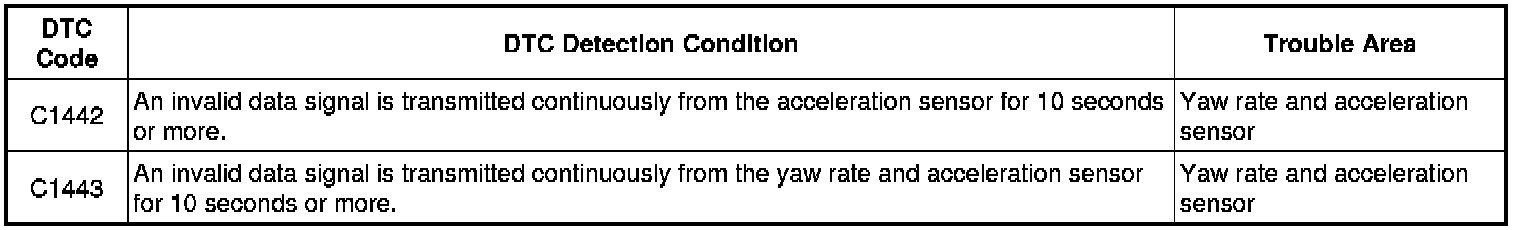

DESCRIPTION

The skid control ECU receives signals from the yaw rate and acceleration sensor via the CAN communication system.





INSPECTION PROCEDURE

NOTICE:
When replacing the yaw rate and acceleration sensor, perform calibration Programming and Relearning.

PROCEDURE

1. CHECK DTC

(a) Turn the engine switch off.

(b) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(c) Start the engine and idle it for 60 seconds, and then stop the engine.

(d) Check if the same DTC is output Reading and Clearing Diagnostic Trouble Codes.

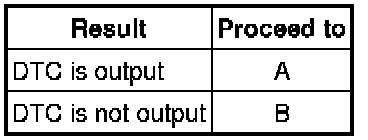

Result





B -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting

A -- REPLACE YAW RATE AND ACCELERATION SENSOR Removal
