C1687

PARK ASSIST / MONITORING: SIDE MONITOR SYSTEM: C1686,C1687: Driver Side Camera Video Sync Signal Malfunction

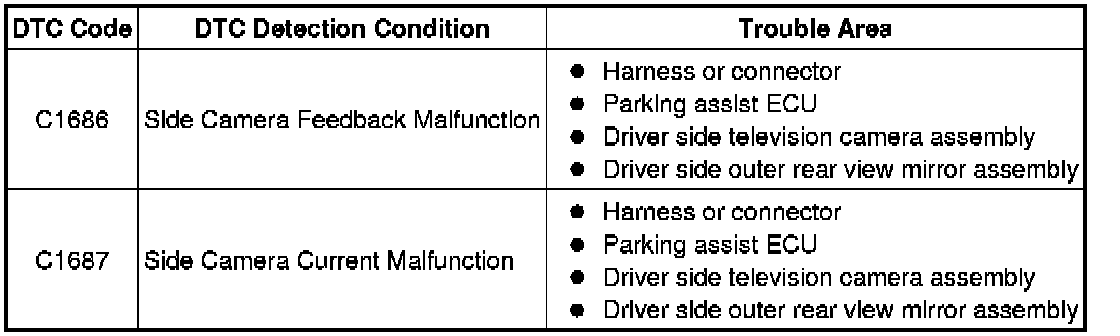

C1687 - Over Current Detected in Driver Side Camera

DESCRIPTION

This DTC is stored if the parking assist ECU judges as a result of its self check that a synchronization problem is occurring in the image signal sent from the driver side television camera assembly to the parking assist ECU.

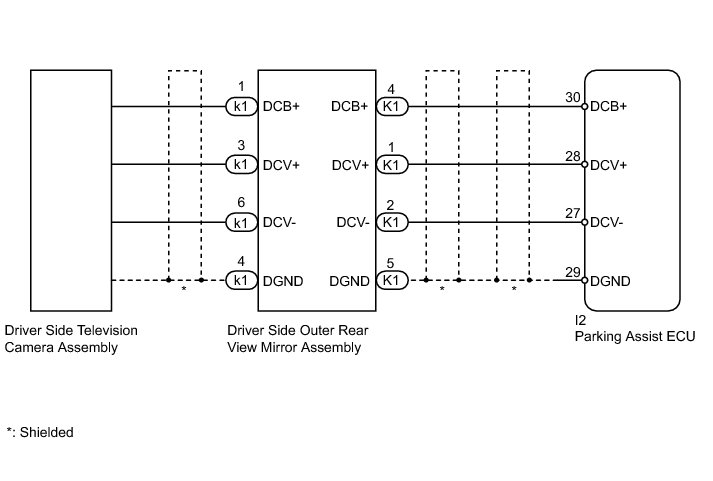

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
Depending on the parts that are replaced or operations that are performed during vehicle inspection or maintenance, calibration of other systems as well as the side monitor system may be needed Side Monitor System.

PROCEDURE

1. CHECK FOR DTC

(a) Clear the DTCs Side Monitor System.

(b) Check for DTCs Side Monitor System.

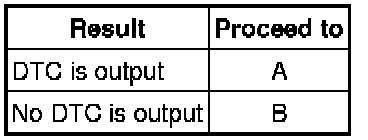

Result





B -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting
A -- Continue to next step.

2. CHECK PARKING ASSIST ECU

(a) Measure the voltage according to the value(s) in the table below.





Standard Voltage:





Text in Illustration





NG -- REPLACE PARKING ASSIST ECU Removal
OK -- Continue to next step.

3. CHECK DRIVER SIDE TELEVISION CAMERA ASSEMBLY

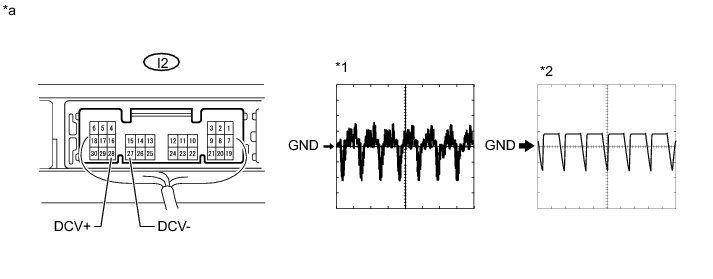

(a) Using an oscilloscope, check the waveform.





Text in Illustration

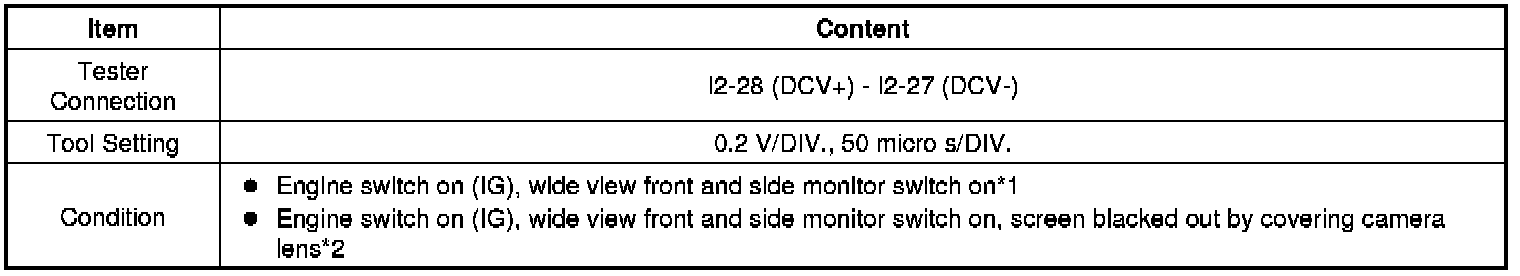

Measurement Condition





OK:

Waveform is as shown in illustration.

NG -- CHECK HARNESS AND CONNECTOR (PARKING ASSIST ECU - OUTER REAR VIEW MIRROR)

OK -- REPLACE PARKING ASSIST ECU Removal

4. CHECK HARNESS AND CONNECTOR (PARKING ASSIST ECU - OUTER REAR VIEW MIRROR)

(a) Disconnect the I2 parking assist ECU connector.

(b) Disconnect the K1 driver side outer rear view mirror assembly connector.

(c) Measure the resistance according to the value(s) in the table below.

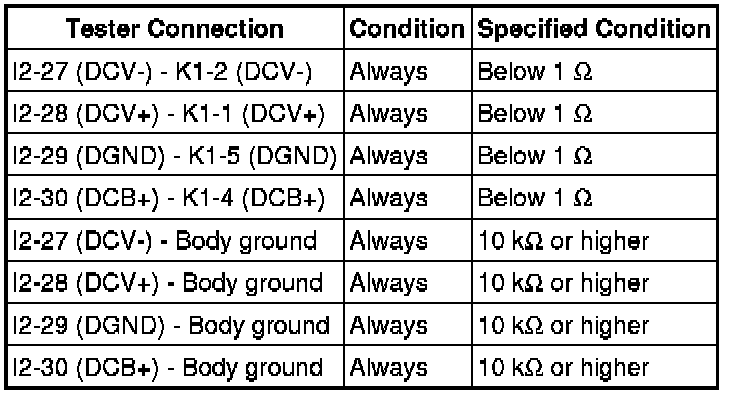

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

5. REPLACE DRIVER SIDE TELEVISION CAMERA ASSEMBLY

(a) Replace the driver side television camera assembly with a new or normally functioning one Removal.

NEXT -- Continue to next step.

6. CHECK FOR DTC

(a) Clear the DTCs Side Monitor System.

(b) Check for DTCs Side Monitor System.

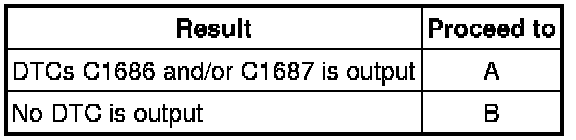

Result





B -- END (DRIVER SIDE TELEVISION CAMERA ASSEMBLY IS DEFECTIVE)

A -- REPLACE DRIVER SIDE OUTER REAR VIEW MIRROR ASSEMBLY Removal
