C168D

PARK ASSIST / MONITORING: REAR VIEW MONITOR SYSTEM (W/ Side Monitor System): C168D: Vehicle Information Unmatched
C168D - Vehicle Information Unmatched

DESCRIPTION

This DTC is stored if the parking assist ECU judges as a result of its self check that the vehicle information received from the power management control ECU via CAN communication and the vehicle information stored in the parking assist ECU do not match.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK FOR DTC

(a) Clear the DTCs Rear View Monitor System (W/ Side Monitor System).

(b) Check for DTCs Rear View Monitor System (W/ Side Monitor System).

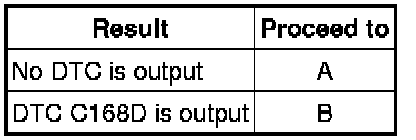

Result





B -- REPLACE PARKING ASSIST ECU Removal

A -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting
