Lane Departure Alert System

CRUISE CONTROL: LANE DEPARTURE ALERT SYSTEM: C1A0C: Object Recognition Camera Region Code Mismatch
C1A0C - Object Recognition Camera Region Code Mismatch

DESCRIPTION

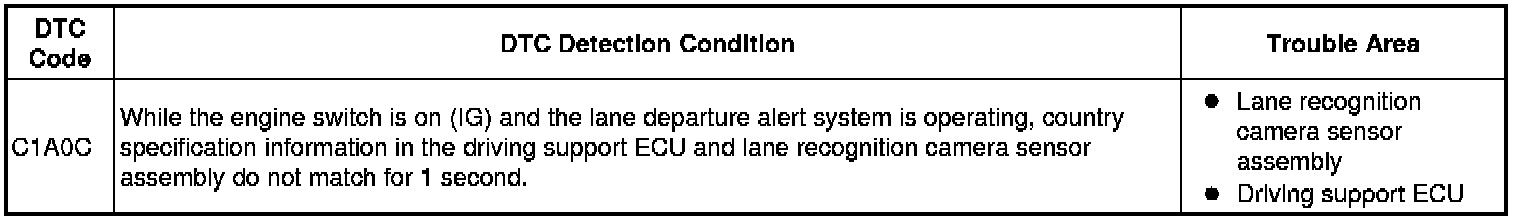

When the lane recognition camera sensor assembly is replaced with a new one, it acquires the country specification information from the driving support ECU. Also, when the driving support ECU is replaced with a new one, it receives the country specification information from the main body ECU (multiplex network body ECU). When the country specification information in the lane recognition camera sensor assembly and driving support ECU do not match, DTC C1A0C is stored.





INSPECTION PROCEDURE

PROCEDURE

1. ADJUST LANE RECOGNITION CAMERA SENSOR ASSEMBLY

(a) Adjust the lane recognition camera sensor assembly Adjustments.

NEXT -- Continue to next step.

2. CHECK FOR DTC

(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(b) Perform the following to make sure the DTC detection conditions are met.

HINT
If the detection conditions are not met, the system cannot detect the malfunction.

(1) Drive the vehicle at a speed of 50 km/h (30 mph) or more and operate the lane departure alert system.

(c) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.

OK:

DTC C1A0C is not output.

NG -- REPLACE LANE RECOGNITION CAMERA SENSOR ASSEMBLY

OK -- END

3. REPLACE LANE RECOGNITION CAMERA SENSOR ASSEMBLY

(a) Replace the lane recognition camera sensor assembly Removal.

NEXT -- Continue to next step.

4. ADJUST LANE RECOGNITION CAMERA SENSOR ASSEMBLY

(a) Adjust the lane recognition camera sensor assembly Adjustments.

NEXT -- Continue to next step.

5. CHECK FOR DTC

(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(b) Perform the following to make sure the DTC detection conditions are met.

HINT
If the detection conditions are not met, the system cannot detect the malfunction.

(1) Drive the vehicle at a speed of 50 km/h (30 mph) or more and operate the lane departure alert system.

(c) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.

OK:

DTC C1A0C is not output.

NG -- REPLACE DRIVING SUPPORT ECU Removal

OK -- END (LANE RECOGNITION CAMERA SENSOR ASSEMBLY IS DEFECTIVE)
