C1AE6

PARK ASSIST / MONITORING: INTUITIVE PARKING ASSIST SYSTEM: C1AE6: Rear Left Sensor Malfunction
C1AE6 - Rear Left Sensor Malfunction

DESCRIPTION

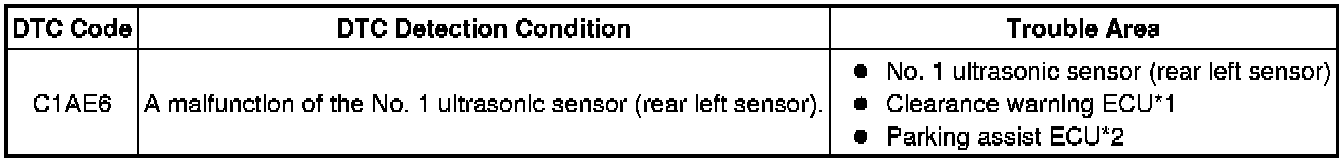

The No. 1 ultrasonic sensor (rear left sensor) is installed on the rear bumper. The ECU detects obstacles based on signals received from the No. 1 ultrasonic sensor (rear left sensor). If the No. 1 ultrasonic sensor (rear left sensor) has an open circuit or other malfunction, it will not function normally.





- *1: W/O Side Monitor System

- *2: W/ Side Monitor System

INSPECTION PROCEDURE

NOTICE:
If the DTC is output after repairs, turn the engine switch on (IG) and turn the intuitive parking assist system on. Then clear the DTC Intuitive Parking Assist System.

PROCEDURE

1. CHECK FOR DTC

(a) Check for DTCs Intuitive Parking Assist System.

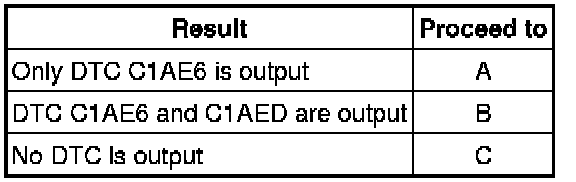

Result





C -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting

B -- GO TO DTC (C1AED)
A -- Continue to next step.

2. REPLACE NO. 1 ULTRASONIC SENSOR (REAR LEFT SENSOR)

(a) Replace the No. 1 ultrasonic sensor (rear left sensor) with a normally functioning sensor Removal.

HINT
All of the sensors are interchangeable. To confirm whether a sensor is functioning normally, switch it with a known good sensor from the other end of the vehicle.

NEXT -- Continue to next step.

3. CHECK FOR DTC

(a) Clear the DTCs Intuitive Parking Assist System.

(b) Check for DTCs Intuitive Parking Assist System.

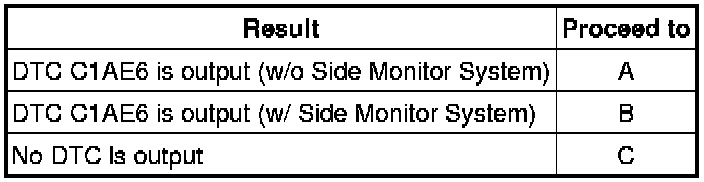

Result





C -- END (NO. 1 ULTRASONIC SENSOR WAS DEFECTIVE)

B -- REPLACE PARKING ASSIST ECU Removal

A -- REPLACE CLEARANCE WARNING ECU Removal
