CAN Communication System





NETWORKING: CAN COMMUNICATION SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

CAN Communication System

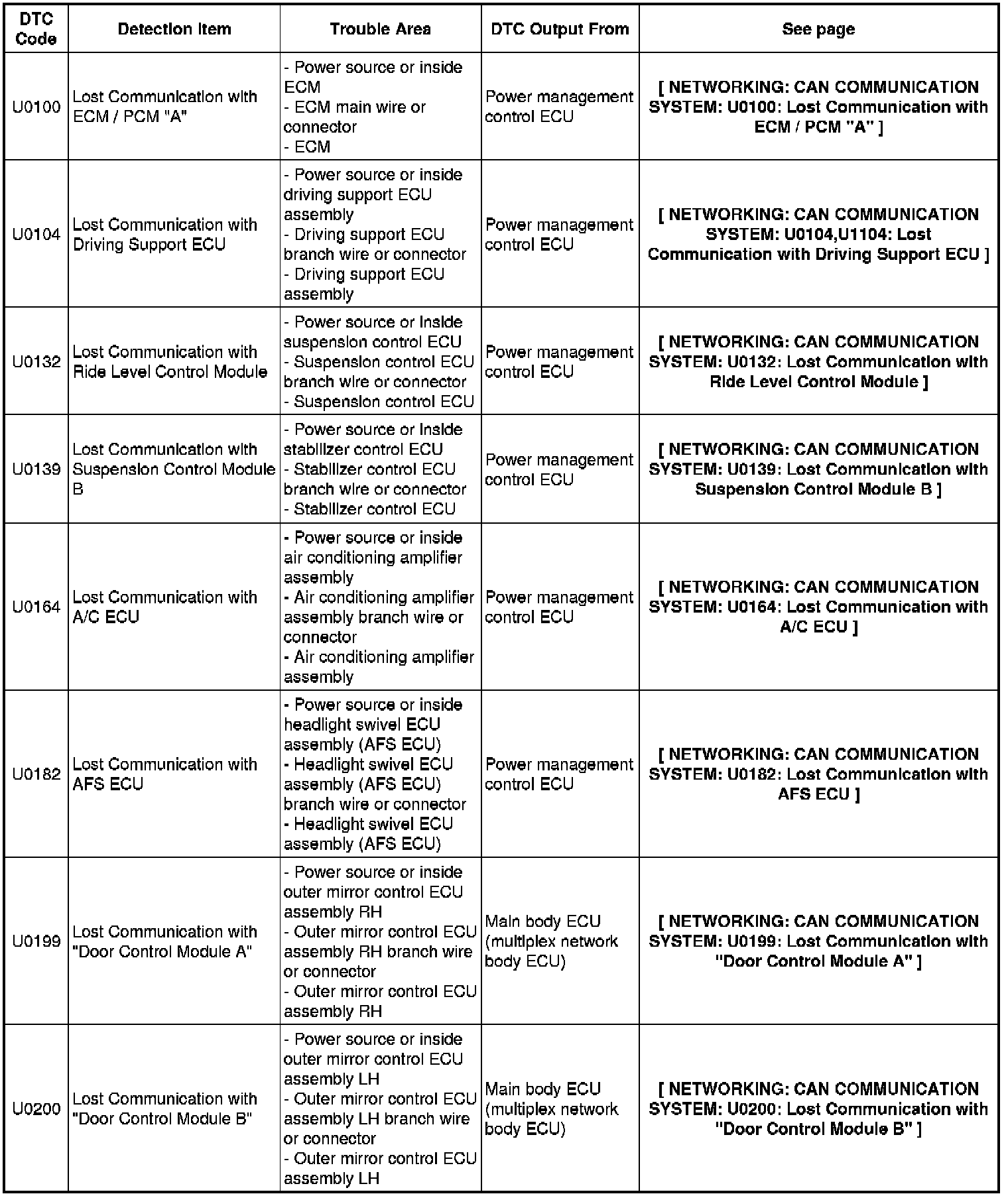

U0100 - U0200:

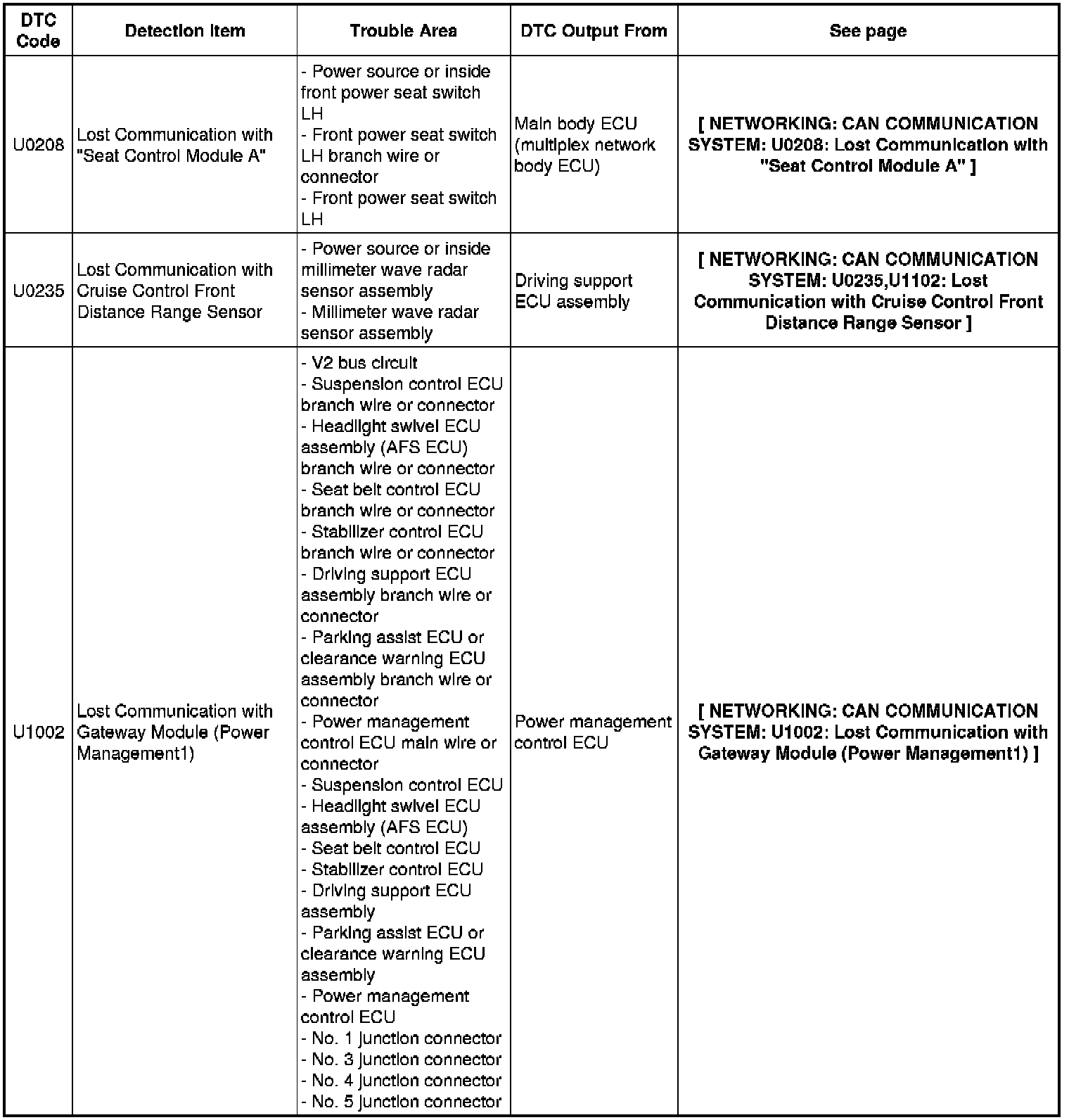

U0208 - U1002:

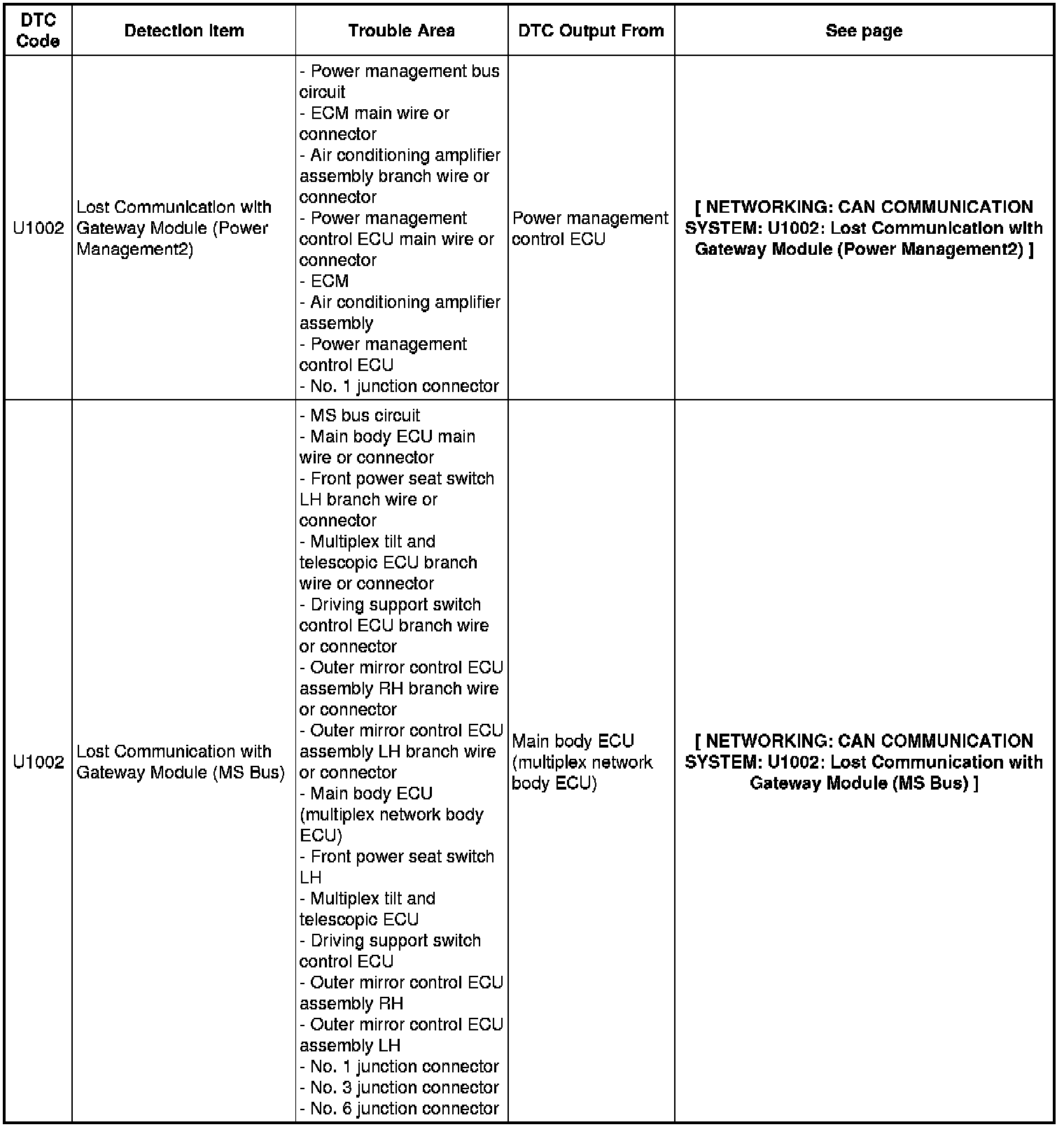

U1002 - U1002:

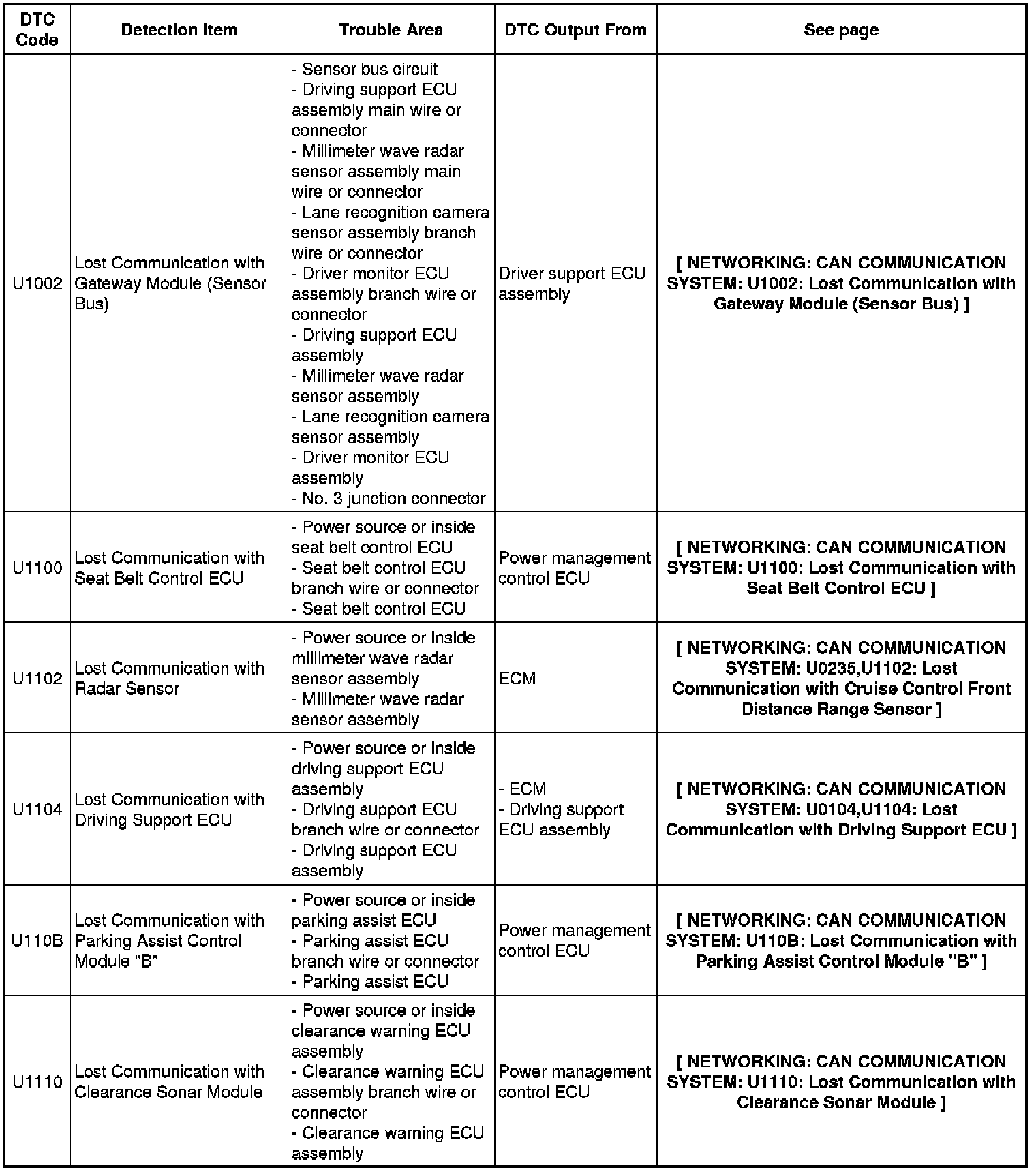

U1002 - U1110:

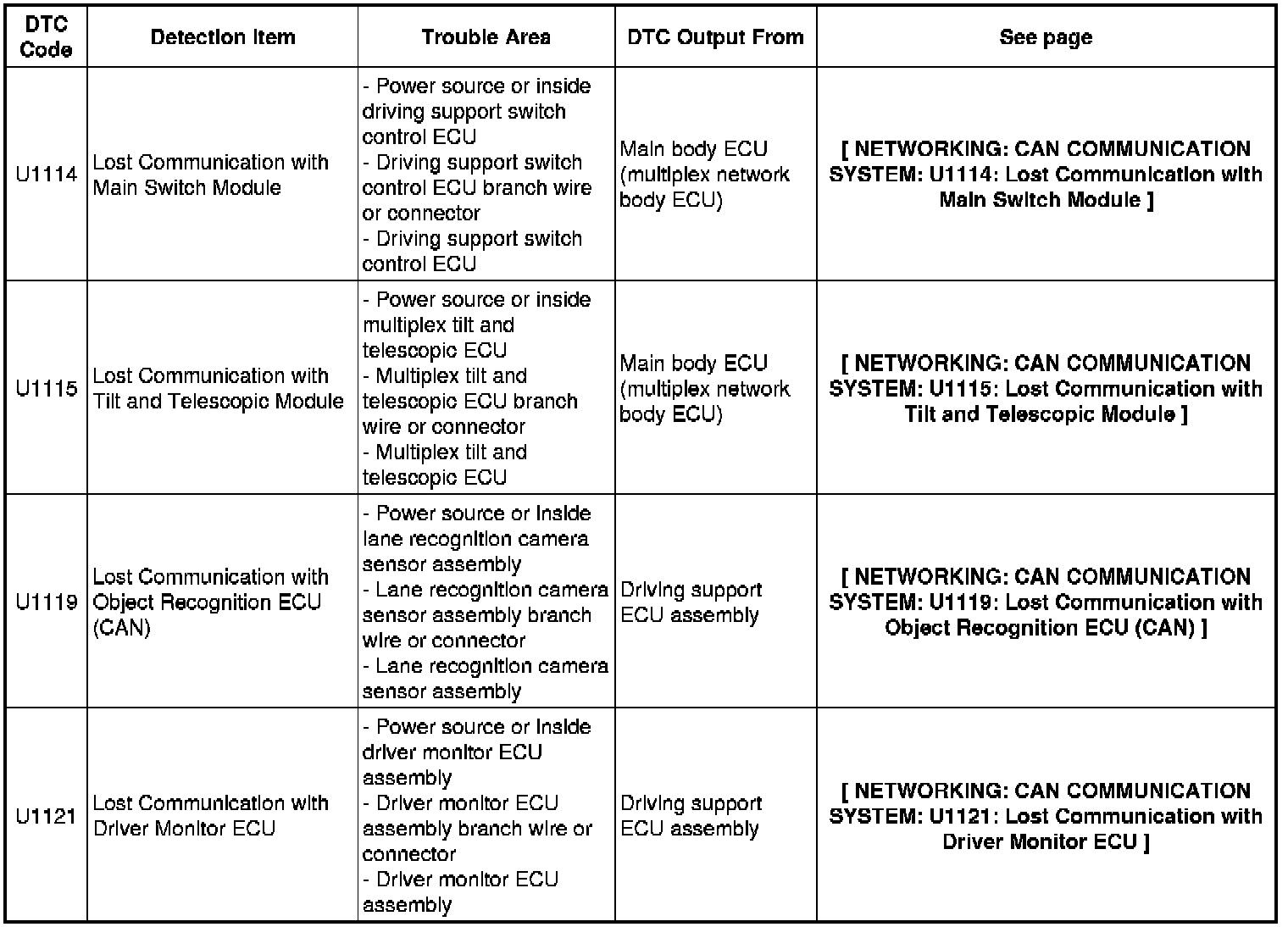

U1114 - U1121:
