Exterior Lighting System
LIGHTING (EXT): LIGHTING SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
HINT
If a trouble code is output during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the tables below.
Lighting System

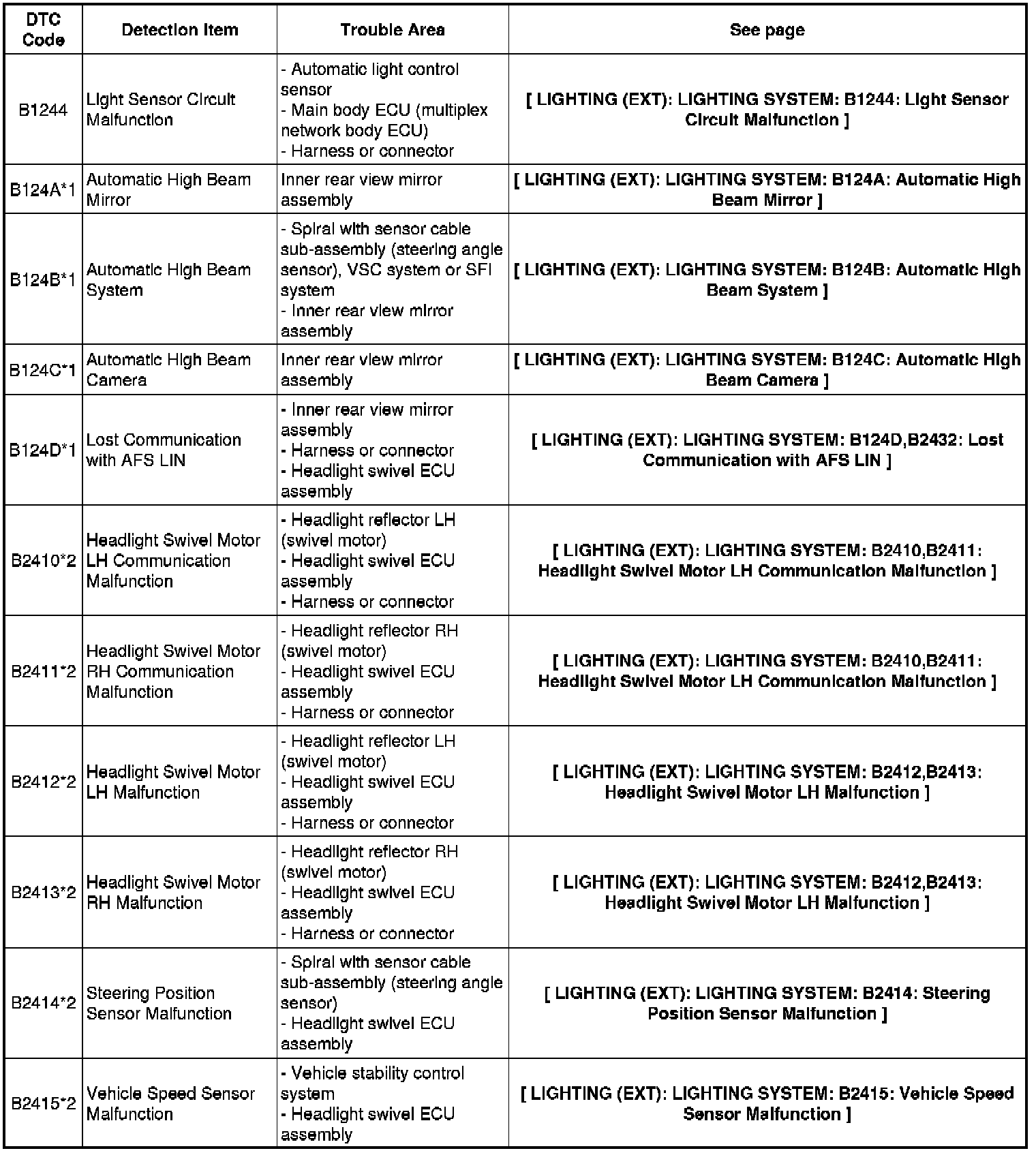

B1244 - B2415:

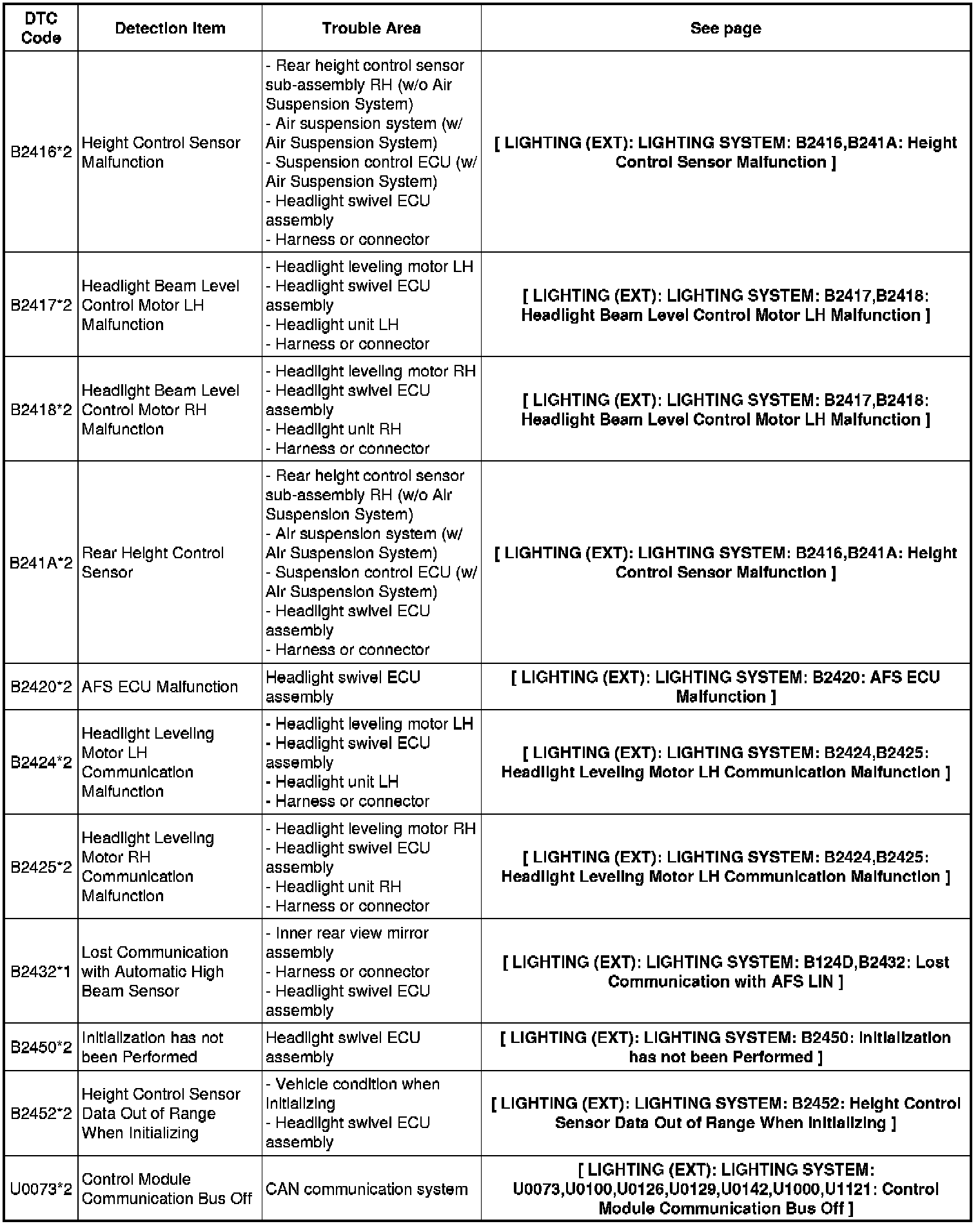

B2416 - B2452 / U0073:

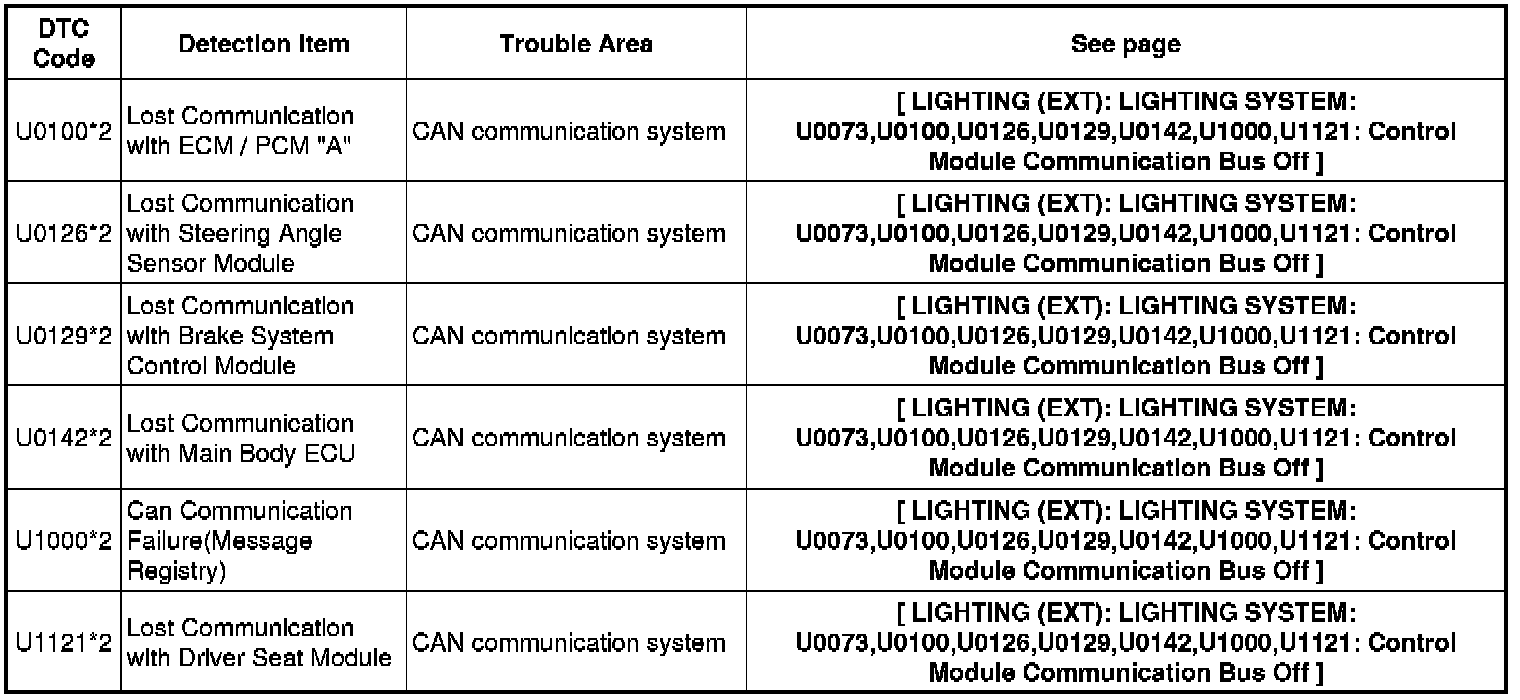

U0100 - U1121:
* *1: W/ Automatic High Beam System
* *2: W/ AFS
