Kinetic Dynamic Suspension System
SUSPENSION CONTROL: KINETIC DYNAMIC SUSPENSION SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
NOTICE:
Turn the engine switch off before removing parts.
HINT
* If no abnormality is found when inspecting parts, inspect the skid control ECU and ground points for poor contact.
* If a trouble code is output during the DTC check, check the circuit indicated by the DTC. For details of each code, refer to the respective "DTC Code" in the DTC chart.
* When 2 or more DTCs are output, perform circuit inspections one by one until the problem is identified.
* Inspect the fuse and relay before investigating the trouble areas as shown in the table below.
KDSS

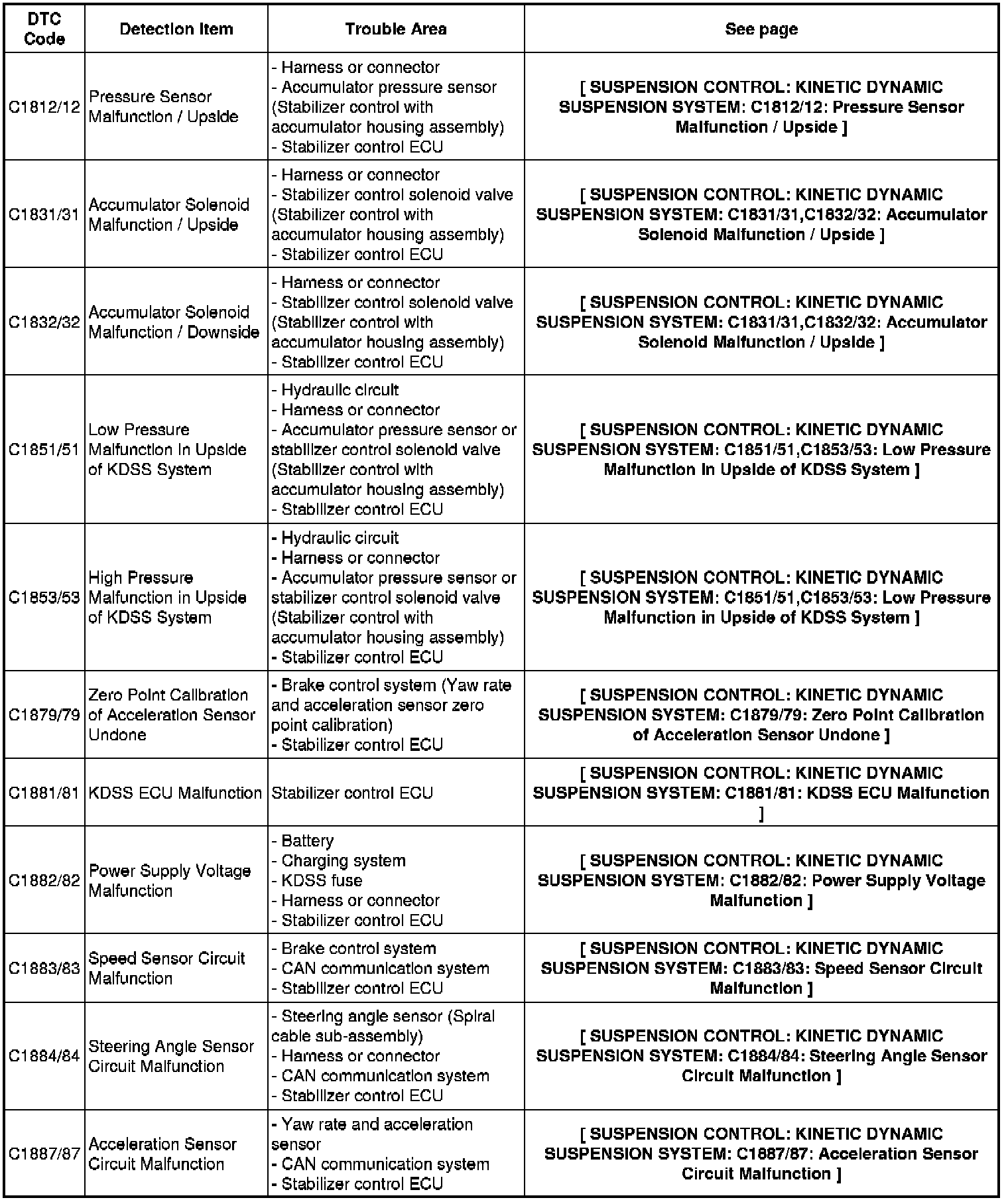

C1812/12 - C1887/87:
U0100/71 - U0126/71:
