LIN Communication System
NETWORKING: LIN COMMUNICATION SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
HINT
If a trouble code is output during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the tables below.

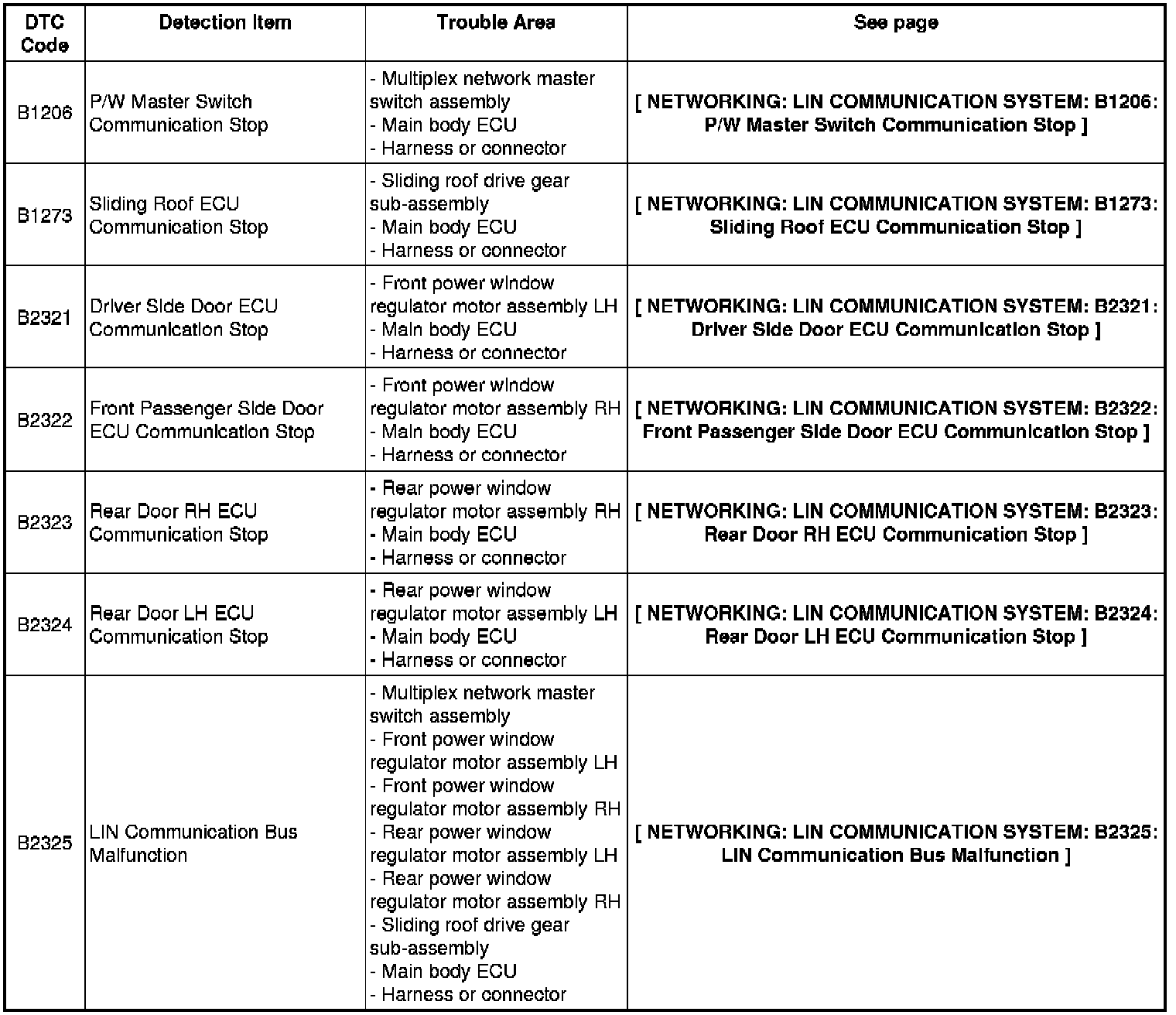

Main Body ECU
B1206 - B2325:

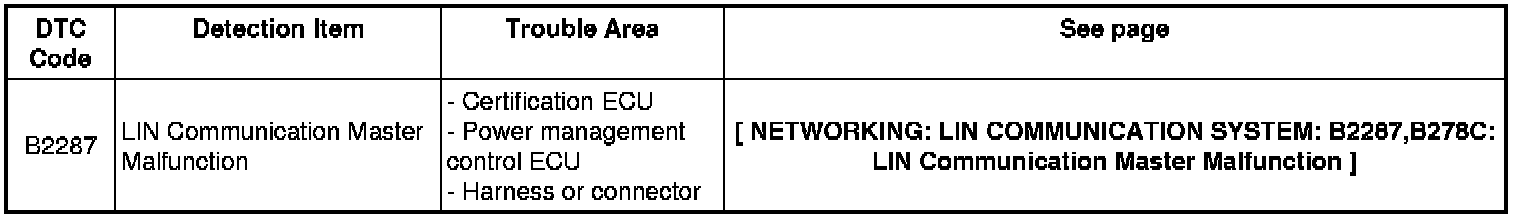

Power Management Control ECU
B2287:

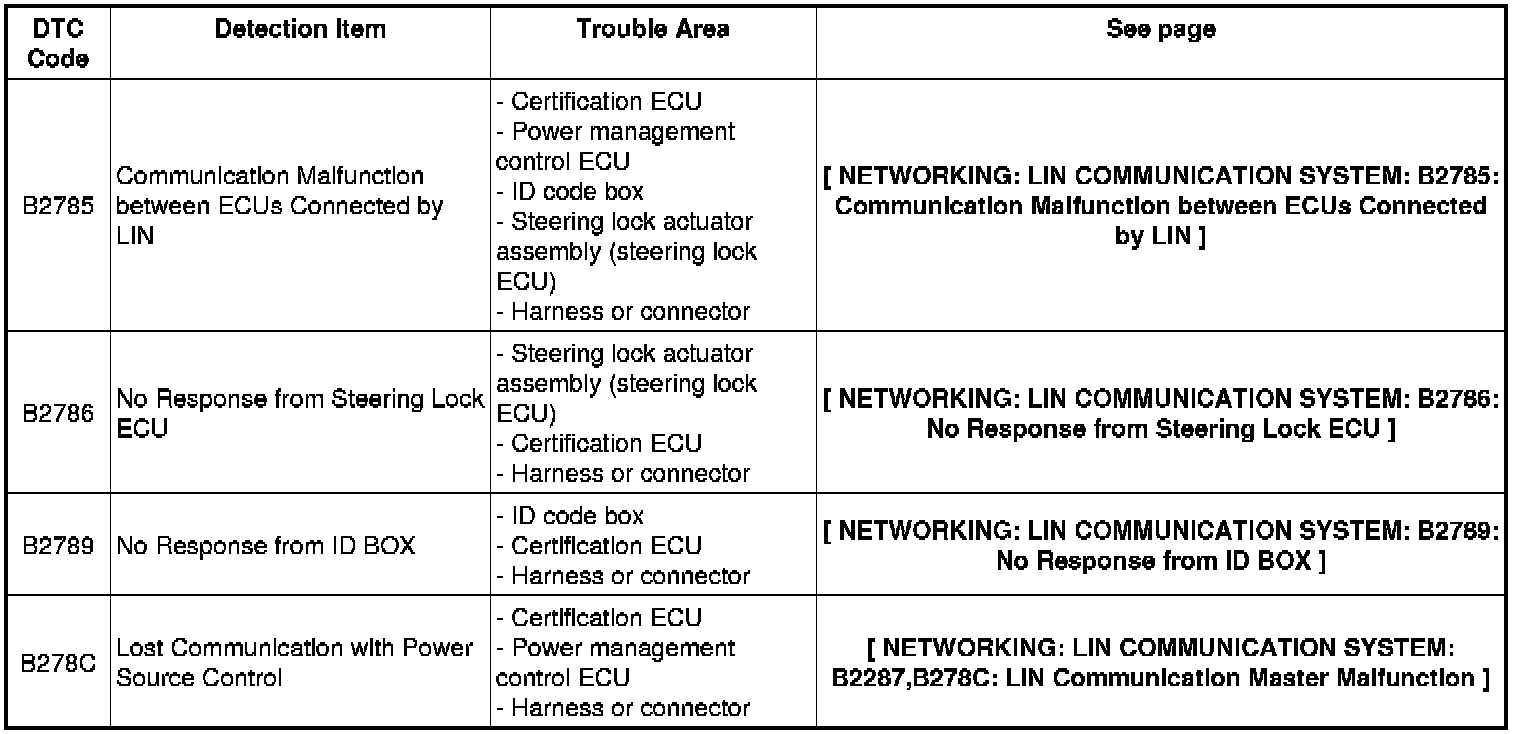

Certification ECU
B2785 - B278C:

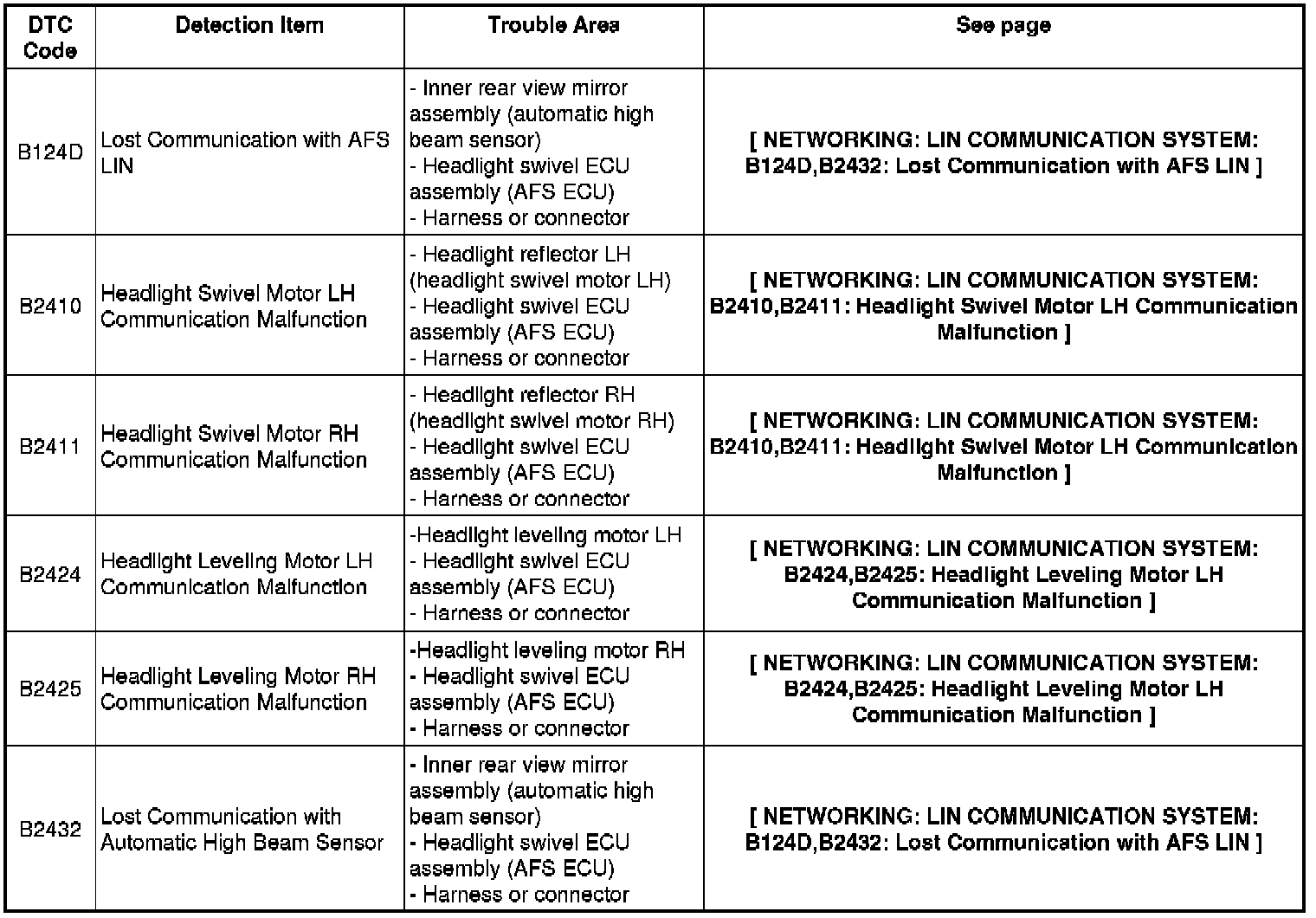

Headlight Swivel ECU Assembly (AFS ECU)
B124D - B2432:

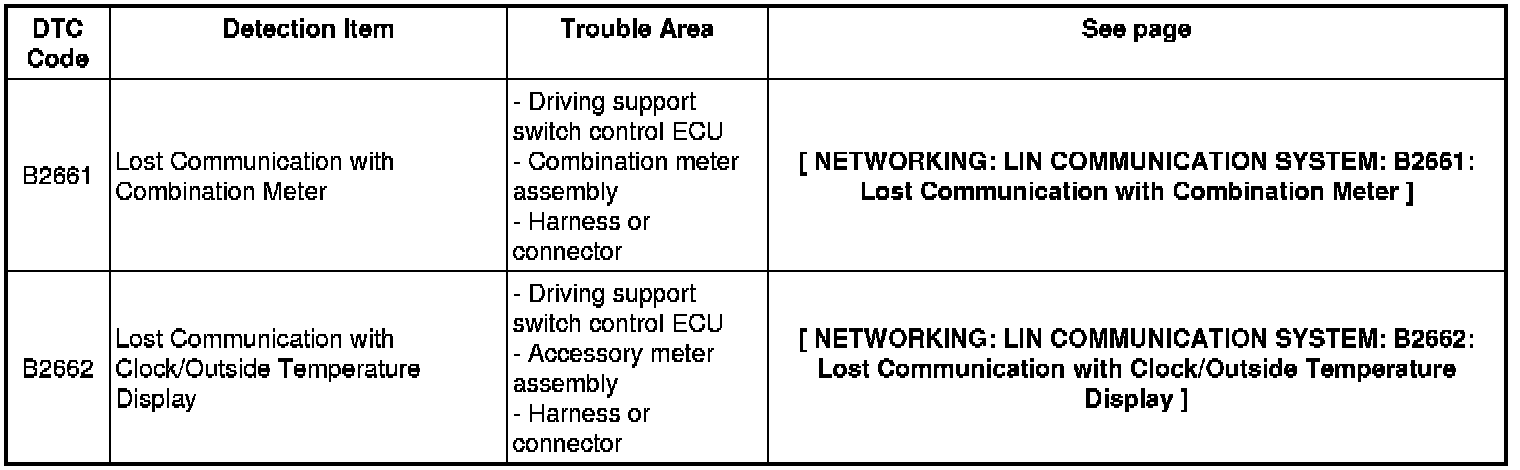

Driving Support Switch Control ECU
B2661 - B2662:
