Power Tilt and Power Telescopic Steering Column System





STEERING COLUMN: POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

HINT
If a trouble code is output during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the tables below.

Power Tilt and Power Telescopic Steering Column System

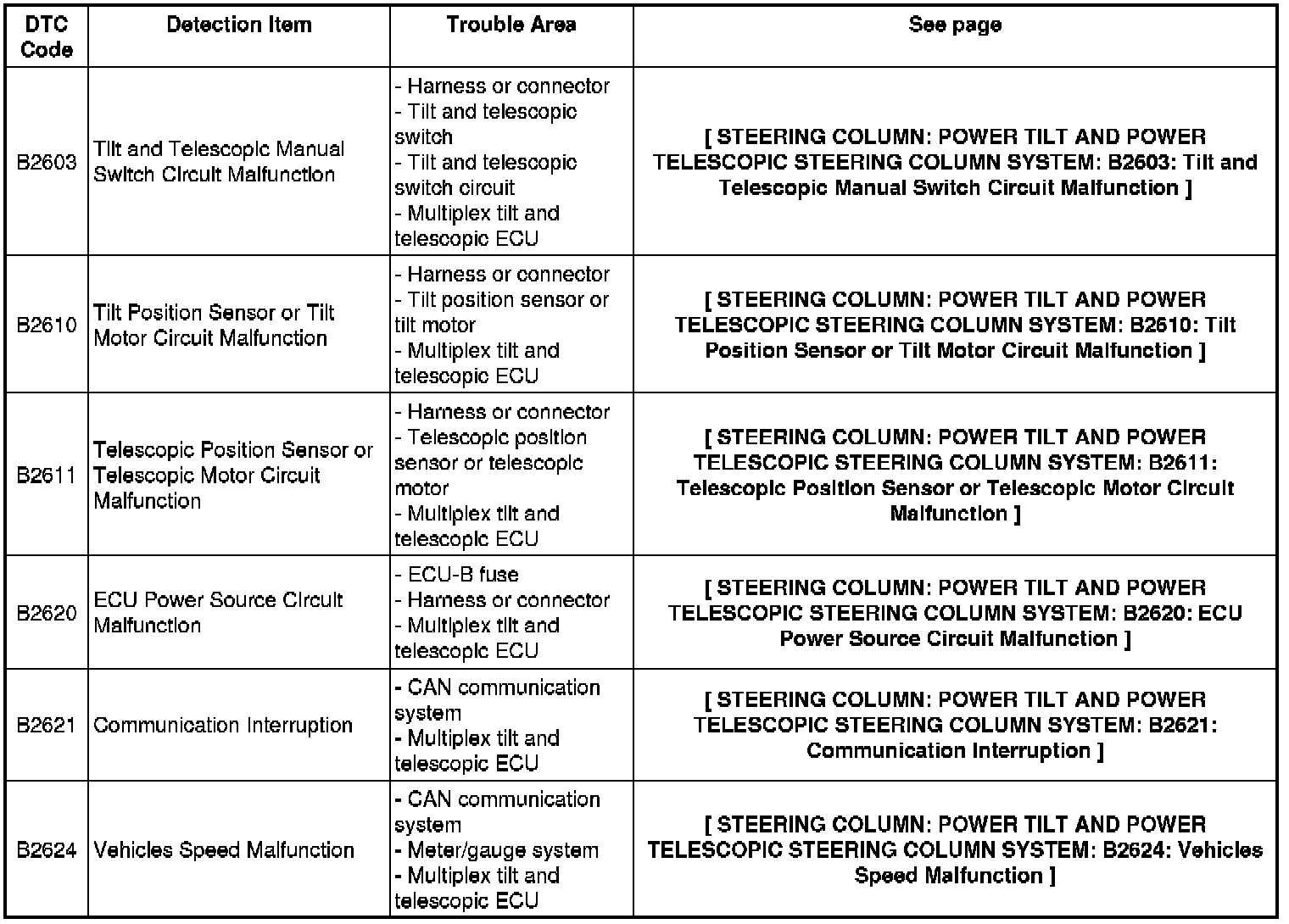

B2603 - B2624:
