DTC 63-44

AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM (W/O Multi-display): 62-44,62-48,62-50,63-44,63-48,63-50: CD Abnormal
63-50 - Tray Insertion / Ejection Error

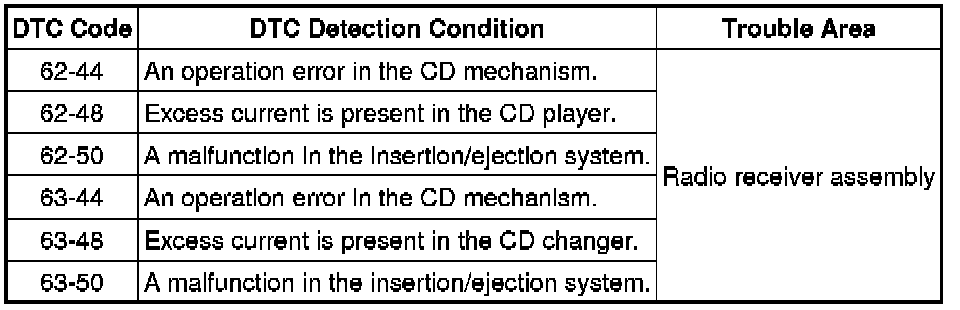

DESCRIPTION





INSPECTION PROCEDURE

HINT
After the inspection is completed, clear the DTCs.

PROCEDURE

1. CHECK FOR DTC

(a) Clear the DTCs Audio and Visual System (W/O Multi-Display).

(b) Check for DTCs and check if the same trouble occurs again.

HINT
If DTCs are output frequently, replace the radio receiver assembly.

OK:

Malfunction disappears.

NG -- REPLACE RADIO RECEIVER ASSEMBLY Removal

OK -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting
