Part 3
1UR-FE ENGINE CONTROL: SFI SYSTEM: P0136-P0139,P0156-P0159: Oxygen Sensor Circuit Malfunction (Bank 1 Sensor 2)
P0159 - Oxygen Sensor Circuit Slow Response (Bank 2 Sensor 2) (Continued)
14. REPLACE HEATED OXYGEN SENSOR
(a) Replace the heated oxygen sensor Removal.
NEXT -- Continue to next step.
15. PERFORM CONFIRMATION DRIVING PATTERN
(a) Perform Confirmation Driving Pattern (P0136, P0137, P0138, P0156, P0157 and P0158).
NEXT -- Continue to next step.
16. CHECK WHETHER DTC OUTPUT RECURS (DTC P0136, P0137, P0138, P0156, P0157 OR P0158 IS OUTPUT AGAIN)
(a) Connect the Techstream to the DLC3.
(b) Turn the Techstream on.
(c) Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.
(d) Input DTCs: P0136, P0137, P0138, P0156, P0157 and P0158.
(e) Check that the DTC monitor is NORMAL. If the DTC monitor is INCOMPLETE, perform the drive pattern again but increase the vehicle speed.

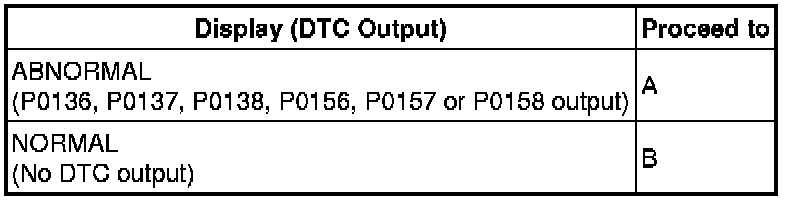

Result
B -- END
A -- Continue to next step.
17. PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE EGR STEP POSITION)
(a) Connect the Techstream to the DLC3.
(b) Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher.
HINT
- When performing the Active Test, make sure the shift lever is in P or N.
- The A/C switch and all accessory switches should be off.
(c) Turn the Techstream on.
(d) Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the EGR Step Position.
(e) Confirm that Throttle Idle Position is ON and check the engine idling condition and the value of MAP in the Data List while performing the Active Test.
HINT
- Do not leave the EGR valve open for 10 seconds or more during the Active Test.
- Be sure to return the EGR valve to step 0 when the Active Test is completed.
OK:

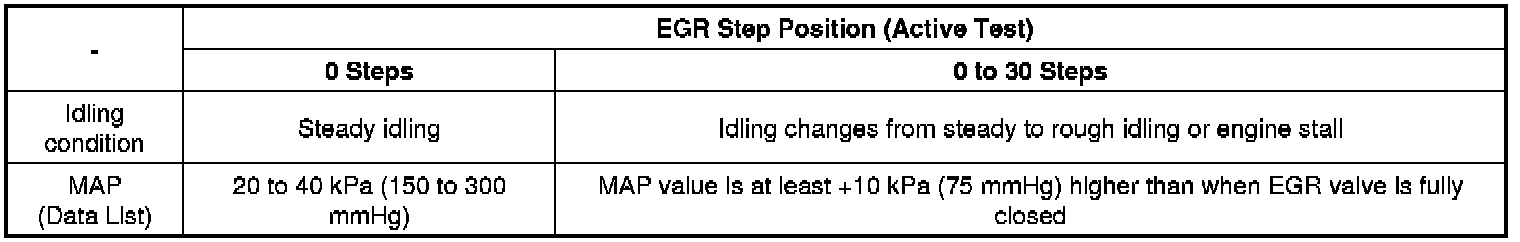

MAP and idling condition change in response to EGR step position as follows.
Standard:
NG -- INSPECT EGR VALVE ASSEMBLY
OK -- REPLACE AIR FUEL RATIO SENSOR Removal
18. INSPECT EGR VALVE ASSEMBLY
(a) Remove the EGR valve assembly Removal.
(b) Check if the EGR valve is stuck open.
OK:
EGR valve is tightly closed.
NG -- REPLACE EGR VALVE ASSEMBLY Removal
OK -- REPLACE AIR FUEL RATIO SENSOR Removal
19. REPLACE AIR FUEL RATIO SENSOR
(a) Replace the air fuel ratio sensor Removal.
NEXT -- Continue to next step.
20. PERFORM CONFIRMATION DRIVING PATTERN
(a) Perform Confirmation Driving Pattern (P0136, P0137, P0138, P0156, P0157 and P0158).
NEXT -- Continue to next step.
21. CHECK WHETHER DTC OUTPUT RECURS (DTC P0136, P0137, P0138, P0156, P0157 OR P0158 IS OUTPUT AGAIN)
(a) Connect the Techstream to the DLC3.
(b) Turn the Techstream on.
(c) Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.
(d) Input DTCs: P0136, P0137, P0138, P0156, P0157 or P0158.
(e) Check that the DTC monitor is NORMAL. If the DTC monitor is INCOMPLETE, perform the drive pattern again but increase the vehicle speed.
Result
B -- END
A -- Continue to next step.
22. PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE EGR STEP POSITION)
(a) Connect the Techstream to the DLC3.
(b) Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher.
HINT
- When performing the Active Test, make sure the shift lever is in P or N.
- The A/C switch and all accessory switches should be off.
(c) Turn the Techstream on.
(d) Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the EGR Step Position.
(e) Confirm that Throttle Idle Position is ON and check the engine idling condition and the value of MAP in the Data List while performing the Active Test.
HINT
- Do not leave the EGR valve open for 10 seconds or more during the Active Test.
- Be sure to return the EGR valve to step 0 when the Active Test is completed.
OK:

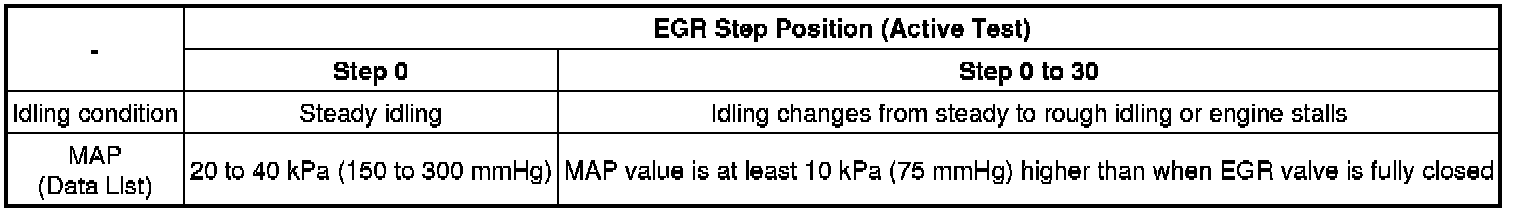

MAP and idling condition change in response to EGR step position as follows.
Standard:
NG -- INSPECT EGR VALVE ASSEMBLY
OK -- REPLACE HEATED OXYGEN SENSOR Removal
23. INSPECT EGR VALVE ASSEMBLY
(a) Remove the EGR valve assembly Removal.
(b) Check if the EGR valve is stuck open.
OK:
EGR valve is tightly closed.
NG -- REPLACE EGR VALVE ASSEMBLY Removal
OK -- REPLACE HEATED OXYGEN SENSOR Removal
24. CHECK FOR EXHAUST GAS LEAK
(a) Check for exhaust gas leak.
OK:
No gas leakage.
NG -- REPAIR OR REPLACE EXHAUST GAS LEAKAGE POINT
OK -- Continue to next step.
25. CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT)
(a) Turn the engine switch off and wait for 5 minutes.
(b) Disconnect the ECM connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
26. PERFORM CONFIRMATION DRIVING PATTERN
(a) Perform Confirmation Driving Pattern (P0139 and P0159).
NEXT -- Continue to next step.
27. READ DTC OUTPUT (DTC P0139 OR P0159 IS OUTPUT AGAIN)
(a) Read the DTCs DTC Check / Clear.

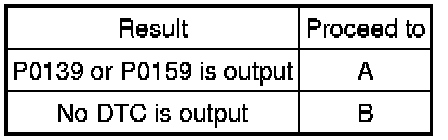

Result
B -- CHECK FOR INTERMITTENT PROBLEMS
A -- Continue to next step.
28. PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE EGR STEP POSITION)
(a) Connect the Techstream to the DLC3.
(b) Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher.
HINT
- When performing the Active Test, make sure the shift lever is in P or N.
- The A/C switch and all accessory switches should be off.
(c) Turn the Techstream on.
(d) Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the EGR Step Position.
(e) Confirm the Throttle Idle Position is ON and check the engine idling condition and MAP values in the Data List while performing the Active Test.
HINT
- Do not leave the EGR valve open for 10 seconds or more during the Active Test.
- Be sure to return the EGR valve to step 0 when the Active Test is completed.
OK:
MAP and idling condition change in response to EGR step position as follows.
Standard:
NG -- INSPECT EGR VALVE ASSEMBLY
OK -- REPLACE HEATED OXYGEN SENSOR Removal
29. INSPECT EGR VALVE ASSEMBLY
(a) Remove the EGR valve assembly Removal.
(b) Check if the EGR valve is stuck open.
OK:
EGR valve is tightly closed.
NG -- REPLACE EGR VALVE ASSEMBLY Removal
OK -- REPLACE HEATED OXYGEN SENSOR Removal
