P0441

1UR-FE ENGINE CONTROL: SFI SYSTEM: P0441: Evaporative Emission Control System Incorrect Purge Flow
P0441 - Evaporative Emission Control System Incorrect Purge Flow

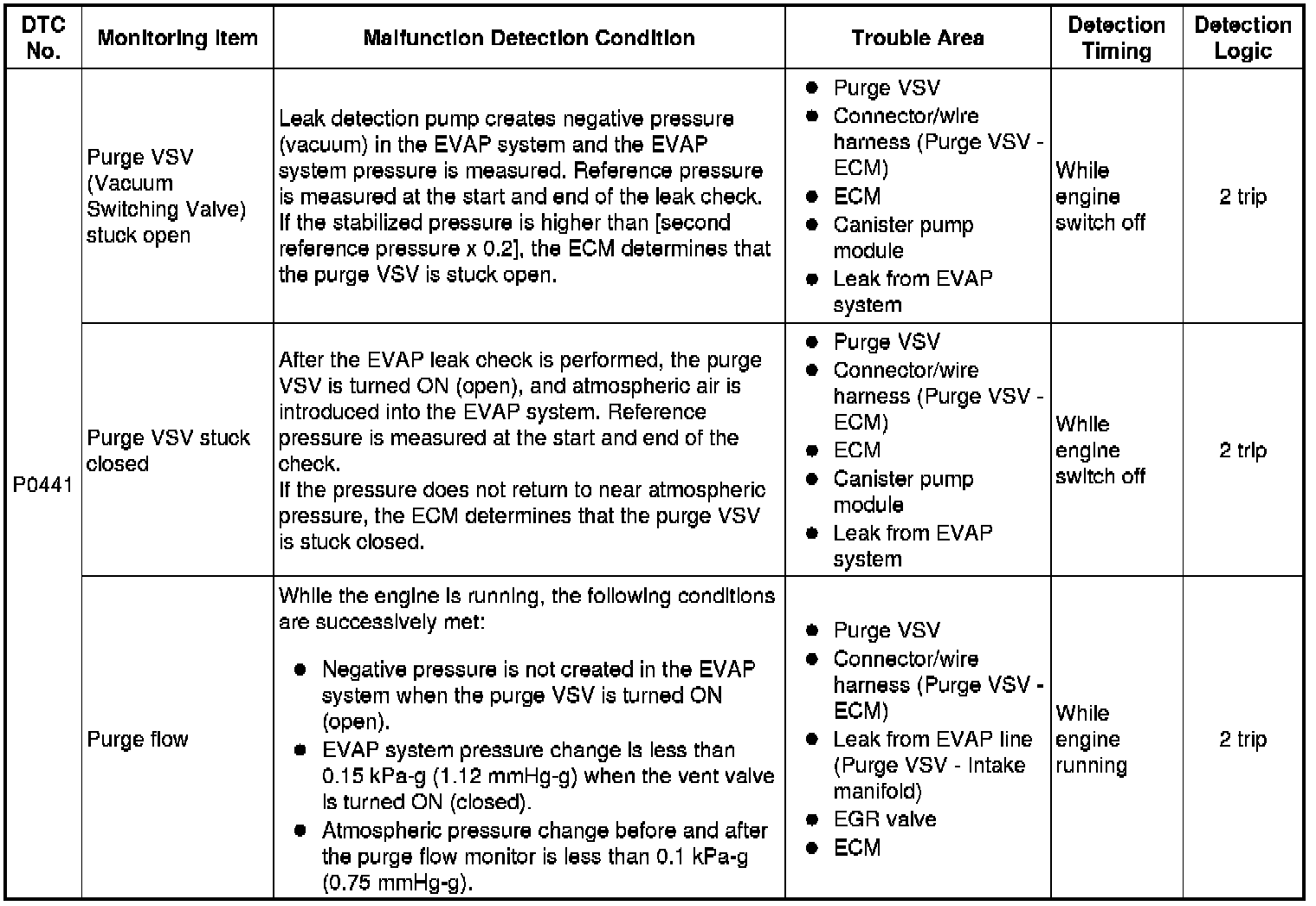

DTC SUMMARY





DESCRIPTION

The description can be found in EVAP (Evaporative Emission) System EVAP System.

MONITOR DESCRIPTION

The two monitors, Key-off and Purge Flow, are used to detect malfunctions relating to DTC P0441. The Key-off monitor is initiated by the ECM internal timer, known as the soak timer, 5 hours* after the engine switch is turned off. The purge flow monitor runs while the engine is running.

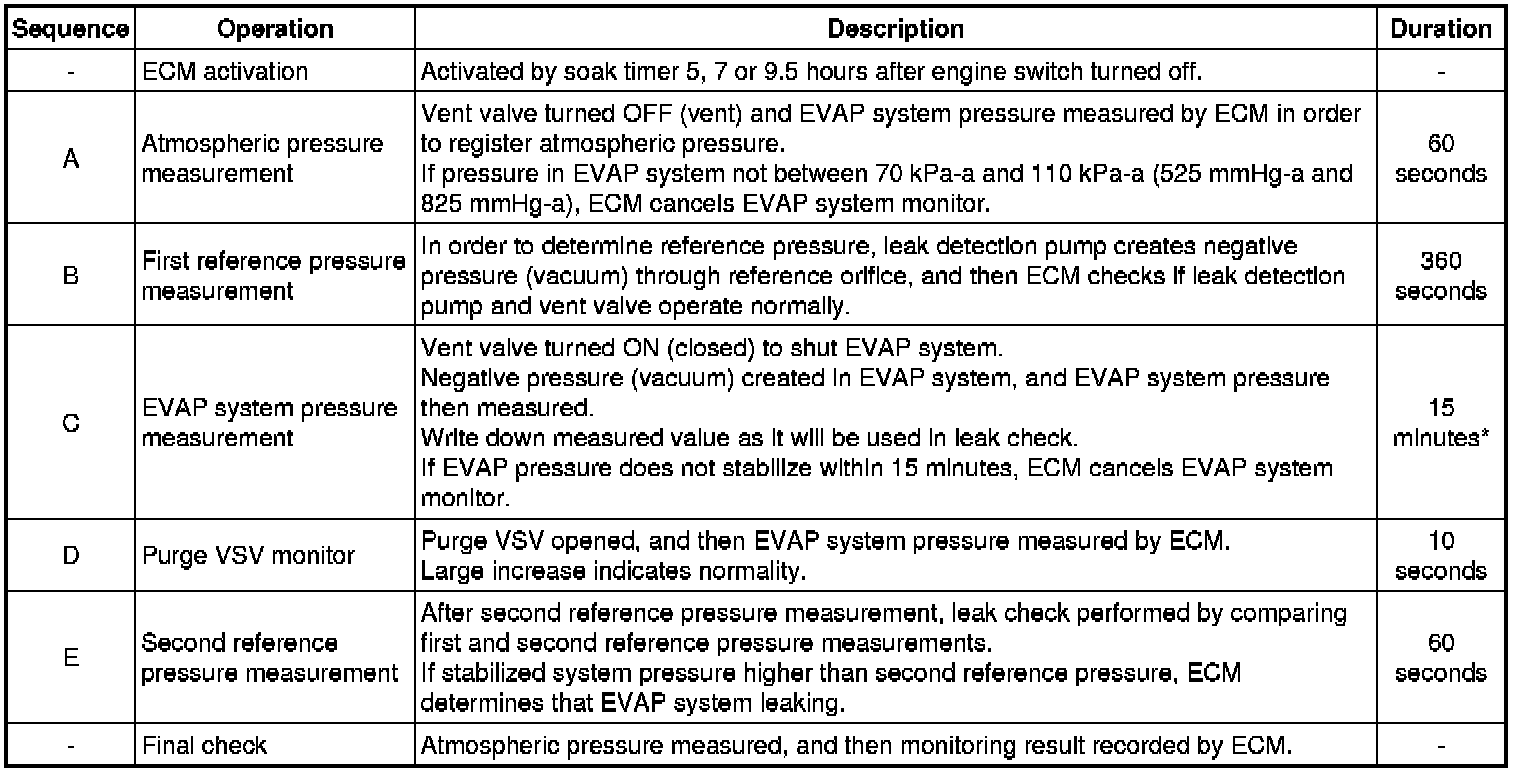

- Key-off Monitor

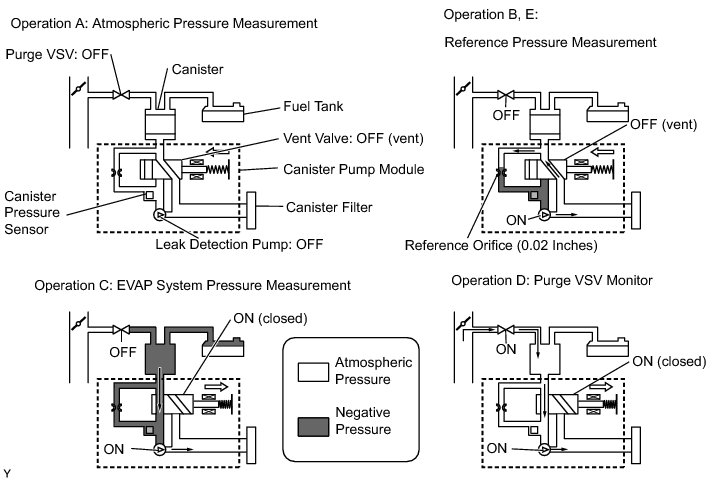

- 5 hours* after the engine switch is turned off, the leak detection pump creates negative pressure (vacuum) in the EVAP system. The ECM monitors for leaks and actuator malfunctions based on the EVAP pressure.

HINT
*: If the engine coolant temperature is not below 35°C (95°F) 5 hours after the engine switch is turned off, the monitor check starts 2 hours later. If it is still not below 35°C (95°F) 7 hours after the engine switch is turned off, the monitor check starts 2.5 hours later.





HINT
*: If only a small amount of fuel is in the fuel tank, it takes longer for the EVAP pressure to stabilize.





- Purge VSV stuck open

- In operation C, the leak detection pump creates negative pressure (vacuum) in the EVAP system. The EVAP system pressure is then measured by the ECM using the canister pressure sensor. If the stabilized system pressure is higher than [second reference pressure x 0.2], the ECM interprets this as the purge VSV (Vacuum Switching Valve) being stuck open. The ECM illuminates the MIL and stores the DTC (2 trip detection logic).

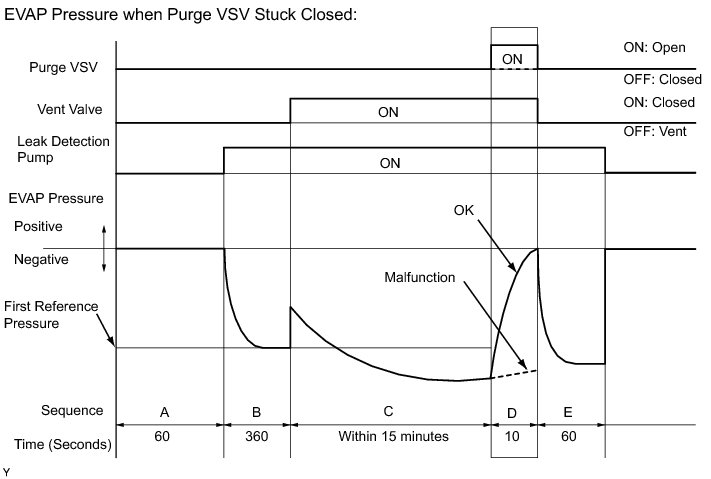

- Purge VSV stuck closed

- In operation D, the canister pressure sensor measures the EVAP system pressure. The pressure measurement for the purge VSV monitor is begun when the purge VSV is turned ON (open) after the EVAP leak check. When the measured pressure indicates an increase of 0.3 kPa-g (2.25 mmHg-g) or more, the purge VSV is functioning normally. If the pressure does not increase, the ECM interprets this as the purge VSV being stuck closed. The ECM illuminates the MIL and stores the DTC (2 trip detection logic).

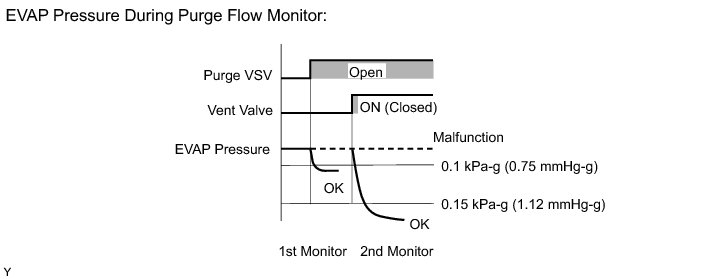

- Purge Flow Monitor





- The purge flow monitor consists of two monitors. The 1st monitor is conducted every time and the 2nd monitor is activated if necessary.

- The 1st monitor

- While the engine is running and the purge VSV is ON (open), the ECM monitors the purge flow by measuring the EVAP pressure change. If negative pressure is not created, the ECM begins the 2nd monitor.

- The 2nd monitor

- The vent valve is turned ON (closed) and the EVAP pressure is then measured. If the variation in the pressure is less than 0.15 kPa-g (1.12 mmHg-g), the ECM interprets this as the purge VSV being stuck closed, and illuminates the MIL and stores DTC P0441 (2 trip detection logic).

Atmospheric pressure check:

In order to ensure reliable malfunction detection, the variation between atmospheric pressure before and after conduction of the purge flow monitor is measured by the ECM.

OBD II MONITOR SPECIFICATIONS

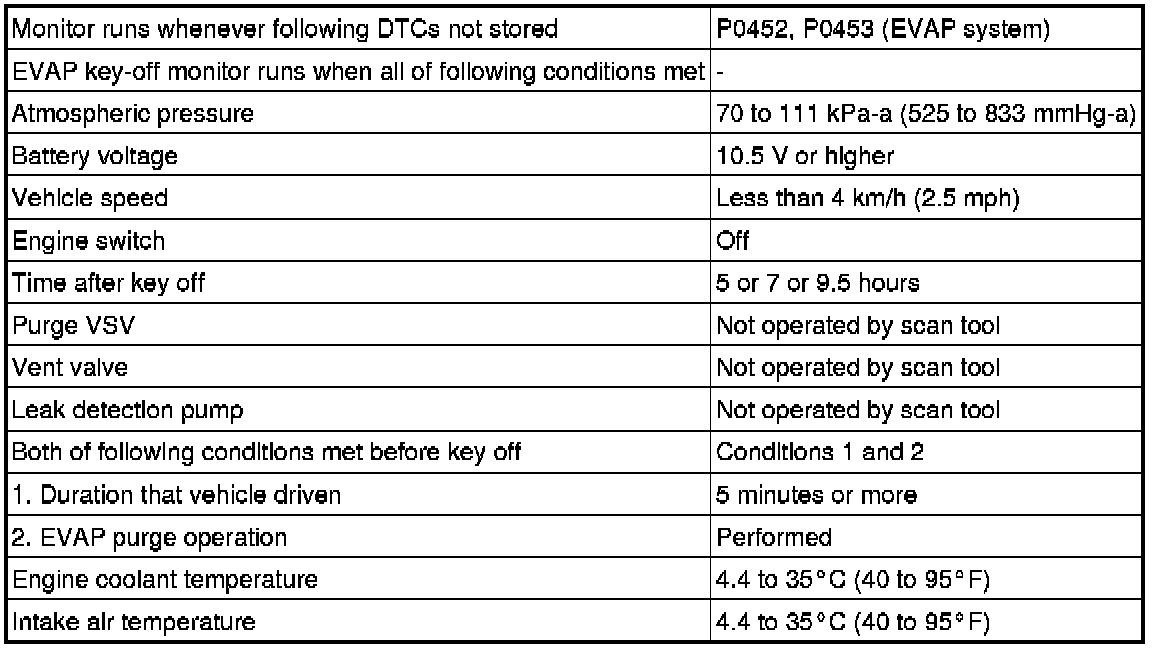

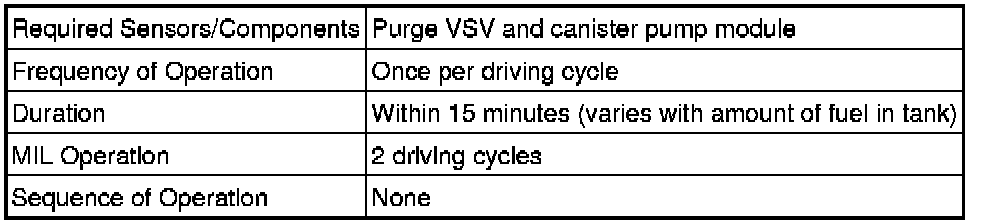

1. Key-off Monitor

Monitor Strategy





Typical Enabling Condition





Typical Malfunction Threshold









OBD II MONITOR SPECIFICATIONS

1. Purge Flow Monitor

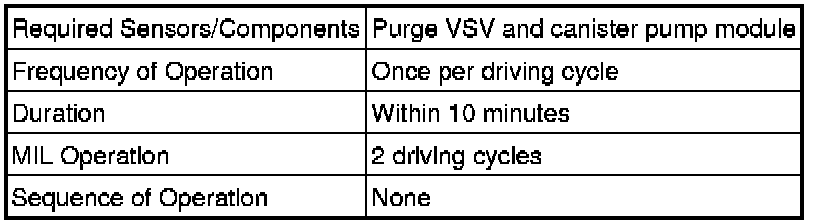

Monitor Strategy

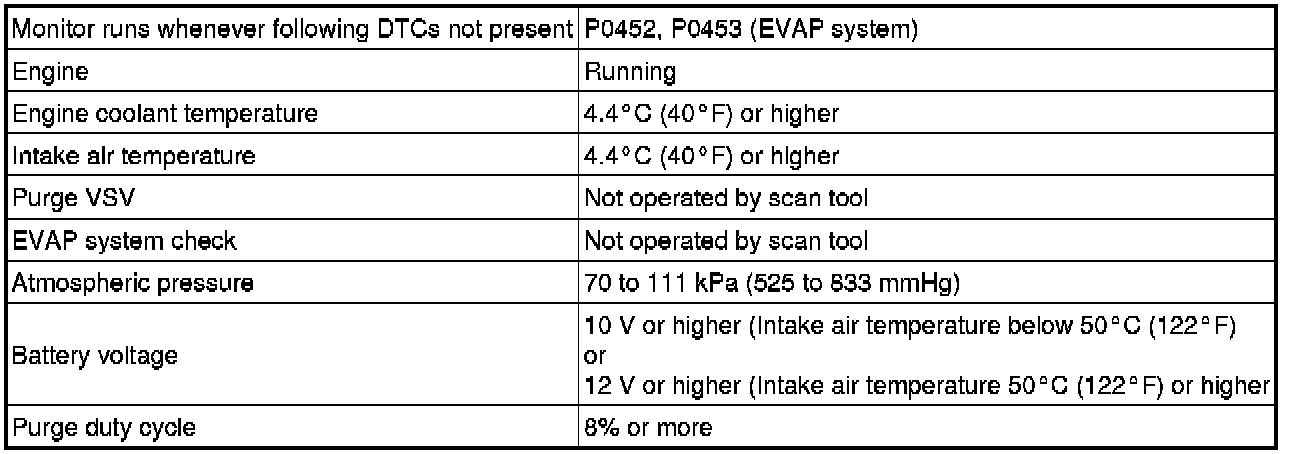

Typical Enabling Condition

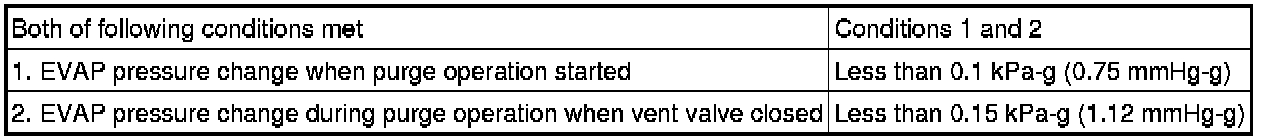

Typical Malfunction Threshold





MONITOR RESULT

Refer to Checking Monitor Status Mode 6 Data.

CONFIRMATION DRIVING PATTERN

- Connect the Techstream to the DLC3.

- Turn the engine switch on (IG) and turn the Techstream on.

- Clear the DTCs (even if no DTCs are stored, perform the clear DTC operation).

- Turn the engine switch off and wait for at least 30 seconds.

- Turn the engine switch on (IG) and turn the Techstream on.

- Start the engine and wait 15 minutes or more.

- Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.

- Read the pending DTCs.

HINT
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.
- Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.

- Input the DTC: P0441.

- Check the DTC judgment result.

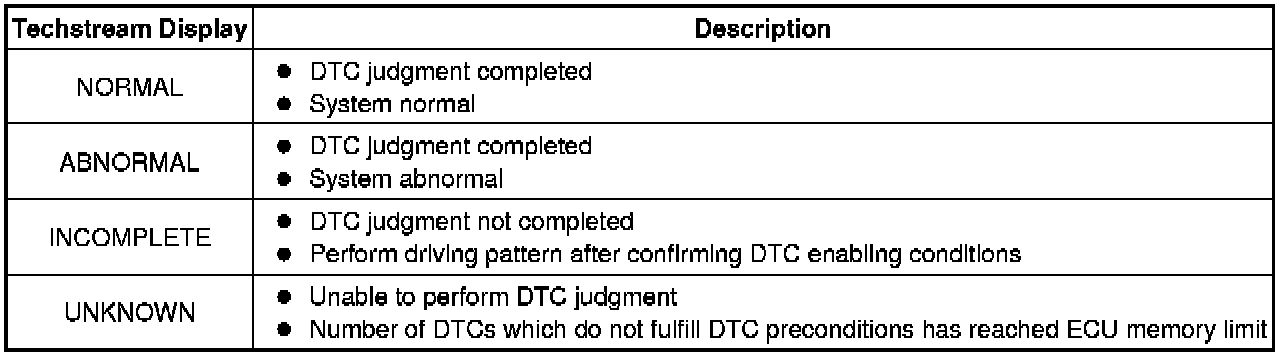

HINT
- If the judgment result shows NORMAL, the system is normal.
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows INCOMPLETE or UNKNOWN, perform the following procedure.
NOTICE:
- The Evaporative System Check (Automatic Mode) consists of 5 steps performed automatically by the Techstream. It takes a maximum of approximately 23 minutes.
- Do not perform the Evaporative System Check when the fuel tank is more than 90% full because the cut-off valve may be closed, making the fuel tank leak check unavailable.
- Do not run the engine during this operation.
- When the temperature of the fuel is 35°C (95°F) or higher, a large amount of vapor forms and any check results become inaccurate. When performing the Evaporative System Check, keep the fuel temperature below 35°C (95°F).
- Clear the DTCs (even if no DTCs are stored, perform the clear DTC operation).

- Turn the engine switch off and wait for at least 30 seconds.

- Turn the engine switch on (IG)

- Turn the Techstream on.

- Enter the following menus: Powertrain / Engine and ECT / Utility / Evaporative System Check / Automatic Mode.

- After "Evaporative System Check" is completed, check All Readiness by entering the following menus: Powertrain / Engine and ECT / Utility / All Readiness.

- Input the DTC: P0441.

- Check the DTC judgment result.





HINT
- If the judgment result shows NORMAL, the system is normal.
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs DTC Check / Clear.

HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.
INSPECTION PROCEDURE

HINT
Read freeze frame data using the Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1. CHECK FOR ANY OTHER DTCS OUTPUT (IN ADDITION TO P0441)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.

(e) Read the DTCs.

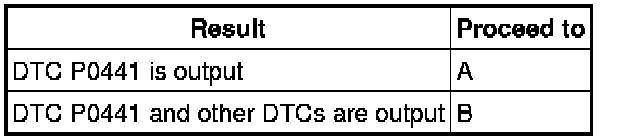

Result





HINT
If any DTCs other than P0441 are output, perform troubleshooting for those DTCs first.

B -- GO TO DTC CHART SFI System
A -- Continue to next step.

2. PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE EGR STEP POSITION)

(a) Connect the Techstream to the DLC3.

(b) Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher.

HINT
- When performing the Active Test, make sure the shift lever is in P or N.
- The A/C switch and all accessory switches should be off.
(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the EGR Step Position.

(e) Confirm that Throttle Idle Position is ON and check the engine idling condition and the value of MAP in the Data List while performing the Active Test.

HINT
- Do not leave the EGR valve open for 10 seconds or more during the Active Test.
- Be sure to return the EGR valve to step 0 when the Active Test is completed.

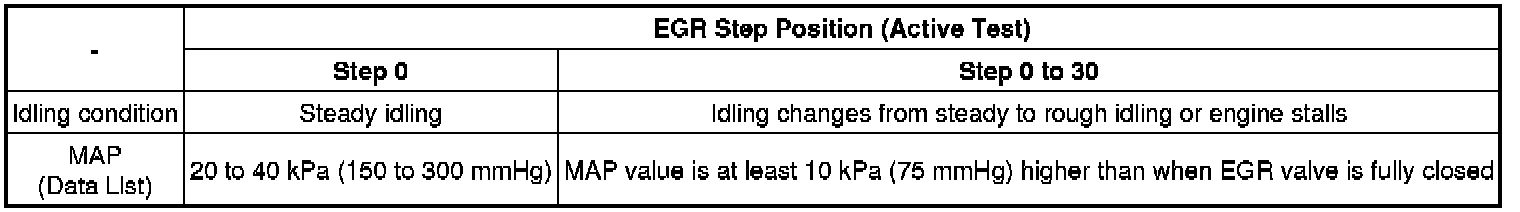

OK:

MAP and idling condition change in response to EGR step position as follows.

Standard:





NG -- INSPECT EGR VALVE ASSEMBLY

OK -- GO TO EVAP SYSTEM EVAP System

3. INSPECT EGR VALVE ASSEMBLY

(a) Remove the EGR valve assembly Removal.

(b) Check if the EGR valve is stuck open.

OK:

EGR valve is tightly closed.

NG -- REPLACE EGR VALVE ASSEMBLY Removal

OK -- GO TO EVAP SYSTEM EVAP System
