P0453

1UR-FE ENGINE CONTROL: SFI SYSTEM: P0451-P0453: Evaporative Emission Control System Pressure Sensor Range / Performance

DTC SUMMARY

HINT
The canister pressure sensor is built into the canister pump module.

DESCRIPTION

The description can be found in EVAP (Evaporative Emission) System EVAP System.

MONITOR DESCRIPTION

- DTC P0451: Canister pressure sensor noise

- If the canister pressure sensor voltage output fluctuates rapidly for 10 seconds, the ECM interprets this as noise from the canister pressure sensor and stops the EVAP system monitor. The ECM then illuminates the MIL and stores the DTC (2 trip detection logic).

- DTC P0452: Canister pressure sensor voltage low

- If the canister pressure sensor output [pressure] is below 42.1 kPa-a (315.9 mmHg-a), the ECM interprets this as an open or short circuit malfunction in the canister pressure sensor or its circuit and stops the EVAP system monitor. The ECM then illuminates the MIL and stores the DTC (1 trip detection logic).

- DTC P0453: Canister pressure sensor voltage high

- If the canister pressure sensor output [pressure] is higher than 123.8 kPa-a (928.4 mmHg-a), the ECM interprets this as an open or short circuit malfunction in the canister pressure sensor or its circuit and stops the EVAP system monitor. The ECM then illuminates the MIL and stores the DTC (1 trip detection logic).

MONITOR STRATEGY

TYPICAL ENABLING CONDITIONS

P0451

P0452 and P0453

TYPICAL MALFUNCTION THRESHOLDS

P0451: Canister Pressure Sensor Noise

P0452: Canister Pressure Sensor Low Voltage

P0453: Canister Pressure Sensor High Voltage

CONFIRMATION DRIVING PATTERN

NOTICE:
- The Evaporative System Check (Automatic Mode) consists of 5 steps performed automatically by the Techstream. It takes a maximum of approximately 23 minutes.
- Do not perform the Evaporative System Check when the fuel tank is more than 90% full because the cut-off valve may be closed, making the fuel tank leak check unavailable.
- Do not run the engine during this operation.
- When the temperature of the fuel is 35°C (95°F) or higher, a large amount of vapor forms and any check results become inaccurate. When performing the Evaporative System Check, keep the fuel temperature below 35°C (95°F).
- Connect the Techstream to the DLC3.

- Turn the engine switch on (IG) and turn the Techstream on.

- Enter the following menus: Powertrain / Engine and ECT / Data List / Intake Air.

- Check that the intake air temperature is between 4.4°C and 40°C (40 and 104°F).

- Clear DTCs (even if no DTCs are stored, perform the clear DTC operation).

- Turn the engine switch off and wait for at least 30 seconds.

- Turn the engine switch on (IG) and turn the Techstream on.

- Enter the following menus: Powertrain / Engine and ECT / Utility / Evaporative System Check / Automatic Mode.

- After "Evaporative System Check" is completed, check All Readiness by entering the following menus: Powertrain / Engine and ECT / Utility / All Readiness.

- Input the DTC: P0451, P0452 or P0453.

- Check the DTC judgment result.

HINT
- If the judgment result shows NORMAL, the system is normal.
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs DTC Check / Clear.

HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.

WIRING DIAGRAM

INSPECTION PROCEDURE

NOTICE:
- When a vehicle is brought into the workshop, leave it as it is. Do not change the vehicle condition. For example, do not tighten the fuel cap.
- Do not disassemble the canister pump module.
- The Techstream is required to conduct the following diagnostic troubleshooting procedure.
PROCEDURE

1. CONFIRM DTC AND EVAP PRESSURE

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG) (do not start the engine).

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.

(e) Read DTCs.

(f) Enter the following menus: Powertrain / Engine and ECT / Data List / All Data / Vapor Pressure Pump.

(g) Read the EVAP (Evaporative Emission) pressure displayed on the Techstream.

Result

C -- GO TO EVAP SYSTEM EVAP System

B -- CHECK HARNESS AND CONNECTOR (CANISTER PUMP MODULE - ECM)
A -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (CANISTER PUMP MODULE - ECM)

(a) Turn the engine switch off.

(b) Disconnect the ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Result

B -- REPLACE ECM
A -- Continue to next step.

3. CHECK HARNESS AND CONNECTOR (CANISTER PUMP MODULE - ECM)

(a) Disconnect the canister pump module connector.

(b) Disconnect the ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Result

B -- REPAIR OR REPLACE HARNESS OR CONNECTOR (CANISTER PUMP MODULE - ECM)

A -- REPLACE CANISTER

1. CHECK HARNESS AND CONNECTOR (CANISTER PUMP MODULE - ECM)

(a) Disconnect the canister pump module connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

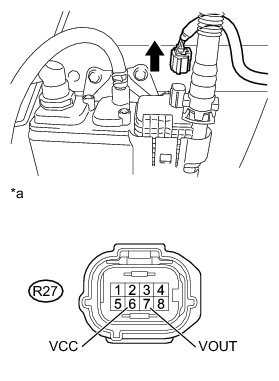

(d) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Text in Illustration

Result

B -- REPAIR OR REPLACE HARNESS OR CONNECTOR (CANISTER PUMP MODULE - ECM)
A -- Continue to next step.

2. REPLACE CANISTER

(a) Replace the canister Removal.

NOTICE:
When replacing the canister assembly, check the canister pump module interior and related pipes for water, fuel and other liquids. If liquids are present, check for disconnections and/or cracks in the following: 1) the pipe from the air inlet port to the canister pump module; 2) the canister filter; and 3) the fuel tank vent hose.

Text in Illustration

NEXT -- CHECK WHETHER DTC OUTPUT RECURS (AFTER REPAIR)

3. REPAIR OR REPLACE HARNESS OR CONNECTOR (CANISTER PUMP MODULE - ECM)

HINT
If the exhaust tailpipe has been removed, go to the next step before reinstalling it.

NEXT -- CHECK WHETHER DTC OUTPUT RECURS (AFTER REPAIR)

4. REPLACE ECM

(a) Replace the ECM Removal.

NEXT -- Continue to next step.

5. CHECK WHETHER DTC OUTPUT RECURS (AFTER REPAIR)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Clear the DTCs DTC Check / Clear.

(e) Turn the engine switch off and wait for at least 30 seconds.

(f) Turn the engine switch on (IG) and turn the Techstream on.

(g) Start the engine and warm it up.

(h) Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.

(i) Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.

(j) Input the DTC: P0451, P0452 or P0453.

(k) Check the DTC judgment result.

Result

NEXT -- END
