1UR-FE ENGINE CONTROL: SFI SYSTEM: P2237-P2239,P2240-P2242,P2252,P2253,P2255,P2256: Oxygen (A/F) Sensor Pumping Current Circuit / Open (Bank 1 Sensor 1)


DESCRIPTION

The air fuel ratio sensor generates a voltage* that corresponds to the actual air-fuel ratio. This sensor voltage is used to provide the ECM with feedback so that it can control the air-fuel ratio. The ECM determines the deviation from the stoichiometric air-fuel ratio and regulates the fuel injection time. If the air fuel ratio sensor malfunctions, the ECM is unable to control the air-fuel ratio accurately.

The air fuel ratio sensor is of the planar type and is integrated with a heater, which heats the solid electrolyte (zirconia element). This heater is controlled by the ECM. When the intake air volume is low (the exhaust gas temperature is low), a current flows through the heater to heat the sensor in order to facilitate accurate air-fuel ratio detection. In addition, the sensor and heater portions are the narrow type. The heat generated by the heater is conducted to the solid electrolyte through the alumina, thereby accelerating the sensor activation.

In order to obtain a high purification rate of the carbon monoxide (CO), hydrocarbon (HC) and nitrogen oxide (NOx) components in the exhaust gas, a Three-Way Catalytic Converter (TWC) is used. For the most efficient use of the Three-Way Catalytic Converter (TWC), the air-fuel ratio must be precisely controlled so that it is always close to the stoichiometric level.

*: The value changes inside the ECM. Since the air fuel ratio sensor is a current output element, the current is converted into a voltage inside the ECM. Any measurements taken at the air fuel ratio sensor or ECM connectors will show a constant voltage.









HINT
- DTCs P2237, P2238, P2239, P2252 and P2253 indicate malfunctions related to the bank 1 air fuel ratio sensor circuit.
- DTCs P2240, P2241, P2242, P2255 and P2256 indicate malfunctions related to the bank 2 air fuel ratio sensor circuit.
MONITOR DESCRIPTION

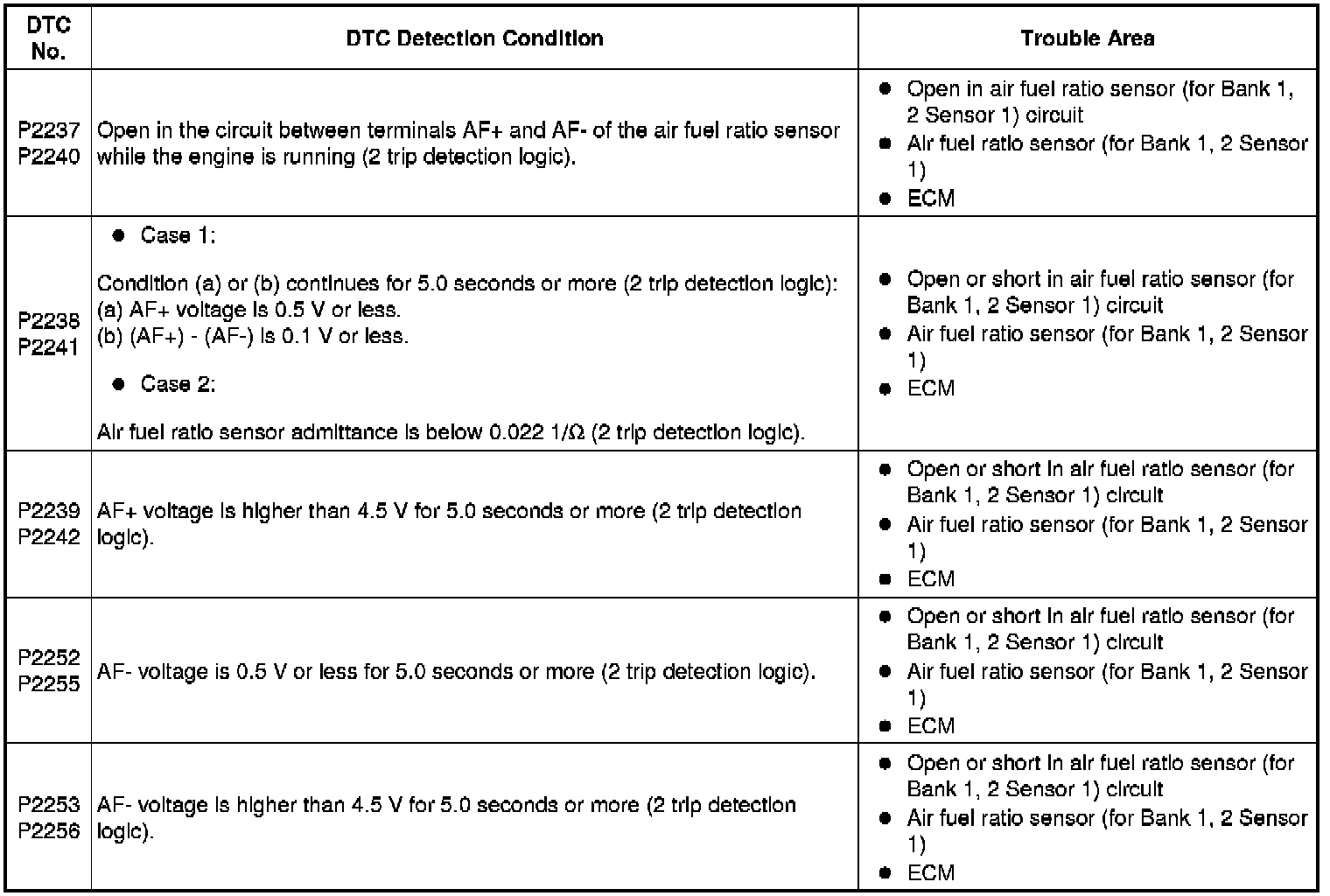

These DTCs are output when there is an open or short in the air fuel ratio sensor circuit, or if air fuel ratio sensor output drops.

To detect these problems, the voltage of the air fuel ratio sensor is monitored when turning the engine switch on (IG), and the admittance (admittance is an electrical term that indicates the ease of flow of current) is checked while driving. If the voltage of the air fuel ratio sensor is between 0.6 V and 4.5 V, it is considered normal. If the voltage is outside of the specified range, or the admittance is below the standard value, the ECM will determine that there is a malfunction in the air fuel ratio sensor. If the same malfunction is detected in the next driving cycle, the MIL is illuminated and a DTC is stored.

The air fuel ratio sensor varies its output voltage in proportion to the air-fuel ratio. If the air fuel ratio sensor impedance (alternating current resistance) or output voltage deviates greatly from the standard range, the ECM determines that there is an open or short in the air fuel ratio sensor circuit.

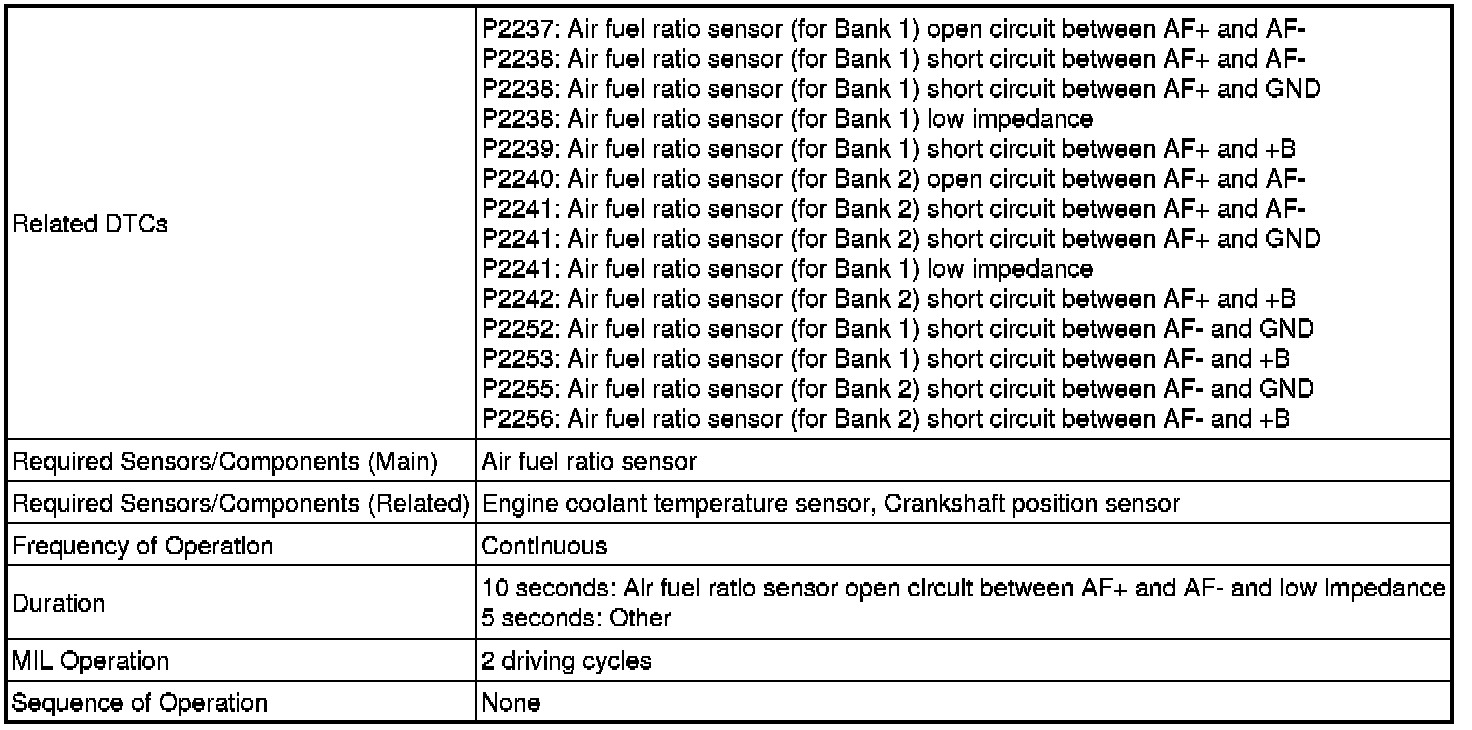

MONITOR STRATEGY

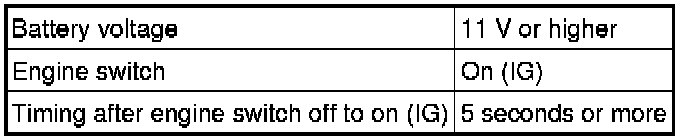

TYPICAL ENABLING CONDITIONS

P2237, P2238, P2240 and P2241





P2239, P2242, P2252, P2253, P2255 and P2256

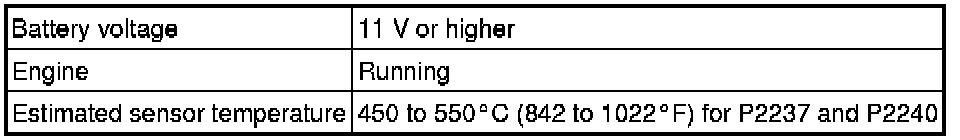

Air Fuel Ratio Sensor - Open Circuit Between AF+ and AF-

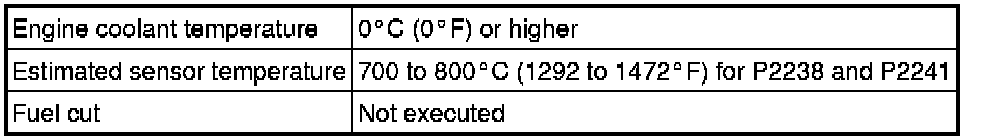

Air Fuel Ratio Sensor - Low Impedance

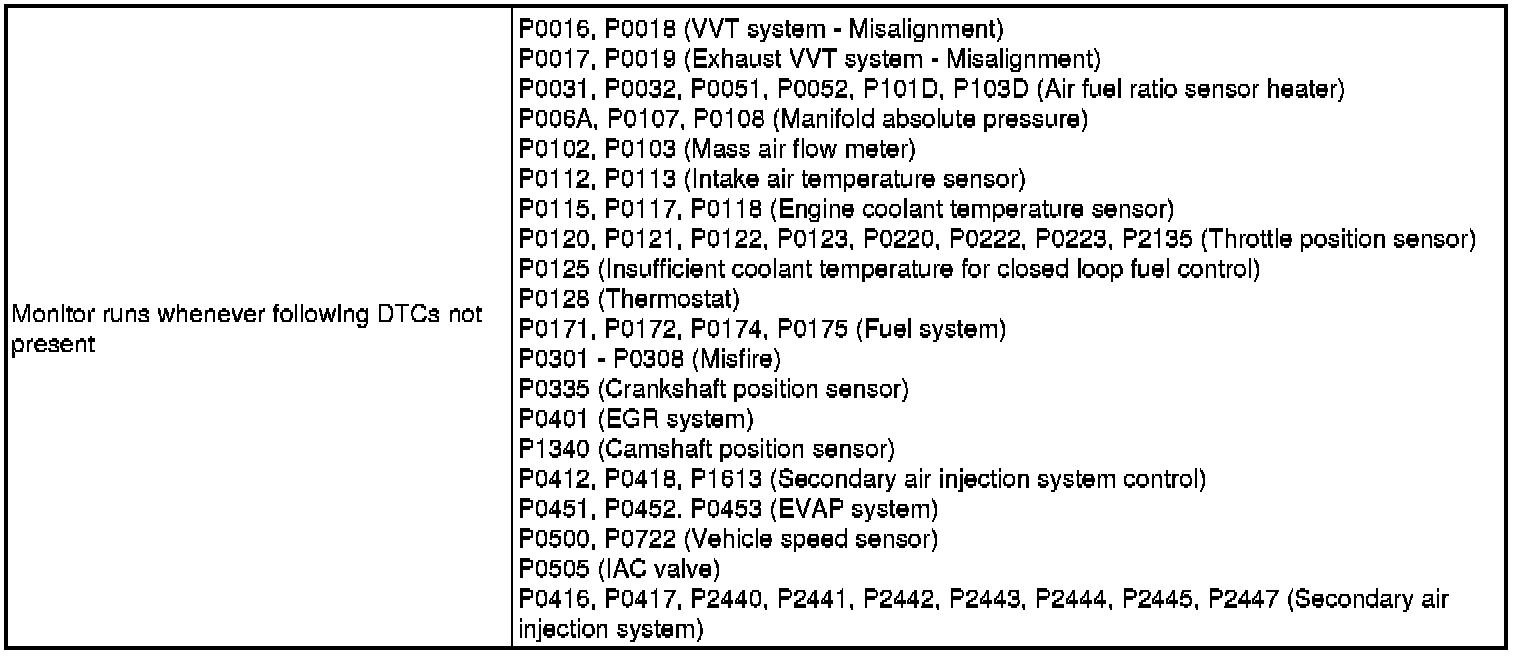

Other

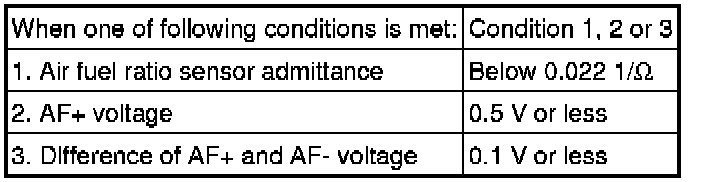

TYPICAL MALFUNCTION THRESHOLDS

P2237 and P2240





P2238 and P2241





P2239 and P2242





P2252 and P2255





P2253 and P2256





CONFIRMATION DRIVING PATTERN

- Connect the Techstream to the DLC3.

- Turn the engine switch on (IG) and turn the Techstream on.

- Clear DTCs (even if no DTCs are stored, perform the clear DTC operation).

- Turn the engine switch off and wait for at least 30 seconds.

- Turn the engine switch on (IG) and turn the Techstream on.

- Start the engine and wait 5 minutes.

- Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.

- Read the pending DTCs.

HINT
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.
- Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.

- Input the DTC: P2237, P2238, P2239, P2240, P2241, P2242, P2252, P2253, P2255 or P2256.

- Check the DTC judgment result.

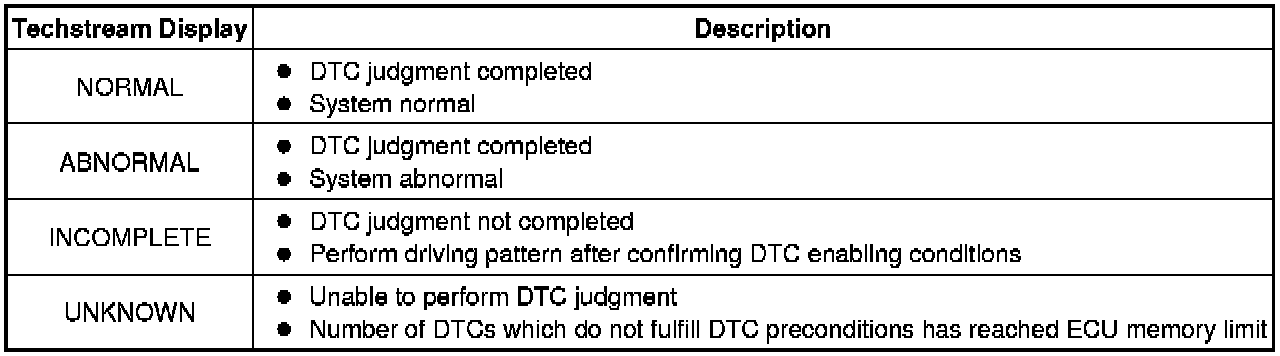

HINT
- If the judgment result shows NORMAL, the system is normal.
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows INCOMPLETE or UNKNOWN, idle the engine for 5 minutes and check the DTC judgment result again.
- If no pending DTC is output, perform a universal trip and check for permanent DTCs DTC Check / Clear.

HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.

WIRING DIAGRAM





INSPECTION PROCEDURE

HINT
- Refer to "Data List / Active Test" [AFS Voltage B1S1 and AFS Voltage B2S1] Data List / Active Test.
- Read freeze frame data using the Techstream. Freeze frame data records the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.
- Bank 1 refers to the bank that includes the No. 1 cylinder*.
- *: The No. 1 cylinder is the cylinder which is farthest from the transmission.
- Bank 2 refers to the bank that does not include the No. 1 cylinder.
- Sensor 1 refers to the sensor closest to the engine assembly.
- Sensor 2 refers to the sensor farthest away from the engine assembly.
PROCEDURE

1. CHECK HARNESS AND CONNECTOR (AIR FUEL RATIO SENSOR - ECM)

(a) Disconnect the air fuel ratio sensor connector.

(b) Disconnect the ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

2. REPLACE AIR FUEL RATIO SENSOR

(a) Replace the air fuel ratio sensor Removal.

NEXT -- Continue to next step.

3. CHECK WHETHER DTC OUTPUT RECURS

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Clear DTCs DTC Check / Clear.

(e) Start the engine.

(f) Allow the engine to idle for 5 minutes or more.

(g) Enter the following menus: Powertrain / Engine and ECT / Trouble Codes / Pending.

(h) Read the pending DTCs.

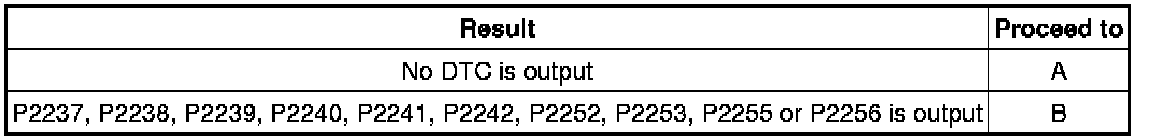

Result





B -- REPLACE ECM Removal

A -- END
