Kinetic Dynamic Suspension System

SUSPENSION CONTROL: KINETIC DYNAMIC SUSPENSION SYSTEM: U0100/71,U0122/71,U0124/71,U0126/71: Lost Communication with ECM/PCM "A"
U0126/71 - Lost Communication with Steering Angle Sensor Module

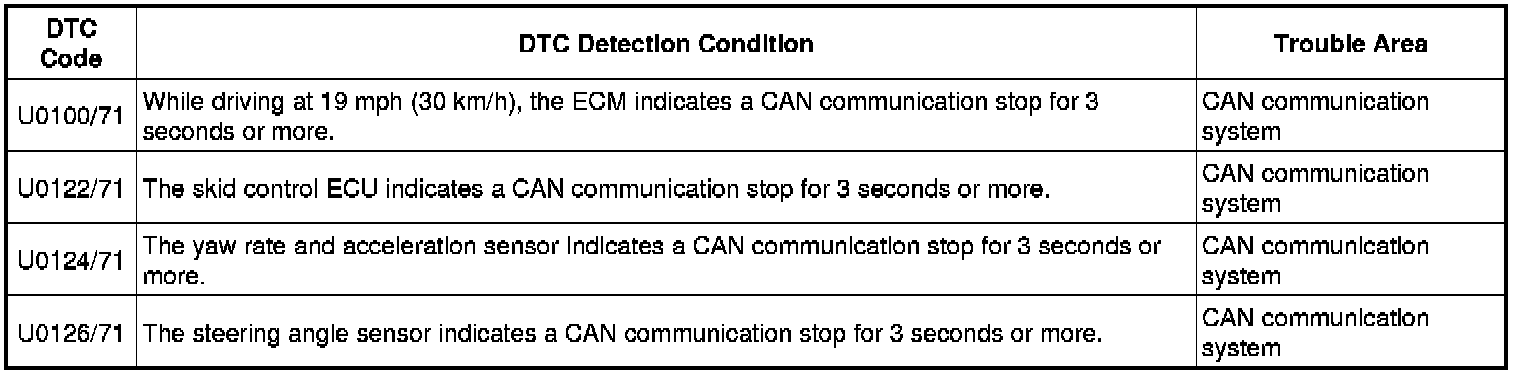

DESCRIPTION





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC

(a) Clear the DTCs Kinetic Dynamic Suspension System.

(b) Perform a road test.

(c) Check for DTCs Kinetic Dynamic Suspension System.

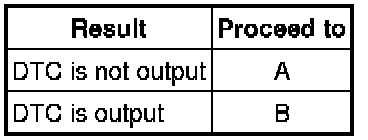

Result





HINT
If a CAN communication malfunction DTC and a related sensor malfunction DTC are output at the same time, the CAN communication malfunction must be repaired before troubleshooting the sensor malfunction DTC.

B -- GO TO CAN COMMUNICATION SYSTEM (HOW TO PROCEED WITH TROUBLESHOOTING) How to Proceed With Troubleshooting

A -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting
