Dynamic Radar Cruise Control System

CRUISE CONTROL: DYNAMIC RADAR CRUISE CONTROL SYSTEM: U0100,U0122,U0123,U0126,U0235,U1102,U1104: Lost Communication with ECM / PCM "A"
U1104 - Lost Communication with Driving Support ECU

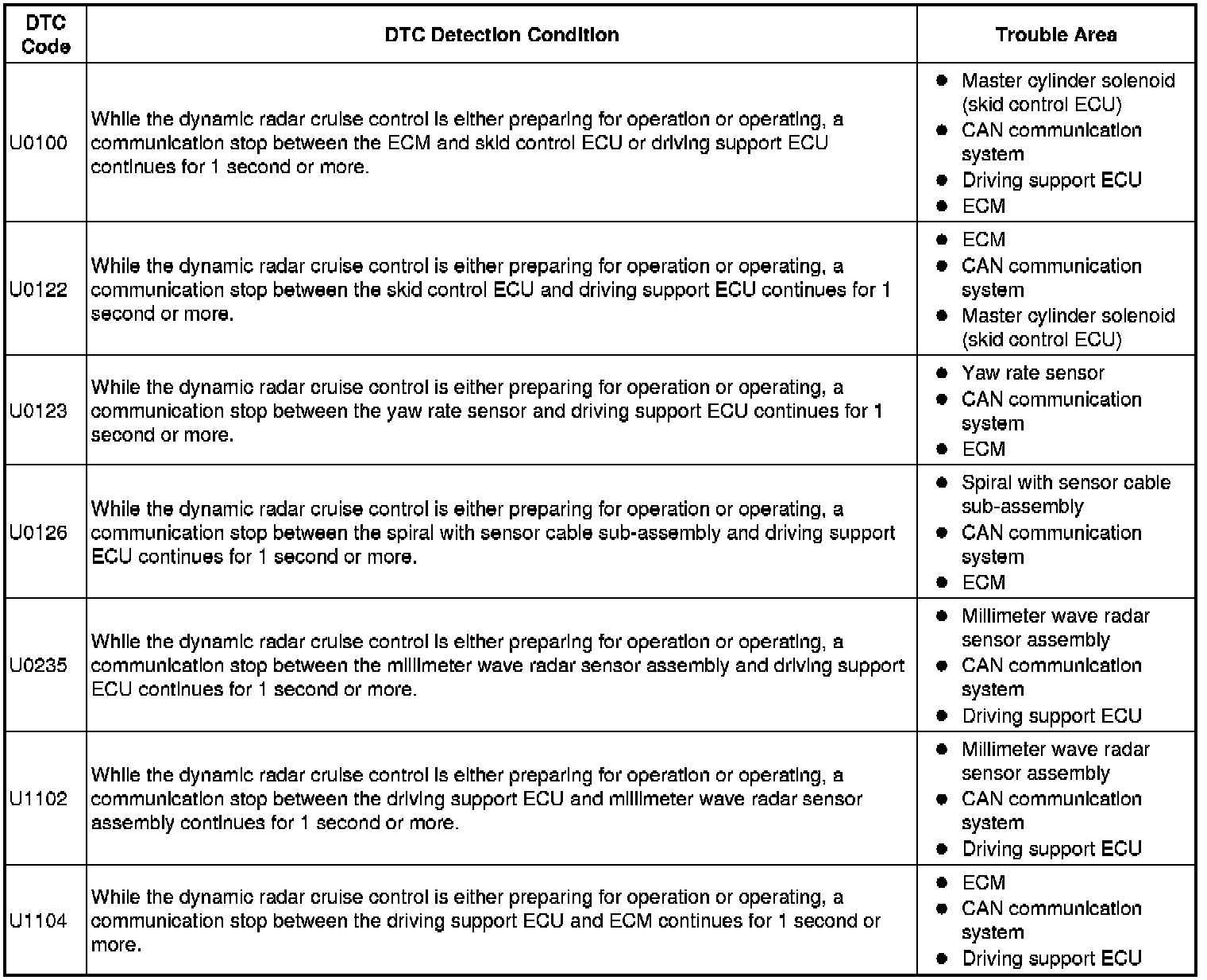

DESCRIPTION





INSPECTION PROCEDURE

HINT
This circuit uses CAN communication. Therefore, if there are any malfunctions in the communication circuit, one or more DTCs in the CAN communication system are output.

PROCEDURE

1. CHECK FOR DTC (CAN COMMUNICATION SYSTEM)

(a) Clear the DTCs Dynamic Radar Cruise Control System.

(b) Check for DTCs Dynamic Radar Cruise Control System.

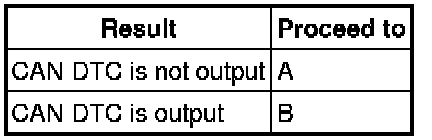

Result





B -- GO TO CAN COMMUNICATION SYSTEM Diagnosis System

A -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting
