Rear View Monitor System (W/ Side Monitor System)

PARK ASSIST / MONITORING: REAR VIEW MONITOR SYSTEM (W/ Side Monitor System): U1000: Can Communication Failure(Message Registry)
U1000 - Can Communication Failure(Message Registry)

DESCRIPTION

These DTCs are stored if there is a malfunction in the parking assist ECU.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK FOR DTC

(a) Clear the DTCs Rear View Monitor System (W/ Side Monitor System).

(b) Check for DTCs Rear View Monitor System (W/ Side Monitor System).

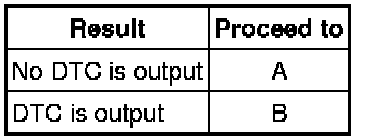

Result





HINT
If these DTCs are output frequently, duplicate the conditions that cause the problem symptoms and perform the inspection again, even though the DTC was not output when rechecking for DTCs Problem Symptoms Table.

B -- REPLACE PARKING ASSIST ECU Removal

A -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting
