Side Monitor System

PARK ASSIST / MONITORING: SIDE MONITOR SYSTEM: TERMINALS OF ECU

1. CHECK PARKING ASSIST ECU

(a) Measure the voltage, resistance and check for pulses according to value(s) in the table below.

* *: W/ Multi-terrain Monitor

(b) Using an oscilloscope, check waveform 1.

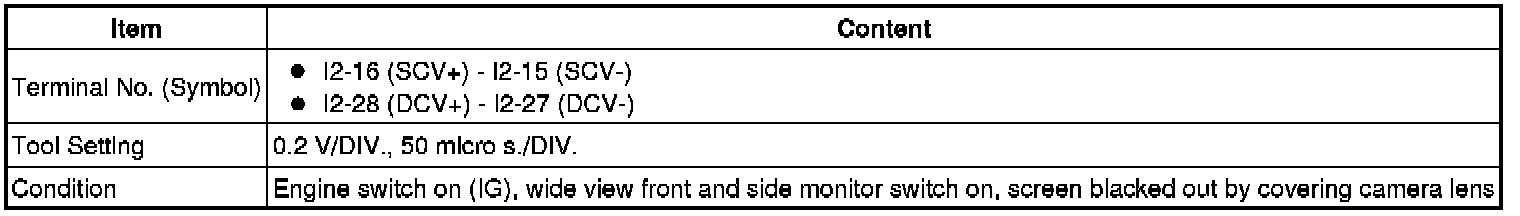

Measurement Condition
