How to Proceed With Troubleshooting

WINDOW / GLASS: GLASS HATCH OPENER SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HINT
* Use these procedures to troubleshoot the glass hatch opener system.
* *: Use the Techstream.
1. VEHICLE BROUGHT TO WORKSHOP

NEXT -- Continue to next step.

2. INSPECT BATTERY VOLTAGE

Standard voltage:

11 to 14 V

If the voltage is below 11 V, recharge or replace the battery before proceeding.

NEXT -- Continue to next step.

3. CHECK COMMUNICATION FUNCTION OF CAN COMMUNICATION SYSTEM*

(a) Check if the CAN communication system is functioning normally Service Precautions.

Result





B -- Go to CAN COMMUNICATION SYSTEM How to Proceed With Troubleshooting
A -- Continue to next step.

4. PROBLEM SYMPTOMS TABLE

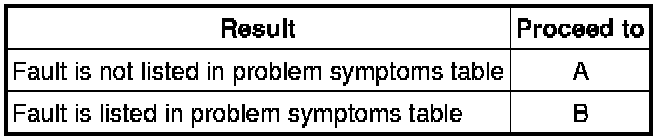

(a) Refer to the Problem Symptoms Table Problem Symptoms Table.

Result





B -- Go to step 6
A -- Continue to next step.

5. OVERALL ANALYSIS AND TROUBLESHOOTING*

(a) Operation Check Operation Check.

(b) Terminals of ECU Pinout Values and Diagnostic Parameters.

(c) Data List / Active Test Scan Tool Testing and Procedures.

NEXT -- Continue to next step.

6. REPAIR OR REPLACE

NEXT -- Continue to next step.

7. CONFIRMATION TEST

NEXT -- END
