Power Mirror Control System

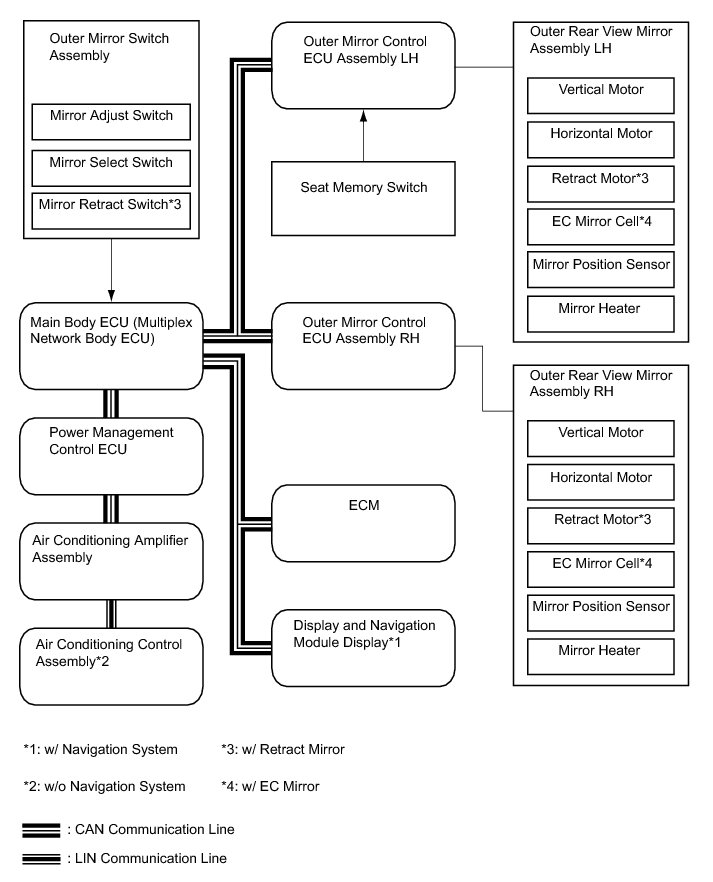

MIRROR (EXT): POWER MIRROR CONTROL SYSTEM: SYSTEM DIAGRAM





Communication Table





* *1: W/ Navigation System

* *2: W/O Navigation System





MIRROR (EXT): POWER MIRROR CONTROL SYSTEM: SYSTEM DESCRIPTION

1. POWER MIRROR CONTROL SYSTEM DESCRIPTION

(a) This system has the following functions: electric retract function*1, automatic glare-resistant electrochromic (EC) mirror function*2, reverse shift-linked function, electrical remote control function, memory function and mirror heater function.

* *1: W/ Retract Mirror

* *2: W/ EC Mirror

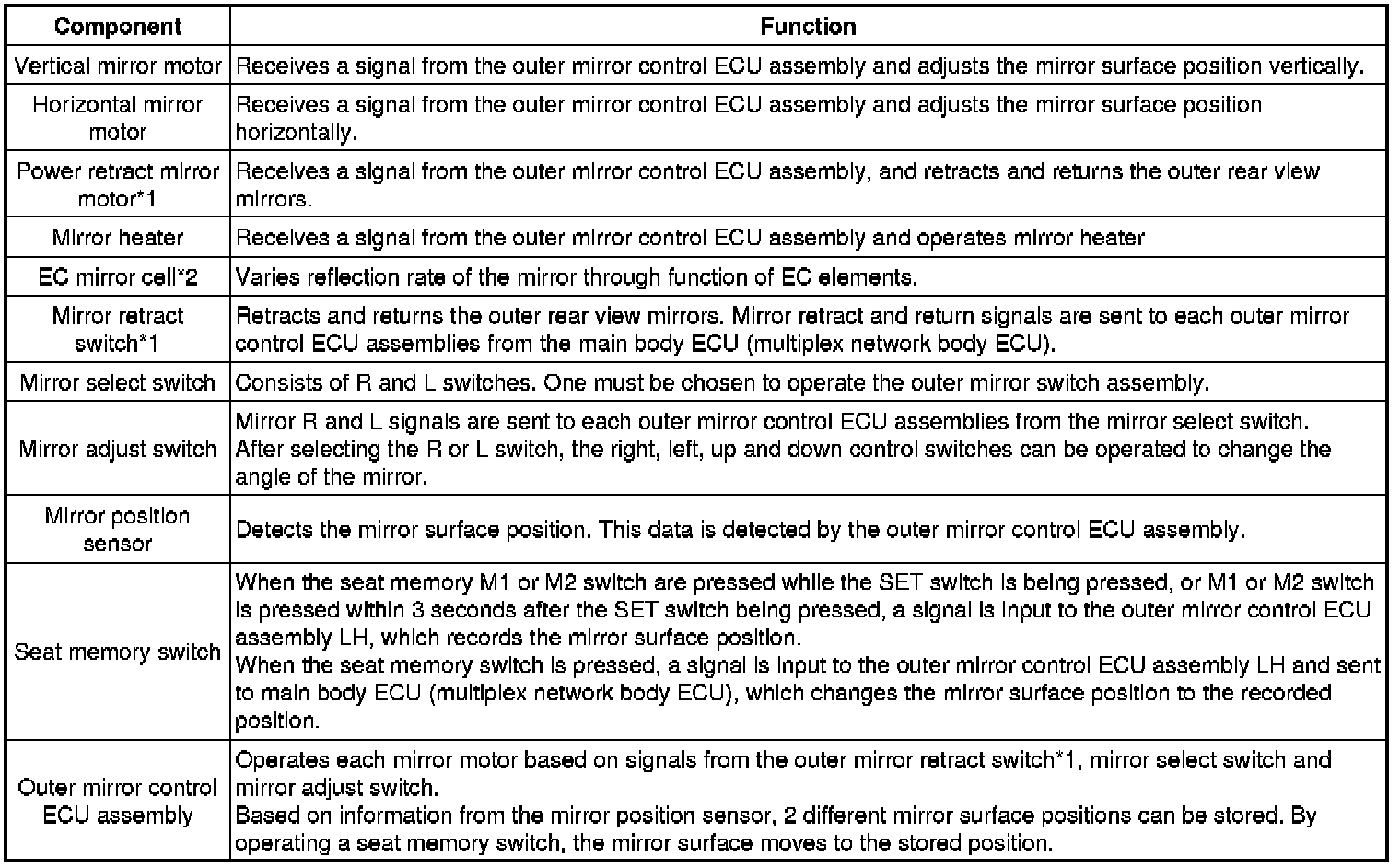

2. FUNCTION OF MAIN COMPONENT





* *1: W/ Retract Mirror

* *2: W/ EC Mirror

3. SYSTEM OPERATION

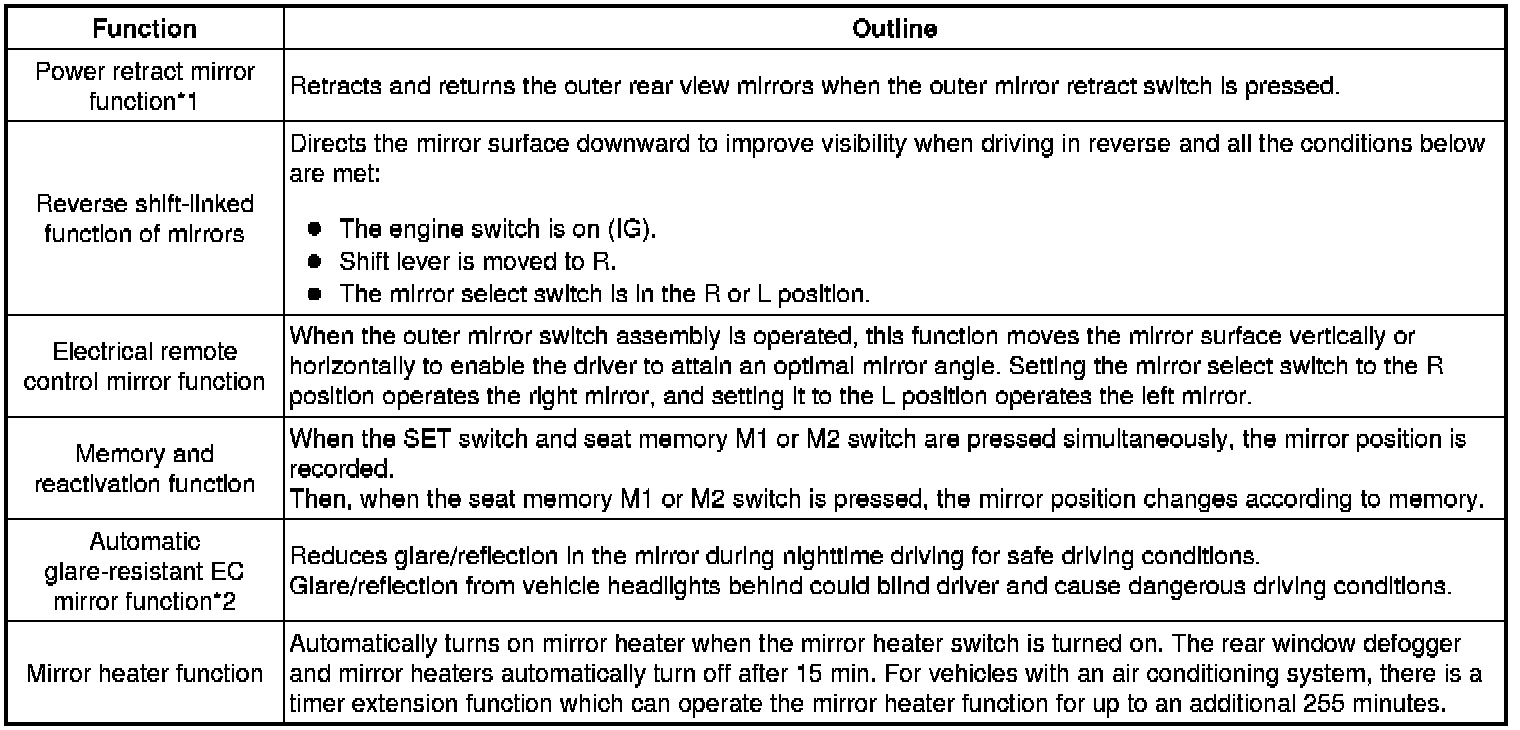

(a) The remote control mirror has the following features.





* *1: W/ Retract Mirror

* *2: W/ EC Mirror
