Rear Power Seat Control System

SEAT: REAR POWER SEAT CONTROL SYSTEM: SYSTEM DIAGRAM













SEAT: REAR POWER SEAT CONTROL SYSTEM: SYSTEM DESCRIPTION

1. REAR POWER SEAT CONTROL SYSTEM DESCRIPTION

* The third-row seats are equipped with a power folding system.

* This system has the following functions: reclining, luggage room expansion, folding and return, and jam protection.

* Both the left and right seats are equipped with this system. Each system operates independently.

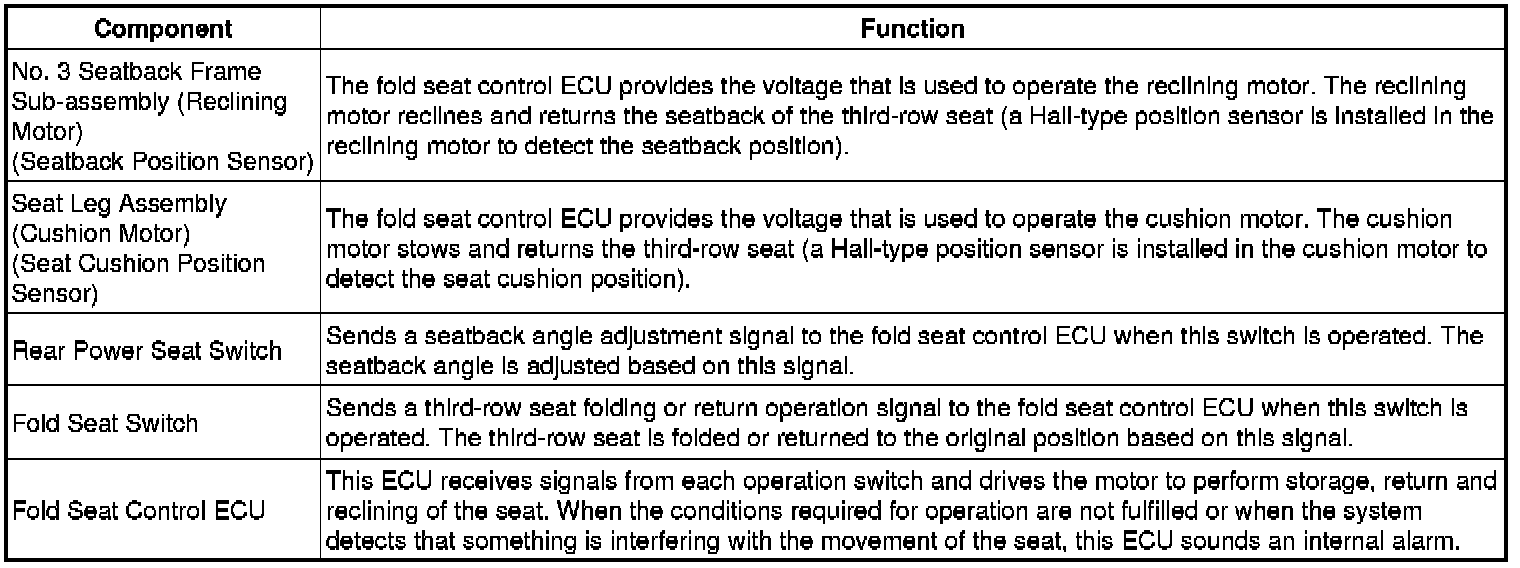

2. FUNCTIONS OF MAIN COMPONENTS
