Front Seat Assembly
SEAT: FRONT SEAT ASSEMBLY: INSPECTION
1. INSPECT SEPARATE TYPE FRONT SEAT CUSHION SPRING ASSEMBLY LH

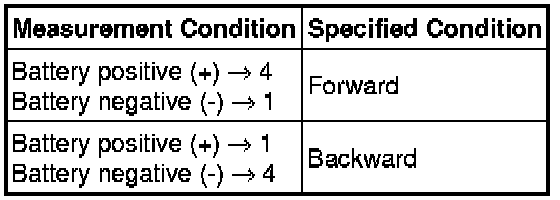

(a) Check the operation of the front seat cushion spring (slide motor).
Check that the front seat cushion spring moves smoothly when the battery is connected to the slide motor connector terminals.
OK:
(c) If the result is not as specified, replace the separate type front seat cushion spring assembly.
Text in Illustration
(d) Check the operation of the front seat cushion spring (front vertical motor).
Check that the front seat cushion spring moves smoothly when the battery is connected to the front vertical motor connector terminals.
OK:
(f) If the result is not as specified, replace the separate type front seat cushion spring assembly.
Text in Illustration
(g) Check the operation of the front seat cushion spring (lifter motor).
Check that the front seat cushion spring moves smoothly when the battery is connected to the lifter motor connector terminals.
OK:
(i) If the result is not as specified, replace the separate type front seat cushion spring assembly.
Text in Illustration
2. INSPECT SEPARATE TYPE FRONT SEAT CUSHION SPRING ASSEMBLY RH
(a) Check the operation of the front seat cushion spring (slide motor).
Check that the front seat cushion spring moves smoothly when the battery is connected to the slide motor connector terminals.
OK:
(c) If the result is not as specified, replace the separate type front seat cushion spring assembly.
Text in Illustration
(d) Check the operation of the front seat cushion spring (front vertical motor).
Check that the front seat cushion spring moves smoothly when the battery is connected to the front vertical motor connector terminals.
OK:
(f) If the result is not as specified, replace the separate type front seat cushion spring assembly.
Text in Illustration
(g) Check the operation of the front seat cushion spring (lifter motor).
Check that the front seat cushion spring moves smoothly when the battery is connected to the lifter motor connector terminals.
OK:
(i) If the result is not as specified, replace the separate type front seat cushion spring assembly.
Text in Illustration
3. INSPECT SEPARATE TYPE FRONT SEATBACK SPRING ASSEMBLY LH
(a) Check the operation of the front seatback spring (reclining motor).
Check that the front seatback spring moves smoothly when the battery is connected to the reclining motor connector terminals.
OK:
(c) If the result is not as specified, replace the separate type front seatback spring assembly.
Text in Illustration
(d) Check the operation of the front seatback spring (lumbar motor).
Check that the front seatback spring moves smoothly when the battery is connected to the lumbar motor connector terminals.
OK:
(f) If the result is not as specified, replace the separate type front seatback spring assembly.
Text in Illustration
4. INSPECT SEPARATE TYPE FRONT SEATBACK SPRING ASSEMBLY RH
(a) Check the operation of the front seatback spring (reclining motor).
Check that the front seatback spring moves smoothly when the battery is connected to the reclining motor connector terminals.
OK:
(c) If the result is not as specified, replace the separate type front seatback spring assembly.
Text in Illustration
(d) Check the operation of the front seatback spring (lumbar motor).
Check that the front seatback spring moves smoothly when the battery is connected to the lumbar motor connector terminals.
OK:
(f) If the result is not as specified, replace the separate type front seatback spring assembly.
Text in Illustration
