Pinout Values and Diagnostic Parameters

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: VEHICLE STABILITY CONTROL SYSTEM: TERMINALS OF ECU

1. TERMINALS OF ECU





Text in Illustration









* *: W/ Downhill Assist Control

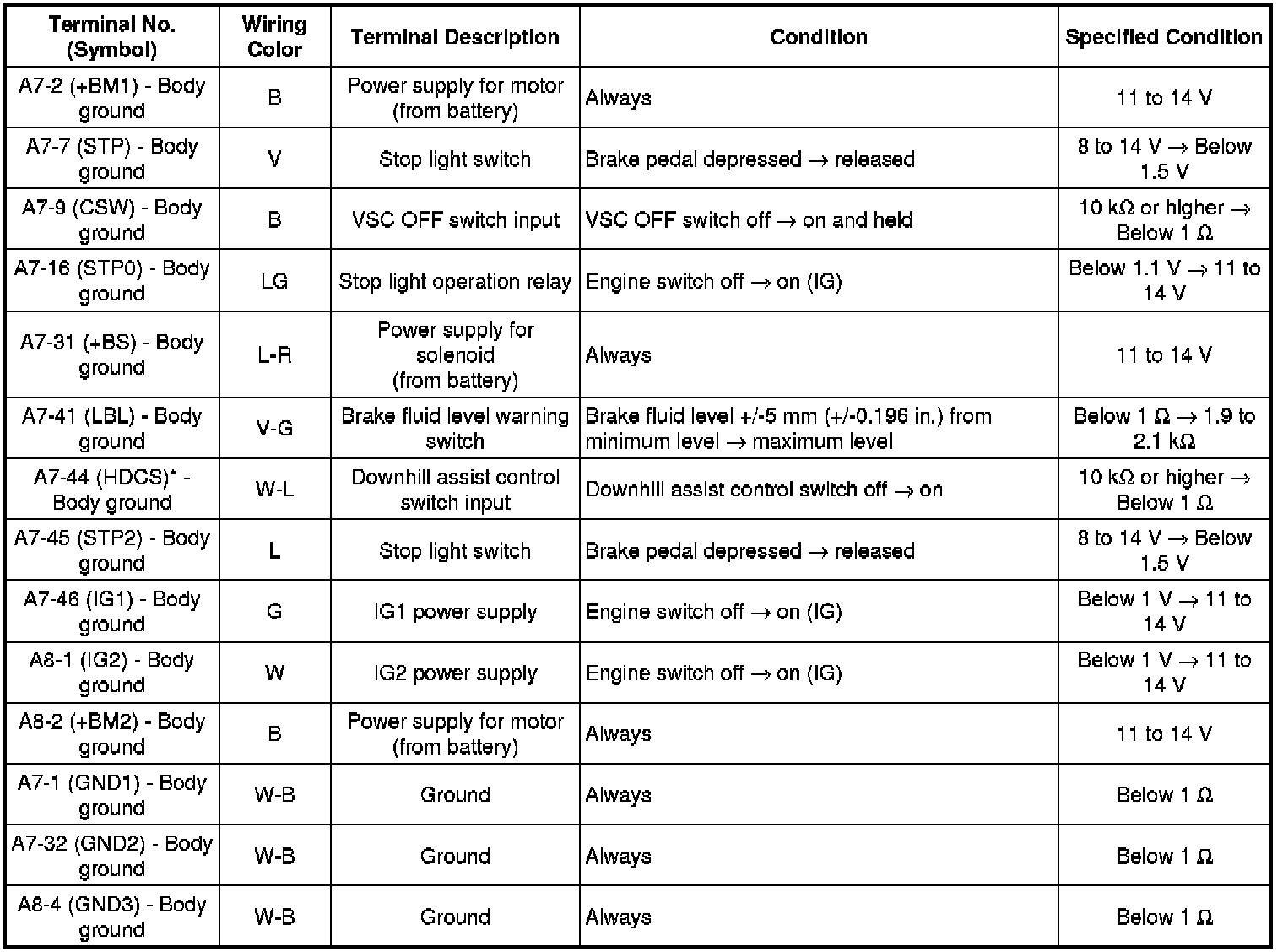

2. TERMINAL INSPECTION

Disconnect the 2 skid control ECU connectors and measure the voltage or resistance on the wire harness side.

HINT
Voltage cannot be measured with the connector connected to the skid control ECU as the connector is watertight.





Text in Illustration









* *: W/ Downhill Assist Control
