COMPONENTS
a.
FRONT

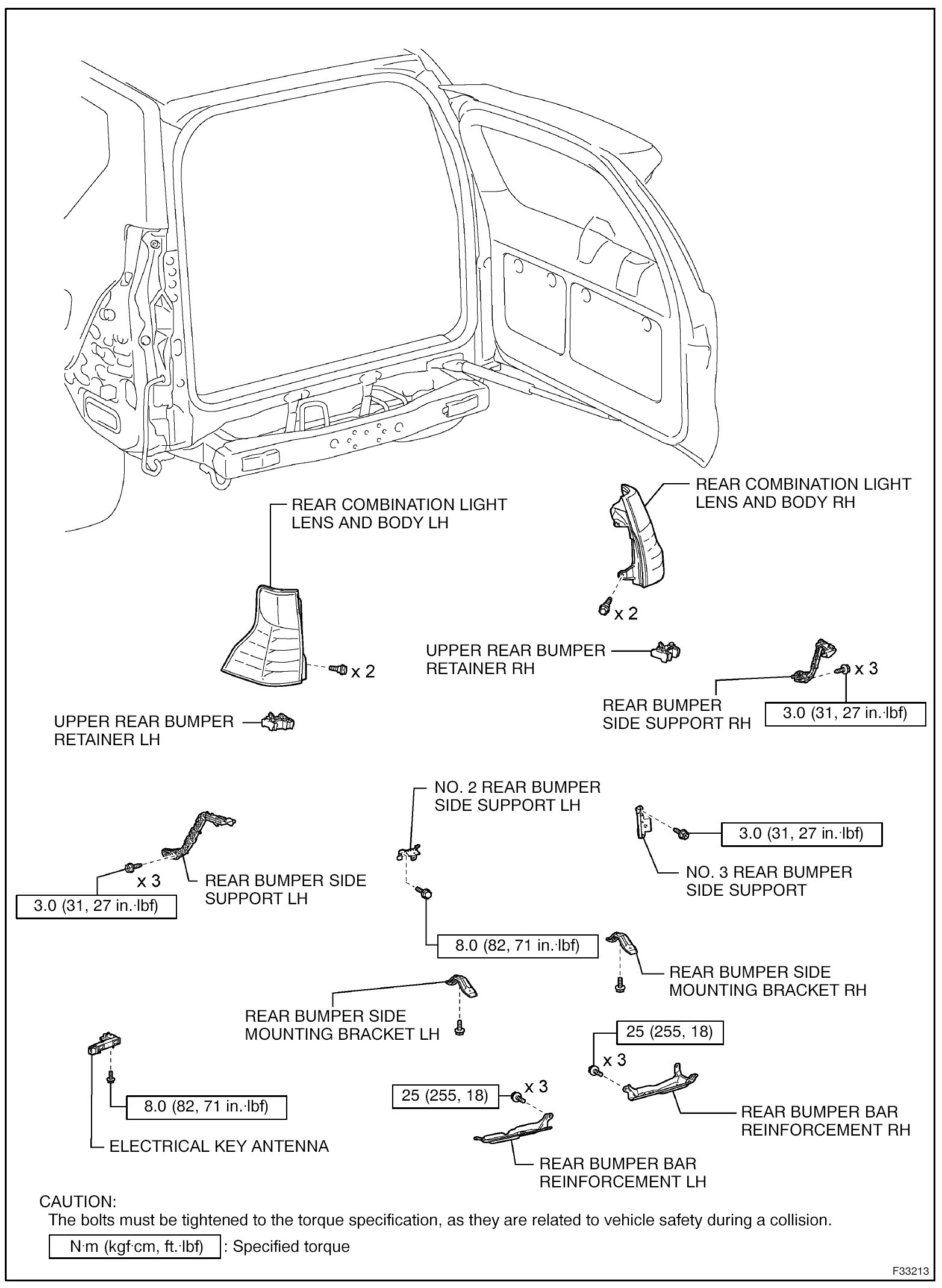

BUMPER
b.
REAR
BUMPER
c.
INSTRUMENT PANEL
d.
INTERIOR TRIM
e.

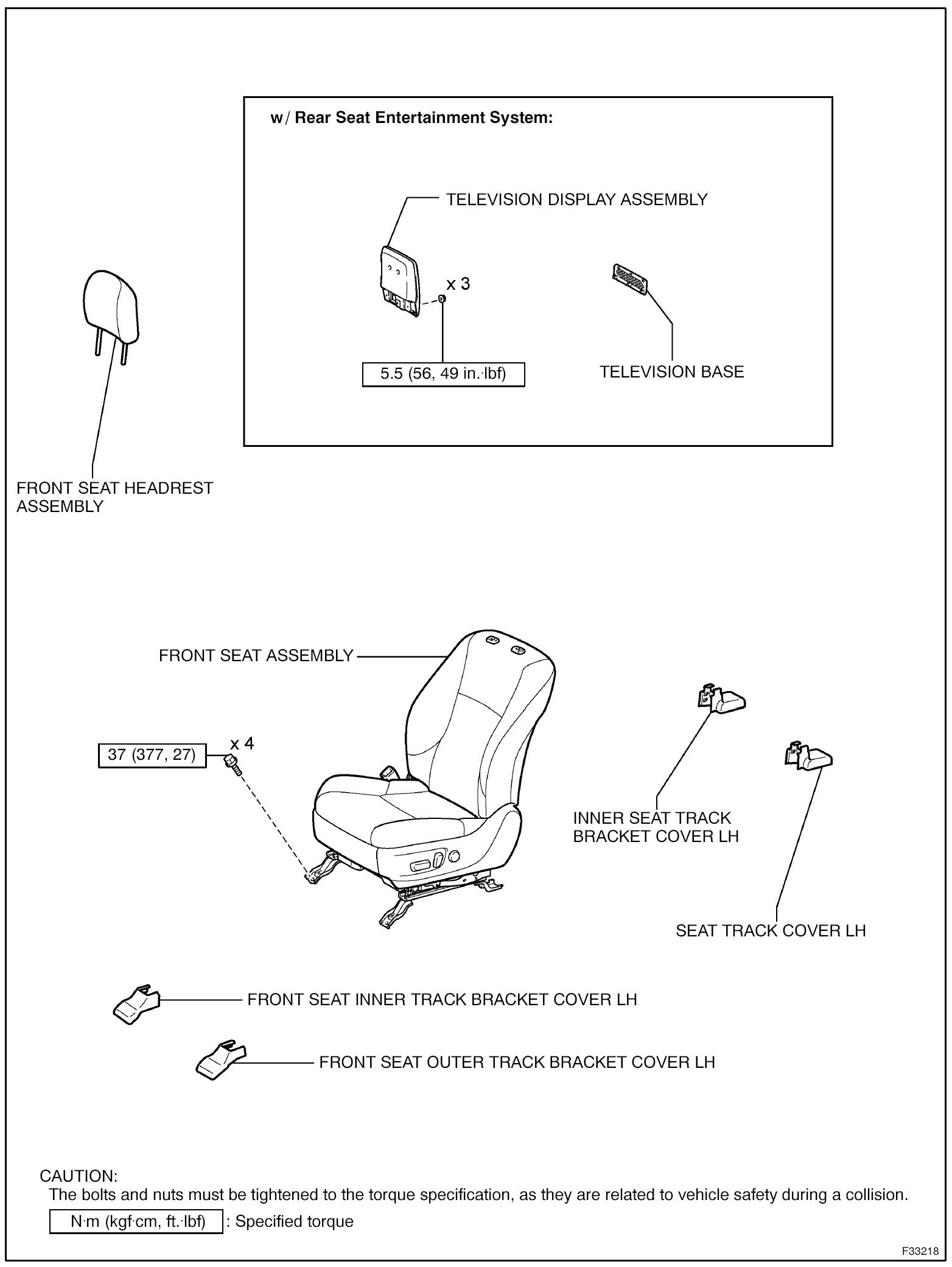

FRONT SEAT
f.
REAR SEAT
