GX 460 V8-4.6L (1UR-FE)
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Dashboard / Instrument Panel
>>
Service and Repair
>>
Removal and Replacement
>>
Components
Components

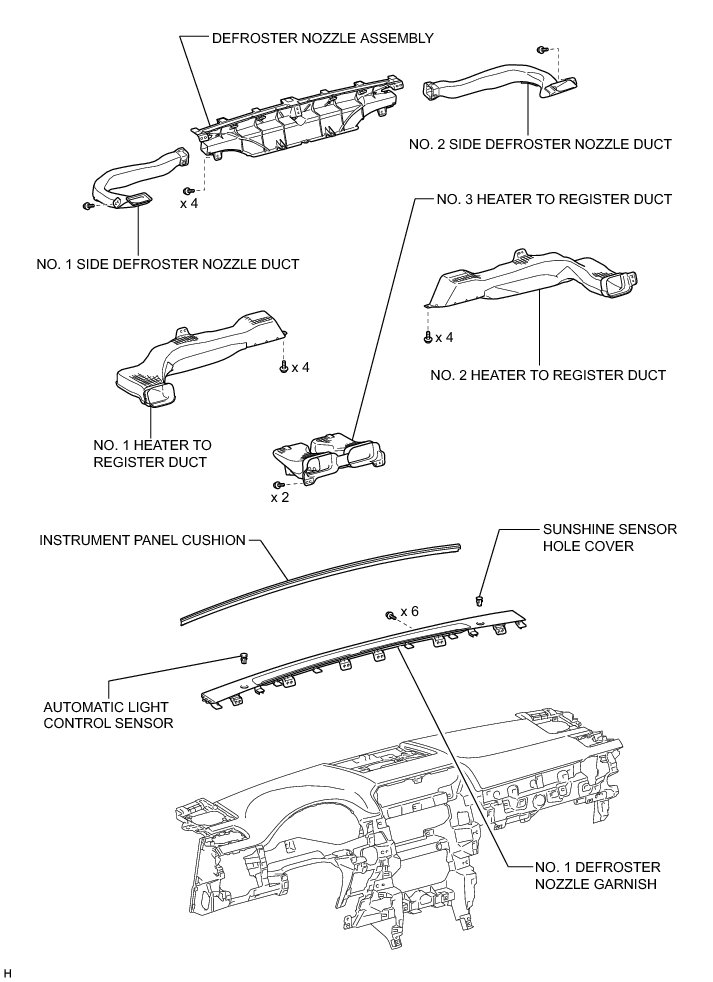

INTERIOR PANELS / TRIM: INSTRUMENT PANEL SAFETY PAD: COMPONENTS
