Service Data





SPECIFICATIONS: STEERING COLUMN: SERVICE DATA

Steering Wheel Free Play

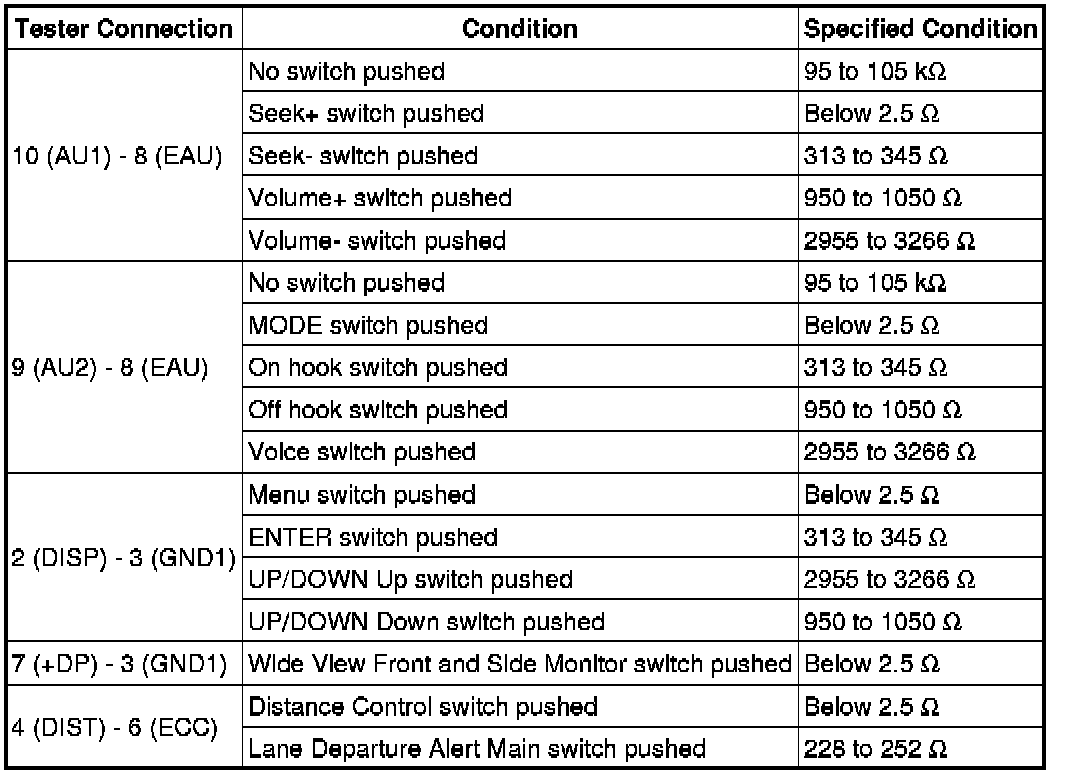

Steering Pad Switch Standard Resistance

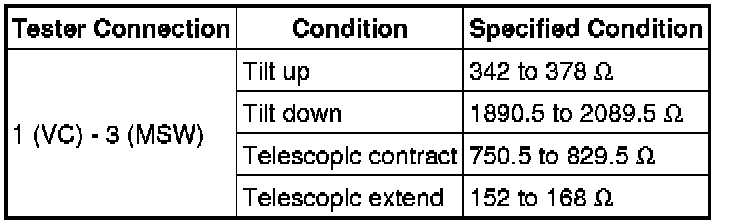

Tilt and Telescopic Manual Switch Pad Switch Resistance
