Seat Heater [w/o Climate Control Seat]

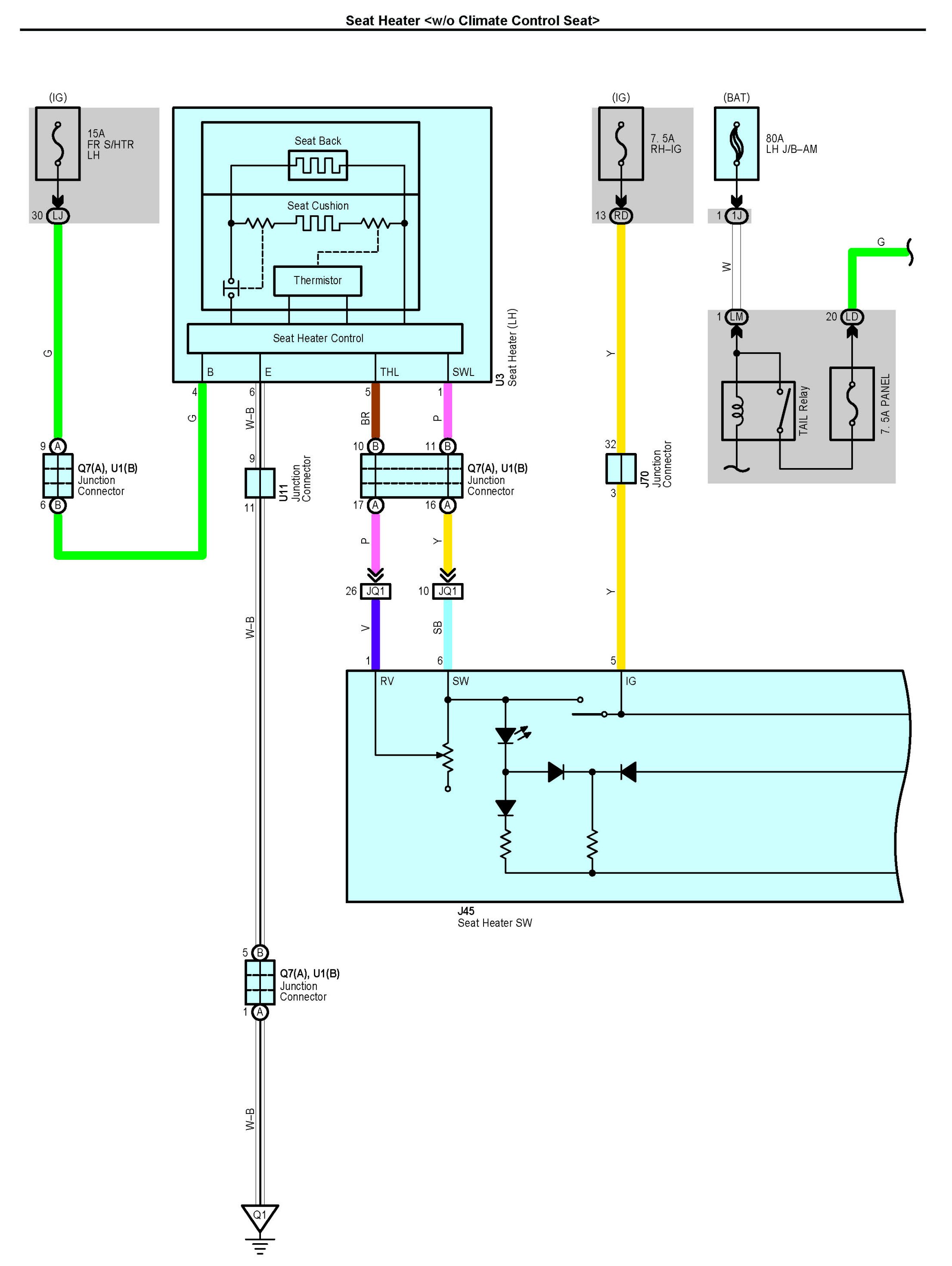

Seat Heater [w/o Climate Control Seat] Part 1:

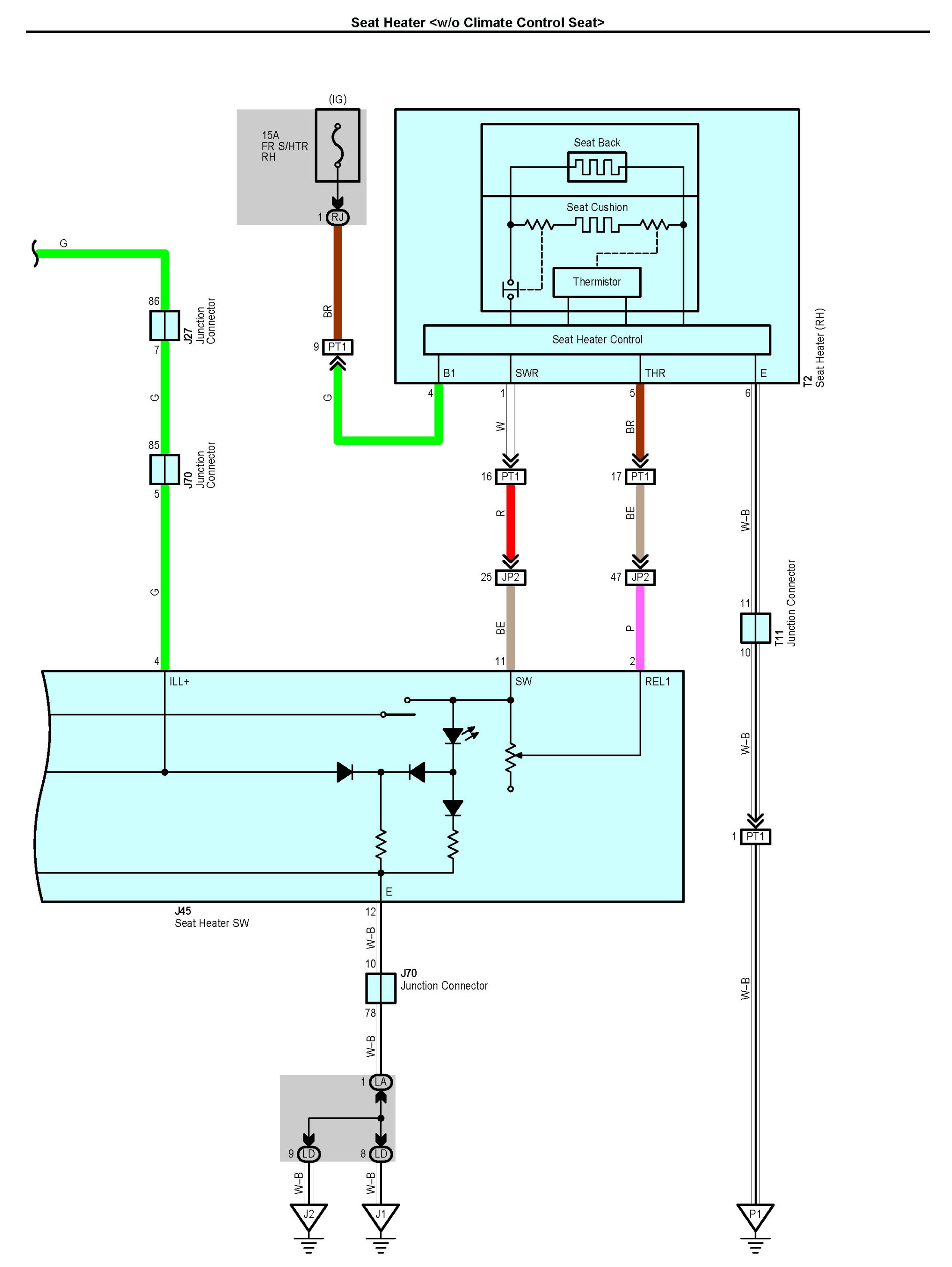

Seat Heater [w/o Climate Control Seat] Part 2:

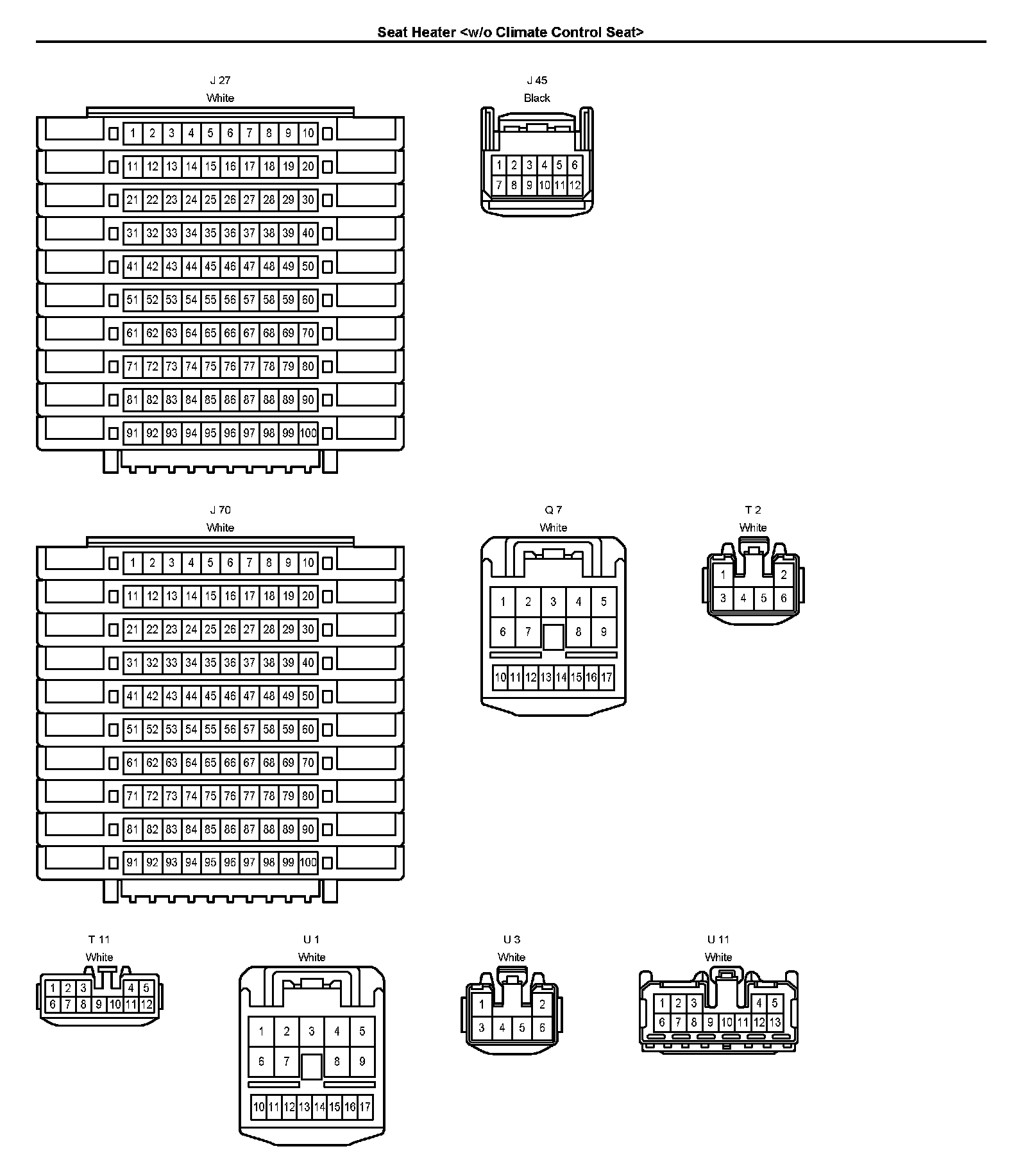

Connectors Part 1:

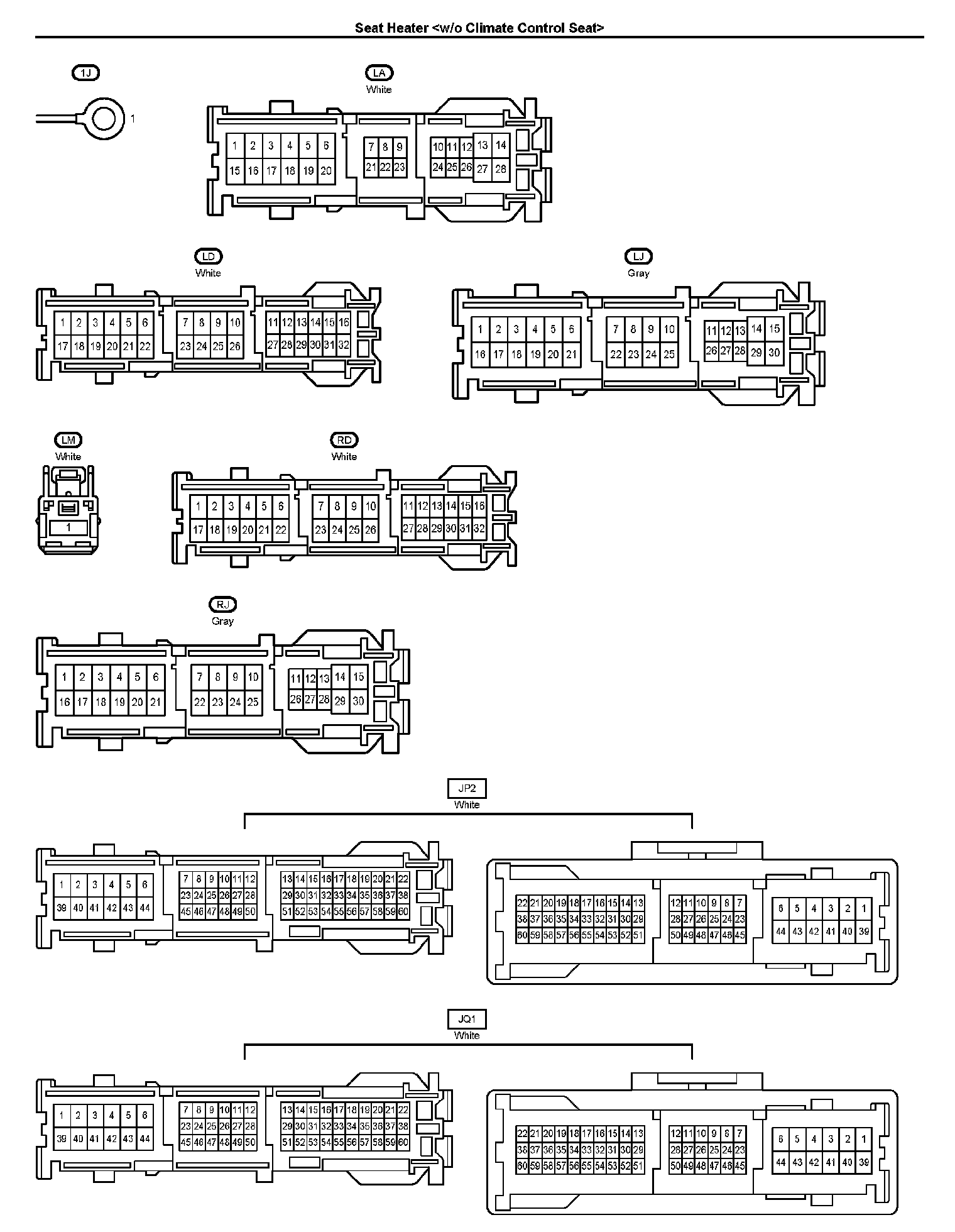

Connectors Part 2:

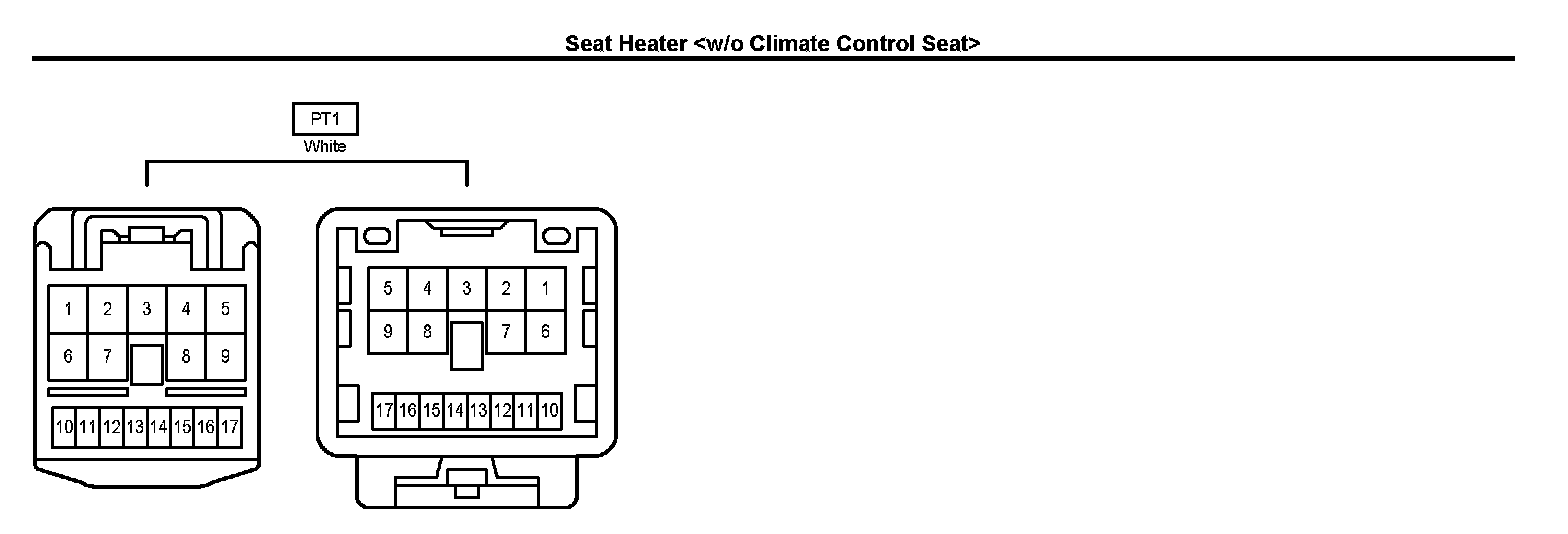

Connectors Part 3:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
