Front Wiper and Washer

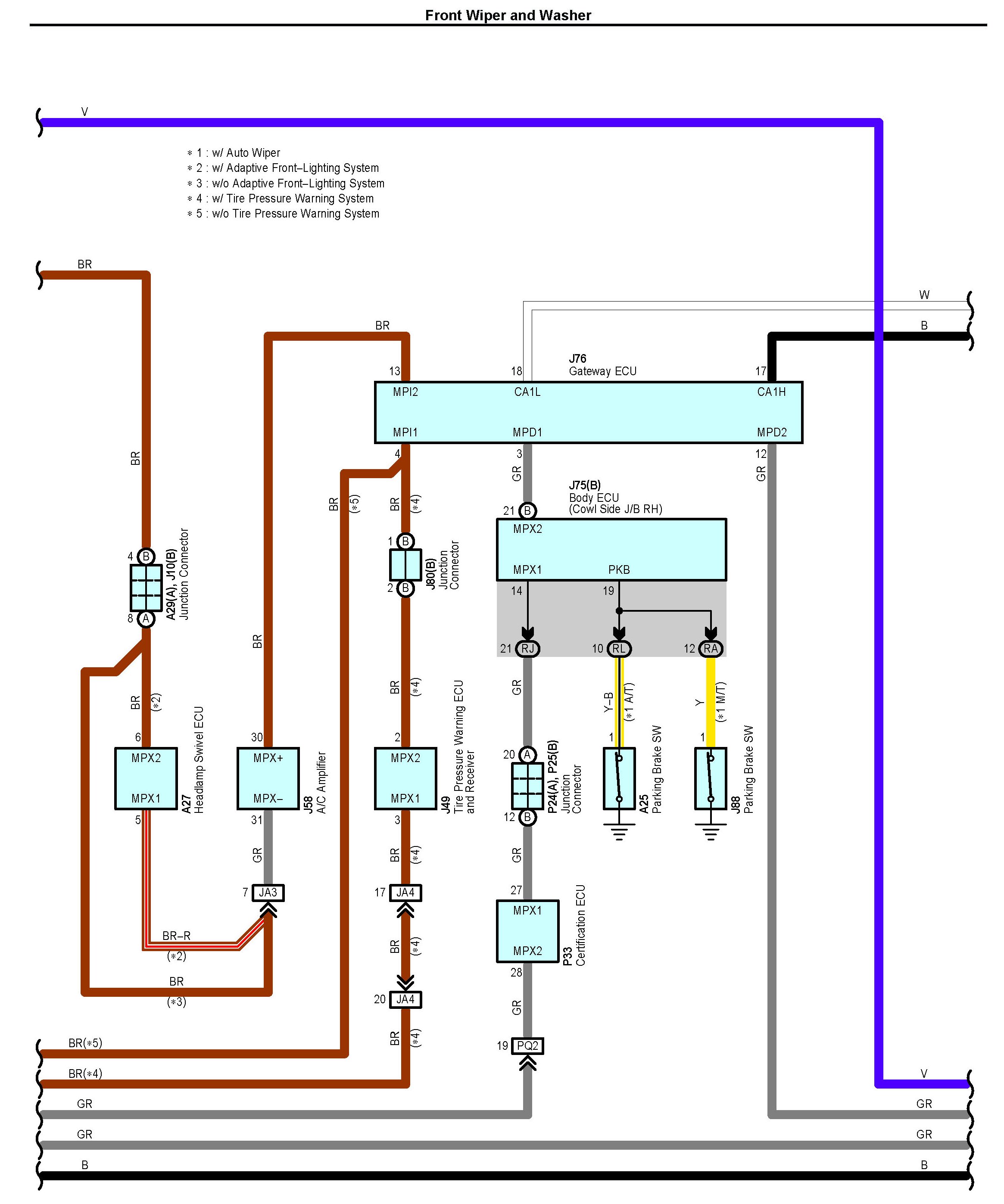

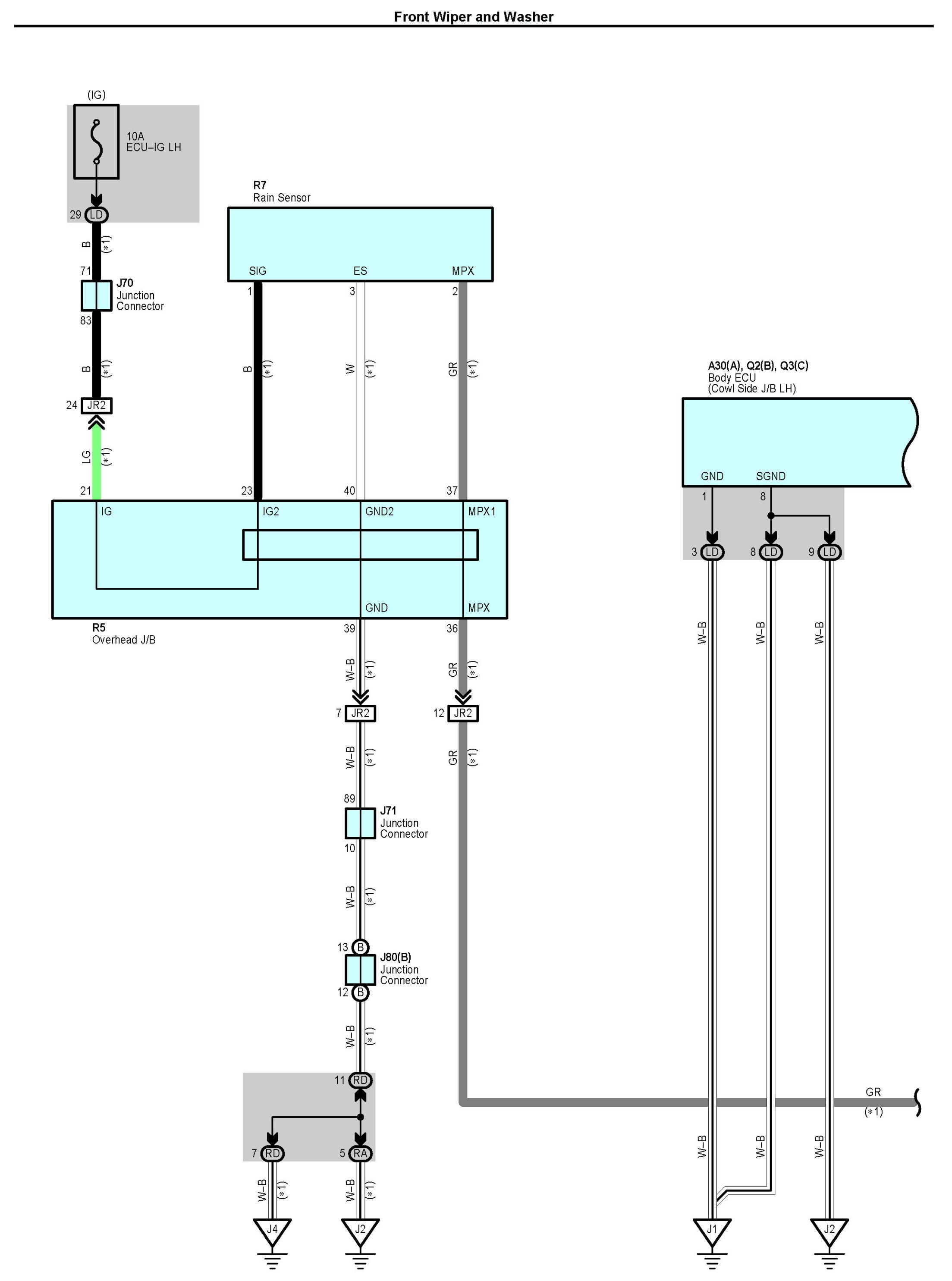

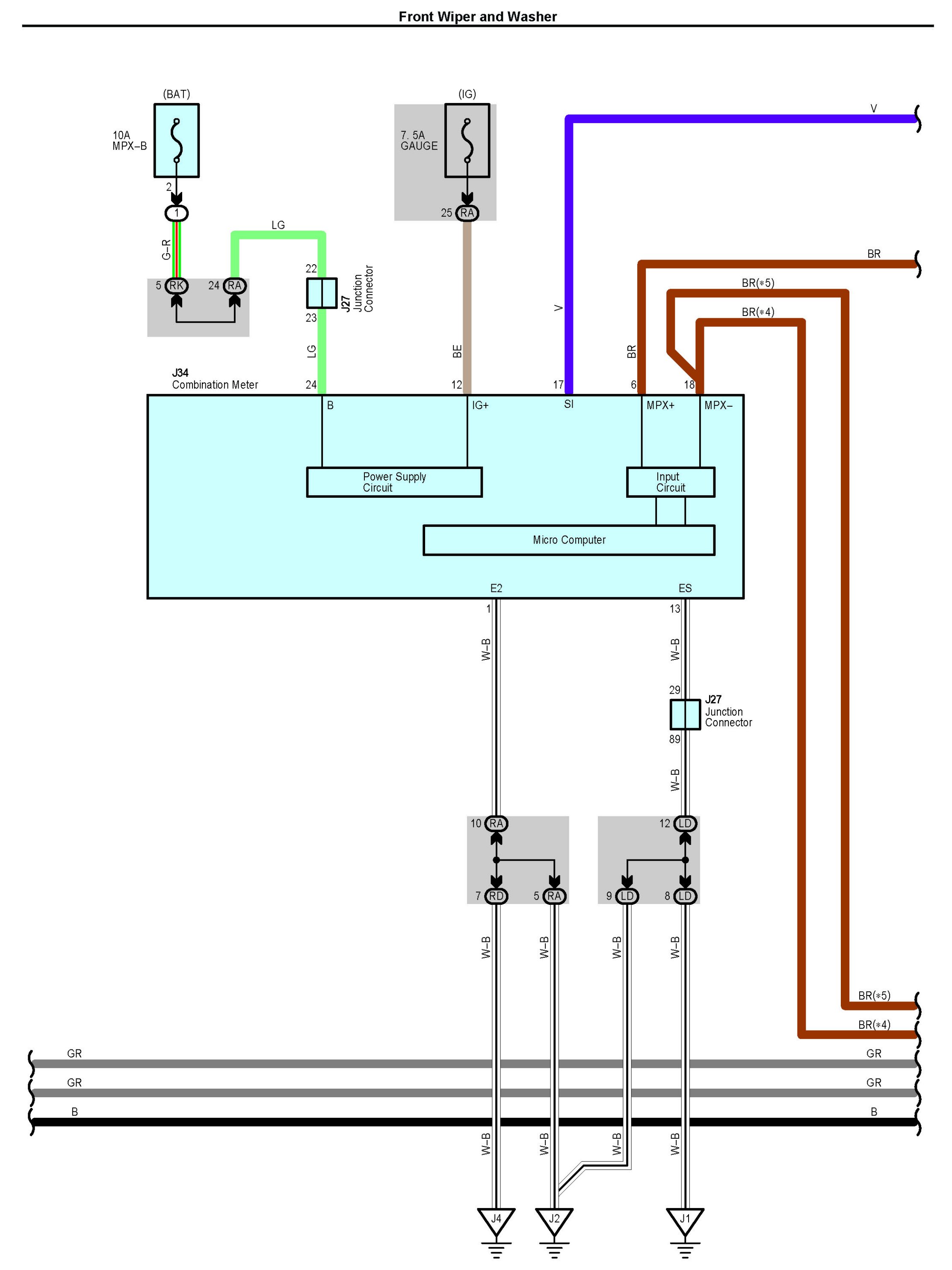

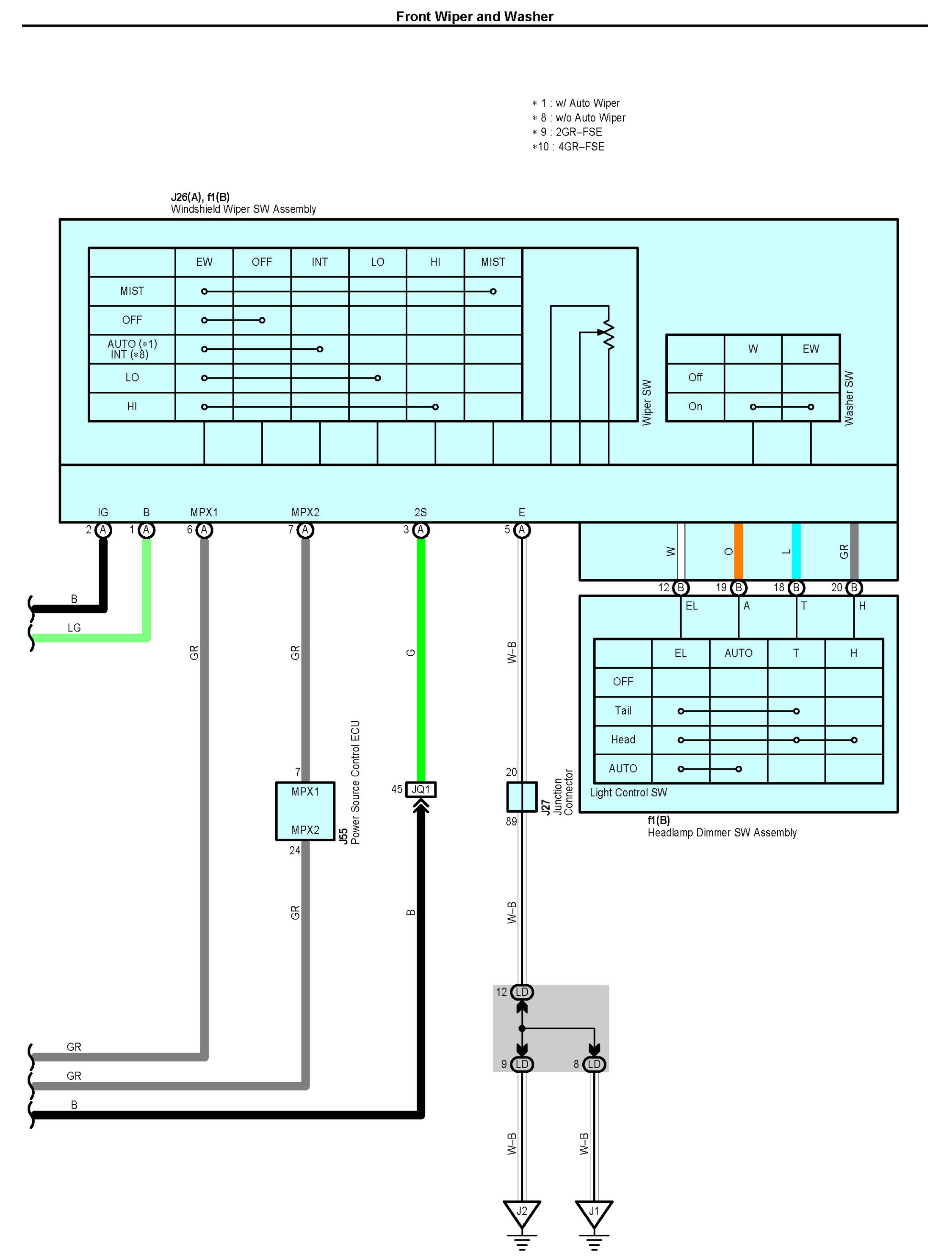

Front Wiper and Washer Part 1:

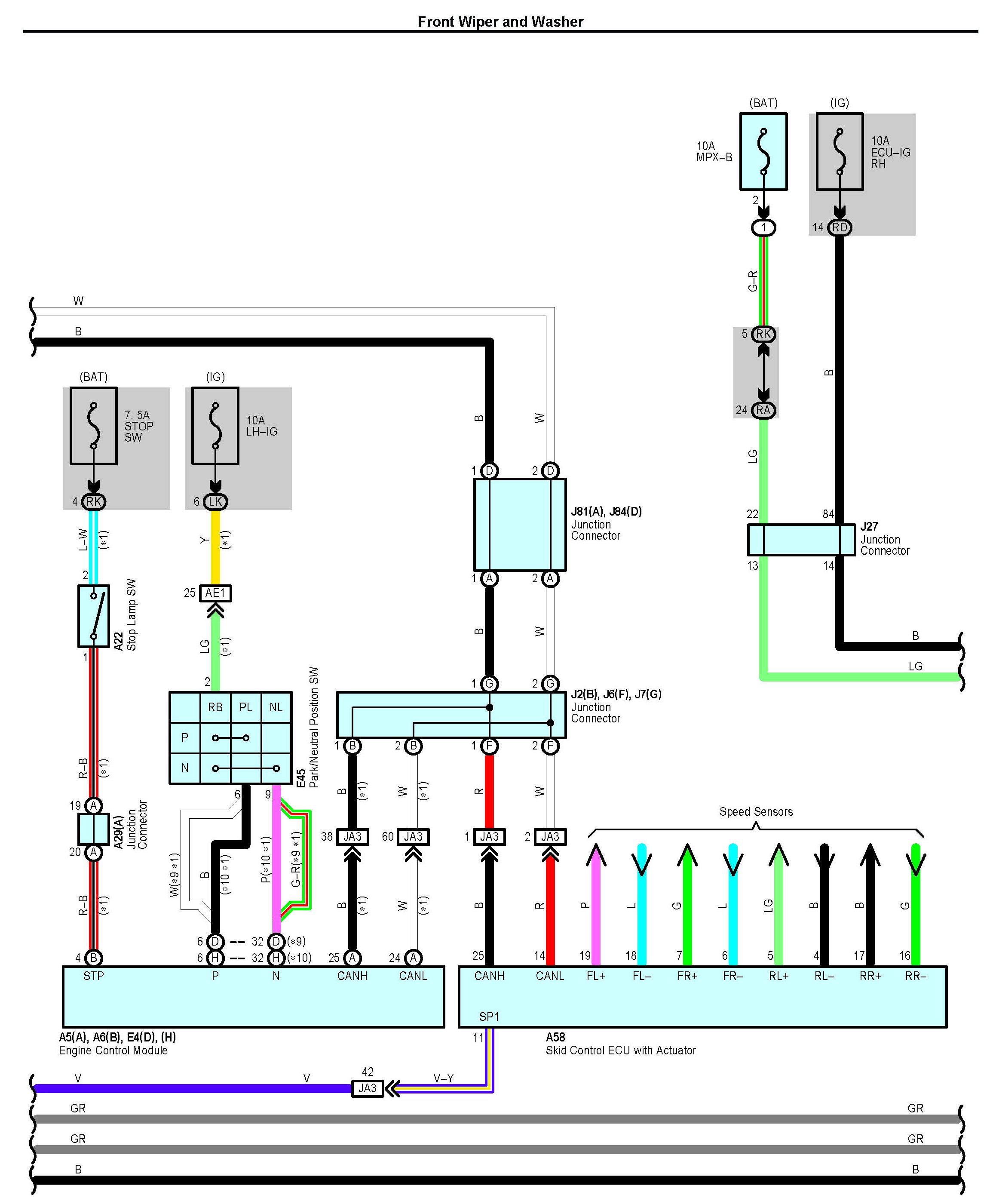

Front Wiper and Washer Part 2:

Front Wiper and Washer Part 3:

Front Wiper and Washer Part 4:

Front Wiper and Washer Part 5:

Front Wiper and Washer Part 6:

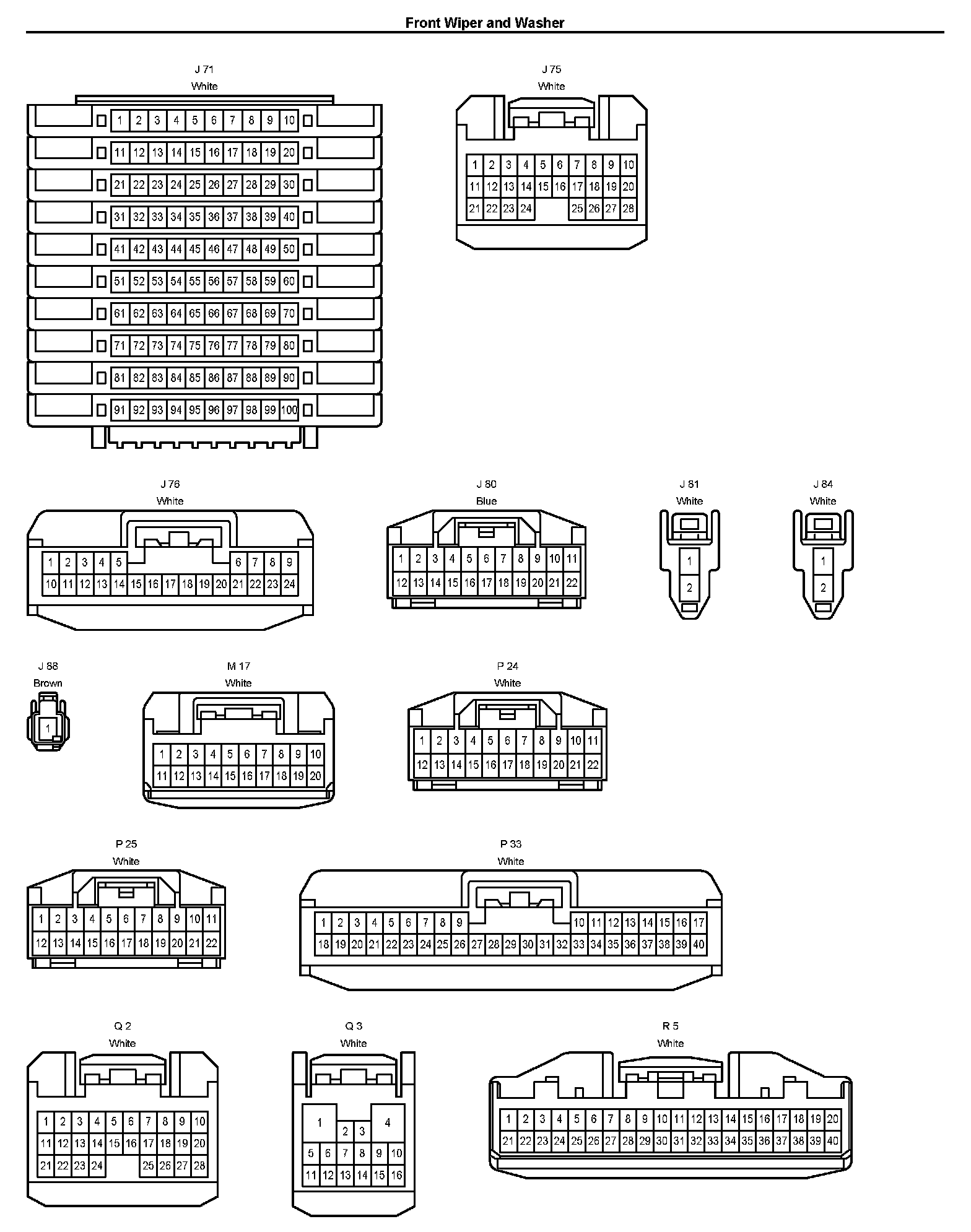

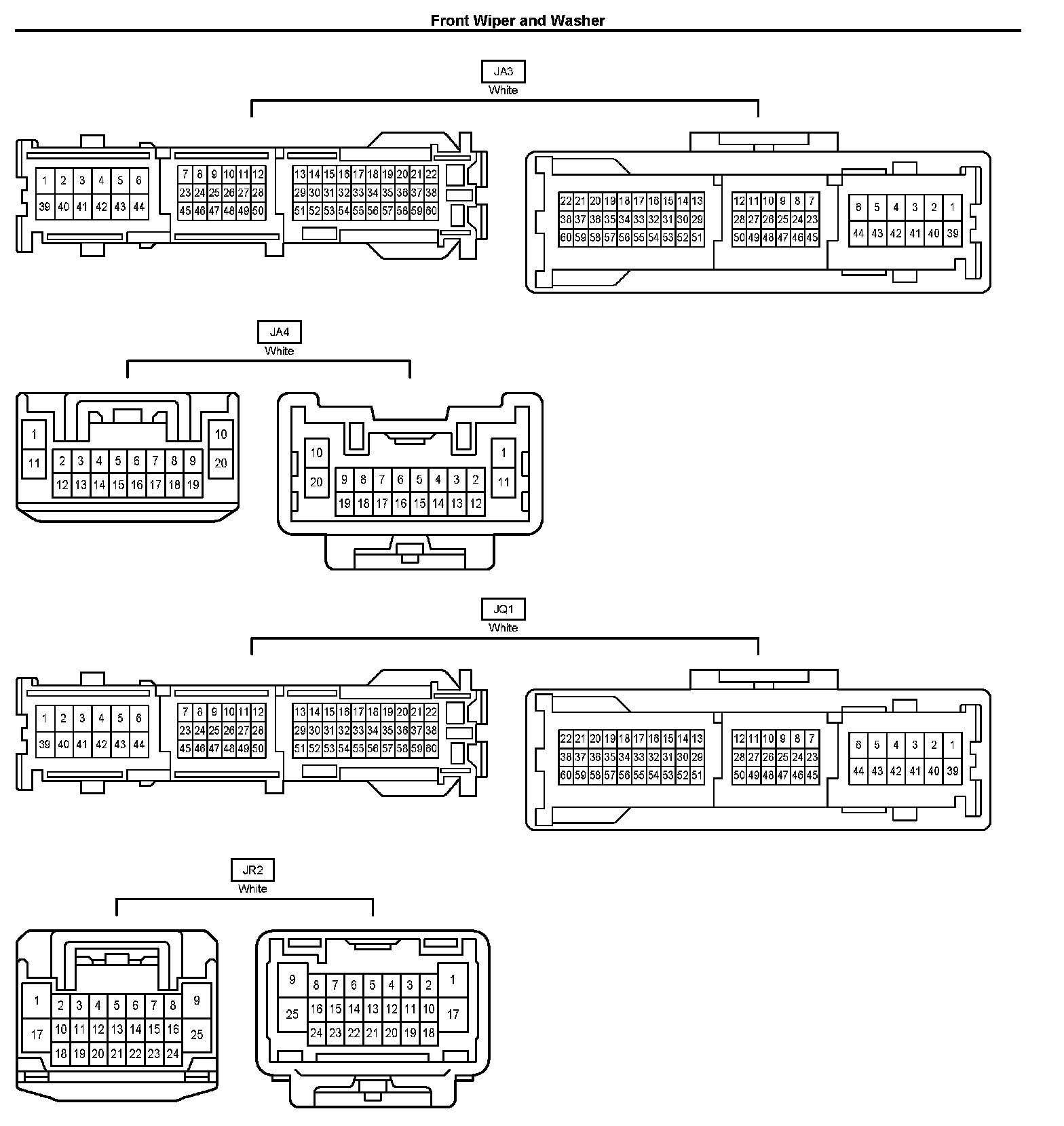

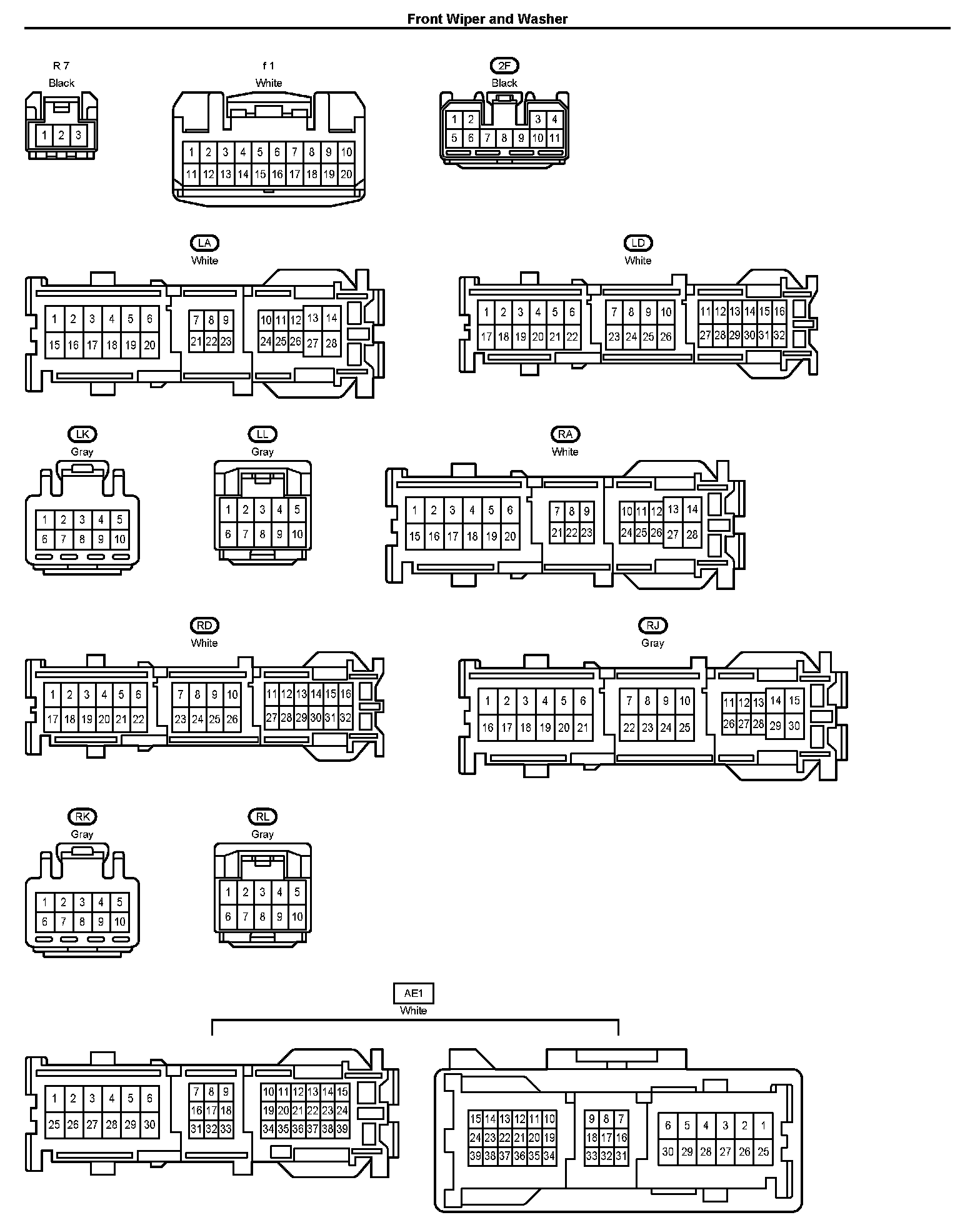

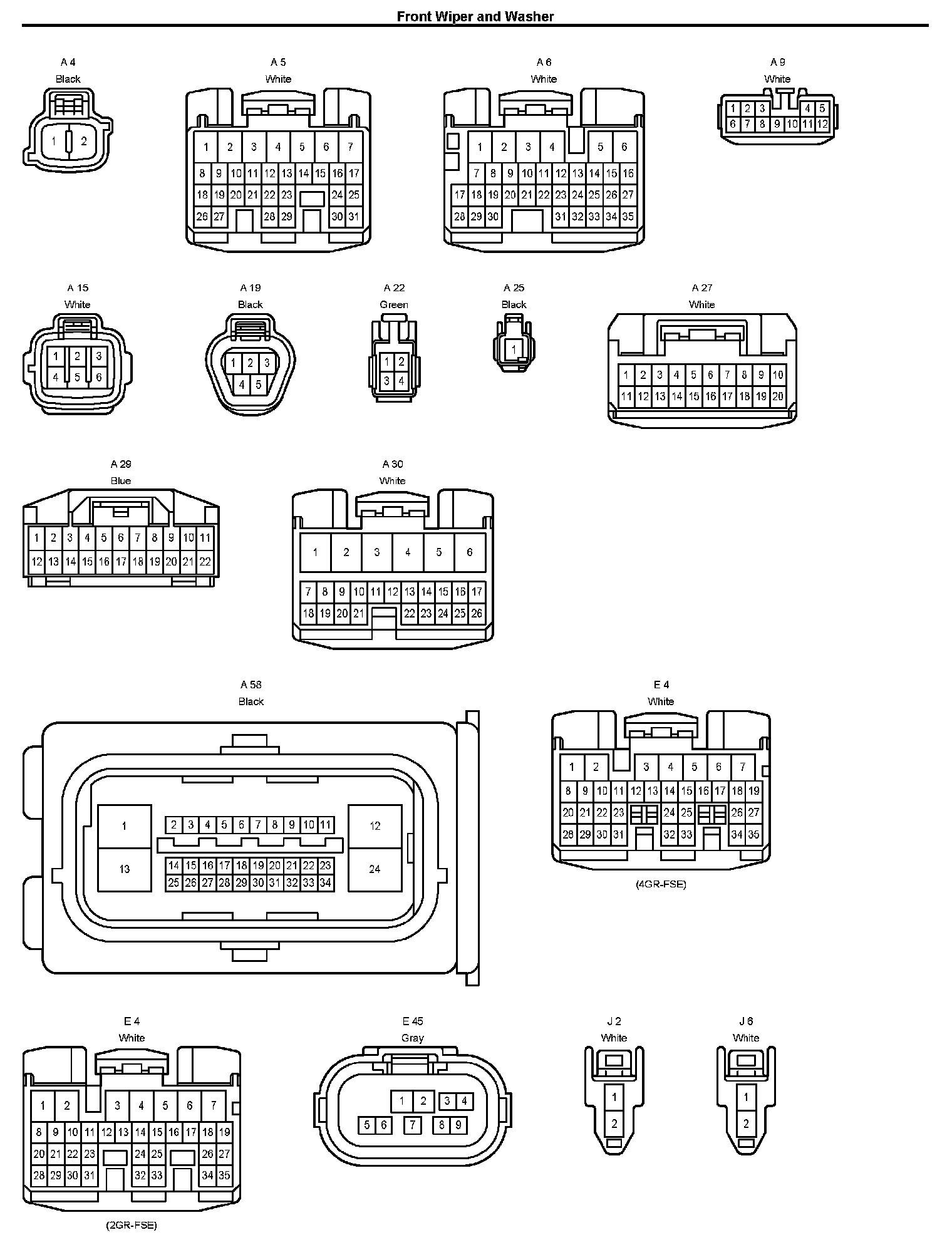

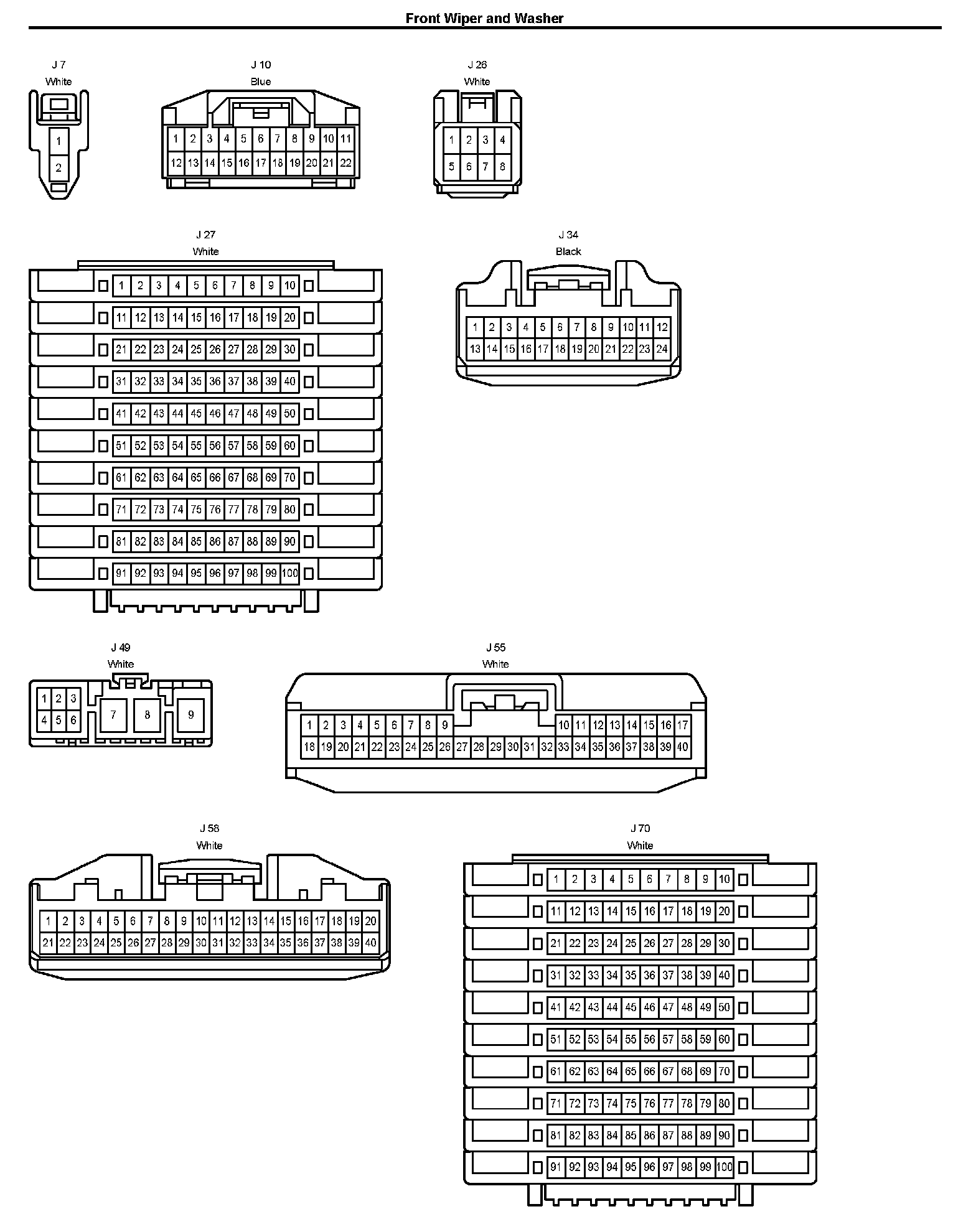

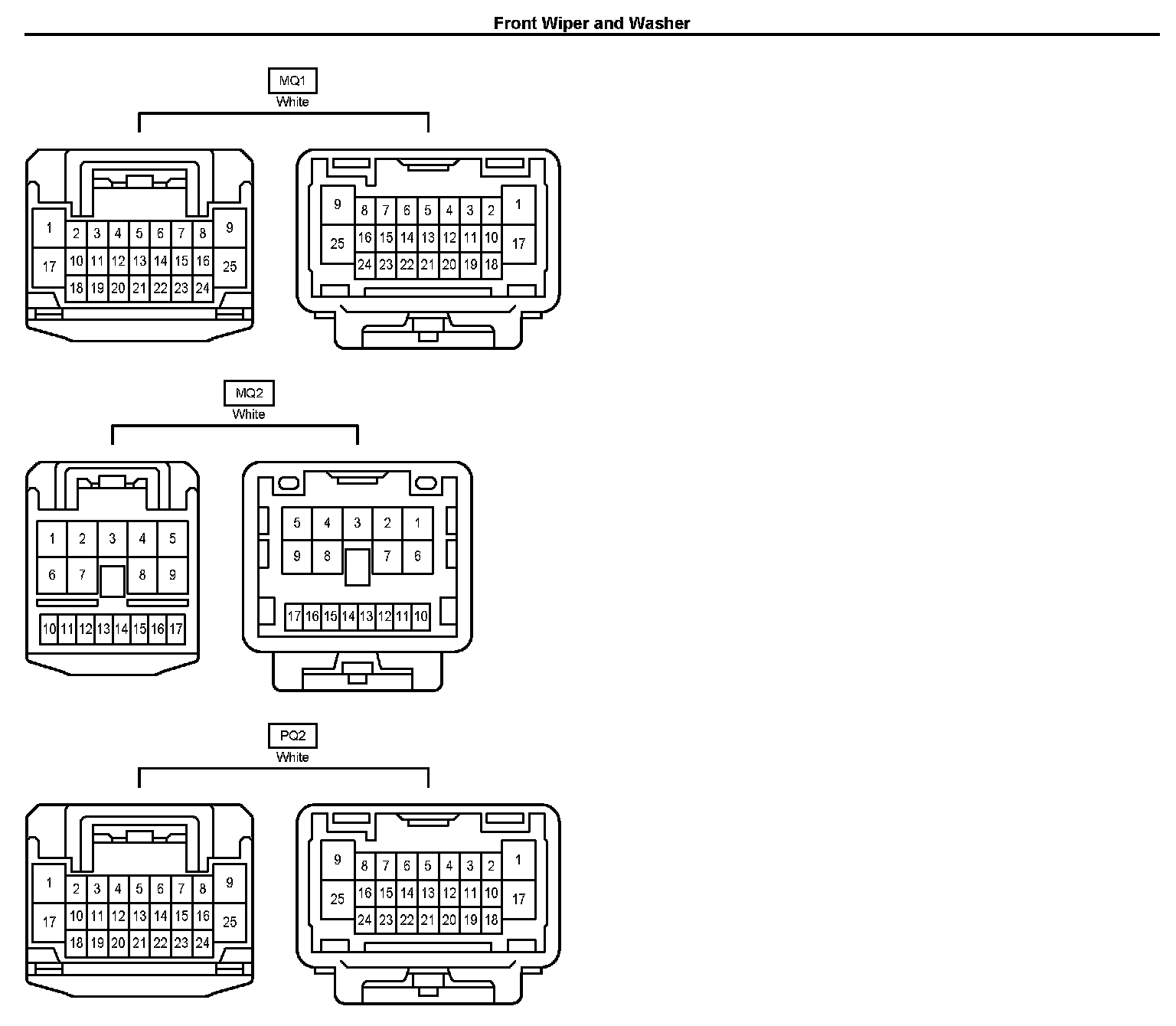

Connectors Part 1:

Connectors Part 2:

Connectors Part 3:

Connectors Part 4:

Connectors Part 5:

Connectors Part 6:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
