Audible Warning Device

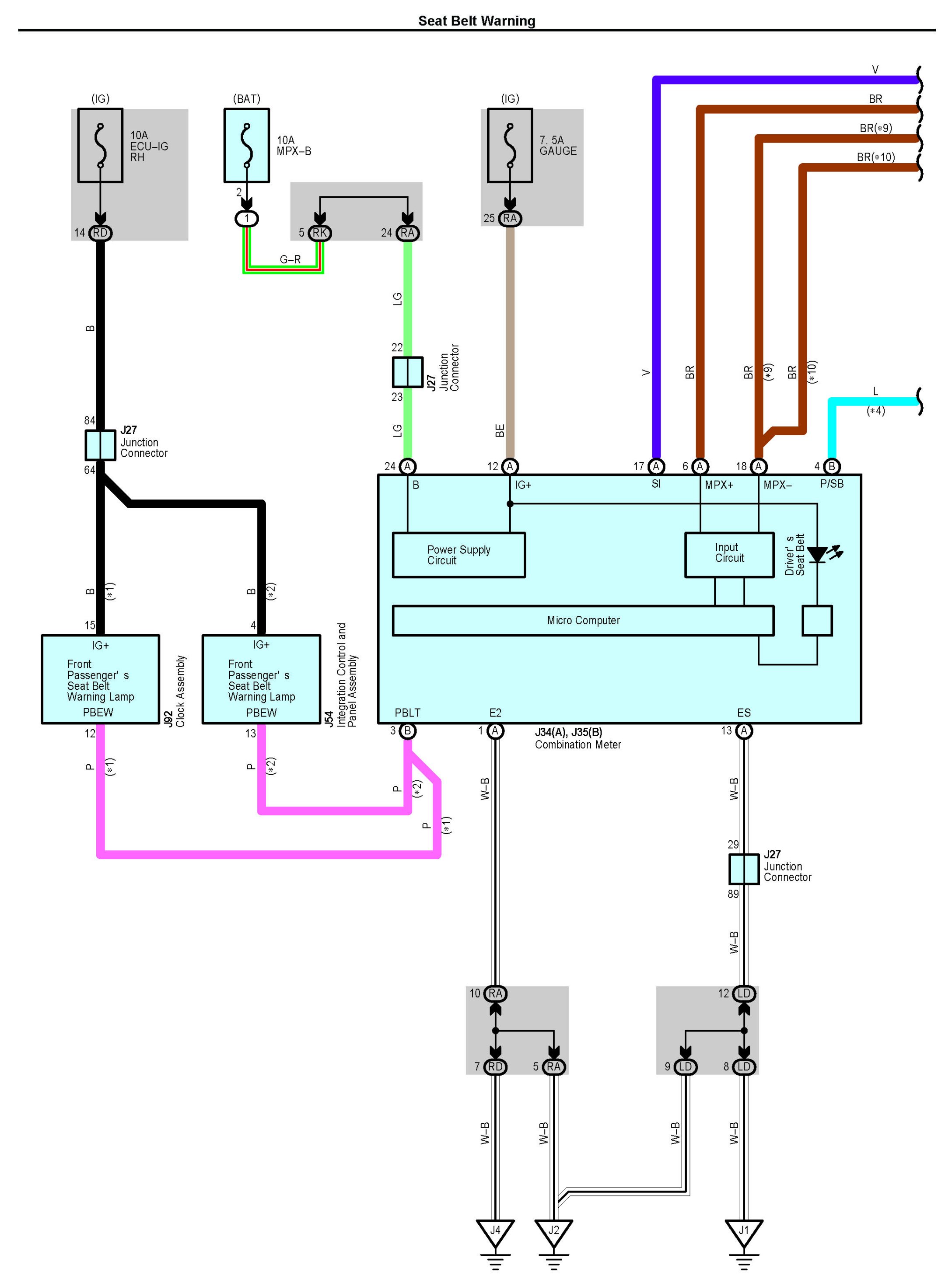

Seat Belt Warning Part 1:

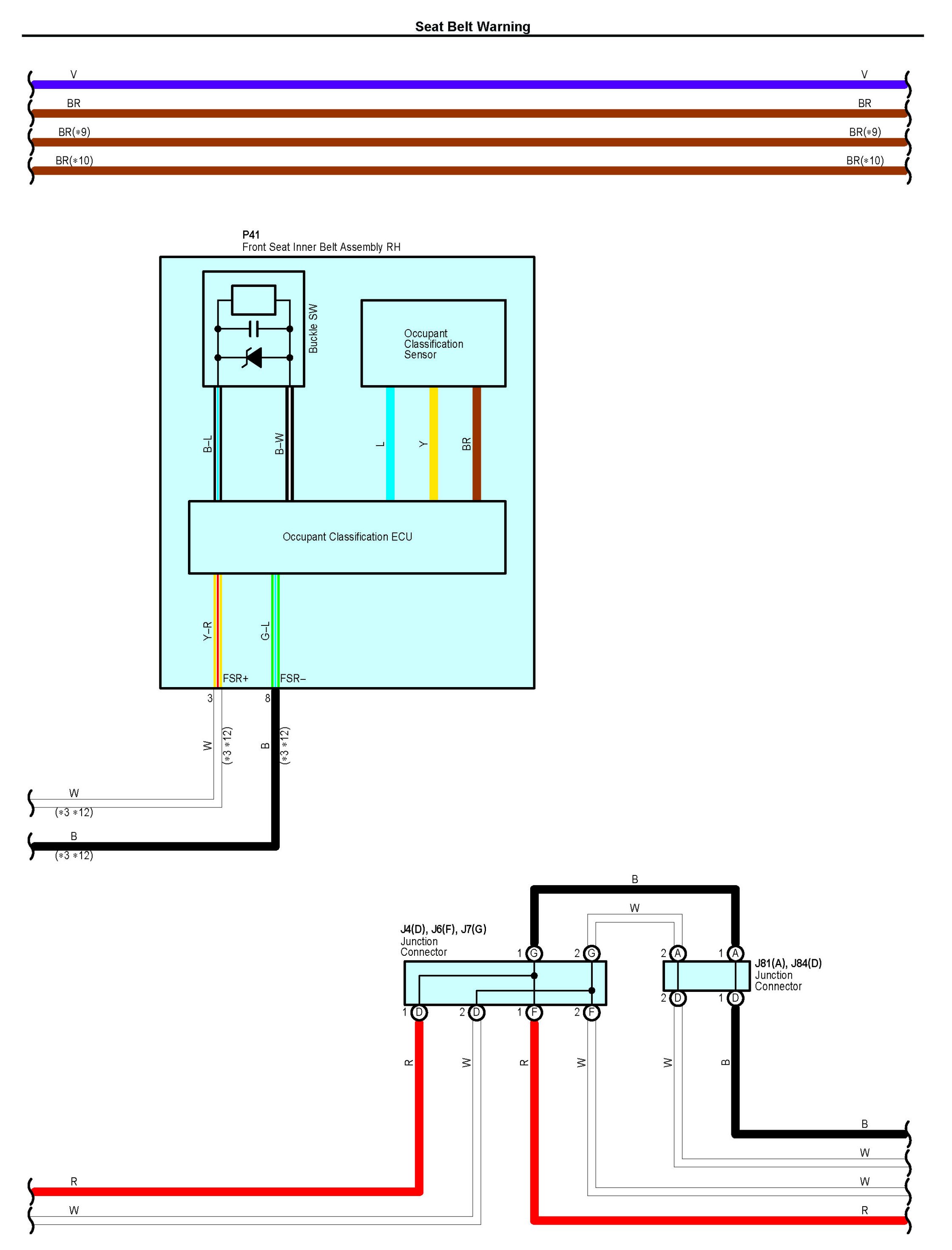

Seat Belt Warning Part 2:

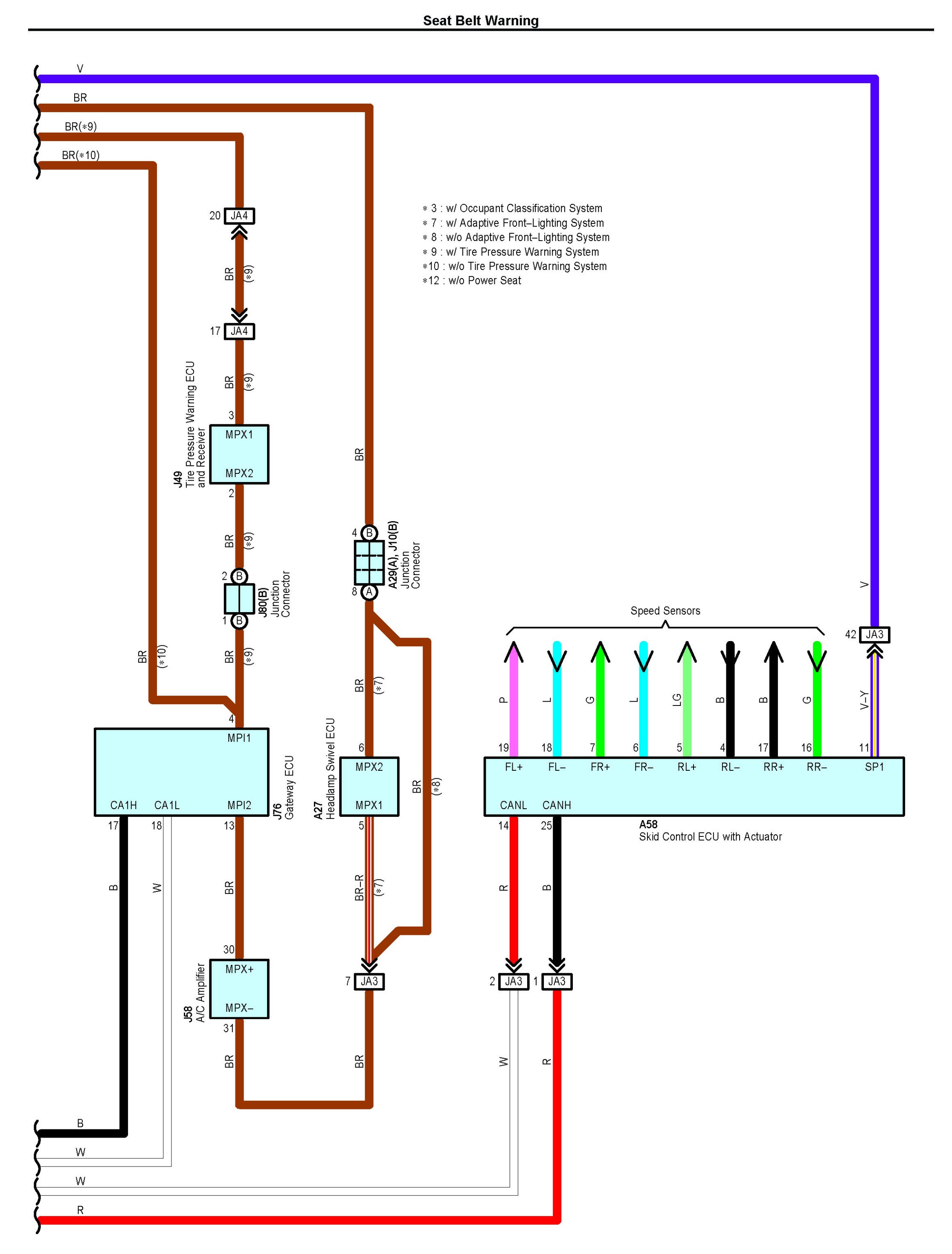

Seat Belt Warning Part 3:

Seat Belt Warning Part 4:

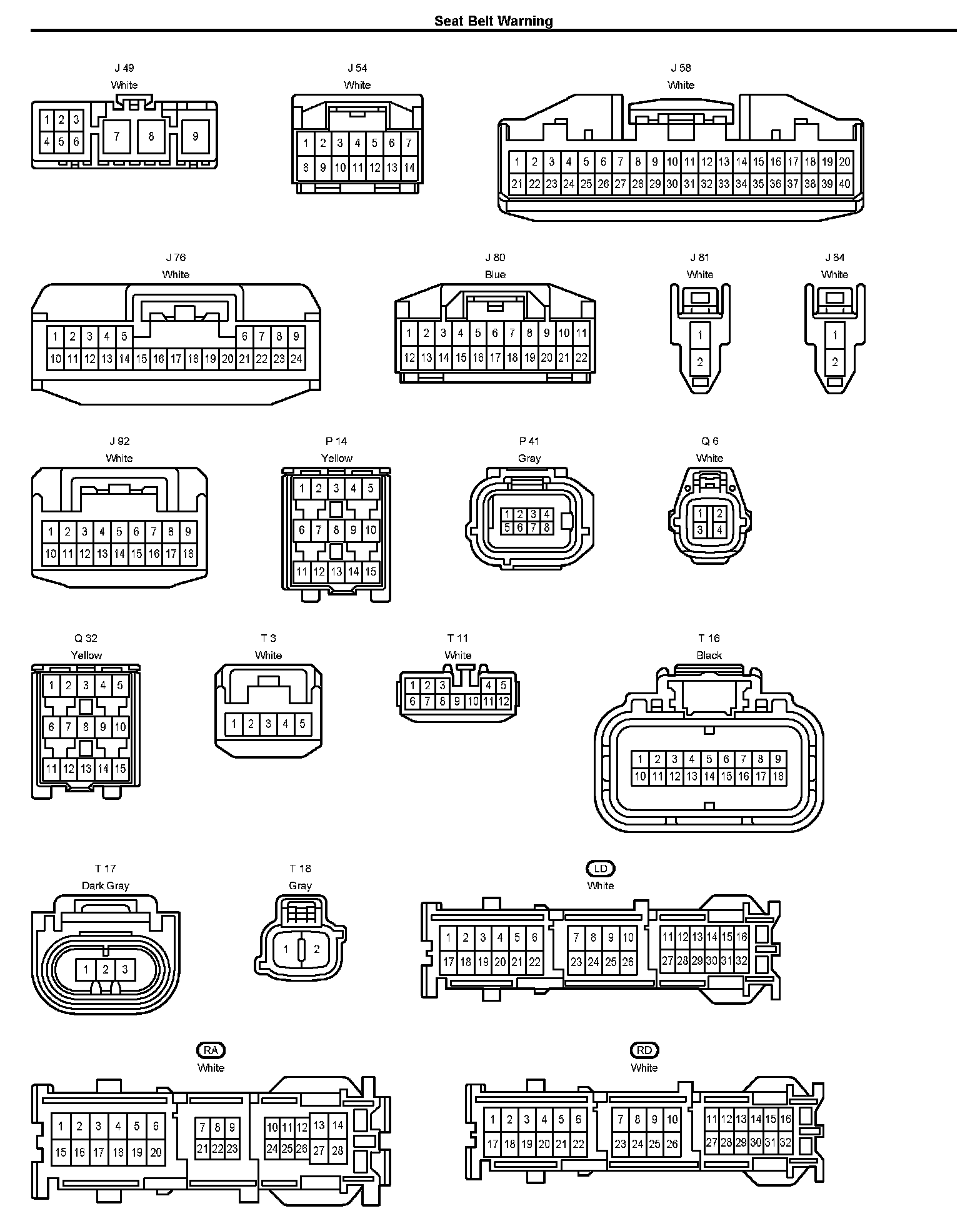

Connectors Part 1:

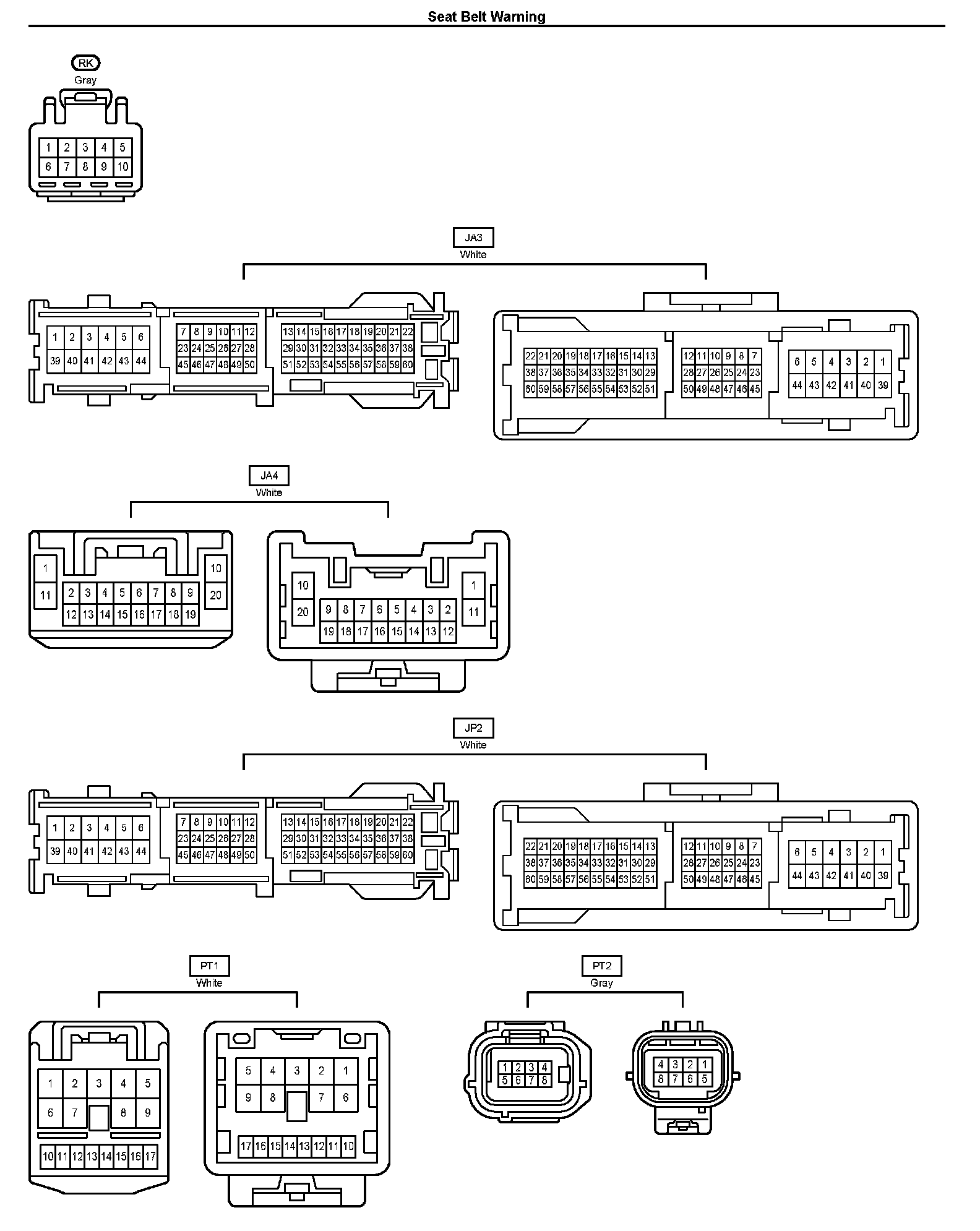

Connectors Part 2:

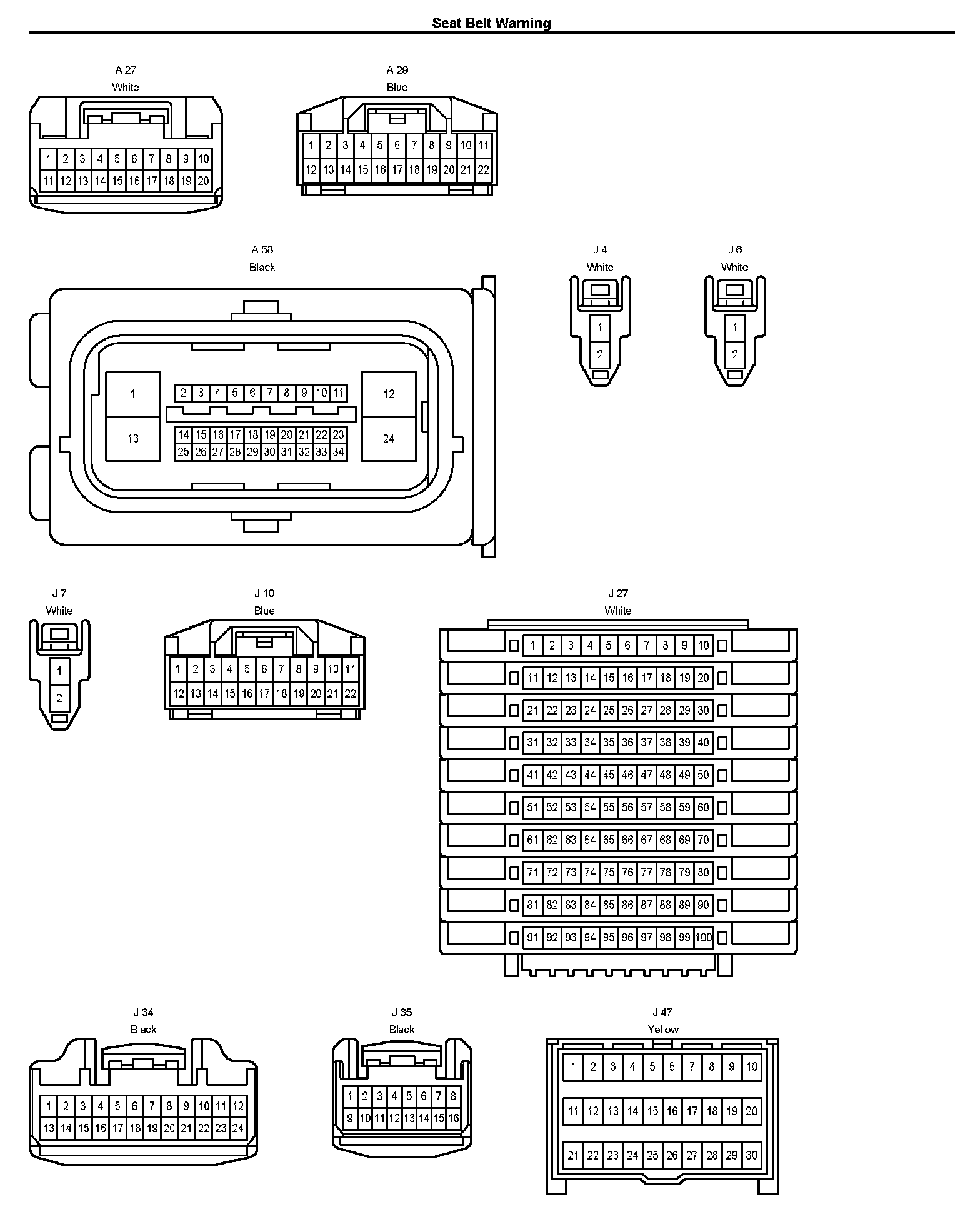

Connectors Part 3:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
