Service Data

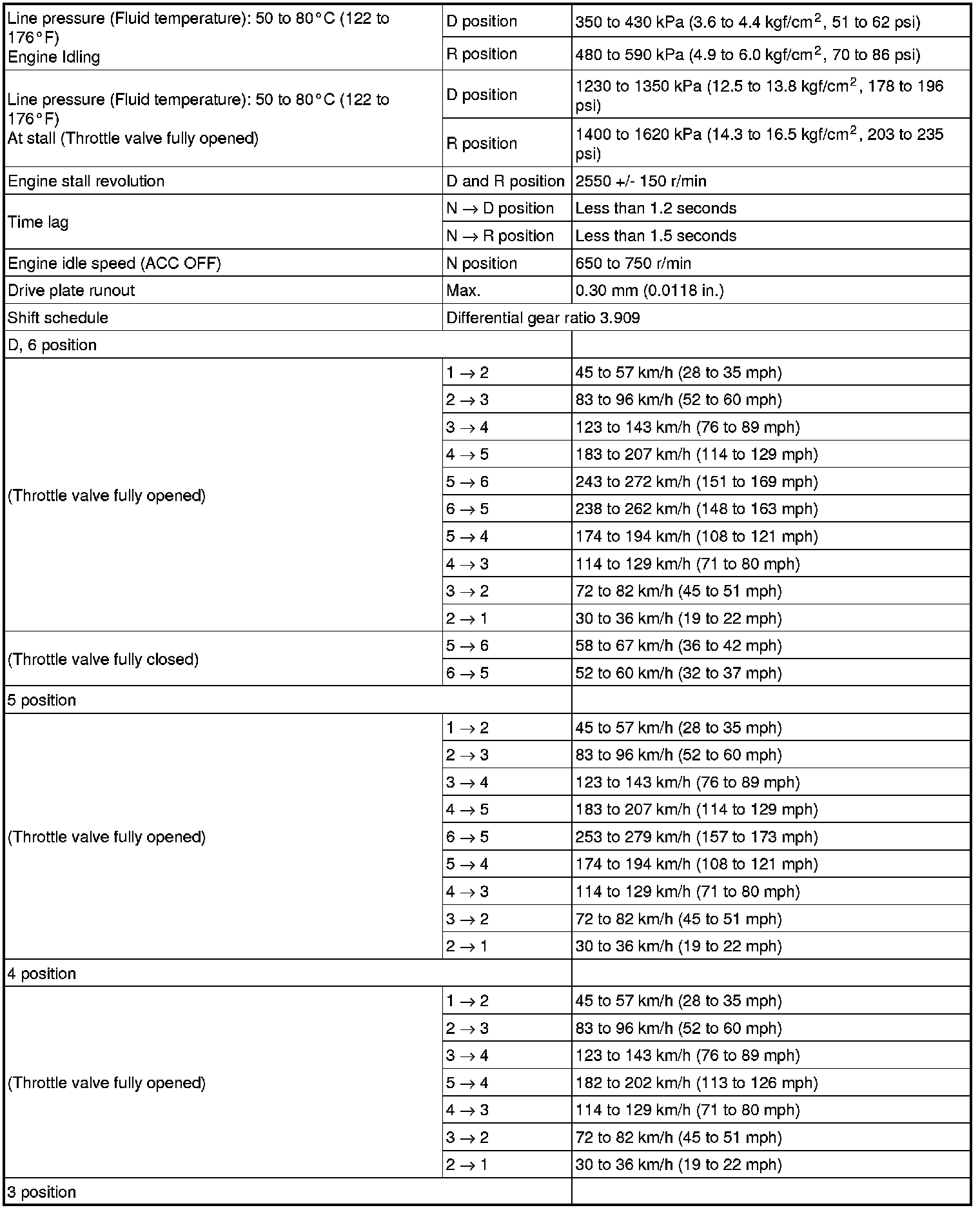

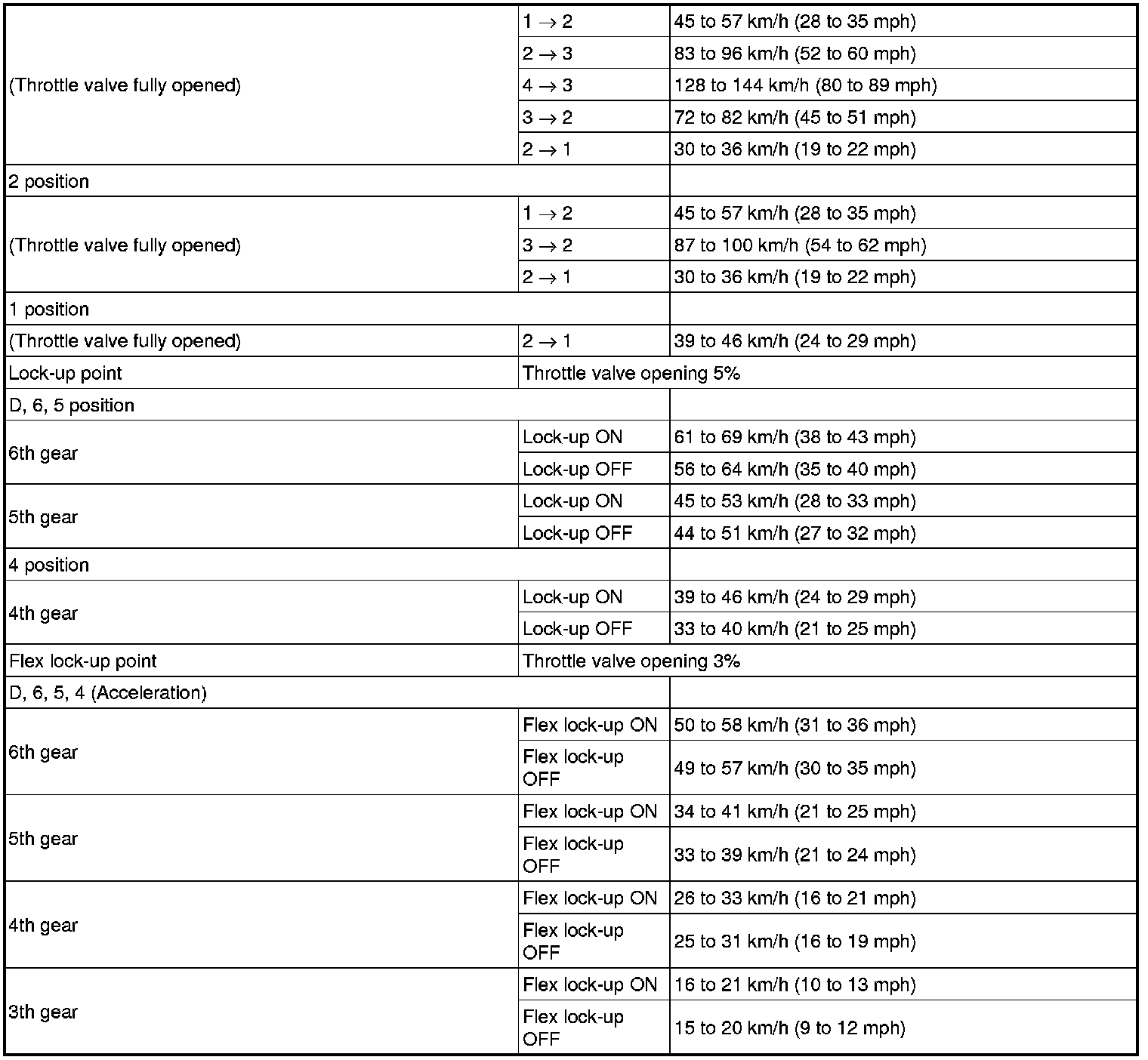

SERVICE SPECIFICATIONS: A960E AUTOMATIC TRANSMISSION: SERVICE DATA
NOTICE:
* All shift point values indicated in the above tables are actual values. Therefore, if checking a shift point with a chassis dynamometer, keep in mind that there is a range of error in the chassis dynamometer indication.
* If checking a shift point against the speed indicated on the speedometer, remember to consider the speedometer correction rate and range of error in the tester indication.

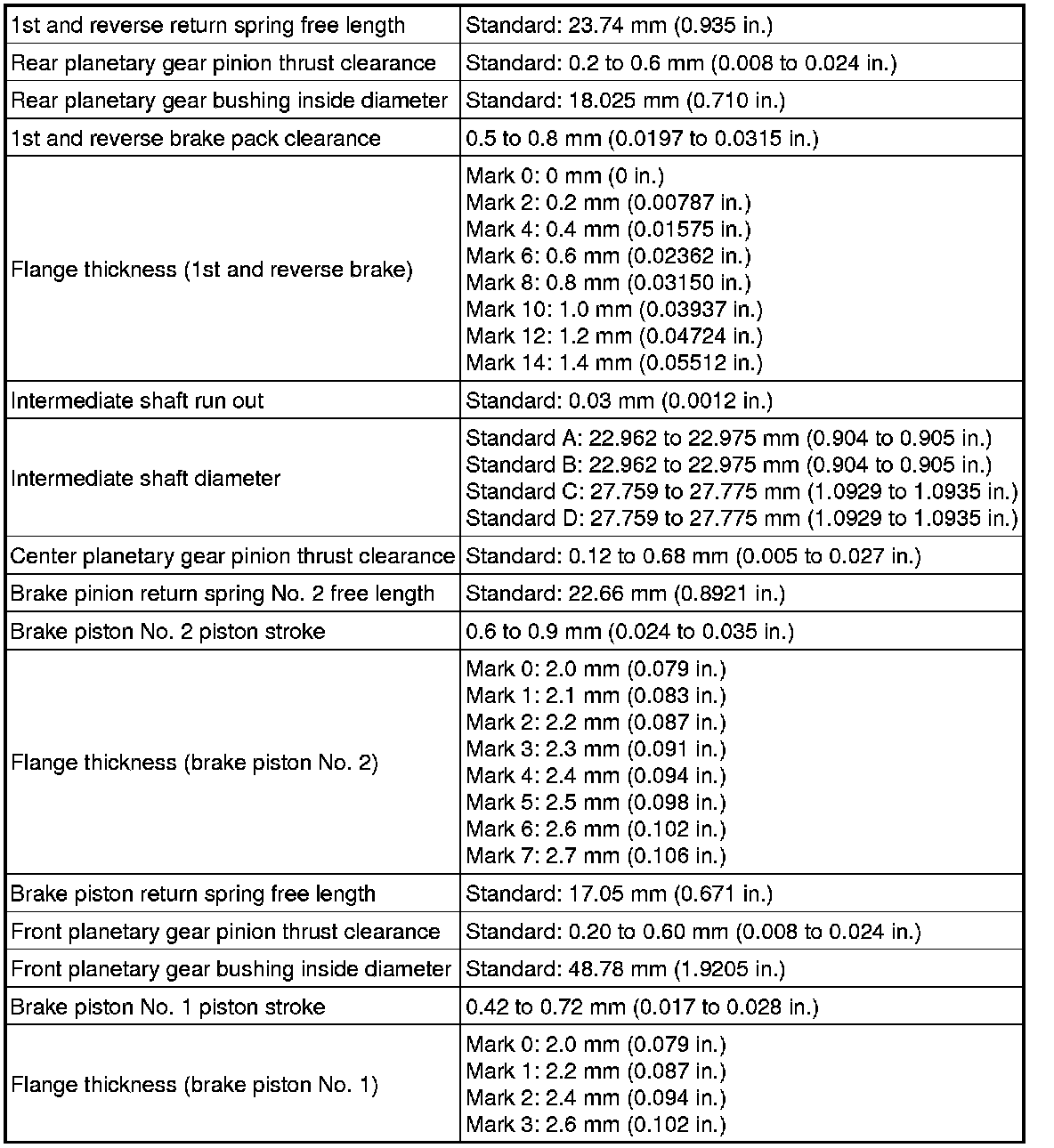

AUTOMATIC TRANSMISSION UNIT::

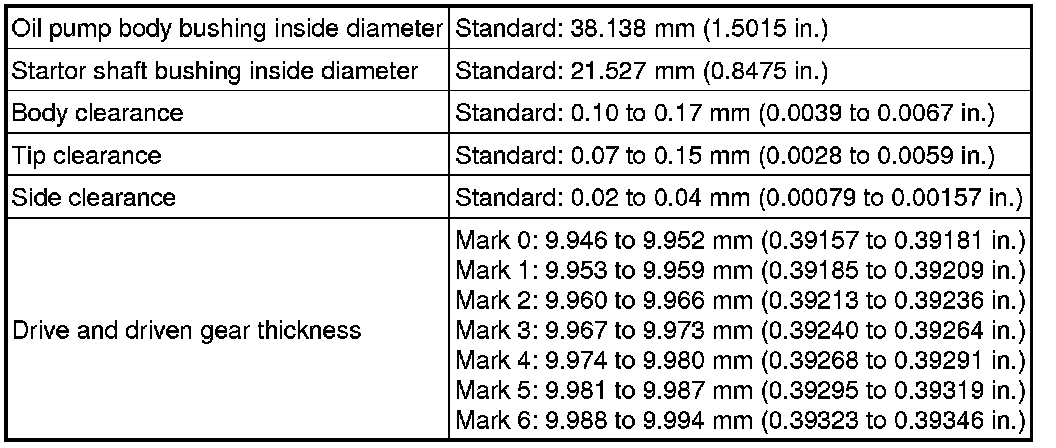

OIL PUMP::
CLUTCH DRUM AND INPUT SHAFT::

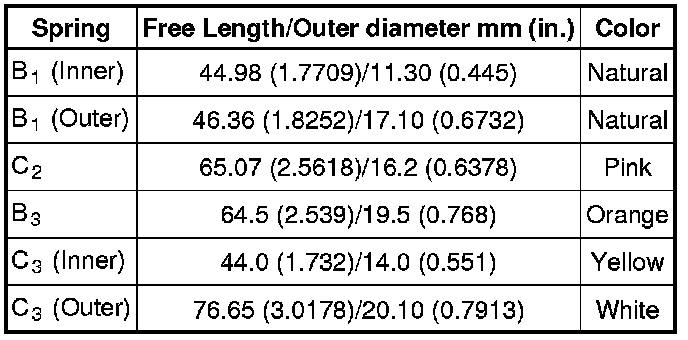

ACCUMULATOR::
OUTPUT SHAFT BEARING::
