Remote Control Mirror [w/o Seat Position Memory]

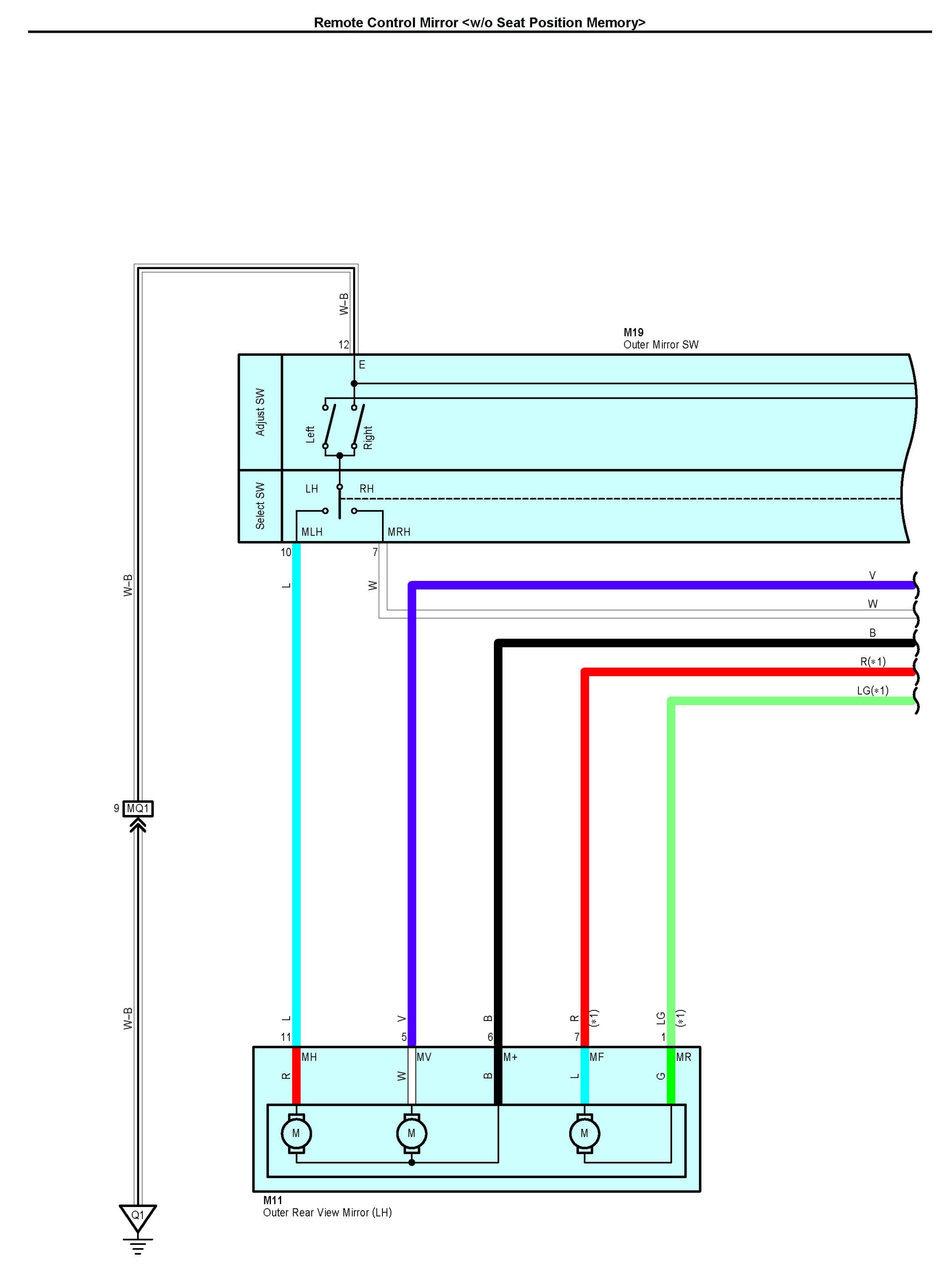

Remote Control Mirror [w/o Seat Position Memory] Part 1:

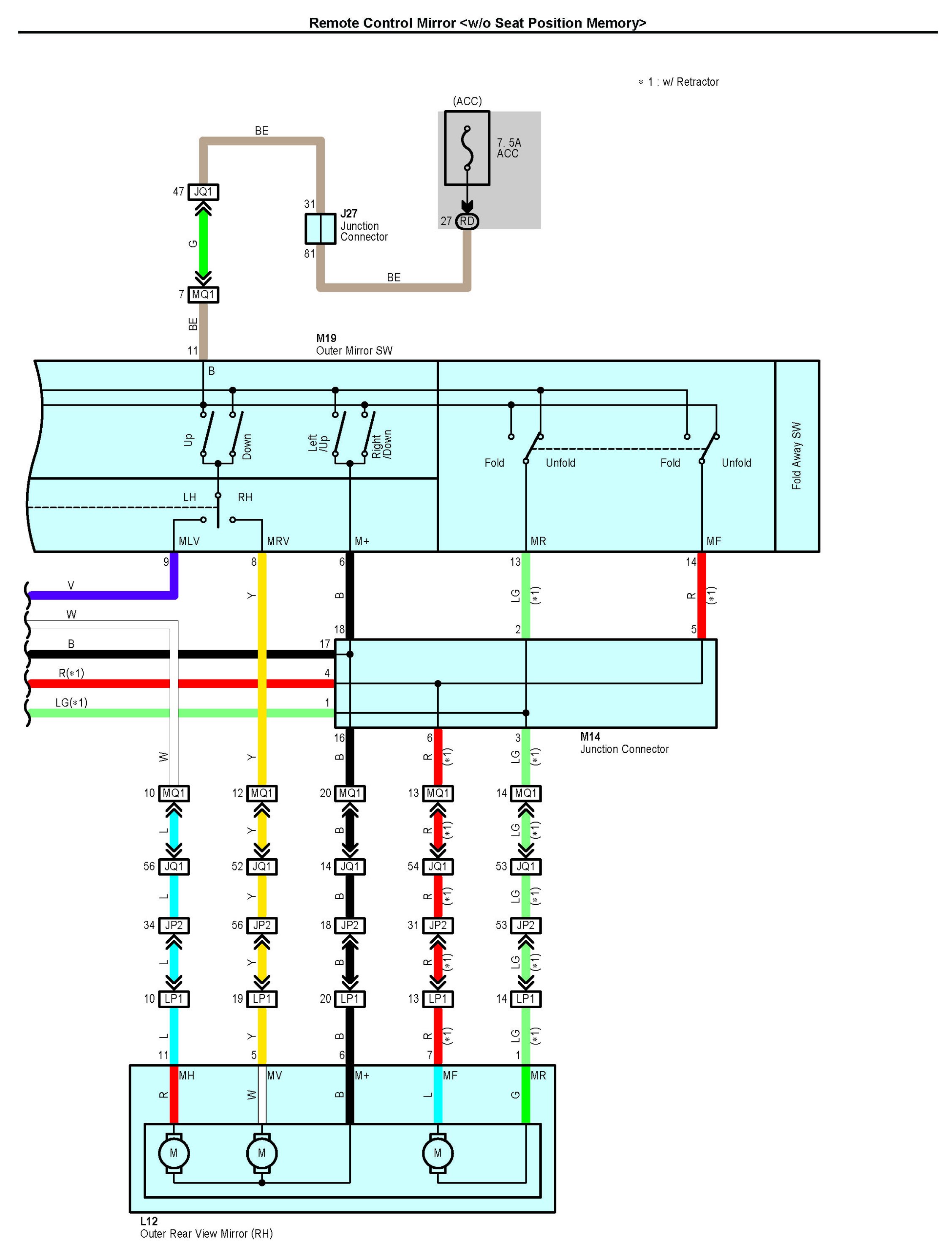

Remote Control Mirror [w/o Seat Position Memory] Part 2:

Connectors Part 1:

Connectors Part 2:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
