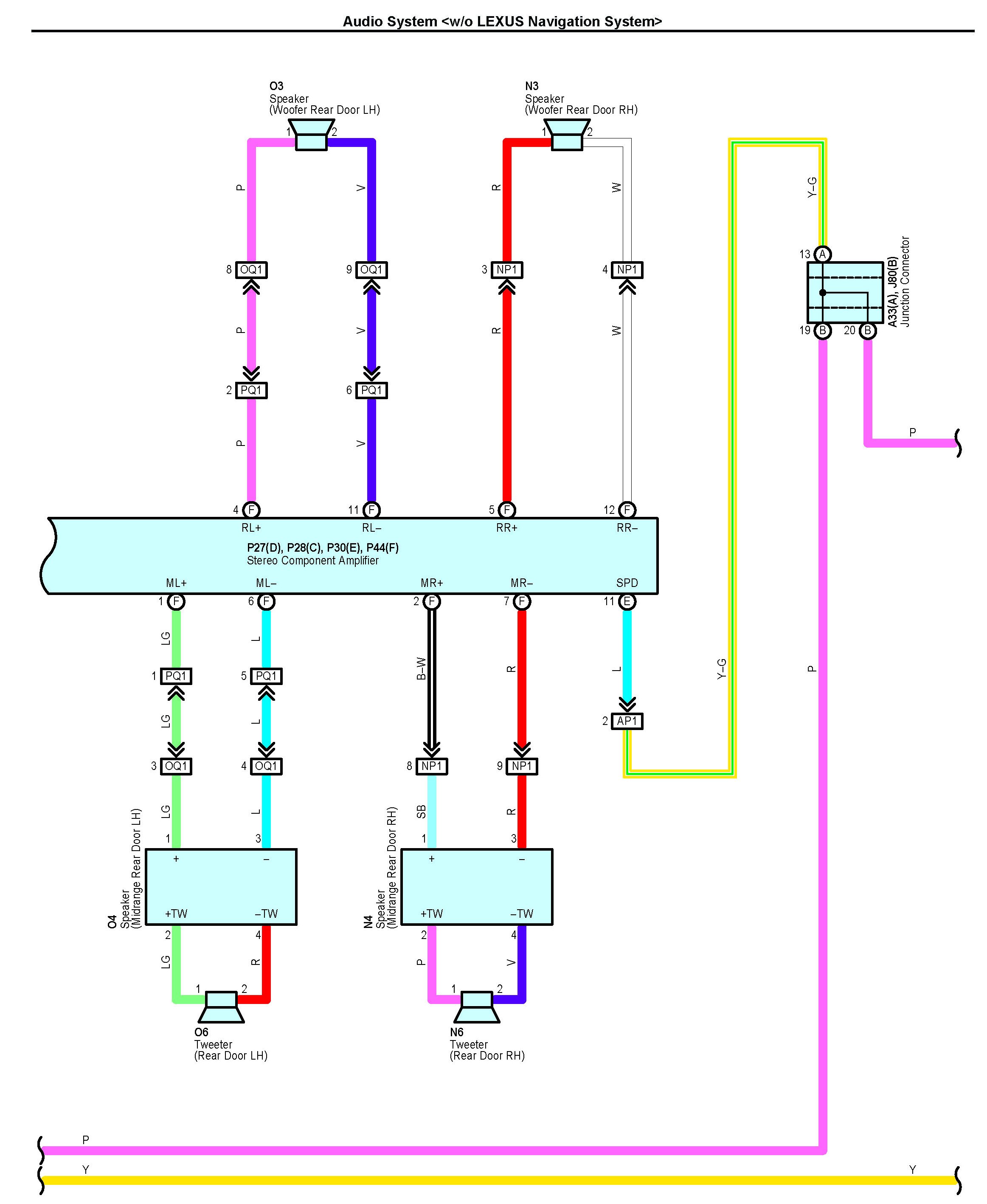

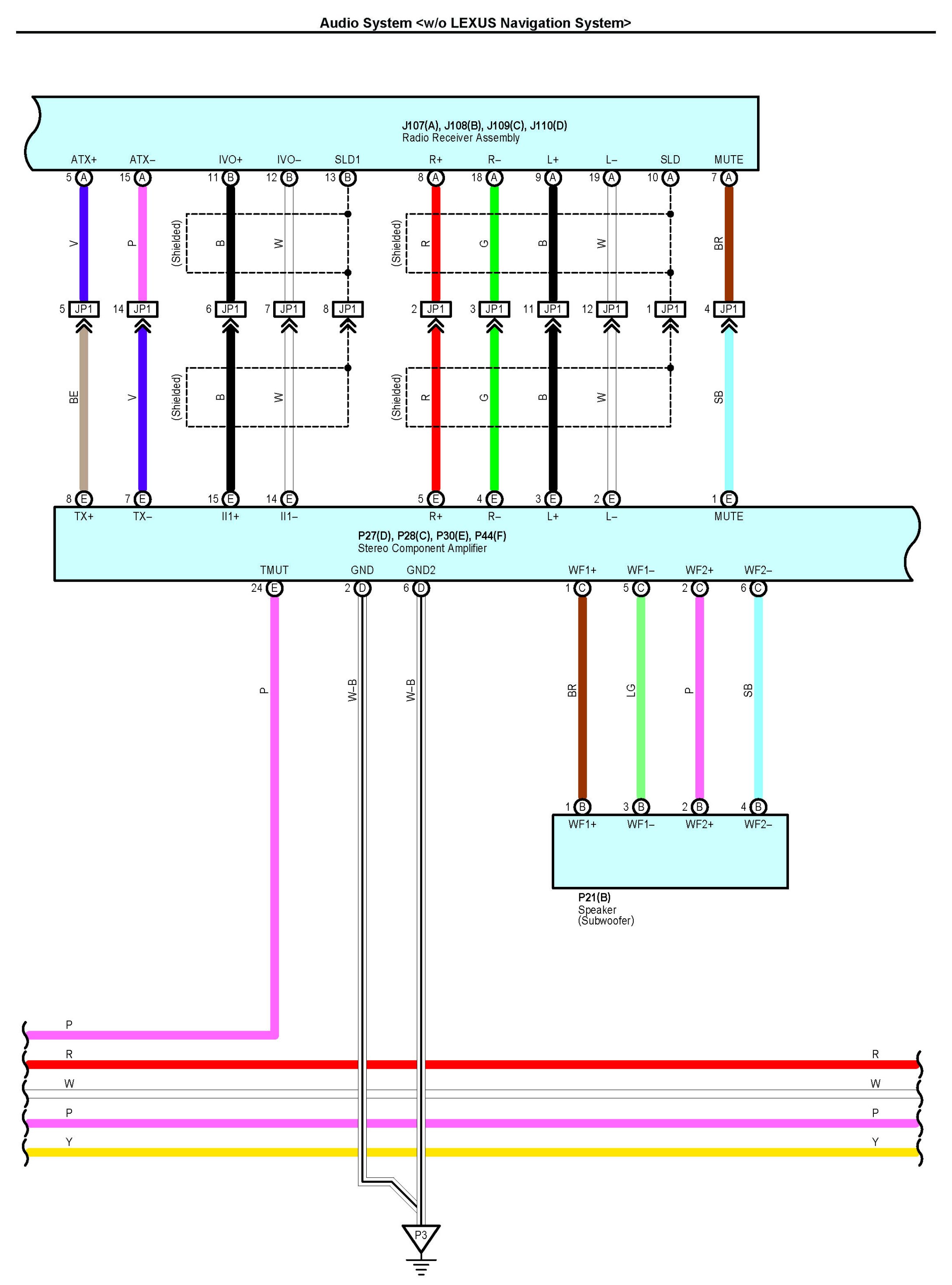

Audio System [w/o LEXUS Navigation System]

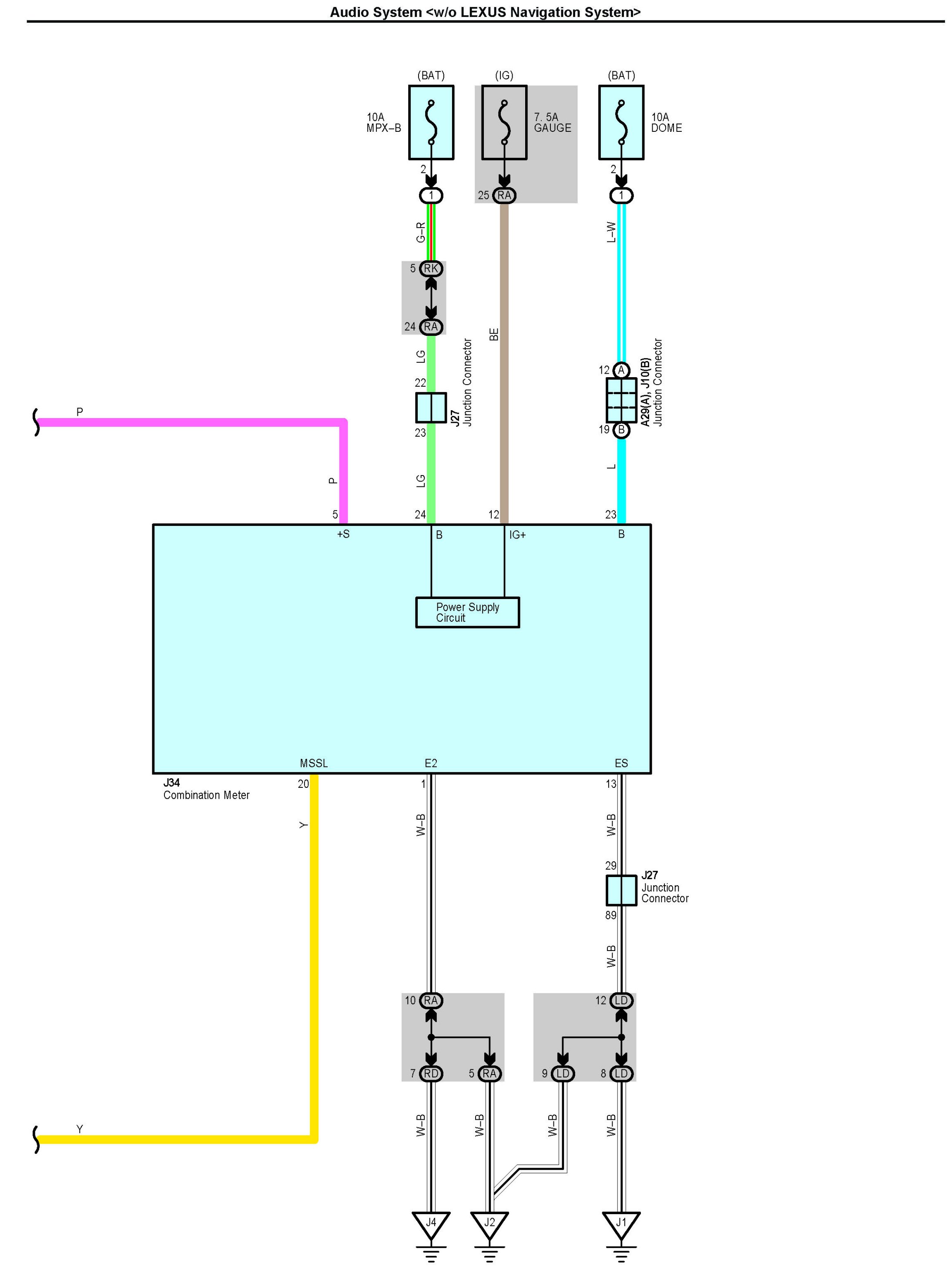

Audio System [w/o LEXUS Navigation System] Part 1:

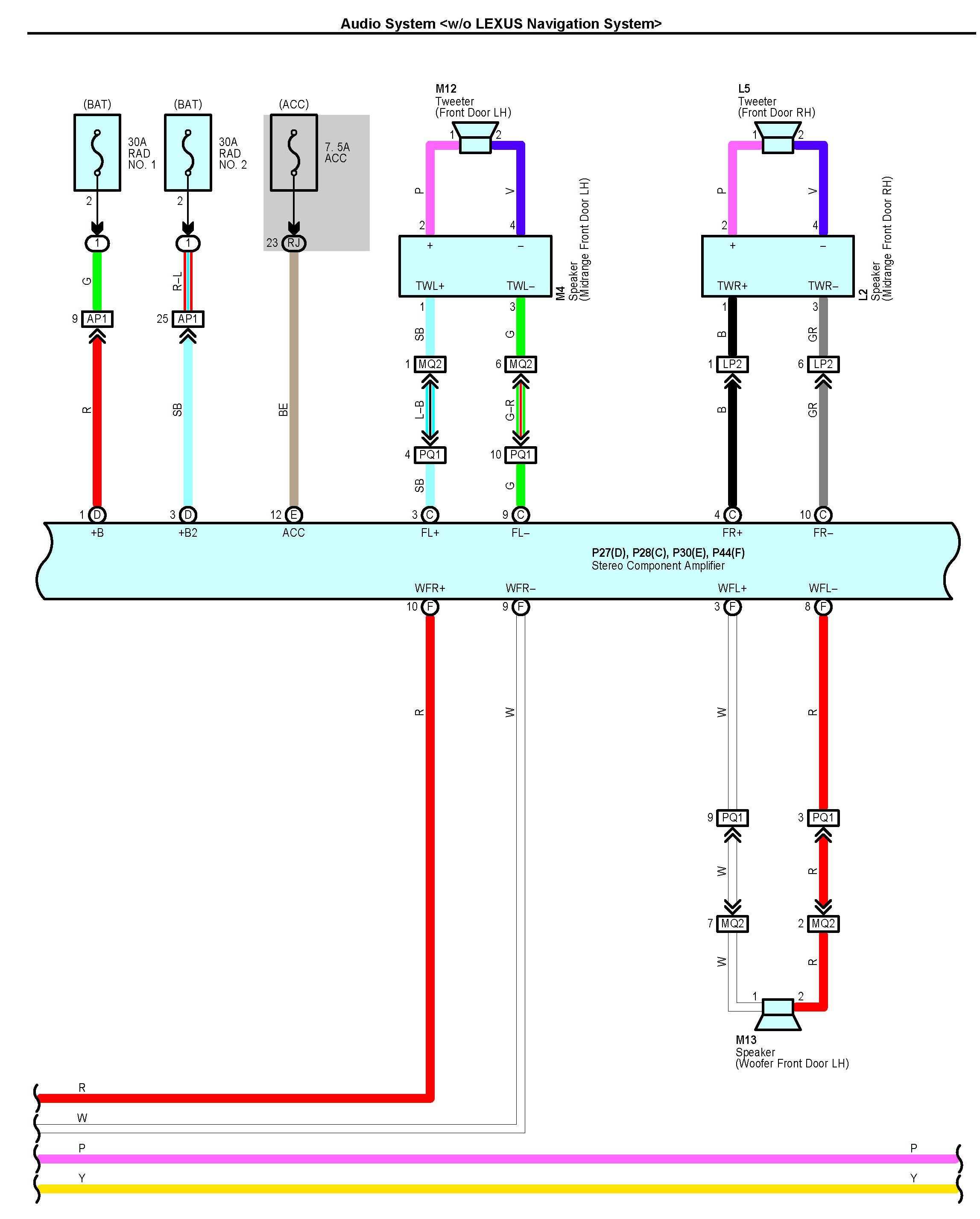

Audio System [w/o LEXUS Navigation System] Part 2:

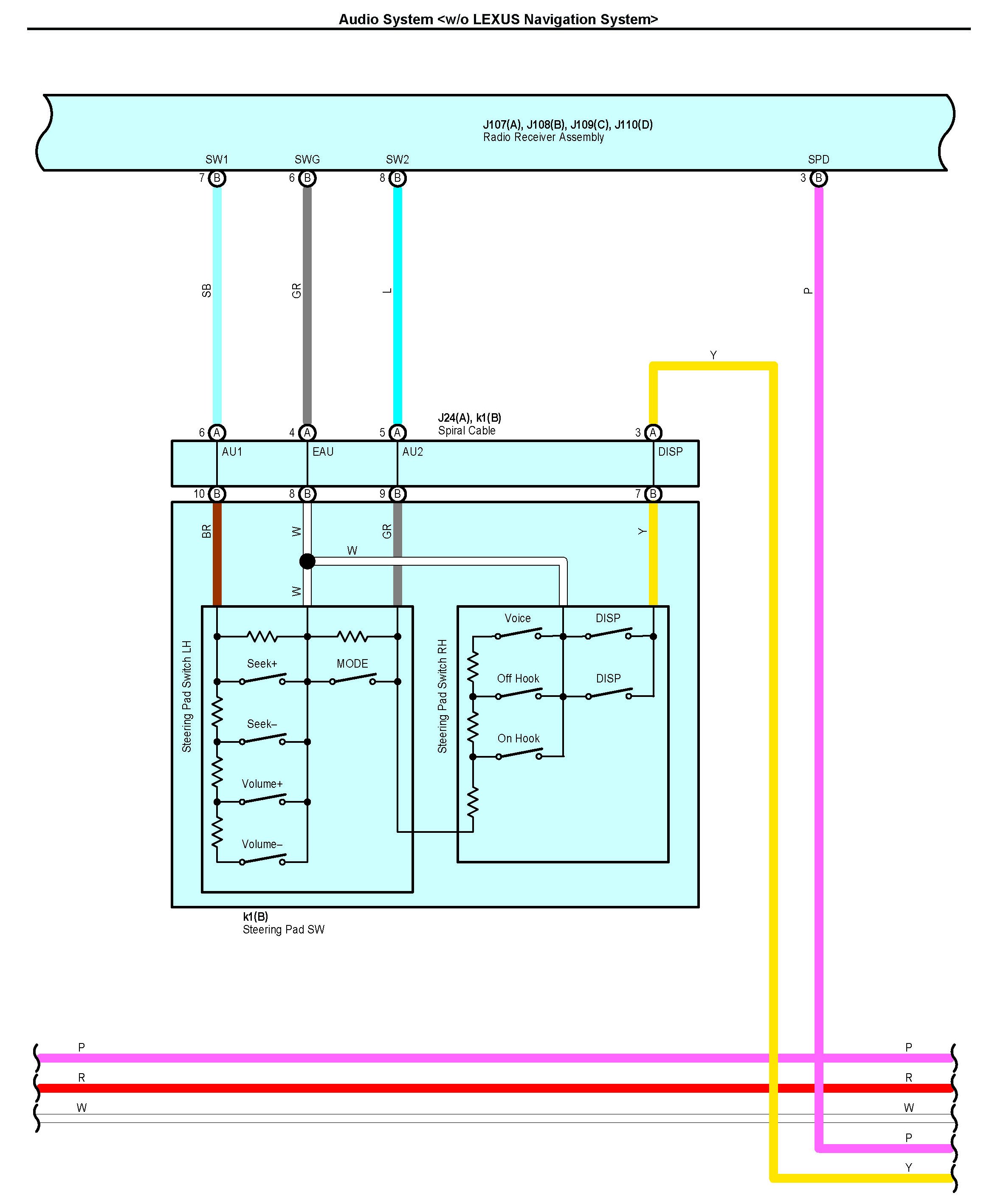

Audio System [w/o LEXUS Navigation System] Part 3:

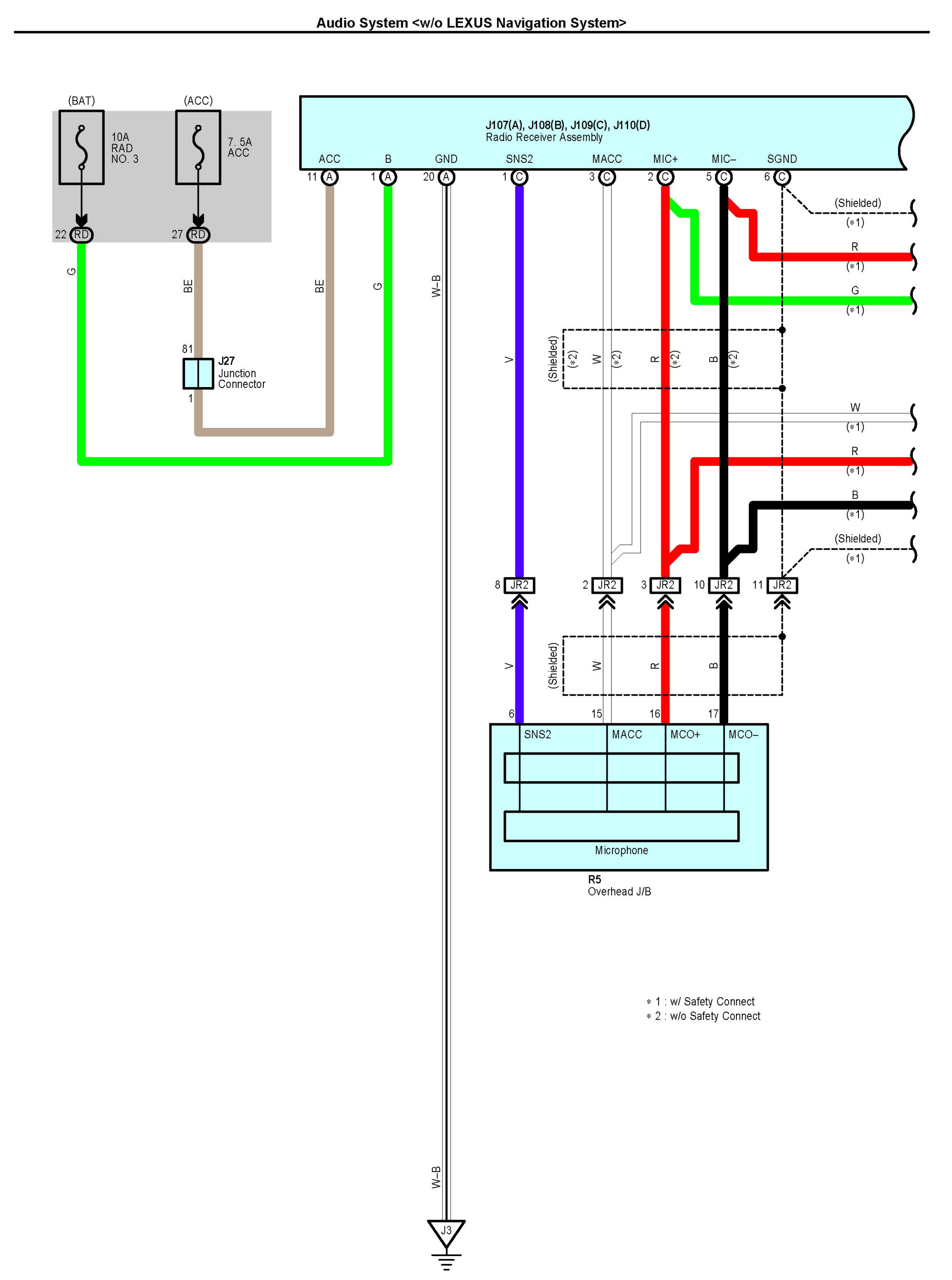

Audio System [w/o LEXUS Navigation System] Part 4:

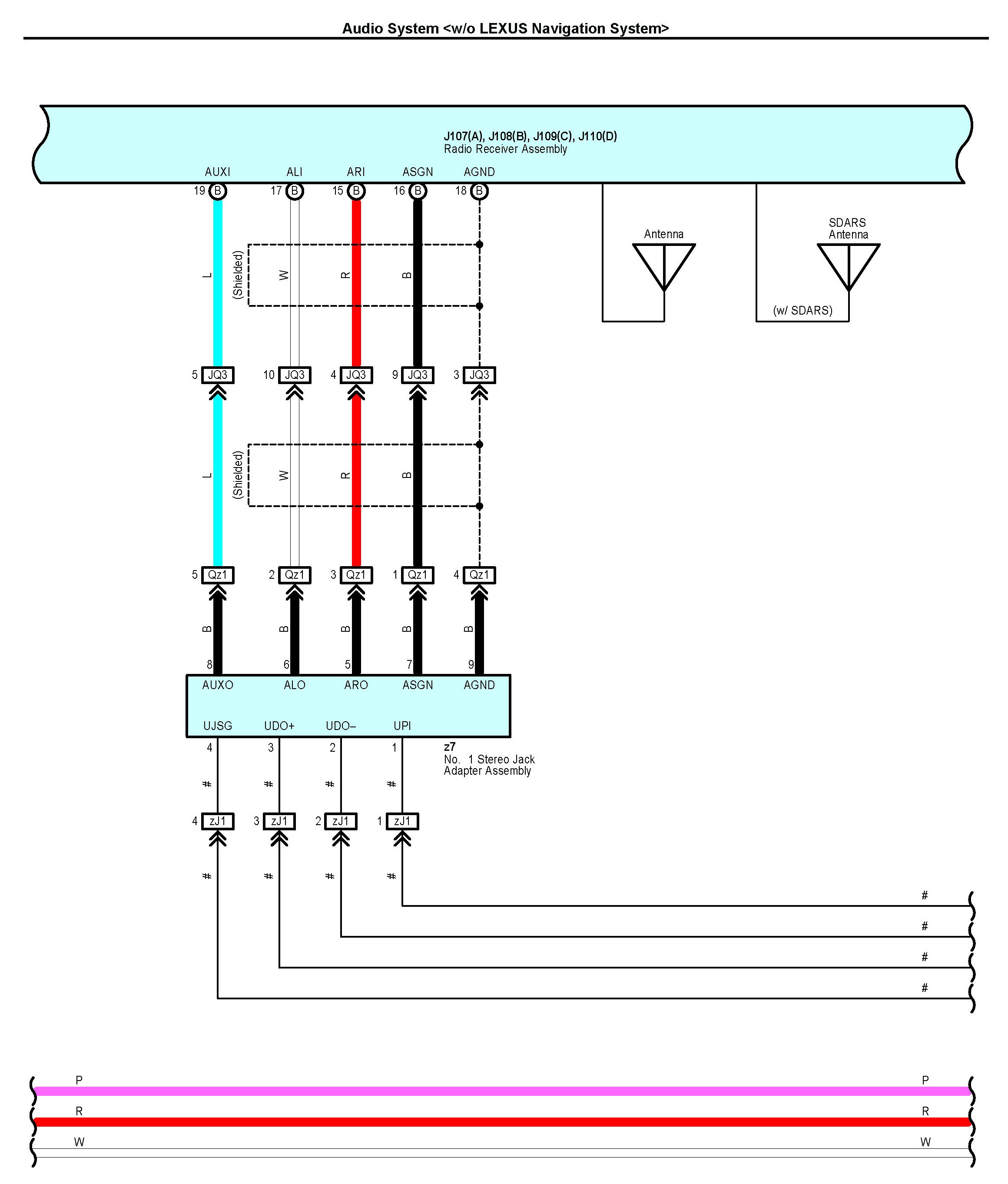

Audio System [w/o LEXUS Navigation System] Part 5:




Audio System [w/o LEXUS Navigation System] Part 6:




Audio System [w/o LEXUS Navigation System] Part 7:




Audio System [w/o LEXUS Navigation System] Part 8:




Audio System [w/o LEXUS Navigation System] Part 9:

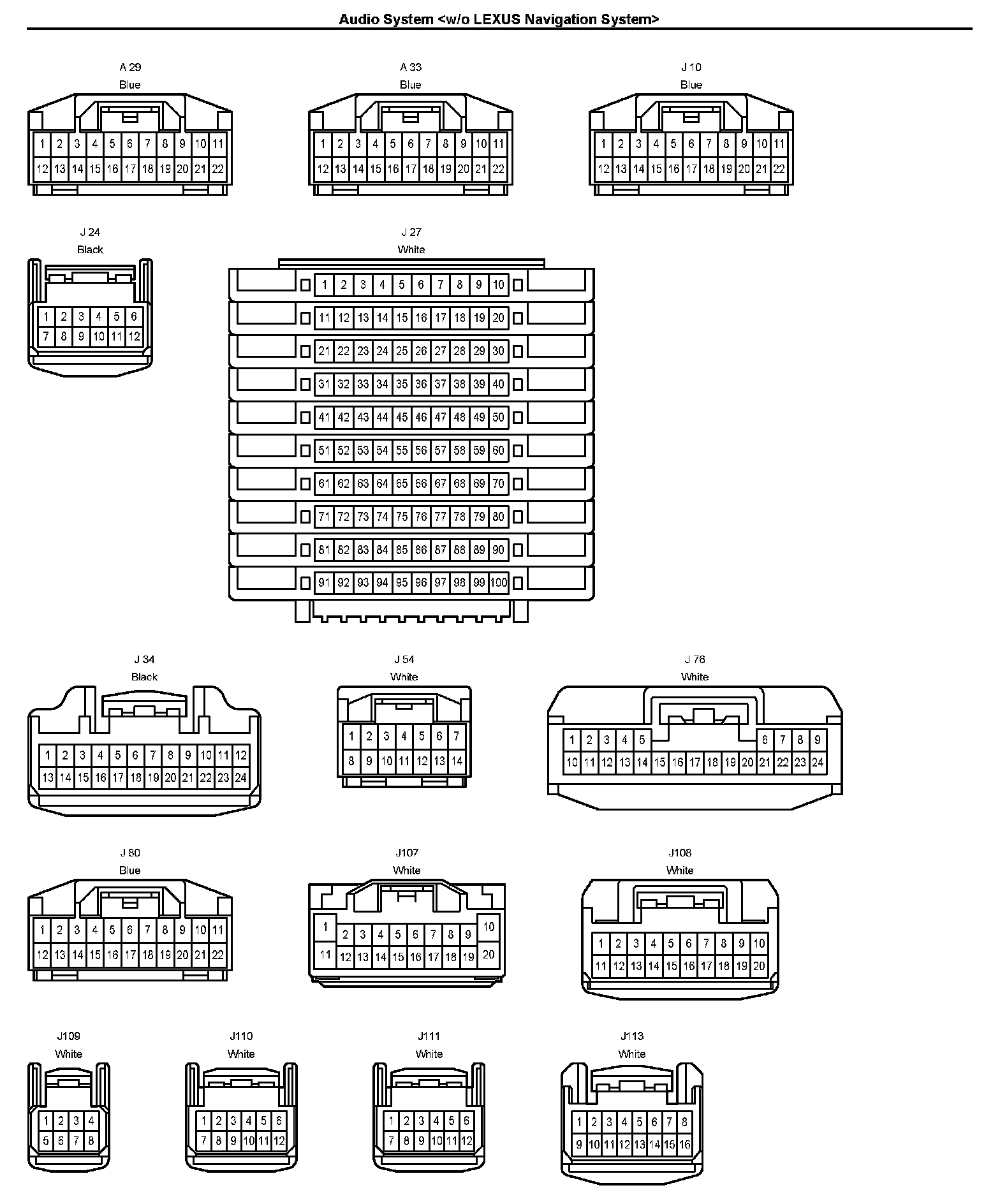

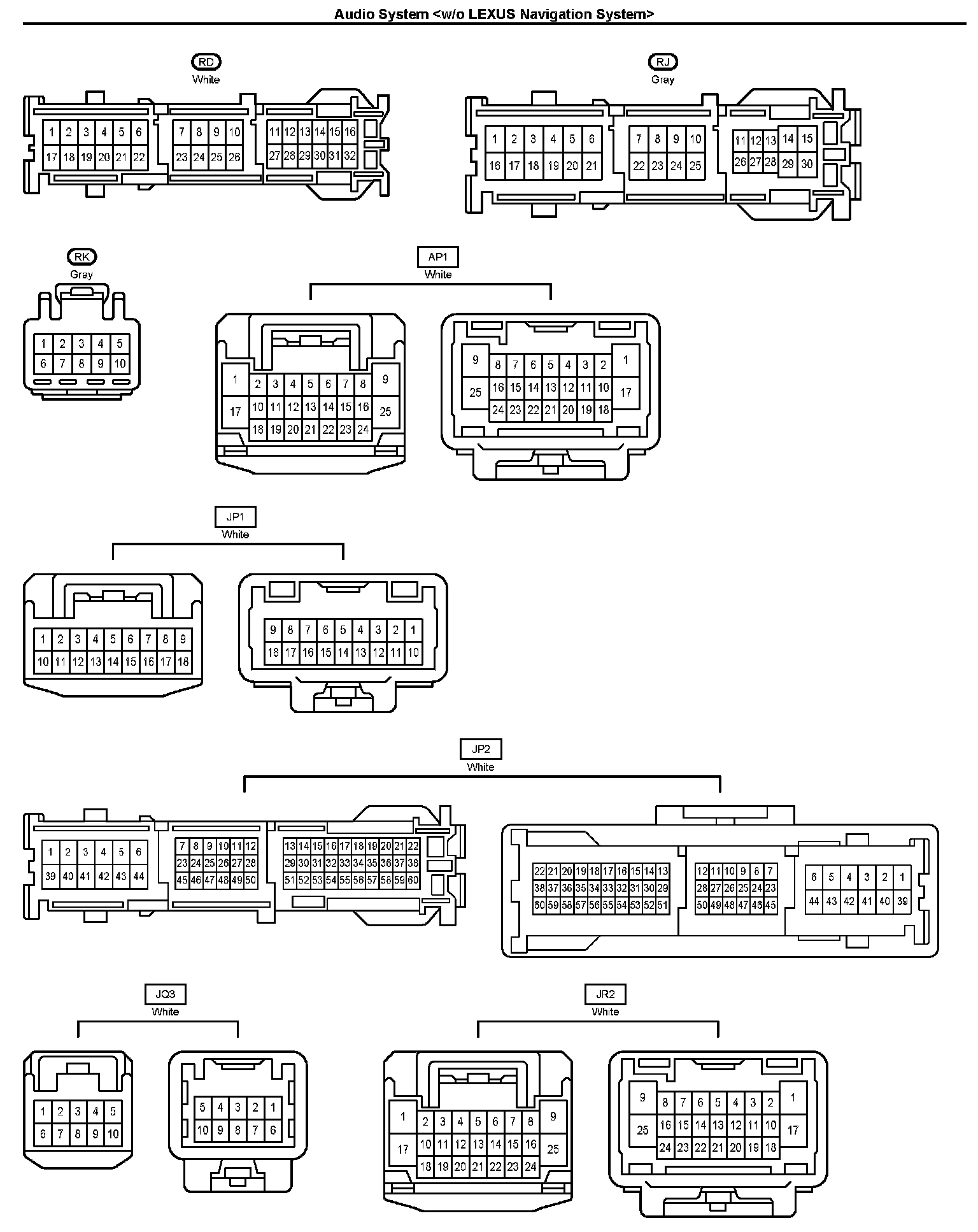

Connectors Part 1:

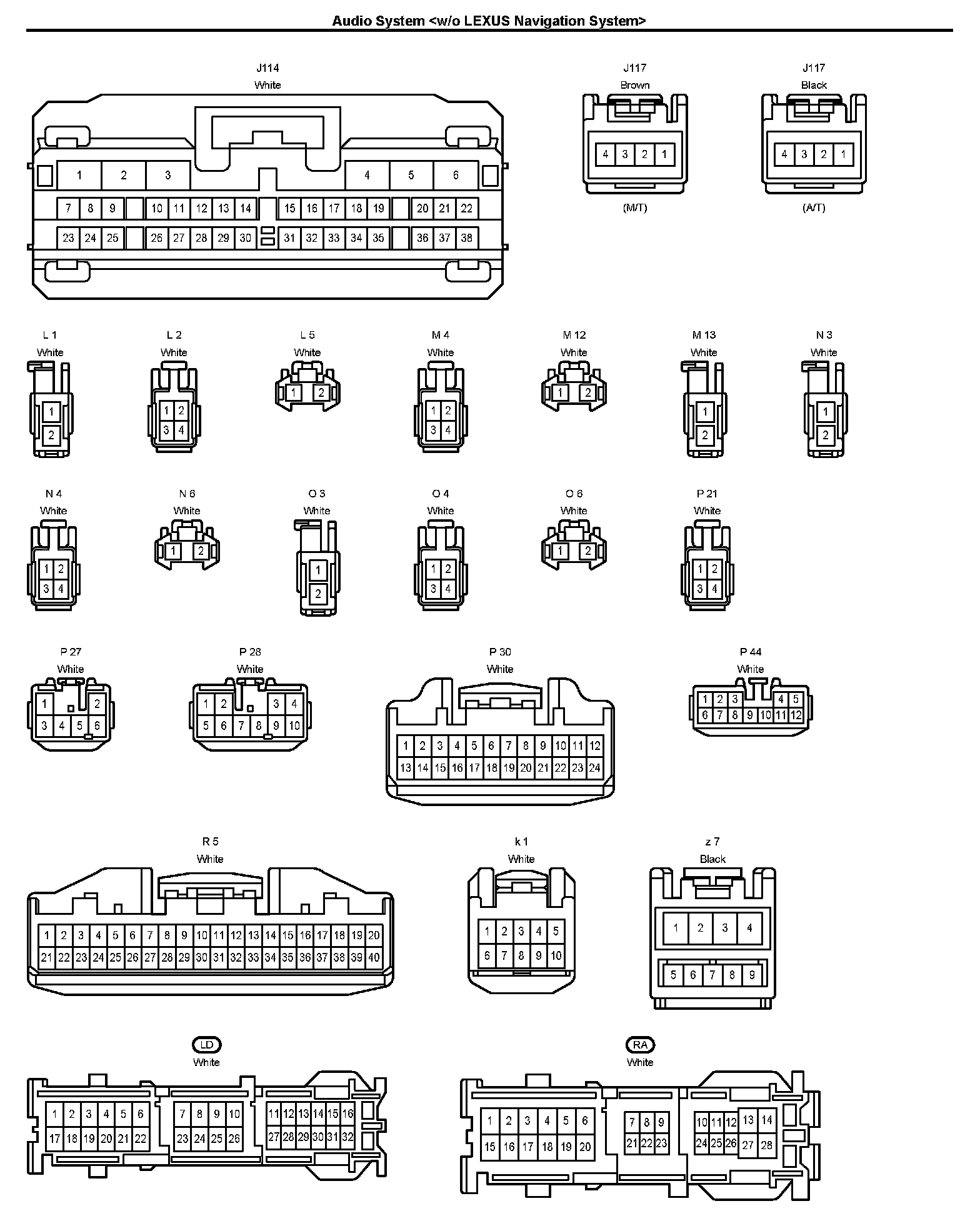

Connectors Part 2:

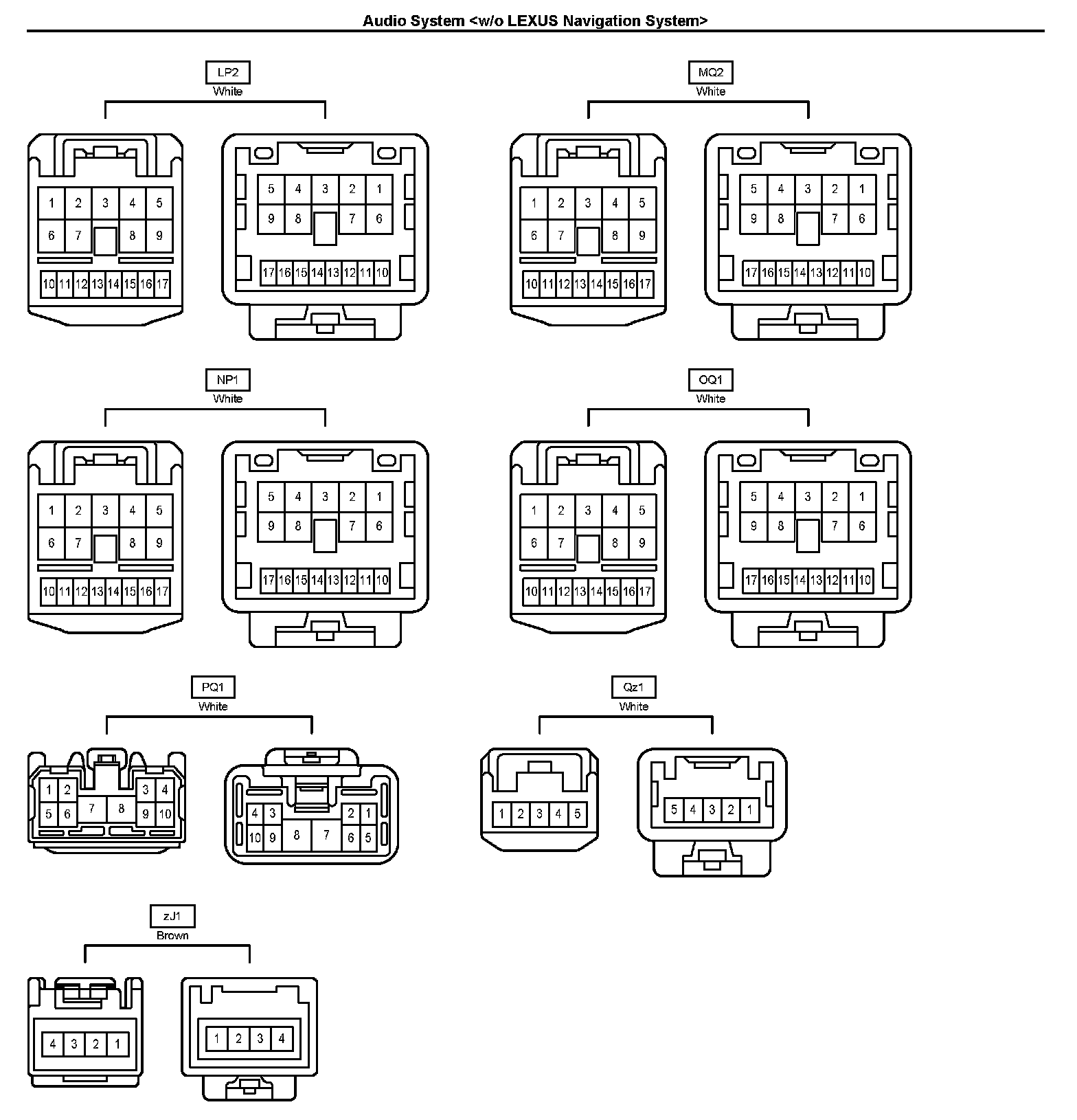

Connectors Part 3:




Connectors Part 4:






Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
