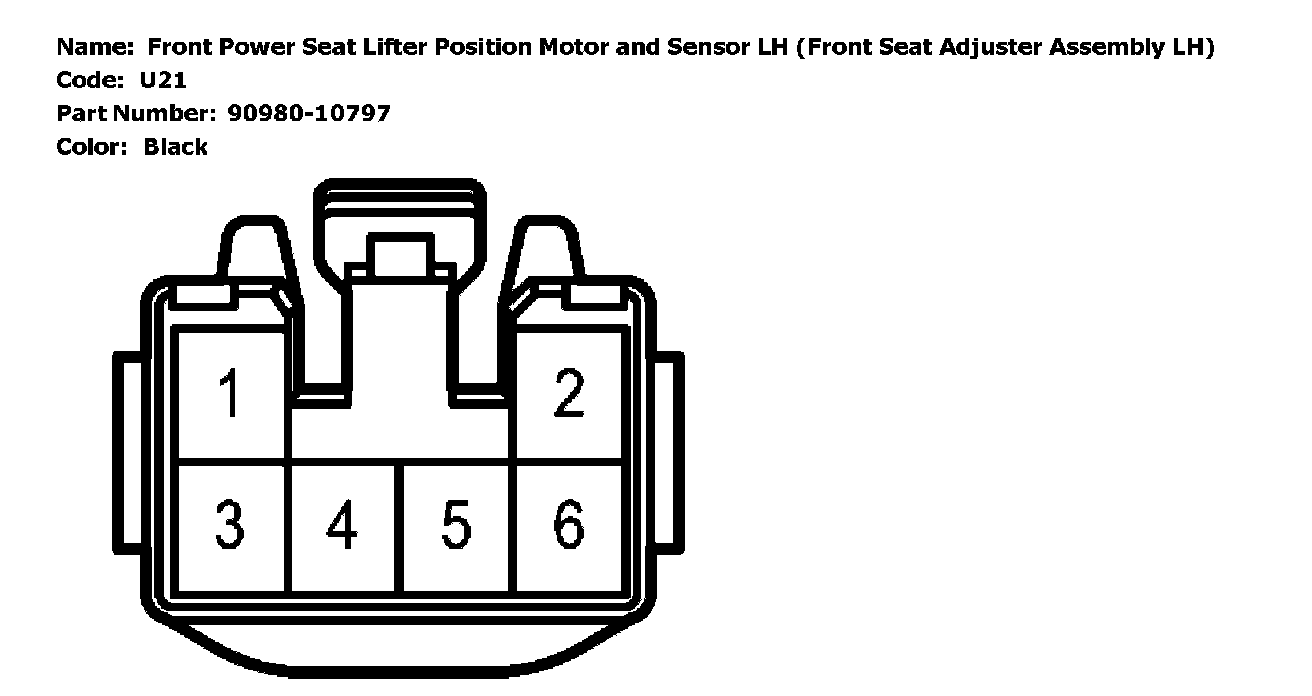

U21 (Front Power Seat Lifter Position Motor and Sensor LH (Front Seat Adjuster Assembly LH))
U21 (Front Power Seat Lifter Position Motor and Sensor LH (Front Seat Adjuster Assembly LH))
