Pinout Values and Diagnostic Parameters

SUPPLEMENTAL RESTRAINT SYSTEMS: AIRBAG SYSTEM: TERMINALS OF ECU

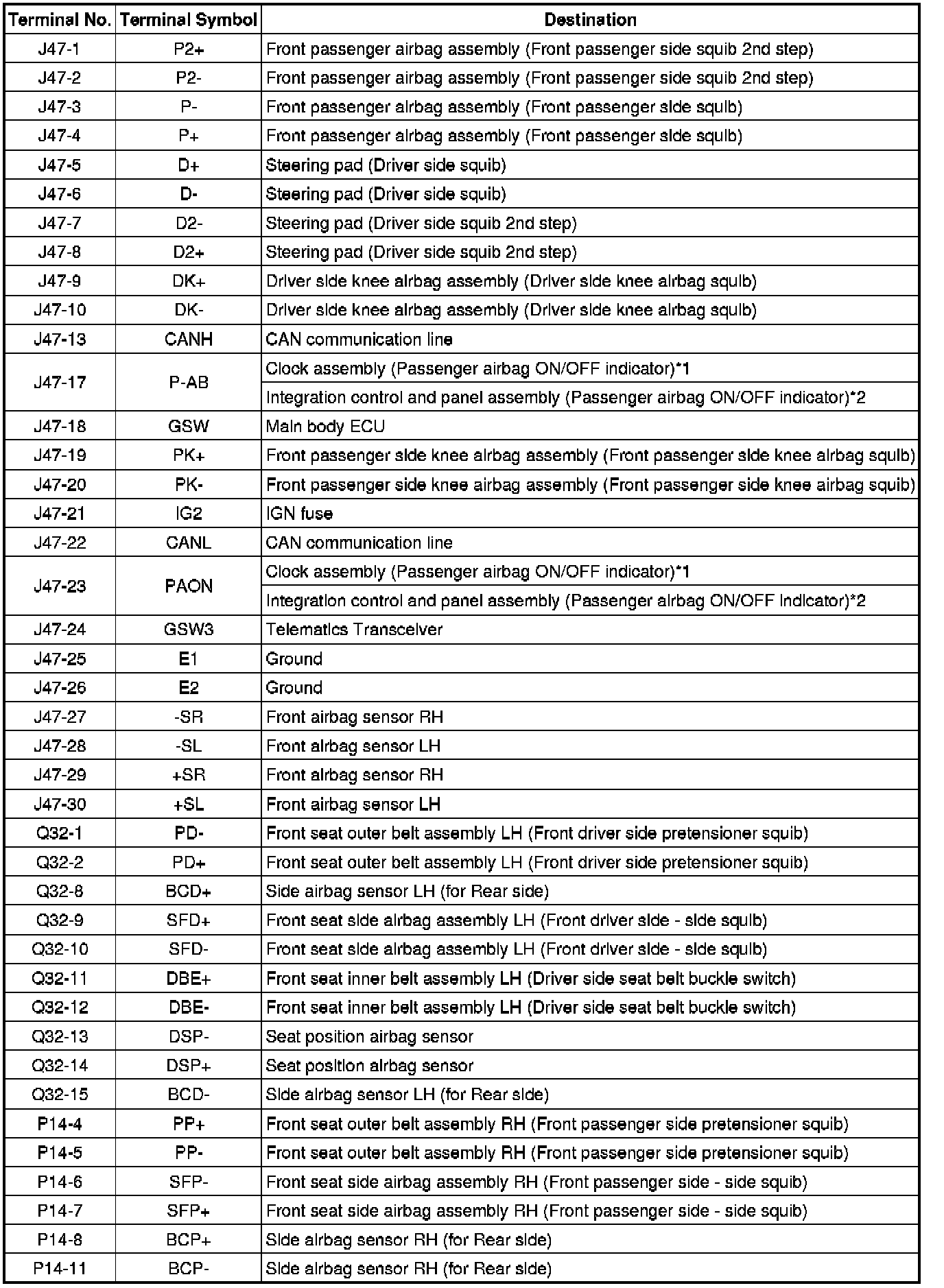

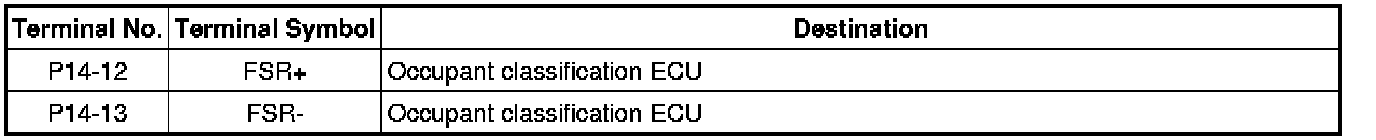

1. CENTER AIRBAG SENSOR ASSEMBLY













* *1: W/ Navigation system

* *2: W/O Navigation system
