Fail-Safe Chart
NETWORKING: CAN COMMUNICATION SYSTEM: FAIL-SAFE CHART 1.
FAIL-SAFE FUNCTION
(a)
When communication fails in any of the CAN bus lines (communication lines), a fail-safe function(s) will operate. The fail-safe function that is specified for each system operates to prevent those systems from malfunctioning.
(b)

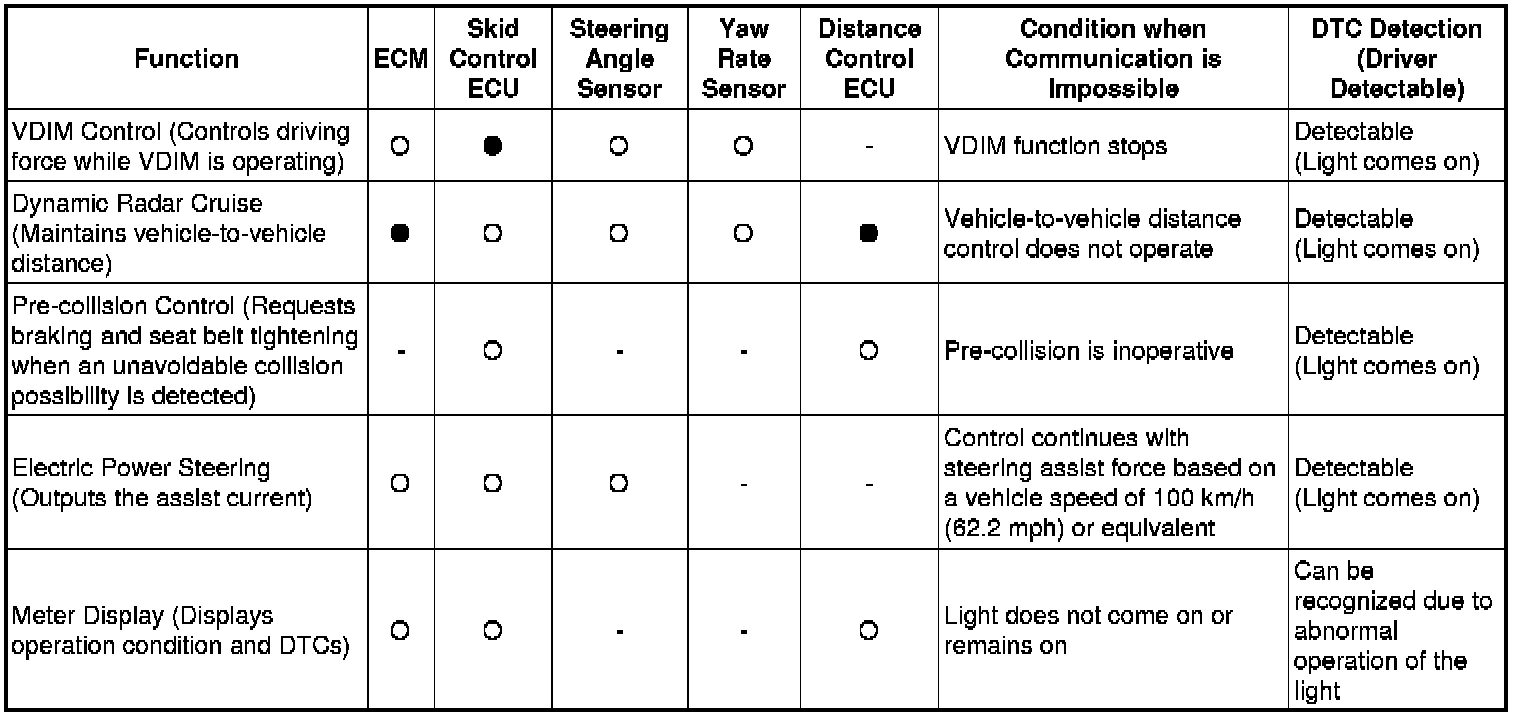

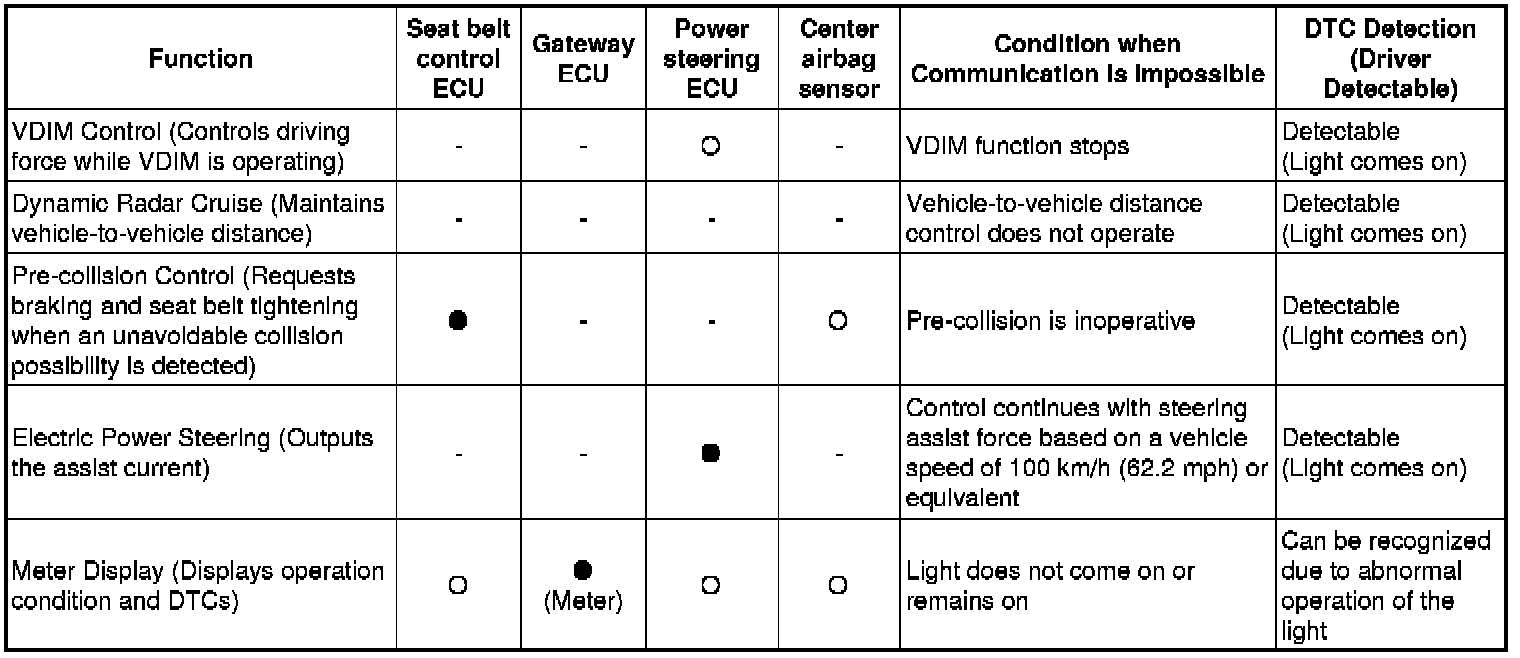

Effects on each system when communication is impossible.
HINT * ^: Control master * o: System related
